Dahua - X52B3A8 - 16CH Analytics+ Penta-brid XVR H.265 5M-N 1U 2 SATA Bays, 8TB
Part number:
X52B3A8
Price:
The X52B Series HDCVI DVR offers high-definition recording on each HDCVI channel and a host of advanced features and functions. The X52B takes advantage of HDCVI technology for easy integration into existing video surveillance systems while leveraging existing networks, cabling, and cameras. Penta-brid access technology seamlessly records video from HDCVI, AHD, TVI, CVBS, and IP sources simultaneously. This recorder is the ideal solution for actively monitoring retail stores, personal property and homes.
Features :
- 5M-N/1080p Recording Resolution on All HDCVI Channels
- Available with a 4 TB, 6 TB, 8 TB, or 10 TB Pre-installed Hard Drive
- Dual-stream Video Recording
- AI Coding Technology for High-quality Human/Vehicle Video
- Auto-detection and Auto-configuration of Video Inputs
- 16 + 8 IP Camera Channels, each channel up to 6 MP
- Maximum 128 Mbps Incoming Bandwidth
- Perimeter Protection and Smart Motion Detection (SMD)
- Long-distance Video Transmission
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Analytics+ Perimeter Protection¹ | |
| Performance | • Human and Vehicle object classification • Decreased false alarms from leaves, lights, animals • Configure function on 6 channels • 10 Tripwire/Intrusion rules per channel |
| Object Classification | • Human or Vehicle • Secondary Recognition for Tripwire and Intrusion |
| Search | • Search by object classification (human or vehicle) |
| Analytics+ Smart Motion Detection¹ | |
| Performance | • Detect motion based on object classification (human or vehicle) • Decreased false alarms from leaves, lights, animals • Configure functions on 16 channels |
| Search | • Search by target classification |

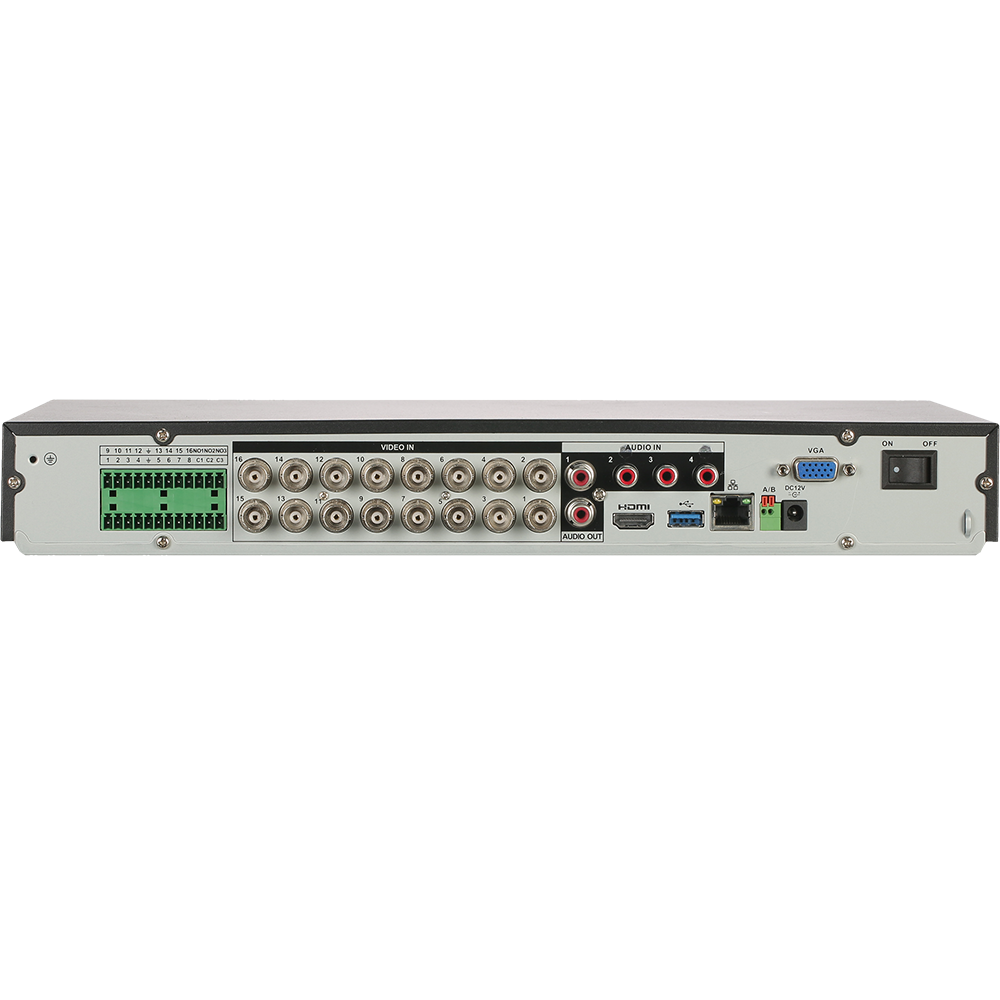

| Interface | |
| Analog Camera Input | 16 Channels, BNC |
| HDCVI | 5 MP, 4 MP, 1080p, 720p |
| AHD | 5 MP, 4 MP, 3 MP, 1080, 720p |
| TVI | 5 MP, 4 MP, 3 MP, 1080, 720p |
| CVBS | NTSC |
| IP Camera Input | 16+8 Channels, each channel up to 6 MP (The recording rate is dependent on the maximum resolution and frame rate of the connected IP camera.) |
| Audio | Input: Four (4) Channels, RCA Output: One (1) Channel, RCA |
| Two-way Talk | Audio Input Channel 1 In/ Audio Output, RCA |
| Display | |
| Interface | One (1) HDMI (3840 x 2160) One (1) VGA (1920 x 1080) One (1) TV port, BNC |
| Native Output Resolution | 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Maximum Playback Decoding | 16 Channels of 4 M-N at 15 fps 16 Channels of 1080p at 15 fps Eight (8) Channels of 1080p at 30 fps Four (4) Channels of 4 M-N at 30 fps |
| Multi-screen Display | IP extension mode disabled: 1/4/8/9 IP extension mode enabled: 1/4/8/9/16 |
| On-screen Display | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording |
| Network | |
| Interface | Two (2) RJ-45 (1000 Mbps) Ports |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS) |
| Maximum User Access | 128 Users |
| Mobile Operating System I | IOS, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering, and Diagnosis |
| Alarm Input | 16 Channels |
| Relay Output | Three (3) Channels |
| Playback and Backup | |
| Playback | 1/4/9/16 |
| Search Mode | Time/Date, Alarm, MD and Exact Search (accurate to 1 second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | Two (2) SATA Ports, up to 10 TB capacity for each disk |
| Auxiliary Interface | |
| USB | One (1) USB 2.0 Port and One (1) USB 3.0 Port |
| RS485 | One (1) Port for PTZ Control |
| Electrical | |
| Power Supply | 12 VDC, 4 A |
| Power Consumption | < 12 W, without HDD |
| Construction | |
| Dimensions | 1U, 375.0 mm x 278.40 mm x 53.0 mm (14.76 in. x 10.96 in. x 2.09 in.) |
| Net Weight | 1.80 kg (4.0 lb) |
| Gross Weight | 3.10 kg (6.80 lb) |
| Installation | Desktop or rack-mount |
| Video Transmission Distance | |
| RG-59/U Coax | 720p: 800 m (2624.67 ft) 1080p: 500 m (1640.42 ft) 4K/4MP: 500 m (1640.42 ft) |
| RG-6/U Coax | 720p: 1200 m (3937.01 ft) 1080p: 800 m (2624.67 ft) 4K/4MP: 700 m (2296.59 ft) |
| CAT 6 UTP (balun required) | 720p: 450 m (1476.38 ft) 1080p: 300 m (984.25 ft) 4K/4MP: 300 m (984.25 ft) |
| Environmental | |
| Operating Conditions | –10° C to +55° C (+14° F to +131° F), 0% to 90% RH |
| Storage Conditions | –20° C to +70° C (–4°F to +158° F), 0% to 90% RH |
| Third-party Support | |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others |
| Certifications | |
| Safety | EN 60950-1 IEC 60950-1 |
| Electromagnetic Compatibility (EMC) | CFR 47 FCC Part 15 Subpart B EN 61000-3-2 EN 61000-3-3 EN 55032 EN 50130 EN 55024 |
