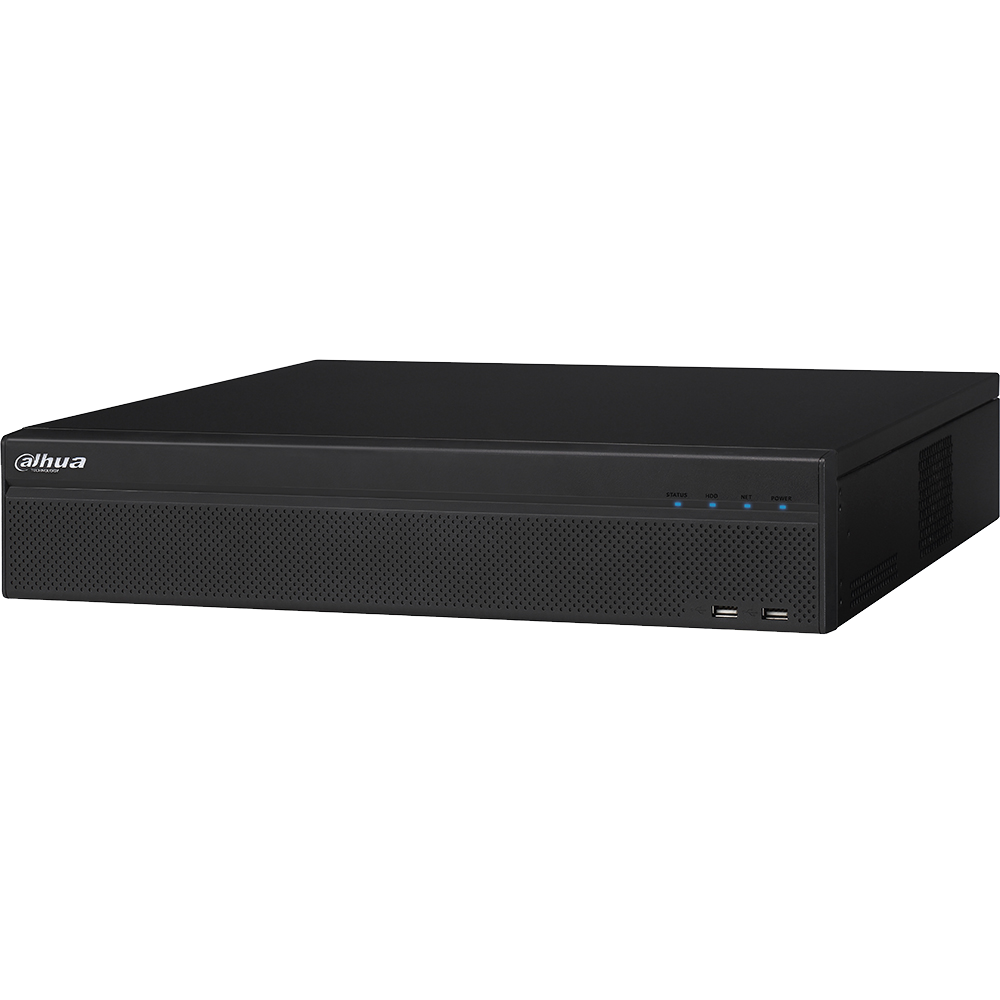

The X58A Series HDCVI DVR offers 1080p recording on each HDCVI channel and a host of advanced features and functions. The X58A takes advantage of HDCVI Penta-brid technology for easy integration into existing video surveillance systems while leveraging existing networks, cabling, and cameras. Penta-brid access technology seamlessly records video from HDCVI, AHD, TVI, CVBS, and IP sources simultaneously.
The X58A utilizes the Smart H.265+ Codec to significantly improve encoding efficiency and to reduce bandwidth and storage costs. This recorder is the ideal solution for actively monitoring and recording video feeds in a wide range of applications including public venues, retail stores, transportation hubs and access ways, personal property and homes, and educational institutions.
Features:
- Embedded Processor
- Smart H.265+ and Smart H.264+ Dual Codec
- Dual-stream Recording
- 5 M-N (1296 x 1944) at 20 fps Maximum Recording Resolution
- 32 HDCVI, AHD, TVI, CVBS or IP Channels
- Up to 8 MP per IP Channel
- 128 Mbps Incoming Bandwidth
- Built-in Smart Search
- Spot Output on HDMI 2 Output
- Intelligent Video System
- Eight (8) SATA HDD Ports, up to 10 TB per Hard Disk Drive
- Five-year Warranty (for products sold through an authorized Dahua dealer)
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Interface |
| Analog Camera Input | 32 Channels, BNC |
| Preview Ability¹ | Channels 1 and 2: • 5 M-N (1296 x 1944) at 20 fps or • 4 M-N (1280 x 1440) at 30 fps Channels 3 to 32: • 4 M-N (1280 x 1440) at 30 fps |
| HDCVI | 5 MP, 4 MP, 1080p at 30 fps; 720p at 60 fps |
| AHD | 5 MP, 4 MP, 1080p at 30 fps; 720p at 30 fps |
| TVI | 5 MP, 4 MP, 1080p at 30 fps; 720p at 30 fps |
| CVBS | NTSC |
| IP Camera Input | 32 Channels, each channel up to 8 MP |
| Audio | Input: 16 Channels, BNC Output: One (1) Channel, BNC |
| Two-way Talk | Input: One (1) Microphone, BNC Output: One (1) Speaker, BNC |
