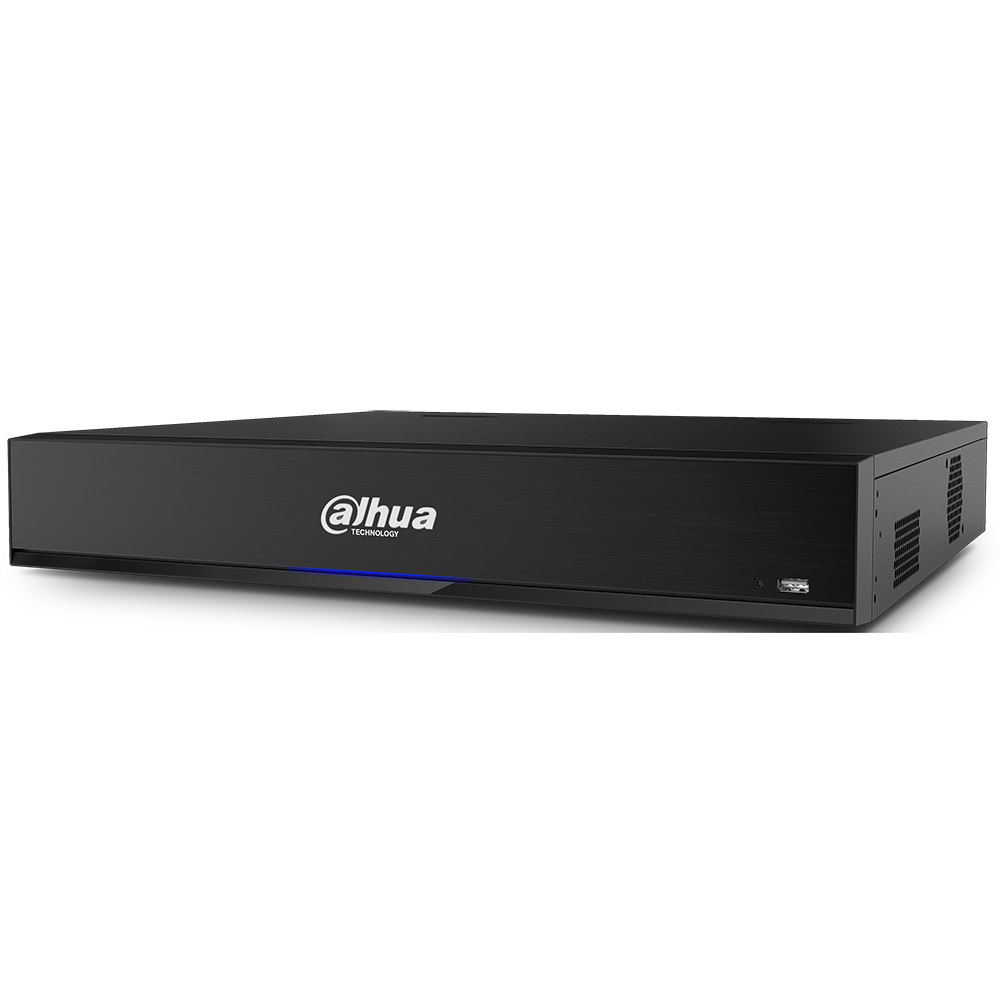

The X74A Series HDCVI DVR offers 4K recording on each HDCVI channel and a host of advanced features and functions. The X74A takes advantage of HDCVI technology for easy integration into existing video surveillance systems while leveraging existing networks, cabling, and cameras. Penta-brid access technology seamlessly records video from HDCVI, AHD, TVI, CVBS, and IP sources simultaneously at 4K resolution on each channel.
The X72A utilizes the Smart H.265+ Codec to significantly improve encoding efficiency and to reduce bandwidth and storage costs. In addition to the advanced codec, the X72A series supports Internet of Things (IoT) functionality and Point of Sale (PoS) integration. This recorder is the ideal solution for actively monitoring and recording video feeds in a wide range of applications including public venues, retail stores, transportation hubs and access ways, personal property and homes, and educational institutions.
Features:
- 4K at 7 fps Recording Resolution on All HDCVI Channels
- Dual-stream Video Recording
- Smart H.265+ and Smart H.264+ Dual Codec
- Auto-detection of HD Analog Video Inputs
- 16 + 16 IP Camera Channels, each channel up to 12 MP
- Maximum 128 Mbps Incoming Bandwidth
- Intelligent Video System with Facial Detection
- Advanced Voice Compression Codec G.711 and PCM
- Spot Output
- Five-year Warranty (for products sold through an authorized Dahua dealer)
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Interface |
| Analog Camera Input | 32 Channels, BNC |
| Preview Ability¹ | Channels 1 and 2: • 5 M-N (1296 x 1944) at 20 fps or • 4 M-N (1280 x 1440) at 30 fps Channels 3 to 32: • 4 M-N (1280 x 1440) at 30 fps |
| HDCVI | 5 MP, 4 MP, 1080p at 30 fps; 720p at 60 fps |
| AHD | 5 MP, 4 MP, 1080p at 30 fps; 720p at 30 fps |
| TVI | 5 MP, 4 MP, 1080p at 30 fps; 720p at 30 fps |
| CVBS | NTSC |
| IP Camera Input | 32 Channels, each channel up to 8 MP |
| Audio | Input: 16 Channels, BNC Output: One (1) Channel, BNC |
| Two-way Talk | Input: One (1) Microphone, BNC Output: One (1) Speaker, BNC |
| Interface |
| Analog Camera Input | 16 Channels, BNC | |
| HDCVI | 8 MP, 6 MP, 5 MP, 4 MP, 1080p at 30 fps, 720p at 60 fps, 720p at 30 fps | |
| AHD | 5 MP, 4 MP, 3 MP, 1080p at 30 fps, 720p at 30 fps | |
| TVI | 5 MP, 4 MP, 3 MP, 1080p at 30 fps, 720p at 30 fps | |
| CVBS | NTSC | |
| IP Camera Input | 16+16 Channels, each channel up to 12 MP | |
| Audio | Input | • Four (4) Channels, BNC • Accepts audio signal via Video IN BNC connection if HDCVI camera has a built-in microphone |
| Output | One (1) Channel, BNC | |
| Two-way Talk | Input: One (1) Microphone, BNC Output: One (1) Channel, BNC | |
