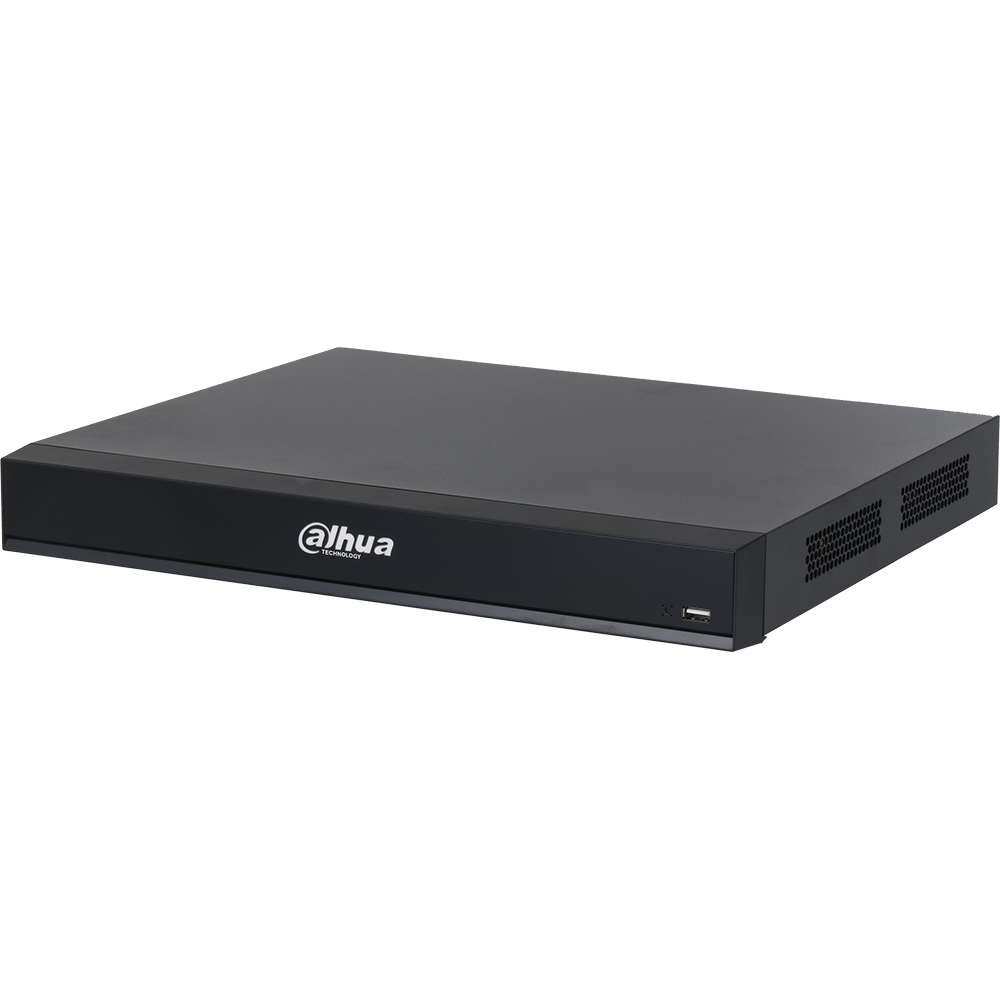

Dahua - X82R3N - 16CH Analytics+ Penta-brid XVR H.265 4K Pro 1U 2 SATA Bays
Part number:
X82R3N
Price:

The X82R Series HDCVI DVR offers 4K recording on each HDCVI channel and a host of advanced features and functions. The X82R takes advantage of HDCVI technology for easy integration into existing video surveillance systems while leveraging existing networks, cabling, and cameras. Penta-brid access technology seamlessly records video from HDCVI, AHD, TVI, CVBS, and IP sources simultaneously, plus the DVR delivers 4K resolution on each HDCVI or IP channel. This recorder is the ideal solution for actively monitoring public venues, retail stores, transportation hubs and access ways, personal property and homes, and educational institutions.



WizSense Series devices combine Dahua’s powerful Analytics+ with an intuitive and easy to use interface. WizSense devices offer Smart Motion Detection and Perimeter Protection functions that focus on human and vehicular images and ignore irrelevant images to capture important video while reducing false alarms. WizSense Series devices provide powerful general surveillance for small to medium size businesses at a sensible price.



Features:

  • 4K at 15 fps Recording Resolution on All HDCVI Channels
  • Available with a 4 TB, 6 TB, 8 TB, or 10 TB Pre-installed Hard Drive
  • Dual-stream Video Recording
  • AI Coding Technology for High-quality Human/Vehicle Video
  • Auto-detection and Auto-configuration of Video Inputs
  • 16 + 16 IP Camera Channels, each channel up to 8 MP
  • Maximum 128 Mbps Incoming Bandwidth
  • Perimeter Protection and Smart Motion Detection (SMD)
  • Long-distance Video Transmission
  • Spot Output (HDMI or VGA Output)
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)
System
Main ProcessorEmbedded Processor
Operating SystemEmbedded LINUX
Analytics+ Perimeter Protection², ³
Performance• Human and Vehicle object classification
• Decreased false alarms from leaves, lights, animals
• Configure function on a single channel
• 10 Tripwire/Intrusion rules
Live View• Configure Rule and Object Inspection area
• Display object classification, event types, trigger time, image snapshot, and object types
• Export event playback 10 seconds prior to or after event
Playback• Search by channel, time, event type, and target type
• Search event playback 10 seconds prior to or after event
• Snapshot capacity: 500,000
Analytics+ Smart Motion Detection², ³
Performance• Detect motion based on object classification (human or vehicle)
• Decreased false alarms from leaves, lights, animals
• Configure functions on four(4) channels
Preview• Configure and inspect detection area
PlaybackSearch by channel, time, event type, and target type • Search event playback 10 seconds prior to or after event
Interface

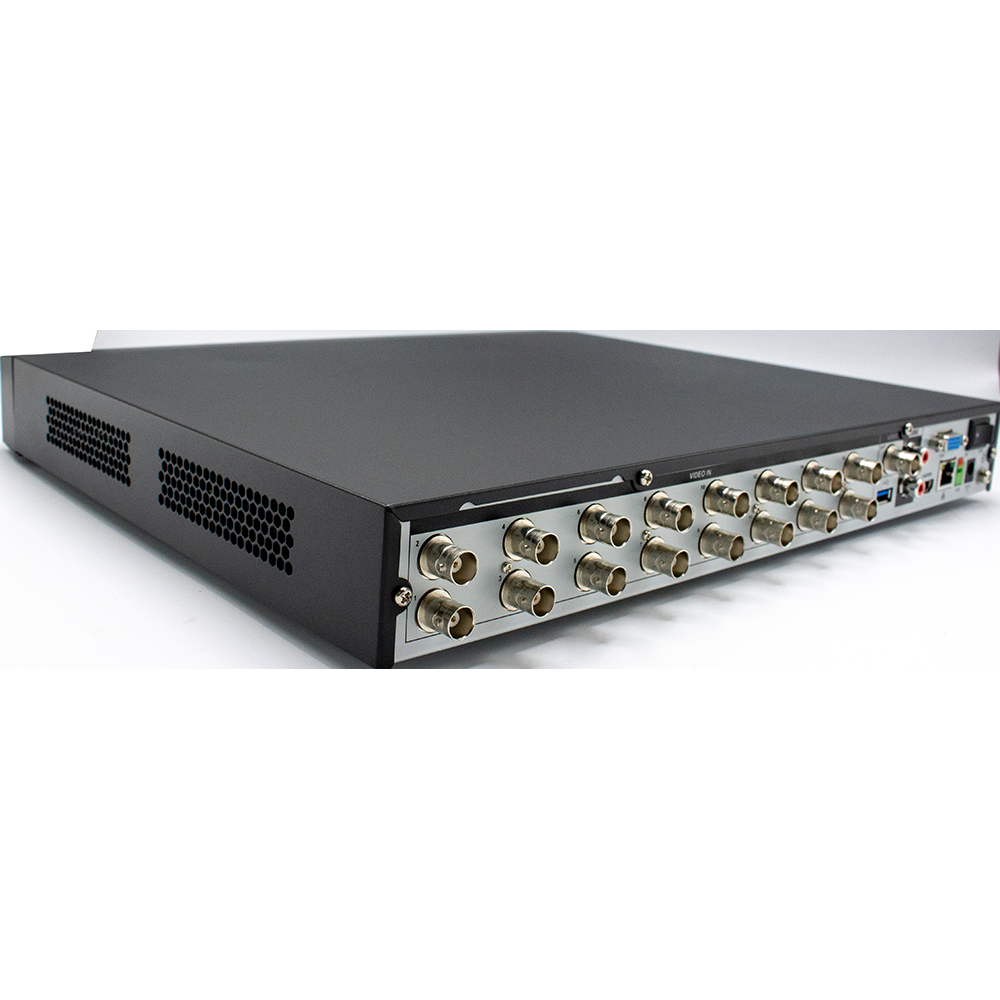

Analog Camera Input16 Channels, BNC
HDCVI8MP, 6MP, 5MP, 4MP, 1080p, 720p
AHD8MP, 5MP, 4MP, 3MP, 1080p, 720p
TVI8MP, 5MP, 4MP, 3MP, 1080p, 720p
CVBSNTSC
IP Camera Input16+16 Channels, each channel up to 8MP
AudioInput: Four (4) Channels, RCA
Output: One (1) Channel, RCA
Two-way TalkAudio Input Channel 1 In/ Audio Output, RCA
Recording
CompressionAI Coding, Smart H.265+, H.265, Smart H.264+, H.264
Recording Resolution8 MP, 6 MP, 5 MP, 4K-N, 4 MP, 3 MP, 4 M-N, 1080p, 720p, 960H, D1, CIF
Main Stream8MP at 15 fps; 6MP or 5MP at 25 fps, 4K-N, 4MP, 3MP, 1080p, 720p, 960H, D1, CIF at 30 fps
Sub Stream960H, D1 or CIF at 30 fps
Max. Incoming Bandwidth128 Mbps
Bit Rate32 Kbps to 8192 Kbps per Channel
Record ModeManual, Schedule (Regular, Continuous), MD (Video Detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval1 to 60 minutes (default: 60 minutes), Pre-record: 1 to 30 s, Post-record: 10 to 300 s
Audio CompressionG.711a, G.711Mu, PCM
Audio Sample Rate8 KHz, 16 bits per Channel
Audio Bit Rate64 Kbps per Channel
Display
InterfaceOne (1) HDMI (3840 x 2160) One (1) VGA (1920 x 1080) One (1) BNC
Spot OutputHDMI or VGA, configurable
HDMI3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720
VGA1920 x 1080, 1280 x 1024, 1280 x 720
Maximum Playback DecodingEight (8) Channels of 4K at 7 fps Eight
(8) Channels of 6MP at 10 fps Eight (8)
Channels of 5MP at 12 fps 16
Channels of 4MP/3 MP at 7 fps 16
Channels of 4 M-N/1080p at 15 fps 16
Channels of 720p, 960H at 30 fps
Multi-screen DisplayIP extension mode disabled: 1/4/8/9/16
IP extension mode enabled: 1/4/8/9/16/25/36
Fisheye DewarpSupported via Web Interface
On-screen DisplayCamera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
Network
InterfaceOne (1) RJ45 (100 Mbps) Port
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS)
Max. User Access128 Users
Mobile Operating SystemIOS, Android
InteroperabilityONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering, and Diagnosis
Playback and Backup
Playback1/4/9/16
Search ModeTime/Date, Alarm, MD and Exact Search (accurate to 1 second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom
Backup ModeUSB Device/Network
Storage
Internal HDDTwo (2) SATA Ports, up to 10 TB capacity for each disk
Auxiliary Interface
USBOne (1) USB 2.0 Port and One (1) USB 3.0 Port
RS485One (1) Port for PTZ Control
