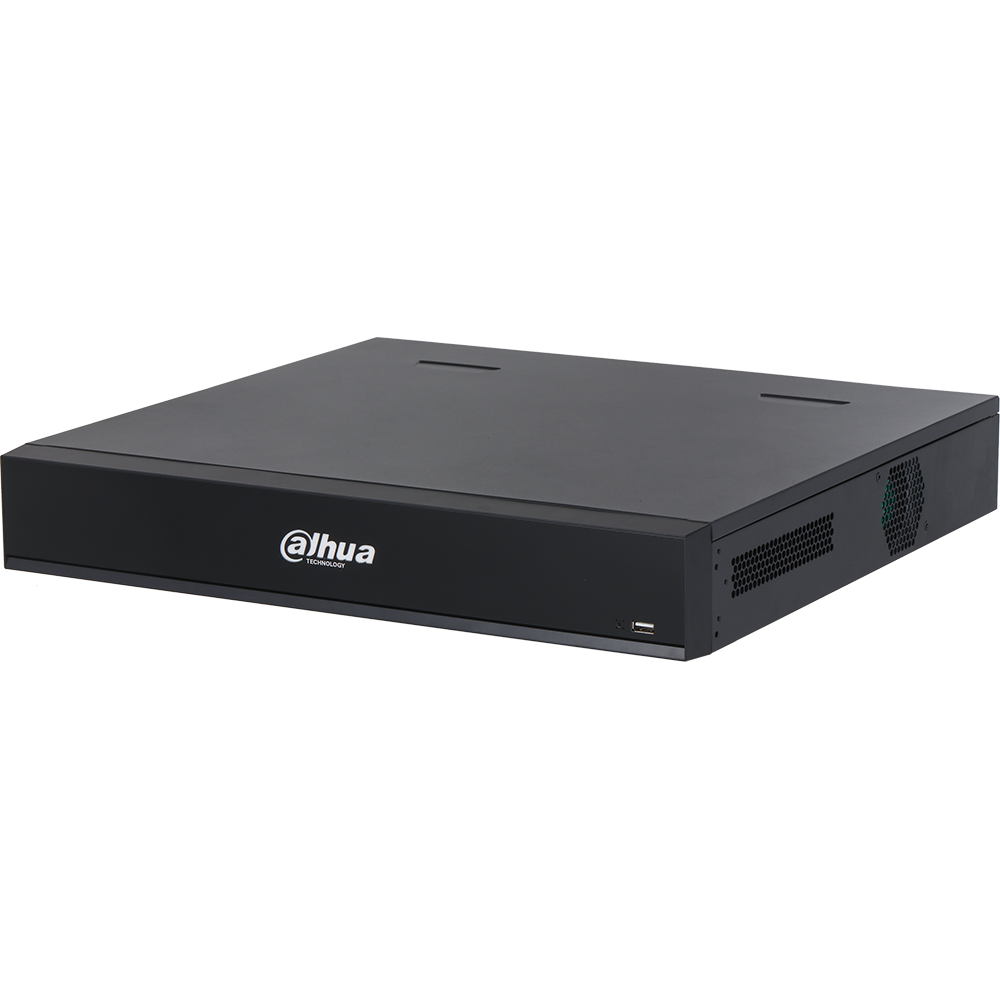

Dahua - X84R3L10 - 16CH Analytics+ Penta-brid XVR H.265 4K Pro 1.5U 4 SATA Bays, 10TB
Part number:
X84R3L10
Price:
The X84R Series HDCVI DVR offers 4K recording on each HDCVI channel and a host of advanced features and functions. The X84R takes advantage of HDCVI technology for easy integration into existing video surveillance systems while leveraging existing networks, cabling, and cameras. Penta-brid access technology seamlessly records video from HDCVI, AHD, TVI, CVBS, and IP sources simultaneously, plus the DVR delivers 4K resolution on each HDCVI or IP channel.
Features :
- 4K at 15 fps Recording Resolution on All HDCVI Channels
- Dual-stream Video Recording
- Smart H.265+ and Smart H.264+ Dual Codecs
- Auto-detection and Auto-configuration of Video Inputs
- 32 IP Camera Channels, each channel up to 12 MP
- Maximum 128 Mbps Incoming Bandwidth
- Analytics+ Functions: Face Recognition, Perimeter Protection, and Smart Motion Detection
- Spot Output (HDMI 2 Output)
- Five-year Warranty (for products sold through an authorized Dahua dealer)
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Analytics+ Perimeter Protection¹ | |
| Performance | • Human and Vehicle object classification • Decreased false alarms from leaves, lights, animals • Configure function on 6 channels • 10 Tripwire/Intrusion rules per channel |
| Object Classification | • Human or Vehicle • Secondary Recognition for Tripwire and Intrusion |
| Search | • Search by object classification (human or vehicle) |
| Analytics+ Smart Motion Detection¹ | |
| Performance | • Detect motion based on object classification (human or vehicle) • Decreased false alarms from leaves, lights, animals • Configure functions on 16 channels |
| Search | • Search by target classification |
| Interface | |
| Analog Camera Input | 16 Channels, BNC |
| HDCVI | 8 MP, 6 MP, 5 MP, 4 MP, 1080p at 30 fps, 720p at 60 fps |
| AHD | 8 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p at 30 fps |
| TVI | 8 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p at 30 fps |
| CVBS | NTSC |
| IP Camera Input | 16+16 Channels, each channel up to 12 MP |
| Audio | Input: Four (4) Channels, BNC Output: One (1) Channel, BNC |
| Two-way Talk | Input: One (1) Microphone, BNC Output: One (1) Channel, BNC |
| Display | |
| Interface | Two (2) HDMI (3840 x 2160) ports One (1) VGA (1920 x 1080) port One (1) TV port, BNC |
| Native Output Resolution | 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Maximum Playback Decoding | 16 Channels of 1080p at 15 fps 16 Channels of 720p/960H at 30 fps Eight (8) Channels of 4K at 7 fps Eight (8) Channels of 6 MP/5 MP at 13 fps Eight (8) Channels of 5 MP at 12 fps Eight (8) Channels of 4K-N/4 MP/3 MP at 15 fps Eight (8) Channels of 1080p/720p/960H at 30 fps Four (4) Channels of 4K at 15 fps Four (4) Channels of 6 MP at 20 fps Four (4) Channels of 5 MP at 25 fps Four (4) Channels of 4K-N/4 MP/3 MP/1080P/720P/960H at 30 fps One (1) Channel of 4K at 30fps |
| Multi-screen Display | IP extension mode not enabled: 1/4/8/9/16 IP extension mode enabled: 1/4/8/9/16/25/36 |
| On-screen Display | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording |
| Network | |
| Interface | One (1) RJ-45 (1000 Mbps) Port |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS) |
| Maximum User Access | 128 Users |
| Mobile Operating System I | IOS, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering, and Diagnosis |
| Alarm Input | Eight (8) Channels |
| Relay Output | Three (3) Channels |
| Playback and Backup | |
| Playback | 1/4/9/16 |
| Search Mode | Time/Date, Alarm, MD and Exact Search (accurate to 1 second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | Two (2) SATA Ports, up to 10 TB capacity for each disk |
| Auxiliary Interface | |
| USB | One (1) USB 2.0 Port and One (1) USB 3.0 Port |
| RS485 | One (1) Port for PTZ Control |
| Electrical | |
| Power Supply | 100 VAC to 240 VAC, 50/60 Hz |
| Power Consumption | < 30 W, without HDD |
| Construction | |
| Dimensions | 1.5U, 440.0 mm x 415.70 mm x 76.0 mm (17.32 in. x 16.37 in. x 2.99 in.) |
| Net Weight | 4.90 kg (10.70 lb), without HDD |
| Gross Weight | 7.10 kg (15.70 lb) |
| Installation | Desktop or Rack-mount |
| Video Transmission Distance | |
| RG-59/U Coax | 720p: 800 m (2624.67 ft) 1080p: 500 m (1640.42 ft) 4K/4MP: 500 m (1640.42 ft) |
| RG-6/U Coax | 720p: 1200 m (3937.01 ft) 1080p: 800 m (2624.67 ft) 4K/4MP: 700 m (2296.59 ft) |
| CAT 6 UTP (balun required) | 720p: 450 m (1476.38 ft) 1080p: 300 m (984.25 ft) 4K/4MP: 300 m (984.25 ft) |
| Environmental | |
| Operating Conditions | –10° C to +55° C (+14° F to +131° F), 0% to 90% RH |
| Storage Conditions | –20° C to +70° C (–4°F to +158° F), 0% to 90% RH |
| Third-party Support | |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others |
| Certifications | |
| Safety | EN 60950-1 IEC 60950-1 |
| Electromagnetic Compatibility (EMC) | CFR 47 FCC Part 15 Subpart B EN 61000-3-2 EN 61000-3-3 EN 55032 EN 50130 EN 55024 |
