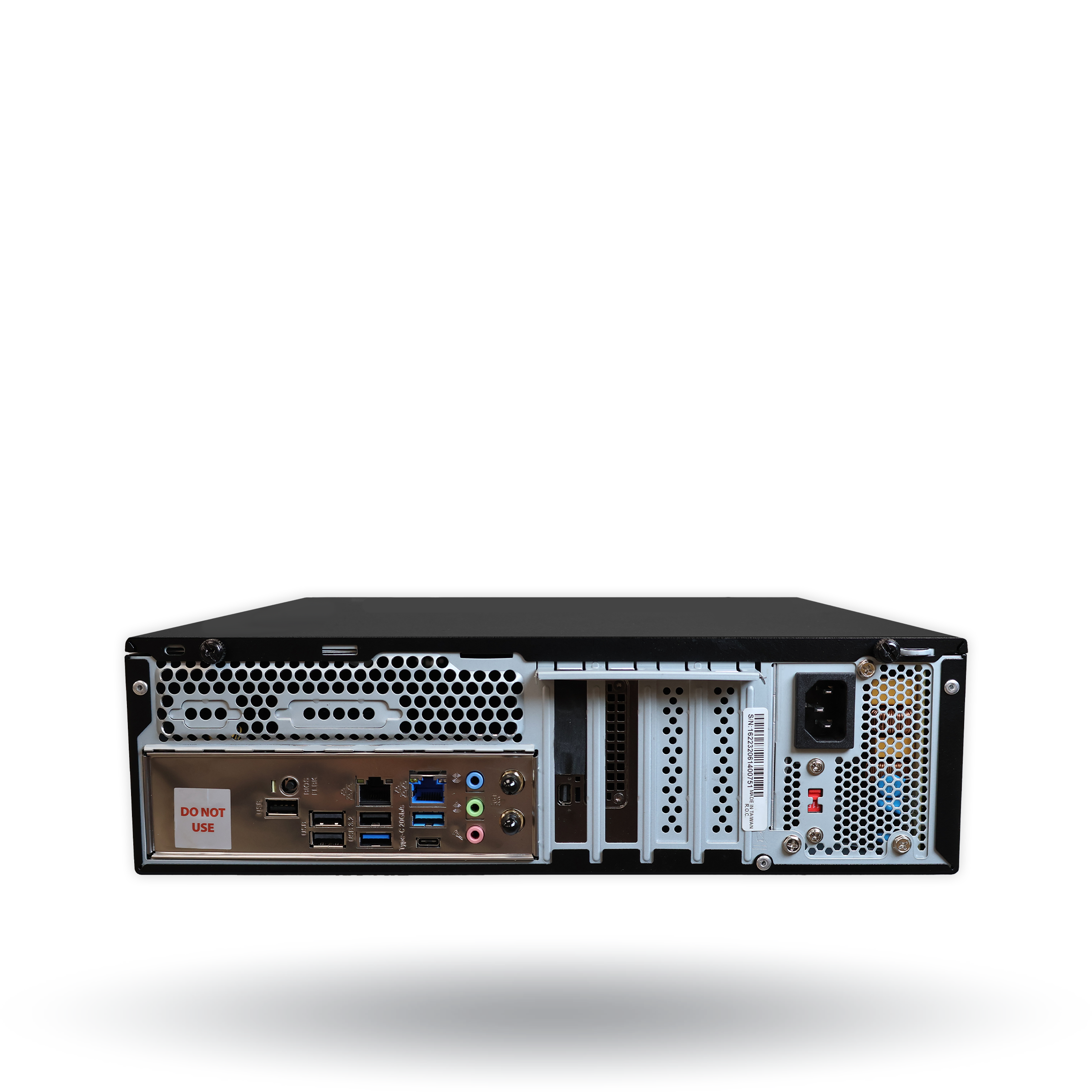

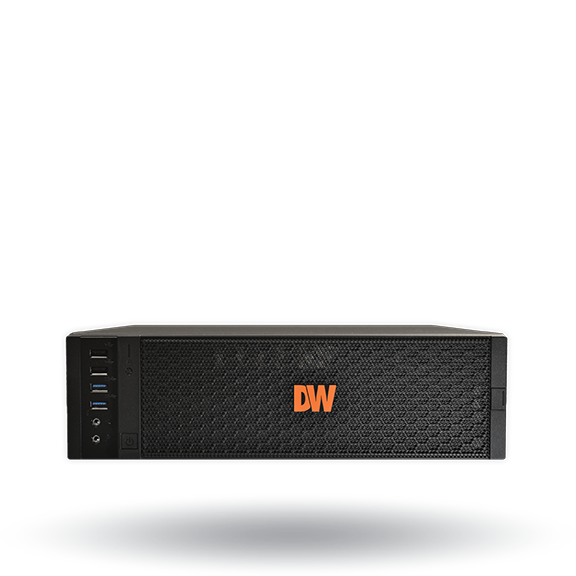

When paired with a system running DW Spectrum IPVMS, this Blackjack Ai Appliance recognizes objects and people in all connected streams by combining advanced algorithms and machine learning to analyze real-time video streams and provide comprehensive video analytics in a user-friendly, scalable solution. The appliance is NDAA and TAA compliant, includes Windows 10 OS on a separate SSD and supports up to 64 secondary streams. Hardware features include an Intel 12th generation processor, dual Ethernet ports, 32GB RAM and an NVIDIA A2200 12GB video card. The appliance comes preloaded with four complimentary DW AI Server licenses and has a 5-year limited warranty
Features:
VIDEO | |
---|---|
Display Modes | Unlimited, Customizable, Sequence |
Local Video Outputs | 1x mini Display Port, For initial system configuration, 1 display output at a time |
Memory | 32GB |
Video Card | NVIDIA RTX A2000 12GB |
Video Compression | H.264, H.265 |
Video Operating System | Windows 10 IoT Enterprise LTSC |
OS on SSD | 2x 512GB M.2 (RAID1) |
STORAGE | |
Maximum Storage | No storage |
PERFORMANCE | |
Max # of analytic streams (secondary) | Up to 64 |
Performance features | Analytics appliance for lower deployment cost, Deep learning classifiers and logical rules engine, Server-side analytics for non-analytic cameras |
System Operation | Graphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included) |
NETWORK | |
Ethernet Ports | 1x 1G Ethernet (RJ45), 1x 2.5Gb Ethernet |
ELECTRICAL | |
Power Consumption | 300W, A UPS is recommended |
GENERAL | |
Accessories | Keyboard, Mouse |
Ai Configuration Tool supported OS | Cross-platform - Windows and Linux Ubuntu |
Included DW Ai Server Licenses | 4 channel (DW-DWAiSLSC004) |
Operating Temperature and Humidity | 20 ~ 90% RH, 41 ~ 104 °F (5~40 °C) |
Preloaded Analytic software | DW Ai Server |
Recorder Dimensions (H X W X D) | 7.46” x 15.7” x 14.21” (189.52 x 398.8 x 631.02 mm) |
USB interface | Yes |
Warranty | 5 Year Limited Warranty |
Certification | ![]() ![]() ![]() ![]() |
Form Factor | Slim Desktop |
