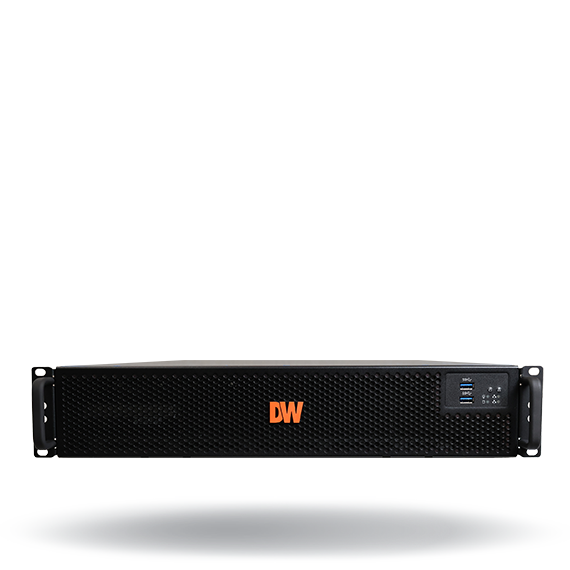

Blackjack P-Rack AI 2U RAID 5, Windows OS on SSD, 4 DW Spectrum recording licenses and 4 IVA Ai Server licenses pre-installed, 64 cameras @ 2.1MP, 64 analytic streams, 600Mbps throughput, Intel i7, 32GB RAM, 100TB usable storage, 5 Year Limited Warranty
Blackjack Ai P-Rack Artificial Intelligence Network Video Recorder(Ai NVR) is a purpose-built server, with built-in server-side analytics thatunlock advanced Ai capabilities on any connected video stream via our IVAAi Server software. This cost-effective, plug-and-play appliance combineshigh-performance recording with video analytics in an easy-to-deploy,turnkey solution. The NDAA and TAA compliant server features up to600Mbps throughput, 64 analytics streams and comes preloaded with DWSpectrum IPVMS, with four complimentary recording licenses. Add thepower of advanced neural-network-based analytics to your video streamswith a Blackjack Ai NVR, backed by our 5 year limited warranty.
Features :
- Hosting Intelligent Video Analytics (IVA) Ai software deep learning and color filter
- Server-side analytics for non-analytic cameras
- Deep learning classifiers and logical rules engine
- A single device for NVR and Analytics server for lower deployment cost
- Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
- Up to 64 analytic streams
- Supports all ONVIF conformant IP cameras
- 64-96TB raw internal storage with RAID5
- 12th Gen Intel Core i7 processor
- True HD and Display Port local outputs for system configuration
- Dual network ports
- Windows 10 on SSD
- Hosting DW Spectrum for setup, configuration, monitoring and recording
- One-time recording license charge, fully transferable between cameras and encoders
- One (1) 4-channel recording license included (DW-SPECTRUMLSC004)
- One (1) 4-channel IVA Ai license included (DW-IVAAiSERVERLSC004)
- No annual maintenance fees
- Dual stream recording
- Rail kit included
- USB mouse and keyboard included
- Designed, assembled and tested in the U.S.A.
- NDAA/TAA compliant
- 5 Years limited warranty
| Video | |
|---|---|
| Compression | H.264 H.265 |
| CPU | Intel Core i7 processor |
| Display Modes | Unlimited Sequence Customizable |
| Local Video Outputs | True HD 1 display output at a time 3 DisplayPorts For initial configuration and server management |
| Memory | 32GB |
| Operating System | Windows®10 |
| Video Card | NVIDIA RTX A2000 12GB |
| OS on SSD | 480GB SSD |
| Storage | |
| Max HDD Bay | 6 x SATA HDD |
| Maximum Storage | 96TB (80TB usable storage) |
| General | |
| Accessories | Keyboard Mouse |
| Certification | NDAA Compliance ONVIF Conformant TAA Compliance |
| Form Factor | Rack mount |
| General Dimensions | 17.29” x 21.93” x 3.5” (439.3 x 557.1 x 88.9 mm) |
| General Warranty | 5 Year Limited Warranty |
| Included IP licenses | 4 |
| Max video storage rate (Mbps) | 600Mbps |
| Operating Temperature and Humidity | 41 ~ 104 °F (5~40 °C) 20 ~ 90% RH |
| Power Consumption | 500W A UPS is recommended |
| RAID Options | RAID5 |
| Rail kit | Included |
| Serial ports | ONVIF |
| System Operation | Graphical user interface (GUI) USB mouse (included) Remote via DW Spectrum IPVMS |
| USB interface | Yes |
| Network | |
| Backup | Network backup via DW Spectrum IPVMS |
| Ethernet Ports | 2x 1G Ethernet (RJ45) |
| Pre-loaded VMS software | DW Spectrum IPVMS DW IVA Ai server |
| Remote Software | DW Site Viewer for Apple TV DW Spectrum Mobile App Cross-platform - Windows, Linux Ubuntu and Mac DW Mobile Plus |
| Performance | |
| Performance features | Server-side analytics for non-analytic cameras Deep learning classifiers and logical rules engine A single device for NVR and Analytics server for lower deployment cost |
| Playback Functions | Timeline Calendar Event search Thumbnail search Smart motion search |
| PTZ control | ONVIF |
| Recording Modes | Continuous Motion detection Motion + low res always Object only Object + Low res Motion + Object Motion + Object + Low res |
