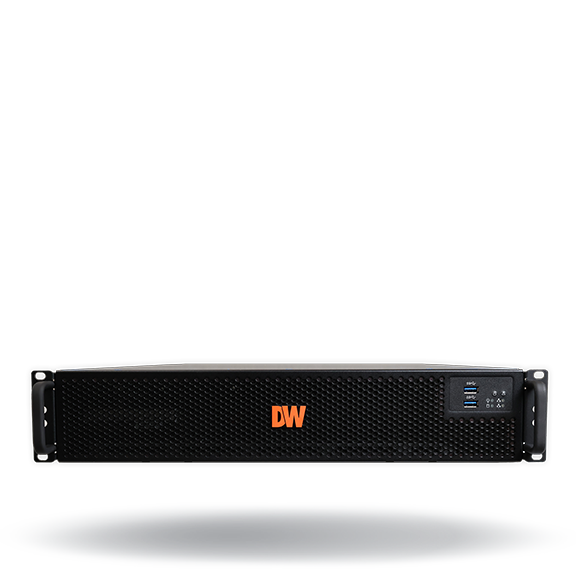

Blackjack P-RACK NVRs powered by DW Spectrum IPVMS, 120 terabyte, 4 camera licenses pre-installed, 600 Mbps of recording throughput. Hardware options include Intel i7 Processor and 16GB Memory. Standard features include Linux OS on an SSD HDD, scheduled auto reboot for hardware performance, cross platform connectivity for Windows and Mac client software, 2x NIC cards, DVI and true HD output, Automatic Camera Detection, Fully Customizable Layouts, Easy Drag and Drop Camera Management and Recording, E-Mapping, Advanced Motion Masking and Sensitivity Settings, OnVIF conformant, Keyboard and mouse included, 5 Year Limited Warranty.
Blackjack P-Rack servers can record and manage single- and multi-sensor IP cameras of any resolution, with an equivalent capacity of up to 128 2.1MP cameras at 30fps and a maximum of 600Mbps throughput. Standard features include Intel i7, Windows 10 Pro or Linux Ubuntu OS and 2x NIC cards. Blackjack P-Rack servers can be configured with 20-70TB HDD and come with our 5 year limited warranty. All Blackjack P-RACK NVR models come with a DW-SPECTRUMLS004 4-channel license included.
For additional license part numbers
Features:
- Supports All ONVIF conformantIP cameras
- Storage options 40-70TBinternal storage
- Record and manage single- andmulti-sensor IP cameras of any
- resolution up to 128 2.1MPcameras at 30fps and a maximum of
- 600Mbps throughput
- True HD and DVI localmonitoring outputs ports
- Dual network ports
- Windows 10 Pro or LinuxUbuntu 16.04 OS on separate SSD
- USB interface
- Hosting DW Spectrum IPVMSfor setup, configuration, monitoring and recording
- One-time recording licensecharge, fully transferable between cameras and encoders
- One (1) DW Spectrum IPVMS4-channel licenses included (DW-SPECTRUMLSC004)
- No annual maintenance fees
- Simple enterprise scalability
- Auto device discovery
- Dual stream recording
- Rail kit included
- USB mouse and keyboardincluded
- Designed, assembled andtested in the U.S.A.
- NDAA/TAA compliant
- 5 years limited warranty
| VIDEO | |
|---|---|
| CPU | Intel i7 processor |
| Display Modes | Unlimited, Customizable, Sequence |
| Display Speed | Up to 30fps per channel |
| Local Video Outputs | For initial configuration and server management, DVI, True HD, 1 display output at a time |
| Memory | 16GB |
| Video Card | * Available at initial order only, GeForce 210 512MB |
| Video Compression | H.264, H.265 |
| Video Operating System | Linux Ubuntu Desktop 20.04.5 LTS OS (DW-BJP2U40T-LX, DW-BJP2U60T-LX, DW-BJP2U80T-LX, DW-BJP2U100T-LX, DW-BJP2U120T-LX), Windows 10 IoT Enterprise LTSC (DW-BJP2U40T, DW-BJP2U60T, DW-BJP2U100T, DW-BJP2U120T, DW-BJP2U80T) |
| OS on SSD | 150GB SSD |
| Max throughput (Mbps) | 600Mbps |
| STORAGE | |
| Raw internal storage options |      |
| RAID Options | No RAID |
| Max HDD Bay | 6 x SATA HDD, 7 x SATA HDD |
| Maximum Storage | 100TB (DW-BJP2U100T, DW-BJP2U100T-LX), 80TB (DW-BJP2U60T, DW-BJP2U80T-LX, DW-BJP2U80T), 40TB (DW-BJP2U40T-LX), 60TB (DW-BJP2U60T-LX), 120TB (DW-BJP2U120T, DW-BJP2U120T-LX) |
| PERFORMANCE | |
| Playback Functions | Calendar, Event search, Smart motion search, Thumbnail search, Timeline |
| PTZ control | ONVIF |
| Recording Modes | Continuous, Motion + low res always, Motion + Object, Motion + Object + Low res, Motion detection, Object + Low res, Object only |
| System Operation | Graphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included) |
| NETWORK | |
| Backup | Network backup via DW Spectrum IPVMS |
| Ethernet Ports | 2x 1G Ethernet (RJ45) |
| Pre-loaded VMS software | DW Spectrum IPVMS |
| Network Remote Software | Cross-platform - Windows, Linux Ubuntu and Mac, DW Mobile Plus, DW Spectrum Mobile App |
| ELECTRICAL | |
| Power Consumption | 400W, A UPS is recommended |
| GENERAL | |
| Accessories | Keyboard, Mouse |
| Included IP licenses | 4 |
| Operating Temperature and Humidity | 20 ~ 90% RH, 41 ~ 104 °F (5~40 °C) |
| Rail kit | Included |
| Recorder Dimensions (H X W X D) | 17.29” x 21.93” x 3.5” (439.3 x 557.1 x 88.9 mm) |
| Recording Licenses (Optional. Sold Separately) | Custom-ordered licenses are available by request. DW-SPCP04LSC004 - Four (4) DW Spectrum Analog Encoder IPVMS Licenses DW-SPCP16LSC016 - Sixteen (16) DW Spectrum Analog Encoder IPVMS Licenses DW-SPECTRUMLSC001 - Single DW Spectrum IPVMS Recording License DW-SPECTRUMLSC004 - Four (4) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC010 - Ten (10) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum IPVMS Recording Licenses DW-SPIOLSC001 - Single DW Spectrum I/O Module IPVMS License DW-SPVWALL1X2 - Single DW Spectrum Video Wall IPVMS License Lifetime upgrades are included with no annual renewal fees. |
| USB interface | Yes |
| Warranty | 5 Year Limited Warranty |
| Weight (barebone, HDD not included) | 40.95 lbs (18.57 kg) |
| Certification |      |
| Form Factor | Rack mount |
