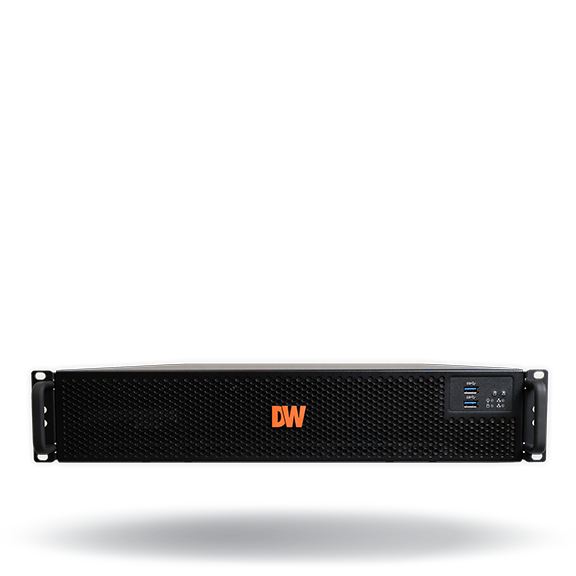

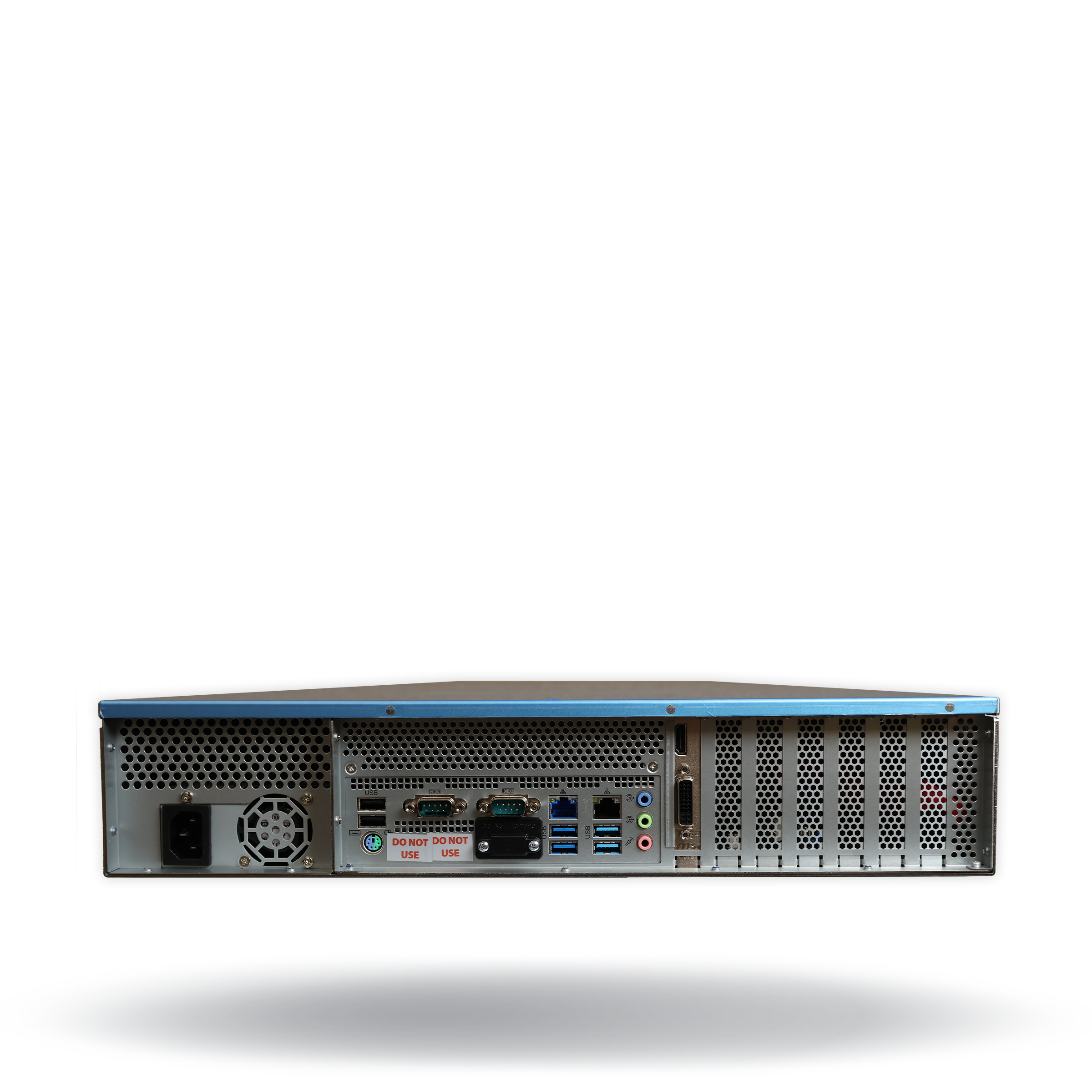

Blackjack P-RACK NVRs powered by DW Spectrum IPVMS, 60TB usable RAID storage, 4 camera licenses pre-installed, 600 Mbps of recording throughput. RAID 5 hard drive configuration, Intel i7 Processor and 16GB Memory. Standard features include Linux OS on an SSD HDD, scheduled auto reboot for hardware performance, cross platform connectivity for Windows and Mac client software, 2x NIC cards, DVI and true HD output, Automatic Camera Detection, Fully Customizable Layouts, Easy Drag and Drop Camera Management and Recording, E-Mapping, Advanced Motion Masking and Sensitivity Settings. OnVIF conformant, Keyboard and mouse included. 5 Year Limited Warranty.
Blackjack P-Rack servers are NDAA and TAA compliant and can record and manage single- and multi-sensor IP cameras of any resolution with a maximum of 600Mbps throughput. Standard features include Intel i7, Windows 10 IoT or Linux Ubuntu 18.04 LTS OS on separate SSD and 2x NIC cards. Blackjack P-Rack servers come preloaded with the DW Spectrum IPVMS suite, can be configured with 64-96TB RAID5 recording storage and come with our 5 year limited warranty.
Features :
- Supports All ONVIF conformant IP cameras
- Storage options 64-96TB internal storage, 48-80TB usable storage
- Data redundancy
- Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
- True HD and DVI local monitoring outputs ports
- Dual network ports
- Windows 10 IoT or Linux Ubuntu 18.04 LTS OS on separate SSD
- Hosting DW Spectrum IPVMS for setup, configuration, monitoring and recording
- One-time recording license charge, fully transferable between cameras and encoders
- One (1) DW Spectrum IPVMS 4-channel licenses included (DW-SPECTRUMLSC004)
- No annual maintenance fees
- Simple enterprise scalability
- Auto device discovery
- Dual stream recording
- Rail kit included
- USB mouse and keyboard included
- Designed, assembled and tested in the U.S.A.
- NDAA/TAA compliant
- 5 years limited warranty
| VIDEO | |
|---|---|
| CPU | Intel i7 processor |
| Display Modes | Unlimited, Customizable, Sequence |
| Display Speed | Up to 30fps per channel |
| Local Video Outputs | For initial configuration and server management, DVI, True HD, 1 display output at a time |
| Memory | 16GB |
| Video Card | * Available at initial order only, GeForce 210 512MB |
| Video Compression | H.264, H.265 |
| Video Operating System | Linux Ubuntu Desktop 20.04.5 LTS OS (DW-BJPR2U80T-LX, DW-BJPR2U120T-LX), Windows 10 IoT Enterprise LTSC (DW-BJPR2U80T, DW-BJPR2U120T) |
| OS on SSD | * Available at initial order only, 150GB SSD (RAID1 mirrored), Option: DW-SSD80 – second SSD for mirroring the OS * |
| Max throughput (Mbps) | 600Mbps |
| STORAGE | |
| Raw internal storage options |   |
| RAID Options | RAID5 |
| Max HDD Bay | 6 x SATA HDD |
| Maximum Storage | 120TB (100TB, RAID5) (DW-BJPR2U120T, DW-BJPR2U120T-LX), 80TB (60TB, RAID5) (DW-BJPR2U80T, DW-BJPR2U80T-LX), 120TB |
| PERFORMANCE | |
| Playback Functions | Calendar, Event search, Smart motion search, Thumbnail search, Timeline |
| PTZ control | ONVIF |
| Recording Modes | Continuous, Motion + low res always, Motion + Object, Motion + Object + Low res, Motion detection, Object + Low res, Object only |
| System Operation | Graphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included) |
| NETWORK | |
| Backup | Network backup via DW Spectrum IPVMS |
| Ethernet Ports | 2x 1G Ethernet (RJ45) |
| Ethernet Ports (Product Specification) | * Available at initial order only, Option: DW-R2NIC - upgrade dual 1GB NIC card OR DW-R4NIC - upgrade quad 1GB NIC card * |
| Pre-loaded VMS software | DW Spectrum IPVMS |
| Network Remote Software | Cross-platform - Windows, Linux Ubuntu and Mac, DW Mobile Plus, DW Spectrum Mobile App |
| ELECTRICAL | |
| Power Consumption | 400W, A UPS is recommended |
| GENERAL | |
| Accessories | Keyboard, Mouse |
| Included IP licenses | 4 |
| Operating Temperature and Humidity | 20 ~ 90% RH, 41 ~ 104 °F (5~40 °C) |
| Rail kit | Included |
| Recorder Dimensions (H X W X D) | 17.29” x 21.93” x 3.5” (439.3 x 557.1 x 88.9 mm) |
| Recording Licenses (Optional. Sold Separately) | Custom-ordered licenses are available by request. DW-SPCP04LSC004 - Four (4) DW Spectrum Analog Encoder IPVMS Licenses DW-SPCP16LSC016 - Sixteen (16) DW Spectrum Analog Encoder IPVMS Licenses DW-SPECTRUMLSC001 - Single DW Spectrum IPVMS Recording License DW-SPECTRUMLSC004 - Four (4) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC010 - Ten (10) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum IPVMS Recording Licenses DW-SPIOLSC001 - Single DW Spectrum I/O Module IPVMS License DW-SPVWALL1X2 - Single DW Spectrum Video Wall IPVMS License Lifetime upgrades are included with no annual renewal fees. |
| USB interface | Yes |
| Warranty | 5 Year Limited Warranty |
| Weight (barebone, HDD not included) | 45.75 lbs (20.75 kg) |
| Certification |      |
| Form Factor | Rack mount |
