Digital Watchdog - DW-BJRR2U100TS6 - Blackjack Rack NVR Server (Powered by DW Spectrum IPVMS), includes 8 camera licenses pre-installed, 600 Mbps of recording throughput, Windows Server 2019 on mirrored SSD's, 800W Dual Power Supply, 2U rack-mount, 6
Part number:
DW-BJRR2U100TS6
Price:
Blackjack Rack NVR Server (Powered by DW Spectrum IPVMS), includes 8 camera licenses pre-installed, 600 Mbps of recording throughput, Windows Server 2019 on mirrored SSD's, 800W Dual Power Supply, 2U rack-mount, 60TB usable Raid storage Raid 6, Intel Xeon Silver Processor, 16GB of memory, 1x mini Display Port, 2x 1G Ethernet Onboard, 4x 1G Ethernet on Expansion Board, System Health Monitor, True Enterprise Scalability, Automatic Camera Detection, Local Client Display, Fully, Customizable Layouts, Easy Drag and Drop Camera Management and Recording, E-Mapping, Advanced Motion Masking and Sensitivity Settings, Keyboard, Mouse and Rail kit are included, NDAA, TAA, UL, 5 Year Onsite Next Business Day Keep Your Hard Drive Warranty.

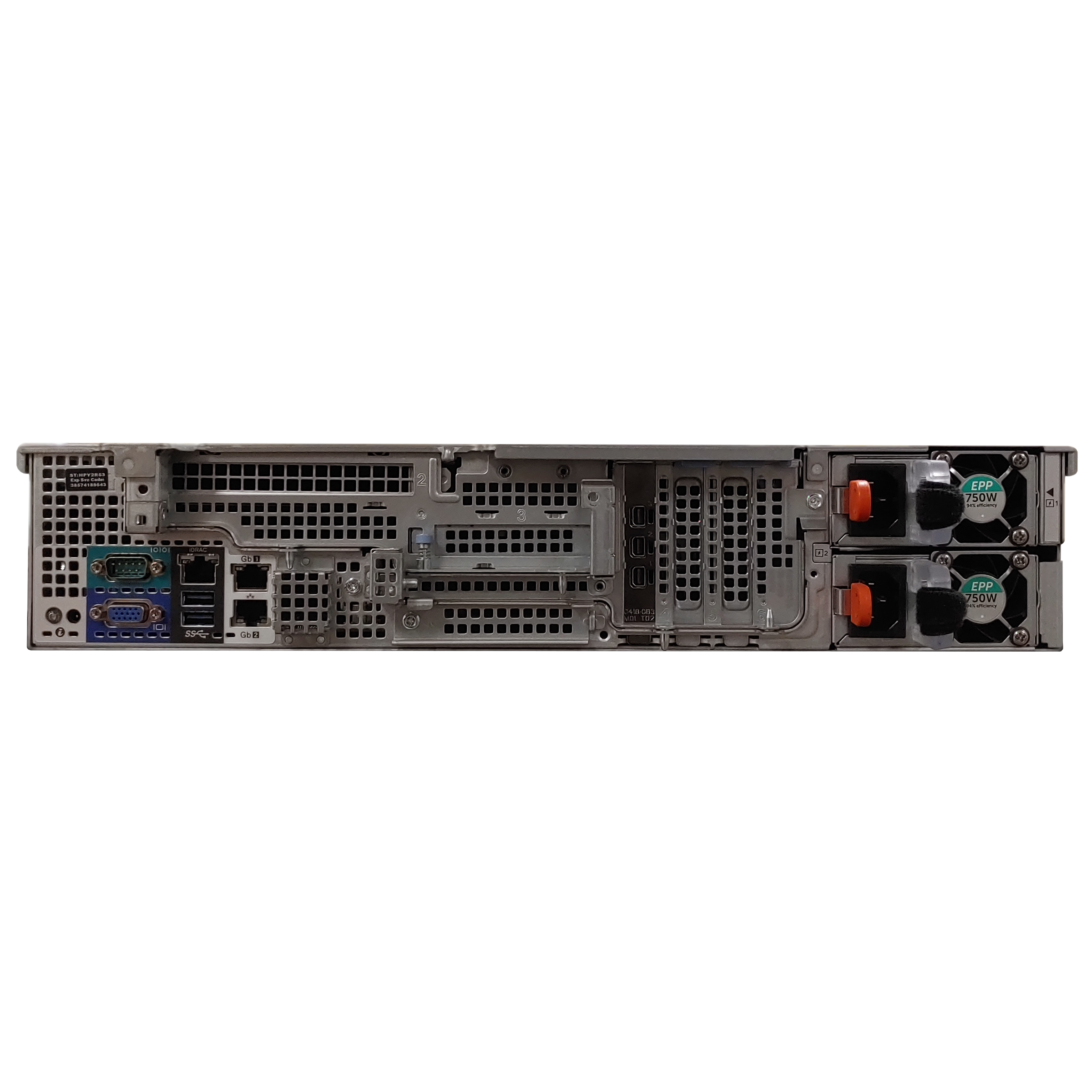

This single processor Blackjack Rack server is the ultimate solution for recording multiple IP cameras of any resolution at up to 600Mbps throughput. The server is NDAA/TAA compliant, UL listed and includes Windows 10, Windows Server 2019 or Linux Ubuntu OS on a separate 240GB NVMe SSD. The 2U rack-mountable hardware features an Intel Xeon processor, 16GB memory, dual network cards, dual power supply, mini DisplayPort outputs and removable hot-swappable drives. The Blackjack Rack server comes preloaded with DW Spectrum IPVMS and eight recording licenses, up to 192TB raw internal storage with RAID5 and is ONVIF conformant The server comes complete with a 5-year, on-site, Next Business Day**, Keep Your Hard Drive warranty to ensure peace of mind.
Features :
- Supports ONVIF conformant IP cameras
- Storage options 64-192TB raw internal storage with RAID5
- Hot-Swappable HDDs
- Redundant power supply
- Dedicated GPU for client application for easy configuration
- Intel Xeon processor
- Dual network ports
- Windows 10, Ubuntu Linux, Windows Server 2019 OS on NVMe SSD, RAID1
- Hosting DW Spectrum for setup, configuration and recording
- One-time recording license charge, fully transferable between cameras and encoders
- Two (2) 4-channel licenses included for a total of 8 recording channels (DW-SPECTRUMLSC004)
- No annual maintenance fees
- Simple enterprise scalability and auto device discovery
- Dual-stream recording
- Rail kit included
- USB mouse and keyboard included
- Designed, assembled and tested in the U.S.A.
- UL listed
- NDAA/TAA compliant
- 5 year warranty, next business day on-site hardware service*, keep your hard drive - *after remote diagnosis
| VIDEO | |
|---|---|
| CPU | Intel Xeon Silver processor |
| Display Modes | Unlimited, Customizable, Sequence |
| Display Speed | Up to 30fps per channel |
| Local Video Outputs | 1x mini Display Port, For initial system configuration, Mini Display Port to true HD adapter (included) |
| Memory | 16GB |
| Video Card | Nvidia Quadro |
| Video Compression | H.264, H.265 |
| Video Operating System | Linux Ubuntu Desktop 20.04.3 LTS for IoT OS, Windows Server 2022 Standard (DW-BJRR2U100TS, DW-BJRR2U120TS, DW-BJRR2U140TS, DW-BJRR2U180TS, DW-BJRR2U200TS, DW-BJRR2U220TS, DW-BJRR2U240TS, DW-BJRR2U80TS6, DW-BJRR2U100TS6, DW-BJRR2U120TS6, DW-BJRR2U140TS6, DW-BJRR2U160TS6, DW-BJRR2U180TS6, DW-BJRR2U200TS6, DW-BJRR2U220TS6, DW-BJRR2U240TS6), Linux Ubuntu Desktop 20.04.5 LTS OS (DW-BJRR2U100TLX, DW-BJRR2U120TLX, DW-BJRR2U180TLX, DW-BJRR2U200TLX, DW-BJRR2U240TLX, DW-BJRR2U80TLX6, DW-BJRR2U100TLX6, DW-BJRR2U120TLX6, DW-BJRR2U140TLX6, DW-BJRR2U160TLX6, DW-BJRR2U180TLX6, DW-BJRR2U200TLX6, DW-BJRR2U220TLX6, DW-BJRR2U240TLX6), Windows Server 2019 Standard, Windows 10 IoT Enterprise LTSC (DW-BJRR2U100T, DW-BJRR2U120T, DW-BJRR2U140T, DW-BJRR2U180T, DW-BJRR2U200T, DW-BJRR2U220T, DW-BJRR2U240T, DW-BJRR2U80T6, DW-BJRR2U100T6, DW-BJRR2U120T6, DW-BJRR2U140T6, DW-BJRR2U160T6, DW-BJRR2U180T6, DW-BJRR2U200T6, DW-BJRR2U220T6, DW-BJRR2U240T6) |
| OS on SSD | 2 x 480GB NVMe SSD (RAID1) |
| Max throughput (Mbps) | 600Mbps |
| STORAGE | |
| Raw internal storage options |  |
| RAID Options | OS RAID1, RAID5 (DW-BJRR2U100TS, DW-BJRR2U120TS, DW-BJRR2U140TS, DW-BJRR2U180TS, DW-BJRR2U200TS, DW-BJRR2U220TS, DW-BJRR2U240TS, DW-BJRR2U100T, DW-BJRR2U120T, DW-BJRR2U140T, DW-BJRR2U180T, DW-BJRR2U200T, DW-BJRR2U220T, DW-BJRR2U240T, DW-BJRR2U100TLX, DW-BJRR2U120TLX, DW-BJRR2U180TLX, DW-BJRR2U200TLX, DW-BJRR2U240TLX), RAID6 (DW-BJRR2U80TS6, DW-BJRR2U100TS6, DW-BJRR2U120TS6, DW-BJRR2U140TS6, DW-BJRR2U160TS6, DW-BJRR2U180TS6, DW-BJRR2U200TS6, DW-BJRR2U220TS6, DW-BJRR2U240TS6, DW-BJRR2U80T6, DW-BJRR2U100T6, DW-BJRR2U120T6, DW-BJRR2U140T6, DW-BJRR2U160T6, DW-BJRR2U180T6, DW-BJRR2U200T6, DW-BJRR2U220T6, DW-BJRR2U240T6, DW-BJRR2U80TLX6, DW-BJRR2U100TLX6, DW-BJRR2U120TLX6, DW-BJRR2U140TLX6, DW-BJRR2U160TLX6, DW-BJRR2U180TLX6, DW-BJRR2U200TLX6, DW-BJRR2U220TLX6, DW-BJRR2U240TLX6) |
| Maximum Storage | 100TB (60TB, RAID6) (DW-BJRR2U100TS6, DW-BJRR2U100T6, DW-BJRR2U100TLX6), 100TB (80TB, RAID5) (DW-BJRR2U100TS, DW-BJRR2U100T, DW-BJRR2U100TLX), 120TB (100TB, RAID5) (DW-BJRR2U120TS, DW-BJRR2U120T, DW-BJRR2U120TLX), 120TB (80TB, RAID6) (DW-BJRR2U120TS6, DW-BJRR2U120T6, DW-BJRR2U120TLX6), 140TB (100TB, RAID6) (DW-BJRR2U140TS6, DW-BJRR2U140T6, DW-BJRR2U140TLX6), 140TB (120TB, RAID5) (DW-BJRR2U140TS, DW-BJRR2U140T, DW-BJRR2U140TLX), 160TB (120TB, RAID6) (DW-BJRR2U160TS6, DW-BJRR2U160T6, DW-BJRR2U160TLX6), 180TB (140TB, RAID6) (DW-BJRR2U180TS6, DW-BJRR2U180T6, DW-BJRR2U180TLX6), 180TB (160TB, RAID5) (DW-BJRR2U180TS, DW-BJRR2U180T, DW-BJRR2U180TLX), 200TB (160TB, RAID6) (DW-BJRR2U200TS6, DW-BJRR2U200T6, DW-BJRR2U200TLX6), 200TB (180TB, RAID5) (DW-BJRR2U200TS, DW-BJRR2U200T, DW-BJRR2U200TLX), 220TB (180TB, RAID6) (DW-BJRR2U220TS6, DW-BJRR2U220T6, DW-BJRR2U220TLX6), 220TB (200TB, RAID5) (DW-BJRR2U220TS, DW-BJRR2U220T, DW-BJRR2U220TLX), 240TB (200TB, RAID6) (DW-BJRR2U240TS6, DW-BJRR2U240T6, DW-BJRR2U240TLX6), 240TB (220TB, RAID5) (DW-BJRR2U240TS, DW-BJRR2U240T, DW-BJRR2U240TLX), 80TB (40TB, RAID6) (DW-BJRR2U80TS6, DW-BJRR2U80T6, DW-BJRR2U80TLX6), 240TB |
| PERFORMANCE | |
| Playback Functions | Calendar, Event search, Smart motion search, Thumbnail search, Timeline |
| PTZ control | ONVIF |
| Recording Modes | Continuous, Motion + low res always, Motion + Object, Motion + Object + Low res, Motion detection, Object + Low res, Object only |
| System Operation | Graphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included) |
| NETWORK | |
| Backup | Network backup via DW Spectrum IPVMS |
| Ethernet Ports | 4 x 1G Ethernet on Expansion board, 2x 1G Ethernet (RJ45) |
| Pre-loaded VMS software | DW Spectrum IPVMS |
| Network Remote Software | Cross-platform - Windows, Linux Ubuntu and Mac, DW Mobile Plus, DW Spectrum Mobile App |
| ELECTRICAL | |
| Power Consumption | 800W dual power supply, A UPS is recommended, Redundant power supply |
| GENERAL | |
| Accessories | Keyboard, Mouse |
| Included IP licenses | 8 |
| Operating Temperature and Humidity | 20 ~ 90% RH, 41 ~ 104 °F (5~40 °C) |
| Rail kit | Included |
| Recorder Dimensions (H X W X D) | 3.41” x 18.97” x 28.4” (86.8 x 482 x 721.62mm) |
| Recording Licenses (Optional. Sold Separately) | Custom-ordered licenses are available by request. DW-SPCP04LSC004 - Four (4) DW Spectrum Analog Encoder IPVMS Licenses DW-SPCP16LSC016 - Sixteen (16) DW Spectrum Analog Encoder IPVMS Licenses DW-SPECTRUMLSC001 - Single DW Spectrum IPVMS Recording License DW-SPECTRUMLSC004 - Four (4) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC010 - Ten (10) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum IPVMS Recording Licenses DW-SPIOLSC001 - Single DW Spectrum I/O Module IPVMS License DW-SPVWALL1X2 - Single DW Spectrum Video Wall IPVMS License Lifetime upgrades are included with no annual renewal fees. |
| USB interface | Yes |
| Warranty | 5 Year Warranty, keep your hard drive, Next business day on-site hardware service (after remote diagnosis) |
| Weight (barebone, HDD not included) | 66 lbs (29.93 kg) |
| Certification | |
| Form Factor | Rack mount |
Name
Description
Size
Downloads
File
Datasheet
0.9mb
File
A&E Specifications
0.1mb
File
Support Guide
0.6mb
