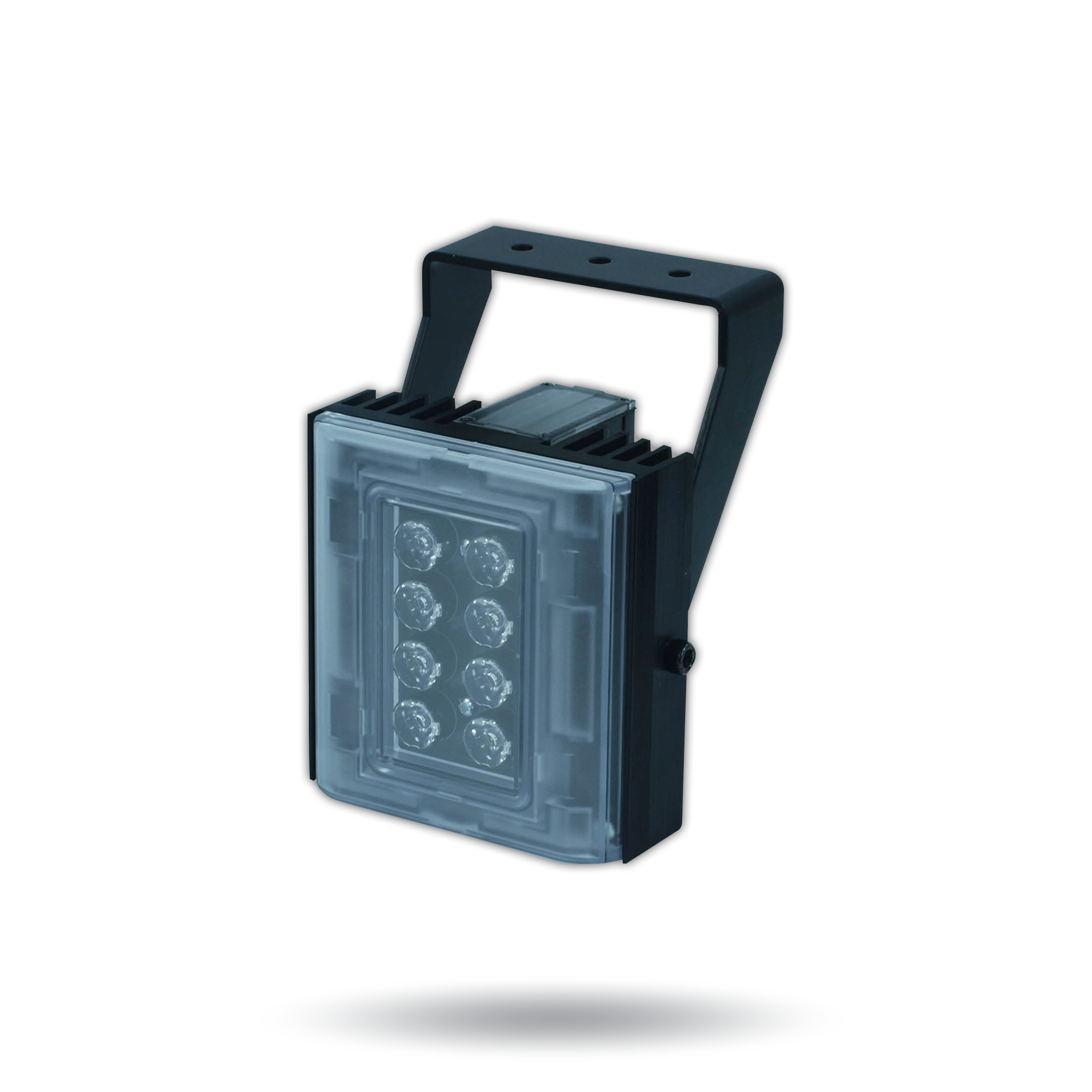

Digital Watchdog - DW-ILWLIPM - SiteWatch white light LED IP-enabled PoE+ illuminator
Part number:
DW-ILWLIPM
Price:

SiteWatch perimeter protection

Combine the motion detectors, illuminators and horn speaker to react to events in real-time and enhance the camera’s recordings, all controlled via DW Spectrum IPVMS.



Amplify panoramic surveillance

Combine detectors and illuminators with MEGApix Pano multi-sensor and hemispheric fisheye cameras to create a formidable panoramic solution.



Interchangeable lens diffuser kit

Each SiteWatch illuminator is supplied with an interchangeable lens diffuser kit, allowing installers to easily change the angle of illumination and align perfectly with the camera’s field of view.



Features :

  • White light LED illuminator
  • Interchangeable lens pack to deliver a variety of angles out of the box
  • Create different elliptical beam profiles
  • Coverage distance up to 374’ (115m).
  • Configure lights to switch on when motion is detected (detector required)
  • Activate white light to deter intruders
  • Adjustable photocell and illumination levels
  • Visible spectrum wavelength (400- 750nm)
  • Web interface built-in
  • High-power Dual-Core LEDs, with advanced, current limited, integral control circuitry
  • NDAA/TAA compliant
  • IP66 environmental-rated dust-tight and water-resistant
  • IK 09-rated impact-resistant
Performance
Color rendering index (CRI)Typically 80
Color temperature5700K (6000K and 6500K options available to order)
ElectronicsHigh efficiency surface mount high power Dual-Core LEDs with advanced, current limited, integral control circuity.
IlluminationAdjustable 10% - 100%
Lumen output2400 lm
Performance Remote softwareDW Spectrum IPVMS
Performance Web viewerInternet Explorer browser, No software or installation needed, Web browser user interface, Windows OS
PhotocellAdjustable 20 - 70 lux
Electrical
Power Consumption26W
Power RequirementsPoE
General
HousingRobust high-quality aluminum extrusion
IK ratingIK09 impact-resistant in accordance with IEC/EN 62262
IP ratingIP66-rated in accordance with IEC/EN 60529
MountPowder coated stainless steel wall mount
Operating temperature-58°F to 122°F (-50°C to 50°C)
Recommended PSUAny IEEE 802.3at injector (not included)
Recorder Dimensions (H X W X D)4.33" x 4.48" x 3.07" (110 x 114 x 78mm)
