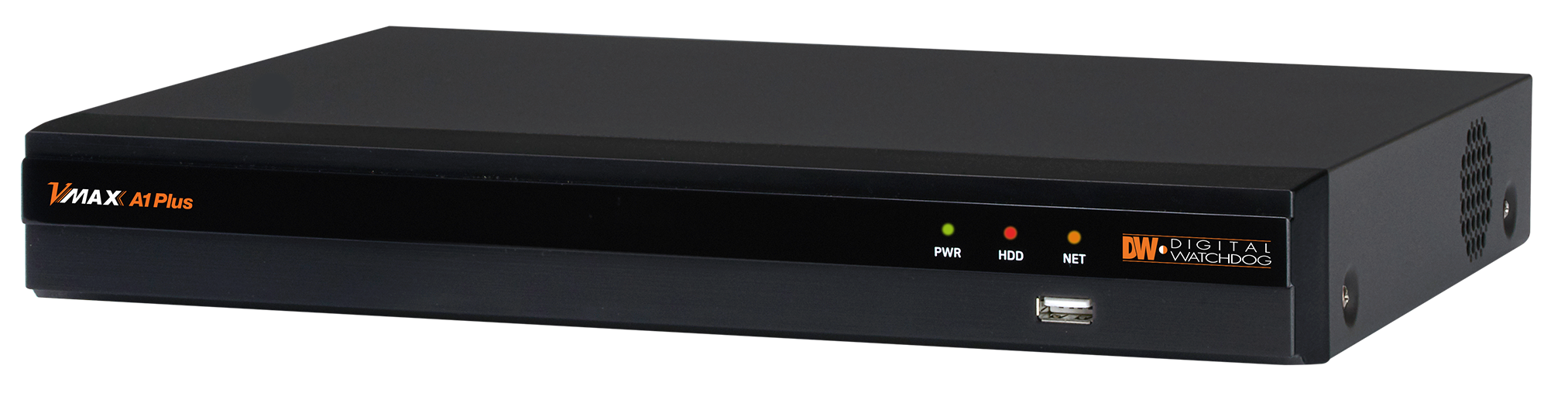

Digital Watchdog - DW-VA1P4 - Universal HD over Coax 4-Channel Digital Video Recorder
Part number:
DW-VA1P4
Price:
VMAX A1 Plus Universal High Definition via Coax, Records all HD Formats and All Analog to 960H, H.264, 4ch,NO HDD, Real Time Recording @30fps up to 1080P, Up to 5MP recording @40fps, 4ch Audio in, 1ch audio output, 4K/True HD/VGA monitor outs, 4 sensor input, 1 relay output, UTC, Spot Monitor Output, Free C3 CMS Software up to 144 channels, Free Mobile for IPhone, IPad, Apple TV, Android Smart Phones and Tablets, MAC Compatible, USB Backup, Free DDNS, Watermark Images, Help Menu, Email and Text Event Notification with Snapshot, PTZ Control, Quick Setup Wizard, Pathfinder auto port forwarding, 2 Year Warranty.
Features:
- Universal HD over Coax DVR records HD-Analog and HD-TVI and all analog up to 960H signals
- Advanced H.264 Linux embedded DVR
- 4-channels, real time 30fps recording up to 5MP
- Up to 5MP recording resolution at 40fps
- PathFinder Peer-to-Peer (P2P) remote connection
- C3 CMS and event server software up to 288Channels
- Event camera group recording
- Complete system analysis with real-time system and network status monitoring
- Mobile Application for iPhone, iPad, iPod, Android Smart Phones and Tablets and Apple TV
- Mac compatible remote ACS software
- OSD and PTZ control via coax (UTC)
- Signal hybrid detects any camera at HD-Analog, HD-TVI and 960H automatically.
- Instant channel swap, no need to disconnect or reboot the DVR.
- Snapshot Notify programmable interval snapshot notifications
- 4K (3840 x 2160) True HD, VGA and Spot video outputs
- 0TB - 10TB storage options
- HDD calculation and auto recording configuration
- Thumbnail search with hour and 5-minute previews
- 10 second jump buttons for playback and fast forward
- Event notifications via e-mail and C3 CMS and push notifications to mobile devices
- Multiplex - live, playback, recording, backup, network, configuration
- 4 audio input, 1 audio output
- 4 sensor input, 1 relay output
- Digital spot monitoring output at D1 resolution
- Simple and free DDNS service
- Push notifications via DW VMAX Plus app
- Easy web-based client with multi-user access
- Help menu on major functions
- Auto and manual firmware upgrades
- 5 year limited warranty
VIDEO | ||
| Signals supported | Analog signal up to 960H, HD-Analog and HD-TVI up to 5MP | |
| Input video | 4 channels | |
| Video live | Frame rate | 1-30fps, max 120fps total |
| Resolution | HD-analog and HD-TVI to 5MP and all CVBS analog resolutions up to 960H | |
| Video output | 4K True HD, VGA and Spot outputs | |
| Audio | Input | 4 input |
| Output | 1 output | |
| Codec | ADPCM | |
| Alarm | Alarm input | 4 input |
| Alarm output | 1 output | |
| Operating system | Embedded Linux® | |
| Serial | 1x RS485 for keyboard and PTZ control | |
| User interface | Menu display | Graphical user interface (GUI) |
| Control method | IR remote control (optional), USB mouse | |
| Screen display mode | 1, 4 and sequence | |
| Screen resolution | HDMI: 2560x1440, 3840×2160 (4K), 800x600, 1024x768, 1280x1024, 1920x1080 VGA: 800x600, 1024x768, 1280x1024, 1920x1080 Spot: D1 | |
PERFORMANCE | ||
| Recording | Compression | H.264 |
| Recording mode | ||
| Pre-recording | 0~5 seconds | |
| Post-recording | 0~5 minutes | |
| Recording rate | 960x480/576 (960H): 120fps 1280x720 (HD): 120fps 1920x1080 (HD): 120fps 2560x1600 (4MP): 60fps 2560x1944 (5MP): 40fps | |
| Recording resolutions | HD-analog and HD-TVI to 5MP and all analog resolutions up to 960H | |
| Playback | Playback rate | 960x480/576 (960H): 120fps 1280x720 (HD): 120fps 1920x1080 (HD): 120fps 2560x1600 (4MP): 60fps 2560x1944 (5MP): 40fps |
| Playback resolution | HD-analog and HD-TVI to 5MP and all analog resolutions up to 960H | |
| Fast forward functions | x1, x2, x4, x8, x16, x32 | |
| Playback functions | Intelli-search by time bar, calendar (date and time), event search and thumbnail search | |
| Storage | HDD interface | 1x SATA HDD |
| Max. internal storage | Up to 10TB | |
| HDD interface type | SATA | |
| HDD healthcheck | Temperature, S.M.A.R.T. with e-mail notifications | |
| Features | Camera color control | Via UTC |
| Digital zoom | Live and playback | |
| Software upgrade | USB flash drive, network upgrade, FTP remote upgrade | |
| Mobile client | Mobile app for Apple® and Android® smartphones and tablets and Apple TV® | |
| Covert channel | Yes (live and playback) | |
NETWORK | ||
| Network connection | Ethernet (1 x Gigabit) | |
| Streaming | Transmission speed live | 960x480/576 (960H): 120fps 1280x720 (HD): 120fps 1920x1080 (HD): 120fps 2560x1600 (4MP): 60fps 2560x1944 (5MP): 40fps |
| Protocol | Fixed IP, DHCP, UPnP, DDNS | |
| Access | Web viewer | Live, playback and configuration, up to 10 multiple connections |
| Client monitoring software | Mac® (Apple® S/W), C3™ (CMS S/W) | |
GENERAL | ||
| Operating temperature / humidity | 41°F ~ 104°F (5°C ~ 40°C), less than 80% (non-condensing) | |
| Electrical | Power requirement | 12V DC |
| Power consumption | 18W, 1.5A | |
| Dimensions | 12.4" x 9.52" x 1.77" (315 × 242 × 45 mm) (1U) | |
| Weight | 2.64 lbs (1.2kg) | |
| Certification | CE and FCC and KCC and WEEE, RoHS | |
| Warranty | 5 years limited | |
