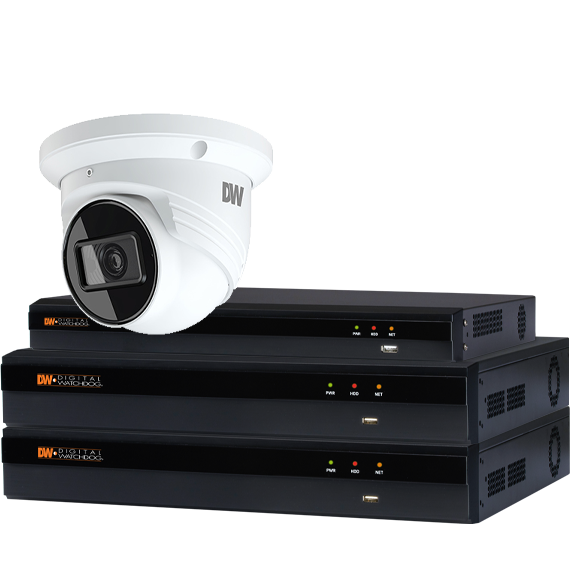

Digital Watchdog - DW-VP16T9KIT212 - 5MP Fixed Vandal Turret cameras with 2TB HDD NVR Consist of 1 - DW-VG4162T16P & 12 - DWC-MT95Wi28TW
Part number:
DW-VP16T9KIT212
Price:
Camera Description
MEGApix Weatherproof Turret, 5 Megapixel, 2.8mm Fixed Lens, True D&N, T-WDR, 100ft Smart IR, Multiple Codecs (H.265, H.264, MJPEG ) with simultaneous Dual Stream, Video Analytics (Line Crossing, Perimeter Intrusion, Video Tampering), Smart DNR, Audio Input, Programmable Privacy Zones, Web Server Built in, PoE and DC12V, IP67, OnVIF Compliant, 5 Year Warranty
Features:
- 5MP 1/2.7” image sensor at real-time 30fps
- 2.8mm fixed lens (DWC-MT95Wi28TW)
- 3.6mm fixed lens (DWC-MT95Wi36TW)
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 100ft range Smart IR
- Object classification video analytics
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene change detection video analytics
- Video tampering with video blur detection video analytics
- Video tampering with abnormal color detection video analytics
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- De-Fog extreme weather image compensation
- Auto white balance (AWB)
- Motion detection
- Audio input through built-in microphone
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
NVR Description
The VMAX IP Plus is an easy to use PoE NVR that allows you to go from power up to monitoring in less than three minutes! Combine with the DW Witness app to turn the camera on a smartphone or tablet into a surveillance camera that can be viewed and recorded on the NVR. Available with 4 PoE ports (expandable to 9 cameras), the NVRs can record and manage single-sensor IP cameras up to 4K, with 80Mbps maximum throughput.
Features:
- Complete installation, set up and camera configuration in under three minutes!
- CCIP system encryption protects your surveillance system from out of network attacks
- Record and manage single-sensor IP cameras up to 4K (3840×2160), with 80Mbps maximum throughput*
- Local power for up to 4 IP cameras via resident PoE switch
- DW Witness turns a smartphone or tablet into an additional surveillance camera
- PathFinder Peer-to-Peer (P2P) remote connection
- HTTPS encryption supported
- Automatic device discovery
- Control any ONVIF camera’s set up and features remotely
- 0TB-32TB storage options
- Snapshot Notify: camera notifications sent to an email or CMS
- C3 CMS and event server software up to 144 Channels
- Event notifications via email, text and C3 CMS and push notifications to mobile devices
- Mobile application for iPhone, iPad, iPod, Android smartphones and tablets and Apple TV
- Dual-stream recording
- Easy drag and drop camera management
- Instant backup during playback
Camera Specification
| IMAGE | |
|---|---|
| Image sensor | 5MP 1/2.7 CMOS sensor |
| Maximum resolution | 5MP |
| Minimum Scene Illumination in color | 0.0 lux (B/W), 0.02 lux (color) |
| Total Pixels | 2592 (H) × 1944 (V) |
| LENS | |
| Focal Length | 2.8mm, 3.6mm |
| Horizontal Field of View (HFOV) | 81.4°, 98.5° |
| IR Distance | 100' range Smart IR™ |
| Lens Type | Fixed Lens |
| I/O | |
| Audio compression | G.711A / U |
| I/O Audio in/out | *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended., 1 input, 1 microphone built-in |
| OPERATIONAL | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Camera Analytics | Object Classification (Differentiate Humans from Objects), Line Crossing, Perimeter Intrusion, video Tampering Detection (Scene Change, Video Blur, Abnormal Color Detection) |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included), Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Email, FTP server |
| Privacy Zones | 4 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Auto, Manual |
| Shutter Speed | 1/30 ~ 1/100000 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| NETWORK | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4, IPv6 |
| LAN | 802.3 compliance 10/100 LAN |
| Network resolution | 5MP, 4MP, 2K, 3MP, 2.1MP/1080P, 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps), HFR mode: 1080P / 720P (60Hz: 1 ~ 60fps; 50Hz: 1~50fps) |
| Network Web Viewer | Microsoft Edge® browser, Windows® OS |
| Protocol | 802.1x, DDNS, DHCP, FTP, HTTP, HTTPs, ICMP, IGMP, NTP, ONVIF, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Security | Digest authemtication (ID/PW), IP filtering, MAC filtering |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 64Kbps~8Mbps |
| Video Compression Type | H.264, H.265, MJPEG |
| Video Management Software | Any ONVIF conformant CMS, DW Spectrum® IPVMS, ExacqVision Technologies, Milestone Systems |
| Environmental Operating Humidity | 0-95% RH (non–condensing) |
| Environmental Operating Temperature | -22°F ~ 140°F (-30°C ~ 60°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| MECHANICAL | |
| Camera Dimensions (H X W X D) | 4.66" x 3.58" (118.6 x 91 mm) |
| Camera Weight | 1.01 lbs (0.46 kg) |
| Housing | Turret |
| Housing Color | White |
| IK rating | IK10 Rated |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting |
| ELECTRICAL | |
| Power Consumption | DC12V: max 7.0W, 583.3mA, PoE: max 7.0W |
| Power Requirements | Adapter not included, PoE |
| GENERAL | |
| Warranty | 5 Year Warranty |
NVR Specification
| VIDEO | |
|---|---|
| Display Modes | 1, 4, 9, Sequence |
| Display Speed | Up to 30fps per channel |
| Local Video Output Resolution | 1024x768, 1280x1024, 1280x720, 1920x1080, 2560x1600, 3840×2160 (4K) |
| Local Video Outputs | True HD, VGA |
| Max Supported Recording Resolution | 4K (3840×2160) |
| PoE Type | 100Mbps, 802.3at |
| Video Compression | H.264 |
| OS on SSD | 2x SSD (RADI1 mirrored) |
| Max throughput (Mbps) | 80Mbps |
| Input channels | 4 PoE channels, 9 Channels |
| STORAGE | |
| Raw internal storage options |  |
| HDD healthcheck | Temperature, S.M.A.R.T. with email notifications |
| Max HDD Bay | 2 x SATA HDD |
| Maximum Storage | 12TB (DW-VP912T-4P), 16TB (DW-VP916T-4P), 2TB (DW-VP92T-4P), 4TB (DW-VP94T-4P), 6TB (DW-VP96T-4P), 32TB (DW-VP932T4P), No storage (DW-VP9P) |
| PERFORMANCE | |
| Audio in/out | 1 input, 1 output |
| Performance features | AVI file backup, Camera Color Control, CCIP, Covert Channel, Digital Zoom in live and playback, Import and export settings, PoE built-in, Quick Setup under 3 Minutes, Real-time temp alert, Snapshot Notify™: Programmable interval camera image verification sent to an email, Watermak exported video |
| Playback Functions | Calendar, Event search, Smart motion search, Thumbnail search, Timeline |
| Playback speed | x1, x16, x2, x32, x4, x64, x8, x99 |
| Post-recording | 0~5 minutes |
| Pre- recording | 0~5 seconds |
| PTZ control | ONVIF, RS485 |
| Recording Modes | Continuous, Emergency, Motion detection, Pre- and post-alarm, Quick backup, Scheduled, Sensor |
| Recording Resolution and Recording Rate | Up to 3840×2160 (4K): 270fps, Up to 3840×2160 (4K): 360fps, Up to 3840×2160 (4K): 480fps |
| System Operation | Graphical user interface (GUI), Joystick Controller (optional), Remote Control (optional), USB mouse (included) |
| NETWORK | |
| Backup | Local backup via USB, Network backup via CMS |
| Ethernet Ports | 1x 1G Ethernet (RJ45) |
| Firmware Upgrade | CMS over network, FTP, USB |
| Protocol | DDNS, DHCP, RTSP, Static fixed IP, uPNP |
| System recovery after power failure | Auto-reboot and journaling file system |
| Transation verification | Text-in Based (USB to Serial support, TCP/IP Network) |
| Transmission speed live | Up to 3840×2160 (4K): 270fps |
| Network Remote Software | DW VMAX Plus App, ACS VMAX Client for MAC, C3 CMS, DW Mobile Plus, DW VMAX App, DW Witness, Pivot CMS |
| ELECTRICAL | |
| Maximum Power per Port | Up to 30W |
| Power Consumption | 19W per PoE channel, simultaneous, 90W total power budget, 1.875A, A UPS is recommended |
| Power Requirements | 48V AC |
| Total PoE Power Budget | 76W |
| GENERAL | |
| Accessories | IR remote control (optional), Mouse |
| Operating Temperature and Humidity | 20 ~ 90% RH, 41 ~ 104 °F (5~40 °C) |
| Rail kit | DW-VAP19RE - 19" rackmount ears |
| Recorder Dimensions (H X W X D) | 14.96" x 12.4" x 2.02" (380 × 315 × 51.5 mm) |
| Serial ports | RS485 |
| USB interface | Yes |
| Warranty | 5 Year Limited Warranty |
