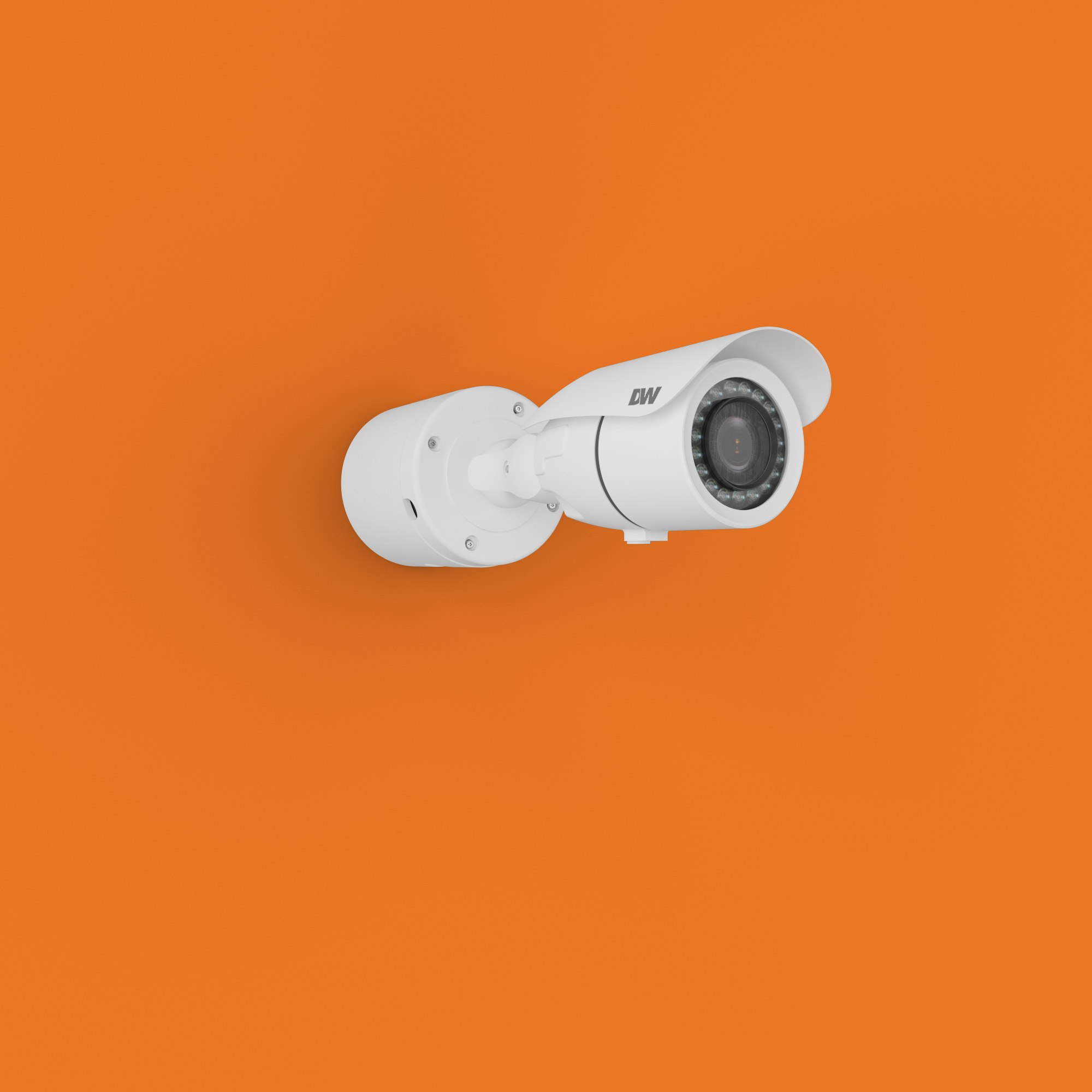

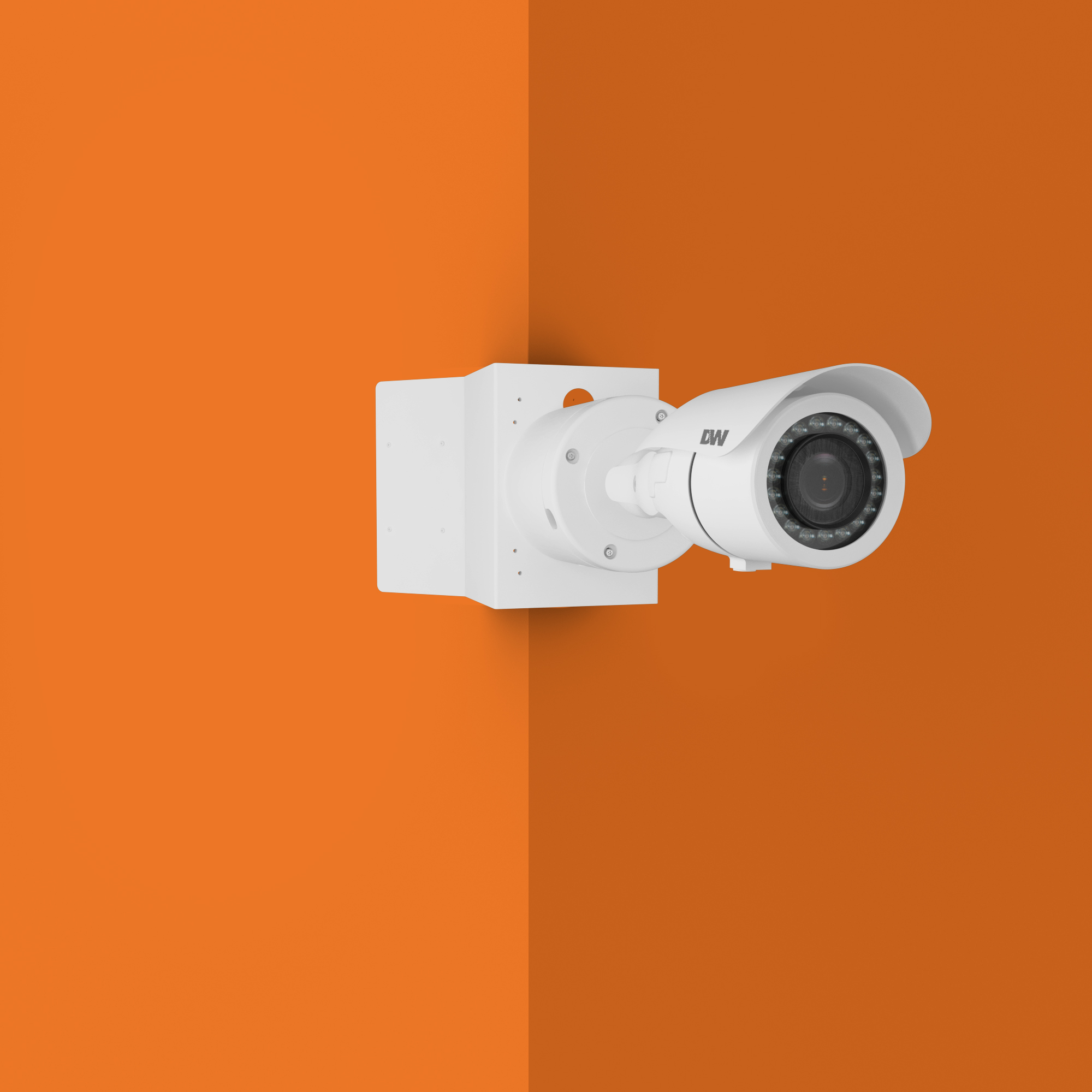

Digital Watchdog - DWC-B6263WTIR650W - Star-Light 2.1MP/1080p UHDoC Bullet Camera with a Long Range Vari-focal Lens and IR
Star-Light 2.1MP/1080p Universal HD over COAX cameras deliver crystal clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI and all analog signals to 960H. The vandal weather resistant bullet cameras are IP66 rated. Star-Light Universal HD over COAX® cameras are engineered to work with our VMAX A1 Universal HD over COAX DVRs using your existing coax infrastructure for a cost-effective, high resolution surveillance solution.
Star-Light Super Low-Light Technology
Star-Light Technology provides crisp clear images in both color and B/W video in extremely low light conditions. It is an ideal solution for cameras that are installed in a low-light environment, and cannot rely on external lighting for image clarity. Coupled with a powerful IR built-in, Star-Light cameras can provide unparalleled details in total darkness.
Universal HD over Coax Technology
Universal HD over Coax Complete Solutions are the best way to upgrade an existing analog system to high-definition. Universal HD over Coax cameras and recorders can transmit HD-Analog, HD-TVI, HD-CVI signals up to 4K, and analog signals to 960H.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
Features:
- Universal HD over Coax technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H
- Star-Light super low light technology
- 2.1MP 1/3" image sensor at real-time 30fps
- 6~50mm vari-focal p-iris lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 150' Smart IR with intelligent camera sync.
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- De-Fog extreme weather image compensation
- Highlight masking exposure (HME)
- Auto-sensing 24VAC/12VDC with line lock
- Easy icon-driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Dynamic range compressor (DRC)
- Auto white balance (AWB)
- RS-485 built-in
- UL listed
- NDAA compliant
- IP66-rated weather and tamper resistant
- 5 year warranty
| Image | |
| Active Pixels | 1944 (H) x 1092 (V) |
| Frequency | 50Hz, 60Hz |
| Image sensor | 2.1MP/1080p 1/3" CMOS sensor |
| Maximum resolution | 2.1MP/1080p |
| Minimum Scene Illumination in color | 0.0 lux (B/W), 0.039 lux (color) |
| Scanning System | Progressive scan |
| Signal technology | CVBS up to 960H, HD-Analog, HD-CVI, HD-TVI, Universal HD over Coax technology |
| Lens | |
| Advanced Lens Features | P-iris |
| Focal Length | 6mm ~ 50mm |
| Horizontal Field of View (HFOV) | 45.3° ~ 5.7° |
| IR Distance | 150' range Smart IR |
| Lens Type | Vari-focal Lens |
| Vertical Field of View (VFOV) | 28.1° ~ 3.7° |
| I/O | |
| I/O Alarm in/out | 1 output |
| Operational | |
| 3D digital noise reduction | Smart DNR 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Backlight compensation (BLC) | Yes |
| Camera Control | Pelco C, Pelco D, UTP built-in |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| De-fog | Yes |
| DRC | Yes |
| Gamma | 0.45 ~ 0.75 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Privacy Zones | 16 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Anti-Flicker, Auto, Manual |
| Shutter Speed | 1/30 ~ 1/30000 |
| Star-Light (sense up) | Off, x2-x32 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 100dB |
| Environmental | |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | *Dimensions based on the position of the sun shield cover, 9.92" x 3.8" (252 x 96.7 mm) |
| Camera Weight | 1.83 lbs (0.83kg) |
| Housing | Bullet |
| Housing Color | White |
| IP rating | Weather Resistant (IP66) |
| Materials | Aluminum die-casting |
| Electrical | |
| American wire gauge (AWG) | Cable type #18 |
| Power Consumption | AC24V (LED on): 5.5W, 229.1mA, AC24V (no LED): 2.7W, 112.5mA, DC12V (no LED): 3.0W, 250mA |
| Power Requirements | 12V DC, 24 V AC |
| General | |
| Warranty | 5 Year Warranty |
