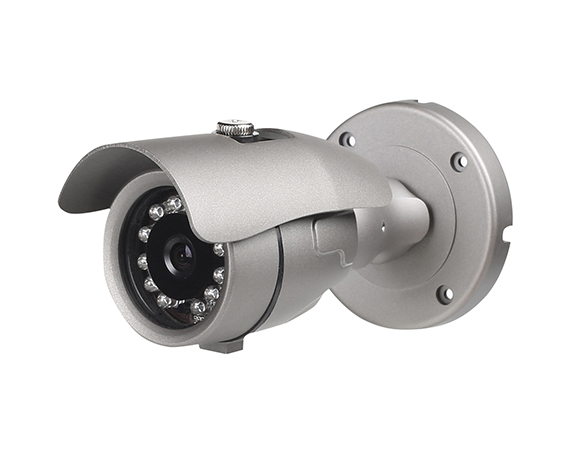

Digital Watchdog - DWC-B7753TIR - Star-Light 2.1MP/1080p HD-Analog Bullet Camera with a Fixed Lens and IR
Star-Light AHD Series, Weatherproof Bullet, 1/3" 2.1MP CMOS Sensor, P-Iris, 1920x1080 resolution, 3.6mm Fixed Lens, Digital Wide Dynamic Range ( D-WDR ), True Day/Night with IR Cut Filter, 50ft Smart IR, Smart 3D-DNR, 12VDC, IP66. 5 Year Warranty.
Groundbreaking STAR-LIGHT AHD High Definition Cameras use existing coaxial cables to transmit crystal-clear detailed 1080p images. The cameras offer 2.1MP resolution along with powerful features such as P-Iris Lens, Digital Wide Dynamic Range (DWDR) and True Day/Night with Mechanical IR Cut Filter. The STAR-LIGHT AHD cameras are engineered to work with VMAX AHD DVRs, offering an easy upgrade from analog to high definition surveillance using existing infrastructure for a cost-effective, high resolution surveillance solution.
Features:
- Analog High Definition (AHD) HD over Coax Technology
- STAR-LIGHT Super Low Light Technology
- Omnivision 1/2.7” CMOS Sensor
- 1080p Resolution at 30fps
- Digital Wide Dynamic Range (DWDR)
- 3.6mm Fixed Lens
- Smart IR with Intelligent Camera Sync. 50ft Range
- Smart DNR 3D Digital Noise Reduction
- Highlight Masking Exposure (HME)
- True Day/Night with Mechanical IR Cut Filter
- Secondary Video-BNC Output
- Programmable Privacy Zones
- Auto Gain Control (AGC)
- Backlight Compensation (BLC)
- Auto White Balance (AWB)
- RS-485 Built-in
- IP66 Certified (Weather Resistant)
- 5 Year Warranty
IMAGE | |
| Image sensor | 2.1MP/1080p 1/2.7” CMOS |
| Active pixels | 1944 (H) x 1092 (V) |
| Scanning system | Progressive scan |
| Frequency | 60Hz / 50Hz |
| Signal technology | HD over Coax™ HD-Analog signal support |
| Synchronization | Internal |
| Resolution | 1920 x 1080 (1080p) |
| Minimum scene illumination | 0.41 lux (color) |
| 0 lux (B&W) | |
| S/N ratio | 55dB |
| Video output | HD-Analog 2.1MP/1080p CVBS Analog up to 960H (video test only) |
LENS | |
| Focal length | 3.6mm |
| Lens type | Fixed lens |
| IR distance | 50ft range |
OPERATIONAL | |
| Shutter mode | Auto, manual |
| Shutter speed | 1/30-1/30,000 |
| Backlight | On, off |
| Star-Light (sense-up) | Off, x2 – x30 |
| Dynamic range compressor (DRC) | Off, on, auto |
| Smart DNR™ 3D digital noise reduction | Off, low, middle, high |
| White balance | Auto / push / ATW / manual |
| Day / night | Auto, day (color), night (B/W) |
| Mirror / flip | Yes |
| Auto gain control | 0~15 |
| Motion detection | Yes |
| Privacy zones | 4 programmable privacy zones |
| Sharpness | On, Off |
| Gamma | 0.45 ~ 0.75 |
| De-fog | On, off |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| IP rating | IP66 certified weather and tamper resistant |
| Other certifications | FCC, CE, ROHS |
ELECTRICAL | |
| Power requirement | DC12V |
| Power consumption | DC12V(LED OFF): 1.86W |
| DC12V(LED ON) : 3.0W | |
MECHANICAL | |
| Material | Aluminum bullet housing |
| Dimensions | 6.47" x 2.52" (164.4 x 64mm) |
| Weight | 0.65lbs |
