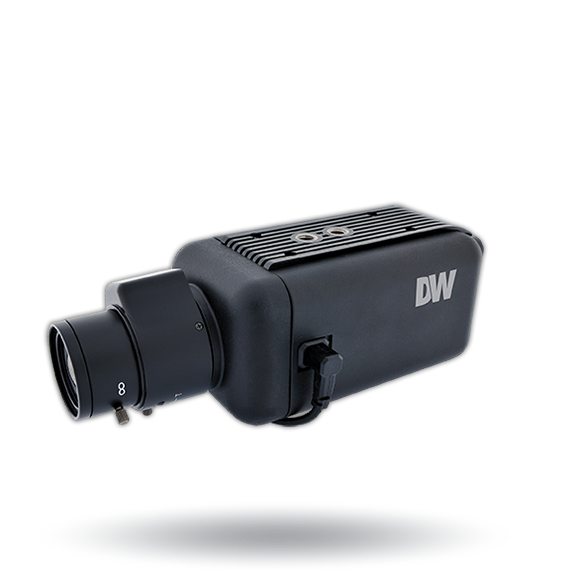

Digital Watchdog - DWC-C223W - Star-Light 2.1MP/1080p UHDoC Box Camera
Part number:
DWC-C223W
Price:
Star-Light Universal HD over COAX cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI at 2.1MP/1080p and CVBS at 960H. Star-Light Universal HD over Coax cameras are engineered to work with our VMAX A1 Universal HD over Coax DVRs using your existing Coax infrastructure for a cost-effective, high resolution surveillance solution.
Features:
- Universal HD over Coax Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
- STAR-LIGHT Super Low Light Technology
- 2.1MP 1/3" Image Sensor at Real-time 30fps
- Compatible with C/CS Mount Lens
- True Wide Dynamic Range (WDR)
- OSD Control Via Coaxial (UTC)
- Smart DNR 3D Digital Noise Reduction
- True Day/Night Mechanical IR Cut Filter
- De-Fog Extreme Weather Image Compensation
- Highlight Masking Exposure (HME)
- Auto-Sensing 24VAC/12VDC with Line Lock
- Easy Icon Driven OSD Menu with Built-in Joystick
- Programmable Privacy Zones
- Auto Gain Control (AGC)
- Backlight Compensation (BLC)
- Dynamic Range Compressor (DRC) Reveals Low Light Detail
- Auto White Balance (AWB)
- NDAA compliant
- 5 Year Warranty
IMAGE | ||
| Image sensor | 2.1MP/1080p 1/3" CMOS | |
| Active pixels | 1944 (H) x 1092 (V) | |
| Scanning system | Progressive scan | |
| Frequency | 60Hz / 50Hz | |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support | |
| Synchronization | Internal | |
| Resolution | 1920 x 1080 (1080p) | |
| Minimum scene illumination | 0.02 lux (color) | |
| S/N ratio | 55dB | |
| Video output | HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H | |
I/O | ||
| Alarm output | 1 alarm output | |
LENS | ||
| Lens type | C/CS mount lens compatible | |
OPERATIONAL | ||
| Shutter mode | Auto, manual, FLC | |
| Shutter speed | 1/30-1/30,000 | |
| Backlight | On, off | |
| Star-Light (sense-up) | Off, x2 – x32 | |
| Wide dynamic range (WDR) | True WDR, off, on | |
| Wide dynamic range (WDR) dB | 100dB | |
| Dynamic range compressor (DRC) | Off, low, middle, high | |
| Smart DNR™ 3D digital noise reduction | Off, low, middle, high | |
| White balance | Auto / auto-ex / preset / manual | |
| Day / night | Auto, day (color), night (B/W) | |
| Mirror / flip | Yes | |
| Auto gain control | 0~10 | |
| Motion detection | Yes | |
| Privacy zones | 16 programmable privacy zones | |
| Sharpness | 0 ~ 10 | |
| Gamma | 0.45 ~ 0.75 | |
| De-fog | On, off | |
| RS485 / UTP built-in | Pelco D / Pelco C | |
ENVIRONMENTAL | ||
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) | |
| Operating humidity | 10–90% RH (non–condensing) | |
| Other certifications | FCC, CE, ROHS | |
ELECTRICAL | ||
| Power requirement | DC12V/AC24V dual voltage | |
| Power consumption | DC12V : 2.45W | |
| AC24V : 2.4W | ||
MECHANICAL | ||
| Material | Aluminum box housing | |
| Dimensions | 4.71" x 2.31" x 2.44" (119.7 x 58.8 x 62 mm) | |
| Weight | 0.7lbs (0.32kg) | |
