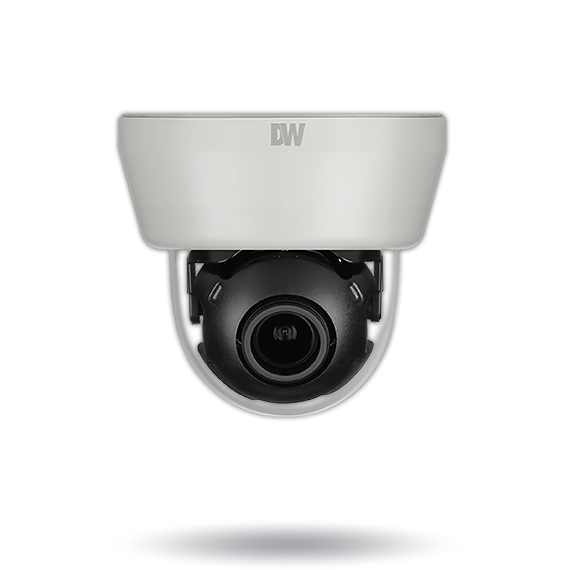

Digital Watchdog - DWC-D4283WD - Star-Light 2.1MP/1080p UHDoC Indoor Dome Camera with a Vari-Focal Lens
Part number:
DWC-D4283WD
Price:
Star-Light AHD Series, SnapitIndoor Dome, 2.1MP CMOS Sensor, P-Iris, 1920x1080 resolution, AHD,CVI,TVI,960H, 2.8-12mm Varifocal Motorized Zoom/Autofocus Lens, True Wide Dynamic Range (100dB), True Day/Night with IR Cut Filter, Smart 3D-DNR, OSD Control via UTC, Built in Microphone, Dual Voltage. 5 Year Warranty.
Star-Light Universal HD over COAX cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI at 2.1MP/1080p and CVBS at 960H. Our unique Snapit housing makes installation a snap!. Star-Light Universal HD over Coax cameras are engineered to work with our VMAX A1 Universal HD over Coax DVRs using your existing Coax infrastructure for a cost-effective, high resolution surveillance solution.
Features:
- Universal HD over Coax Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
- STAR-LIGHT Super Low Light Technology
- 2.1MP 1/3" Image Sensor at Real-time 30fps
- Built-in Microphone
- 2.8~12mm Motorized Zoom Auto-Focus P-Iris Lens
- True Wide Dynamic Range (WDR)
- OSD Control Via Coaxial (UTC)
- Snapit Easy Installation Housing
- De-Fog Extreme Weather Image Compensation
- Highlight Masking Exposure (HME)
- Auto Sensing 24VAC/12VDC with Line Lock
- Easy Icon Driven OSD Menu with Built-in Joystick
- Programmable Privacy Zones
- Auto Gain Control (AGC)
- Backlight Compensation (BLC)
- Dynamic Range Compressor (DRC) Reveals Low Light Detail
- Auto White Balance (AWB)
- UTP Built-In
- RS-485 Built-in
- NDAA/TAA compliant
- 5 Year Warranty
IMAGE | ||
| Image sensor | 2.1MP/1080p 1/3" CMOS | |
| Active pixels | 1944 (H) x 1092 (V) | |
| Scanning system | Progressive scan | |
| Frequency | 60Hz / 50Hz | |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support | |
| Synchronization | Internal | |
| Resolution | 1920 x 1080 (1080p) | |
| Minimum scene illumination | 0.3 lux (color) | |
| S/N ratio | 55dB | |
| Video output | HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H | |
I/O | ||
| Alarm output | 1 alarm output | |
| Audio input/output | 1 built-in microphone | |
| Audio sensitivity | -38dB ± 2dB | |
| Audio frequency response | 50Hz ~ 10KHz | |
LENS | ||
| Focal length | 2.8 ~ 12mm | |
| Lens type | Motorized zoom auto-focus p-iris lens | |
| Field of view (FoV) | 91 - 28° | |
OPERATIONAL | ||
| Shutter mode | Auto, manual, FLC | |
| Shutter speed | 1/30-1/30,000 | |
| Backlight | On, off | |
| Star-Light (sense-up) | Off, x2 – x32 | |
| Wide dynamic range (WDR) | True WDR, off, on | |
| Wide dynamic range (WDR) dB | 100dB | |
| Dynamic range compressor (DRC) | Off, low, middle, high | |
| Smart DNR™ 3D digital noise reduction | Off, low, middle, high | |
| White balance | Auto / auto-ex / preset / manual | |
| Day / night | Auto, day (color), night (B/W) | |
| Mirror / flip | Yes | |
| Auto gain control | 0~10 | |
| Motion detection | Yes | |
| Privacy zones | 16 programmable privacy zones | |
| Sharpness | 0 ~ 10 | |
| Gamma | 0.45 ~ 0.75 | |
| De-fog | On, off | |
| RS485 / UTP built-in | Pelco D / Pelco C | |
ENVIRONMENTAL | ||
| Operating temperature | -40°F ~ 122°F (-40°C ~ 50°C) | |
| Operating humidity | 10–90% RH (non–condensing) | |
| Other certifications | FCC, CE, ROHS | |
ELECTRICAL | ||
| Power requirement | DC12V/AC24V dual voltage | |
| Power consumption | DC12V: 3.0W | |
| AC24V: 2.3W | ||
MECHANICAL | ||
| Material | Snapit™ plastic housing, polycarbonate dome | |
| Dimensions | 4.24" x 3.9" (107.8 x 99.1 mm) | |
| Weight | 0.529 lbs (0.24kg) | |
Name
Description
Size
Downloads
File
Datasheet
0.8mb
File
Quick Start Guide
1mb
File
A&E Specifications
0.1mb
