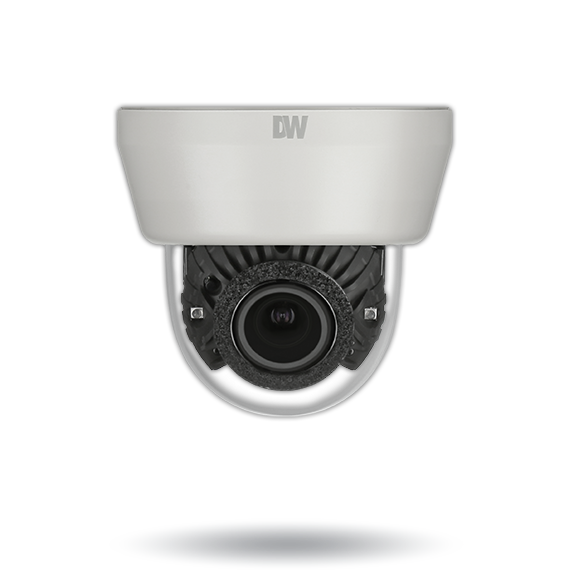

Digital Watchdog - DWC-D4283WTIR - Star-Light UHDoC 2.1MP/1080p Indoor Dome Snapit Camera with 2.8~12mm Vari-focal p-iris Lens with Motorized Zoom and Auto-focus and IR
Part number:
DWC-D4283WTIR
Price:
Star-Light AHD Series, SnapitIndoor Dome, 2.1MP CMOS Sensor, P-Iris, 1920x1080 resolution, AHD,CVI,TVI,960H, 2.8-12mm Varifocal Motorized Zoom/Autofocus Lens, True Wide Dynamic Range (100dB), True Day/Night with IR Cut Filter, 100ft Smart IR, Smart 3D-DNR, OSD Control via UTC, Dual Voltage. 5 Year Warranty.
Star-Light Universal HD over COAX cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI at 2.1MP/1080p and CVBS at 960H. Our unique Snapit housing makes installation a snap!. Star-Light Universal HD over Coax cameras are engineered to work with our VMAX A1 Universal HD over Coax DVRs using your existing Coax infrastructure for a cost-effective, high resolution surveillance solution.on.
Features:
- Universal HD over Coax Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
- STAR-LIGHT Super Low Light Technology
- 2.1MP 1/3" Image Sensor at Real-time 30fps
- Built-in Microphone
- 2.8~12mm Motorized Zoom Auto-Focus P-Iris Lens
- True Wide Dynamic Range (WDR)
- OSD Control Via Coaxial (UTC)
- Snapit Easy Installation Housing
- 100' Smart IR with Intelligent Camera Sync.
- Smart DNR 3D Digital Noise Reduction
- True Day/Night Mechanical IR Cut Filter
- De-Fog Extreme Weather Image Compensation
- Highlight Masking Exposure (HME)
- Auto Sensing 24VAC/12VDC with Line Lock
- Easy Icon Driven OSD Menu with Built-in Joystick
- Programmable Privacy Zones
- Auto Gain Control (AGC)
- Backlight Compensation (BLC)
- Dynamic Range Compressor (DRC) Reveals Low Light Detail
- Auto White Balance (AWB)
- UTP Built-In
- RS-485 Built-in
- NDAA/TAA compliant
- 5 Year Warranty
IMAGE | |
| Image sensor | 2.1MP/1080p 1/3" CMOS |
| Active pixels | 1944 (H) x 1092 (V) |
| Scanning system | Progressive scan |
| Frequency | 60Hz / 50Hz |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support |
| Synchronization | Internal |
| Resolution | 1920 x 1080 (1080p) |
| Minimum scene illumination | 0.3 lux (color) |
| 0 lux (B&W) | |
| S/N ratio | 55dB |
| Video output | HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H |
I/O | |
| Alarm output | 1 alarm output |
| Audio input/output | 1 built-in microphone |
| Audio sensitivity | -38dB ± 2dB |
| Audio frequency response | 50Hz ~ 10KHz |
LENS | |
| Focal length | 2.8 ~ 12mm |
| Lens type | Motorized zoom auto-focus p-iris lens |
| Field of view (FoV) | 91 - 28° |
| IR distance | 100ft range |
OPERATIONAL | |
| Shutter mode | Auto, manual, FLC |
| Shutter speed | 1/30-1/30,000 |
| Backlight | On, off |
| Star-Light (sense-up) | Off, x2 – x32 |
| Wide dynamic range (WDR) | True WDR, off, on |
| Wide dynamic range (WDR) dB | 100dB |
| Dynamic range compressor (DRC) | Off, low, middle, high |
| Smart DNR™ 3D digital noise reduction | Off, low, middle, high |
| White balance | Auto / auto-ex / preset / manual |
| Day / night | Auto, day (color), night (B/W) |
| Mirror / flip | Yes |
| Auto gain control | 0~10 |
| Motion detection | Yes |
| Privacy zones | 16 programmable privacy zones |
| Sharpness | 0 ~ 10 |
| Gamma | 0.45 ~ 0.75 |
| De-fog | On, off |
| RS485 / UTP built-in | Pelco D / Pelco C |
ENVIRONMENTAL | |
| Operating temperature | -40°F ~ 122°F (-40°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| Other certifications | FCC, CE, ROHS |
ELECTRICAL | |
| Power requirement | DC12V/AC24V dual voltage |
| Power consumption | DC12V (LED OFF): 3.0W DC12V (LED ON): 5.2W |
| AC24V (LED OFF): 2.3W AC24V (LED ON): 4.6W | |
MECHANICAL | |
| Material | Snapit™ plastic housing, polycarbonate dome |
| Dimensions | 4.24" x 3.9" (107.8 x 99.1 mm) |
| Weight | 0.529 lbs (0.24kg) |
Name
Description
Size
Downloads
File
Datasheet
0.8mb
File
Quick Start Guide
1mb
File
A&E Specifications
0.1mb
