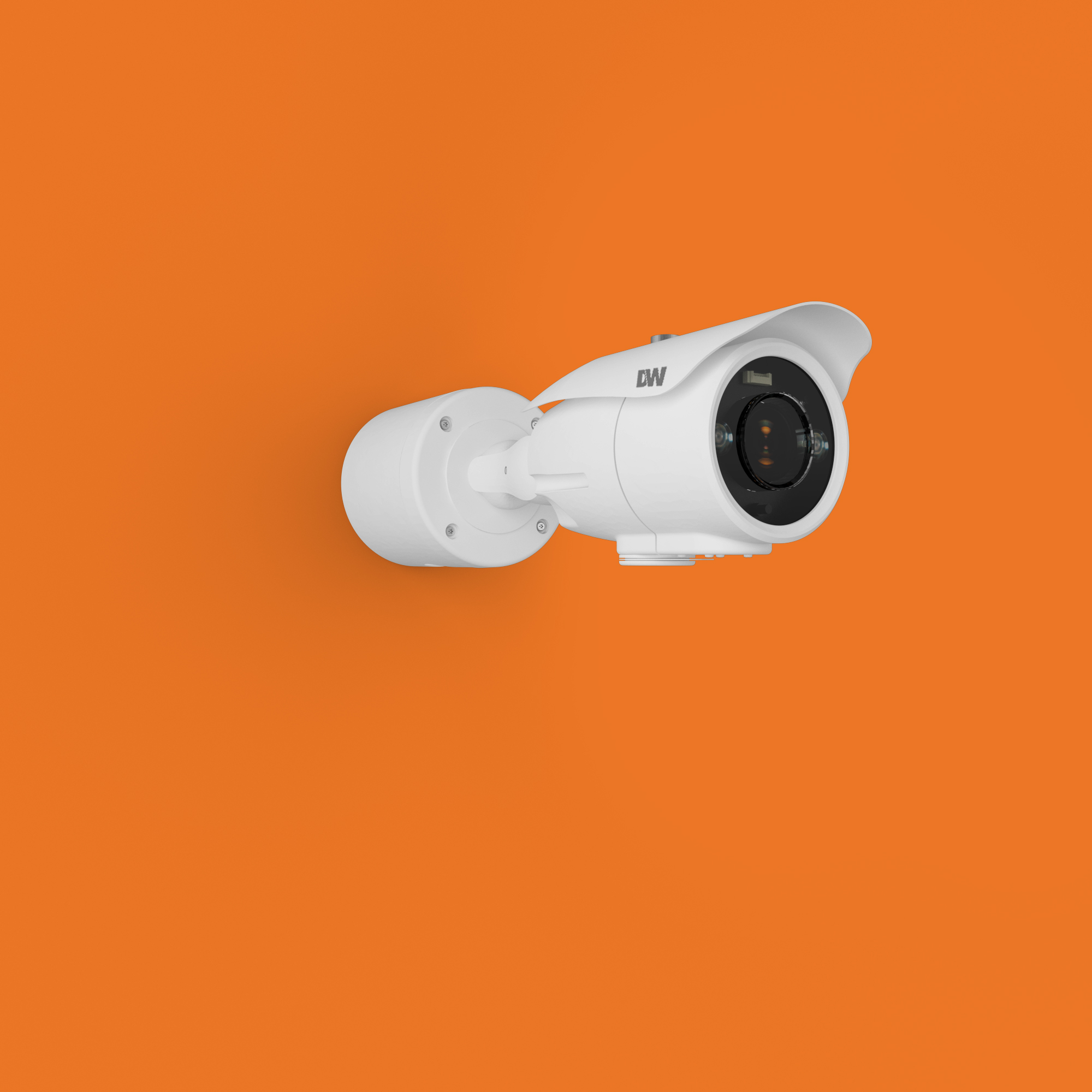

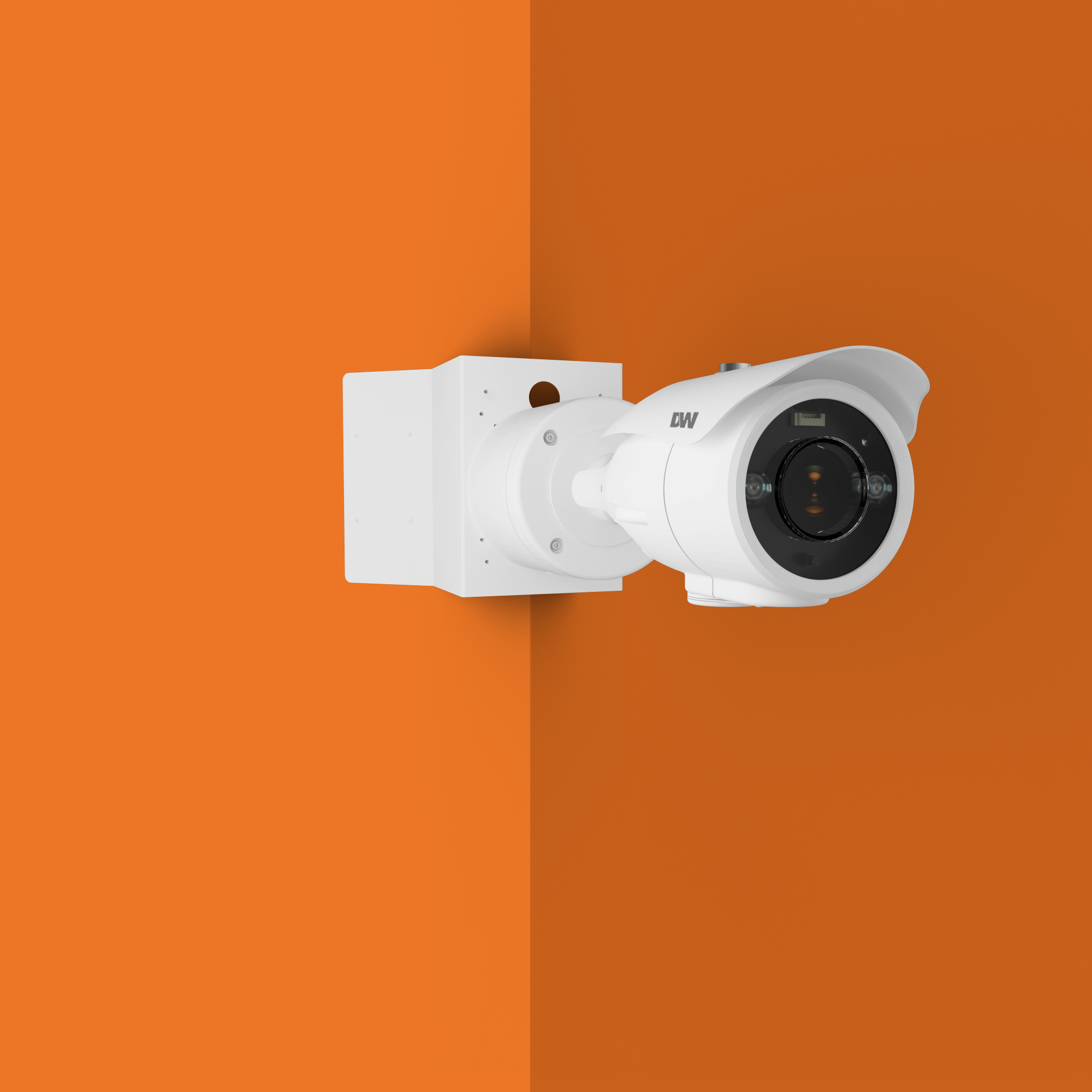

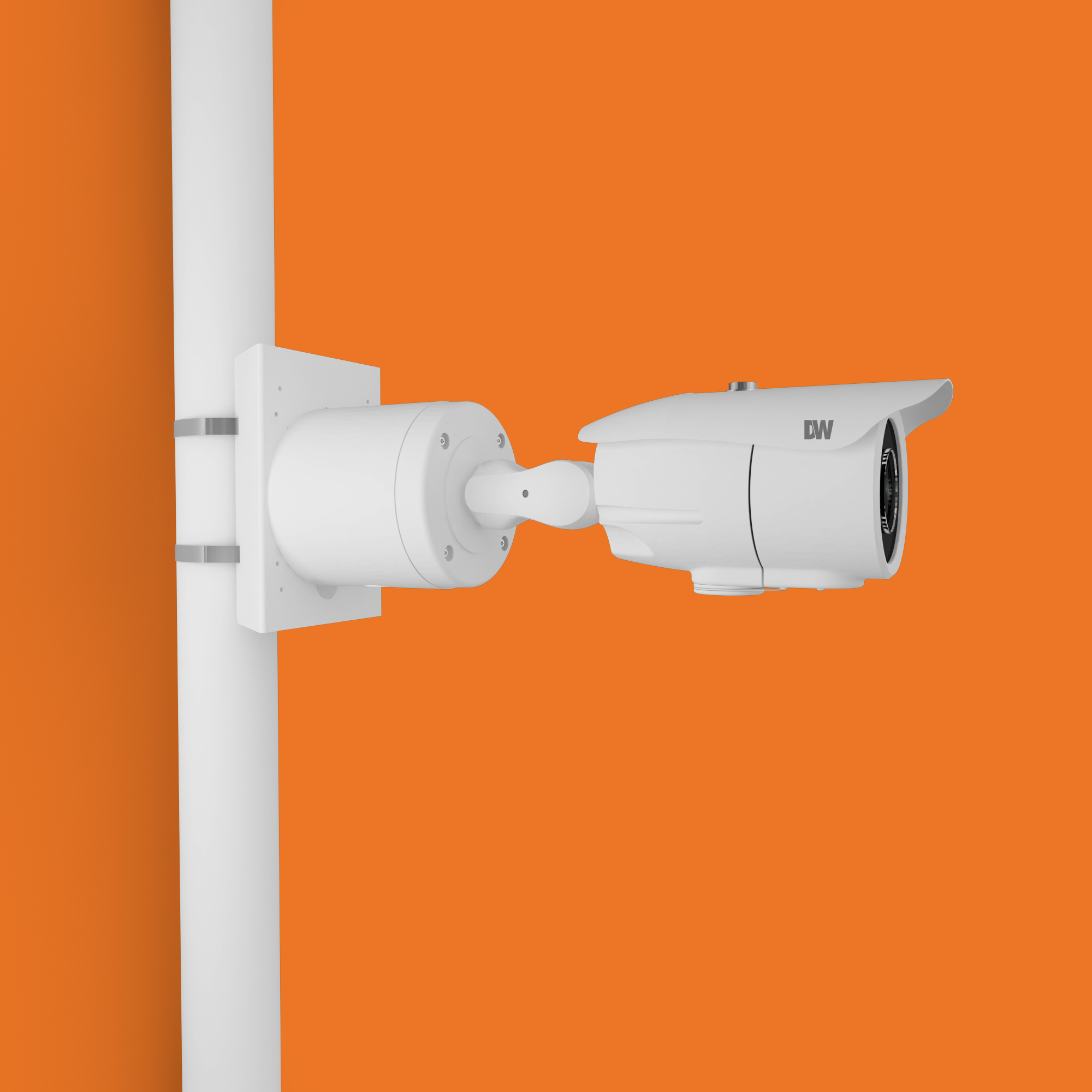

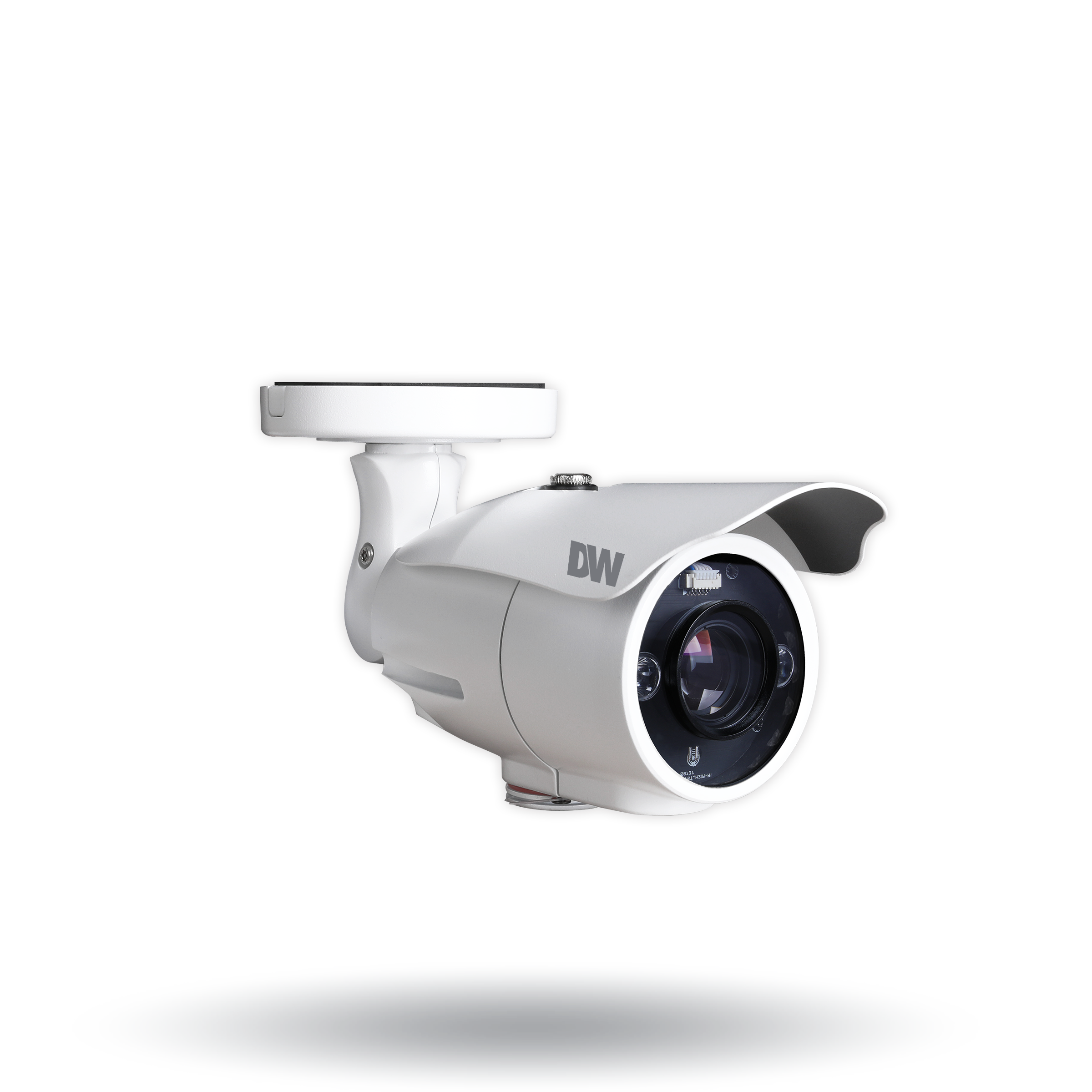

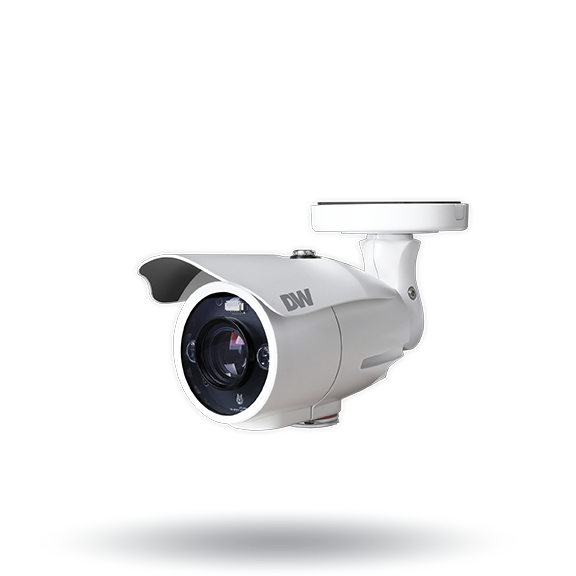

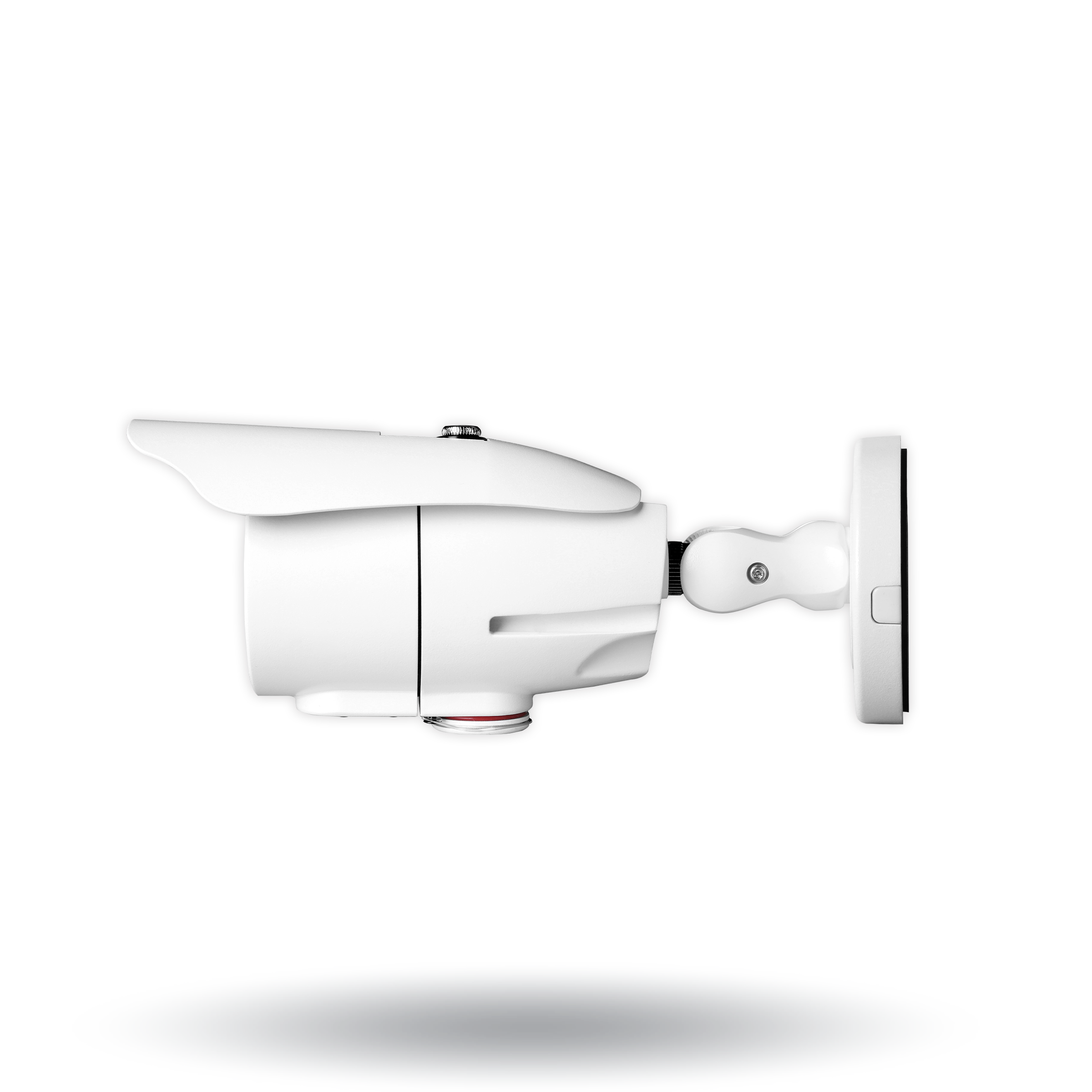

The 2.1MP/1080p LPR camera delivers crystal-clear images and supports real-time 30fps HD-Analog, HD-TVI, HD-CVI and all analog signals to 960H. The camera is engineered to capture license plates of moving vehicles at up to 50mph, in extreme light conditions, from a 13 to 30 feet range. The IP66-rated vandal housing assures that license plates are captured clearly and visibly, no matter the lighting challenge or weather condition. DW® LPR cameras are a cost-effective, highresolution surveillance solution.
License Plate Recognition (LPR) Camera
Capture license plates in moving vehicles at up to 50mph in extremely low light visibility.
Universal HD over Coax Technology
Universal HD over Coax Complete Solutions are the best way to upgrade an existing analog system to high-definition. Universal HD over Coax cameras and recorders can transmit HD-Analog, HD-TVI, HD-CVI signals up to 4K, and analog signals to 960H.
Features
- Universal HD over Coax technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
- 2.1MP/1080p 1/3" image sensor at real-time 30fps
- HD Analog LPR, license plate recognition technology, captures reflective license plates up to 50mph with a 13’~30’ capture range.
- Reliable performance under any lighting conditions
- External OSD and lens adjustment
- 6 ~ 50mm varifocal p-iris lens
- OSD control via coaxial (UTC)
- 60' Smart IR with intelligent camera sync.
- Smart DNR 3D digital noise reduction
- Highlight masking exposure (HME)
- Auto-sensing 24VAC/12VDC with line lock
- Easy icon-driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Dynamic range compressor (DRC) reveals low light detail
- No fog or condensation under any weather conditions
- UL listed
- NDAA compliant
- IP66 certified weather and tamper-resistant
- 5 year warranty
| Image | |
| Active Pixels | 1944 (H) x 1092 (V) |
| Frequency | 50Hz, 60Hz |
| Image sensor | 2.1MP/1080p 1/3" CMOS sensor |
| Maximum resolution | 2.1MP/1080p |
| Minimum Scene Illumination in color | 0.0 lux (B/W) |
| Scanning System | Progressive scan |
| Signal technology | CVBS up to 960H, HD-Analog, HD-CVI, HD-TVI, Universal HD over Coax technology |
| Lens | |
| Advanced Lens Features | P-iris |
| Focal Length | 6mm ~ 50mm |
| Horizontal Field of View (HFOV) | 45.3° ~ 5.7° |
| IR Distance | 60' range Smart IR |
| Lens Type | Vari-focal Lens |
| Vertical Field of View (VFOV) | 28.1° ~ 3.7° |
| I/O | |
| I/O Alarm in/out | 1 output |
| Operational | |
| 3D digital noise reduction | Smart DNR 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Backlight compensation (BLC) | Yes |
| Camera Control | Pelco C, Pelco D |
| Day and night | Night (B/W) |
| De-fog | Yes |
| DRC | Yes |
| Gamma | 0.45 ~ 0.75 |
| LPR Capture Range | 13’-115’ and 50 MPH |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Privacy Zones | 16 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Anti-Flicker, Auto, Manual |
| Shutter Speed | 1/30 ~ 1/30000 |
| White Balance | Yes |
| Environmental | |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | *Dimensions based on the position of the sun shield cover, 9.4” x 3.8” (264 x 96.7 mm) |
| Camera Weight | 1.83 lbs (0.83kg) |
| Housing | Bullet, LPR |
| Housing Color | White |
| IP rating | Weather Resistant (IP66) |
| Materials | Aluminum die-casting |
| Electrical | |
| American wire gauge (AWG) | Cable type #18 |
| Power Consumption | AC24V (LED on): 5.7W, 237.5mA, DC12V (LED on): 6.12W, 510mA |
| Power Requirements | 24 V AC |
| General | |
| Warranty | 5 Year Warranty |
