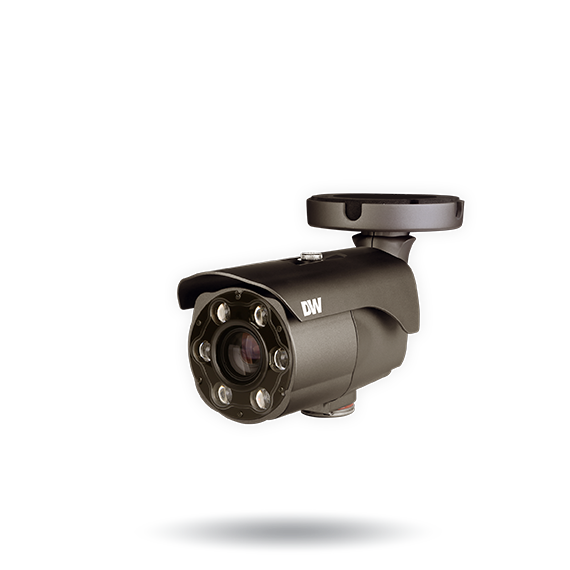

Digital Watchdog - DWC-MB44LPRC5 - MEGApix CaaS 4MP LPR bullet IP camera with a long range vari-focal lens, and IR with 512GB
Part number:
DWC-MB44LPRC5
Price:
MEGApix Weatherproof LPR Bullet, 4 Megapixel 1/3 Cmos Sensor @ 30fps, 6-50MM Varifocal Motorized Zoom with Autofocus P-Iris Lens, 60ft Smart IR, Dual Codecs (H.264,MJEPG), Smart DNR, AGC, AWB, Programmable Privacy Zones, Two Way Audio, Alarm Input, Relay Output, Web Server Built in, Cold Start -40F(-40C), Micro SD/SDHC/SDXC Class 10 Card Slot (card not included), OnVIF Profile S, IP66, PoE and 12VDC, 5 Year Warranty, Captures licenses plates up to 50mph with up to 60ft capture range. Note: DW Spectrum IPVMS pre loaded. Connect up to 30 CaaS cameras simultaneously in a single system. Built in 512GB memory for local recording. Dual recording option with Blackjack NAS.
Features:
- All-in-one cameras, no server required
- 4MP 1/3” image sensor at real-time 30fps
- 6~50mm vari-focal p-iris lens with motorized zoom and auto-focus
- License plate recognition technology captures reflective license plates up to 50mph with up to 60’ capture range
- Reliable performance under any lighting conditions
- Built-in 512GB/1TB storage options for up to 60 days retained video*
- Easily to deploy with pre-loaded DW Spectrum® IPVMS for out-of-the-box operation
- 24/7 access to live and recorded video feed
- Automatic installation and licensing with first power on
- Connect up to 30 MEGApix® CaaS™ edge cameras
- Dual recording option with Blackjack® NAS appliance
- Dual codecs (H.264, MJPEG) with simultaneous dual-stream
- Cold start -40°F (-40°C)
- 60’ Smart IR™ with intelligent camera sync
- Smart DNR™ 3D digital noise reduction
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- Waterproof cabling
- UL listed
- ONVIF conformant, profile S
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
| ENVIRONMENTAL | |
|---|---|
| Compliance | NDAA Compliance UL Listing CF FCC RoHS ONVIF |
| Operating Humidity | 10-90% (non-condensing) |
| Operating Temperature | -40°F ~ 122°F (-40°C ~ 50°C) |
| IMAGE | |
| Image Resolution | 4MP |
| Signal technology | HD-TVI |
| Test Video Output | Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio |
| Total Pixels | 2688 (H) x 1520 (V) |
| LENS | |
| Advanced Lens Features | P-iris |
| Focal Length | 6mm ~ 50mm |
| Horizontal Field of View (HFOV) | 90° ~ 7.3° |
| Image sensor | 4MP 1/3" CMOS sensor |
| IR Distance | 60" range Smart IR™ |
| Lens Type | Vari-focal Lens |
| Minimum Scene Illumination in color | 0.0 lux (B/W) |
| MECHANICAL | |
| Housing | Bullet LPR |
| IP rating | Weather Resistant (IP66) |
| Materials | Aluminum die-casting |
| Mechanical Dimensions | 4.66" x 3.58" (118.6 x 91 mm) 4.92" x 2.9" (125 x 74.3 mm) 9.73” x 3.8” (247.2 x 96.7mm) *Dimensions based on the position of the sun shield cover |
| Weight | 1.98 lbs (0.9kg) |
| OPERATIONAL | |
| 3D digital noise reduction | 3D DNR |
| Auto gain control | Auto |
| Day and night | Auto day/nighy Day (color) Night (B/W) |
| LPR Capture Range | Up to 60’ and 50 MPH |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Notifications | Email FTP server Alarm output activation |
| Privacy Zones | 4 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Auto Manual Slow Shutter Anti-Flicker |
| Shutter Speed | 1/15 ~ 1/32000 |
| Slow Shutter Speed | Off x5 x7.5 x10 |
| White Balance | Yes |
| STREAM SPEED | |
| Local server recording | 64GB local memory for recording 128GB local memory for recording 256GB local memory for recording |
| Max. number of CaaS™ cameras in the same network/system | Up to 30 MEGApix® CaaS™ cameras in the same network/system |
| Number of DW Spectrum® CaaS™ licenses included | 1 DW Spectrum® CaaS™ license included |
| GENERAL | |
| General Warranty | 5 Year Warranty |
| Power Consumption | DC12V: max 11.0W, 916.6mA PoE: max 12.9W |
| Power Requirements | 12 V DC PoE IEEE 802.3af Class 3 (Adapter not included) |
| NETWORK | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) |
| IP | IPv4 |
| LAN | 802.3 compliance 10/100 LAN |
| Network resolution | H.264: 1440p, 2.1MP/1080p, 720p, VGA, D1, CIF MJPEG: 1280x720, 800x600, VGA, 768x432, D1, CIF |
| Protocol | DDNS DHCP DNS FTP HTTP HTTPs ICMP NTP ONVIF RTP (UDP/TCP) RTSP SMTP SNMPv1/v2/v3 (MIB-2) SSL TCP/IP UDP Zeroconf (AutoIP) |
| Security | HTTPS (TLS) IP filtering 802.1x Digest authemtication (ID/PW) |
| Stream Speed | Up to 30fps at all resolutions |
| Video Bitrate | 100Kbps~10Mbps, multi-rate for preview and recording |
| Video Compression Type | H.264 MJPEG |
| Video Management Software | DW Spectrum® IPVMS |
| Web Viewer | Windows® OS Mac® OS Linux® OS Internet Explorer® browser Google Chrome® browser Mozilla Firefox® browser Safari® browser |
Part Numbers
MODEL # |
STORAGE SIZE |
|
DWC-MB44LPRC5 |
512GB |
| DWC-MB44LPRC1T | 1TB |
