Featuring Star-Light Plus color in near-total darkness, 5MP Star-Light Plus Universal HD over Coax cameras deliver crystal-clear images and support HD-Analog, HD-TVI and HD-CVI. The compact micro dome cameras are IP66 rated and can be controlled via the same coax cable using UTC. All DW Universal HD over Coax® cameras are engineered to work with our VMAX A1 Plus DVRs using your existing coax infrastructure for a cost effective, high resolution surveillance solution.
Megapixel resolution
DW’s technology delivers crystal-clear images in resolutions up to 5MP over coaxial infrastructure. Higher resolution delivers forensic details when zooming into the camera’s field of view.
Star-Light Plus color in darkness technology
Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

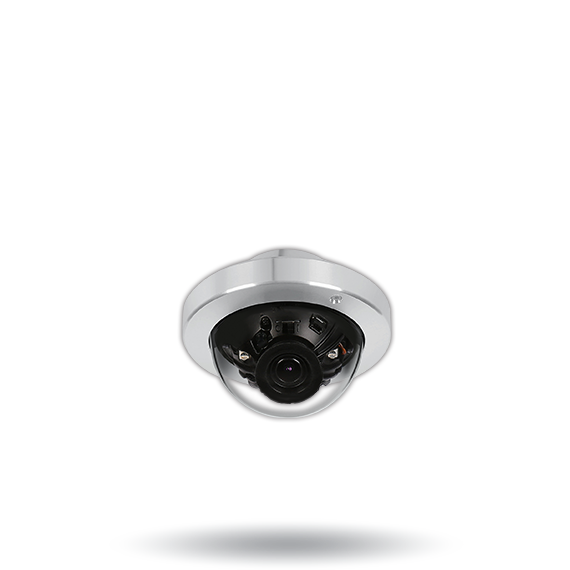

Micro Dome Discrete Camera Installation
The micro dome cameras are small and discrete, ideal for high-end applications where the cameras integrate into the overall design. HD video surveillance in a small and sleek design allows for discrete installations.
Features:
- Universal HD over Coax technology with HD-Analog, HD-TVI and HD-CVI signal support
- Star-Light Plus color in near-total darkness technology
- 1/2.8" image sensor
- 5MP at 20fps, 4MP at real-time 30fps
- 4.0mm fixed lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 50' Smart IR with intelligent camera sync.
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog extreme weather image compensation
- Easy icon driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 9-rated impact-resistant

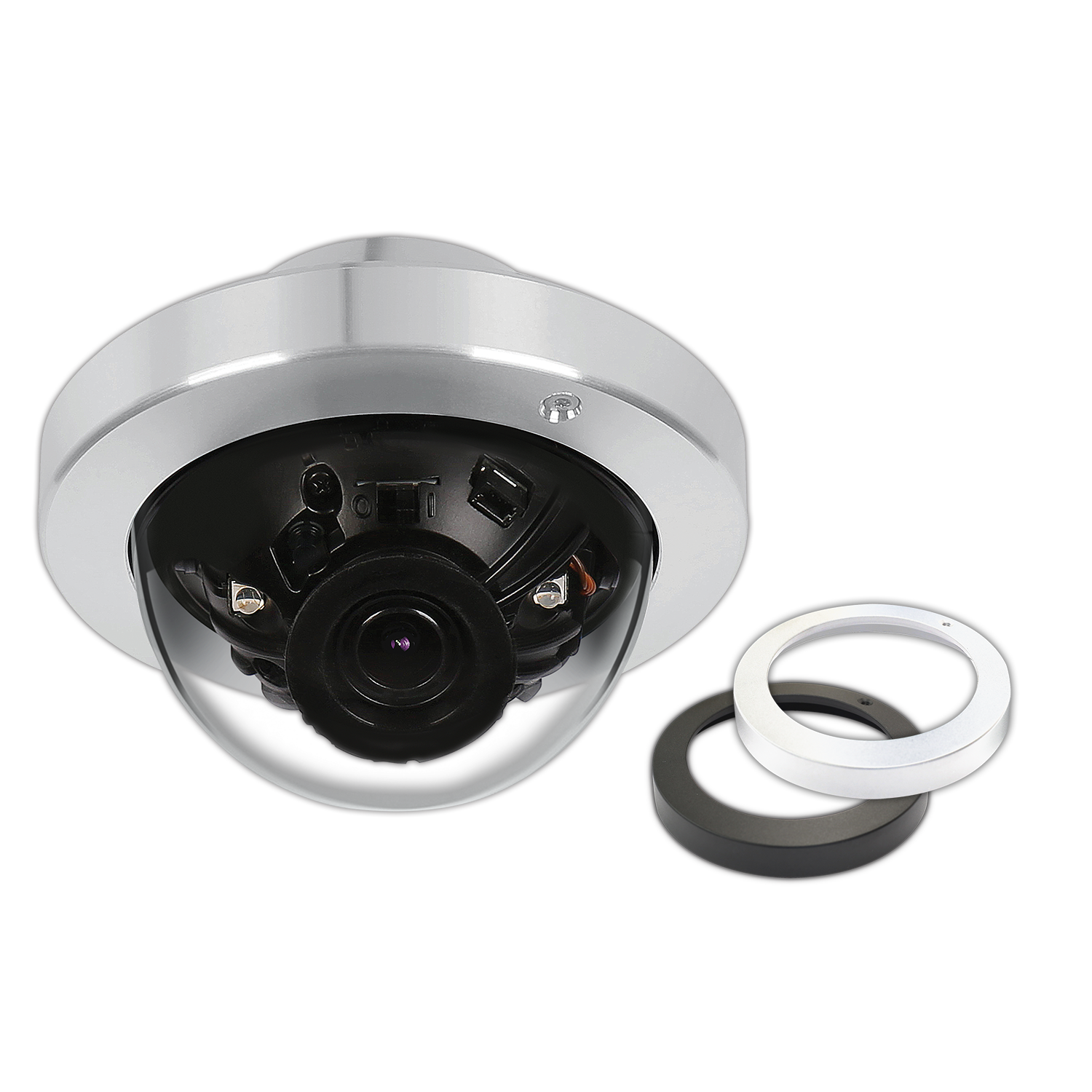

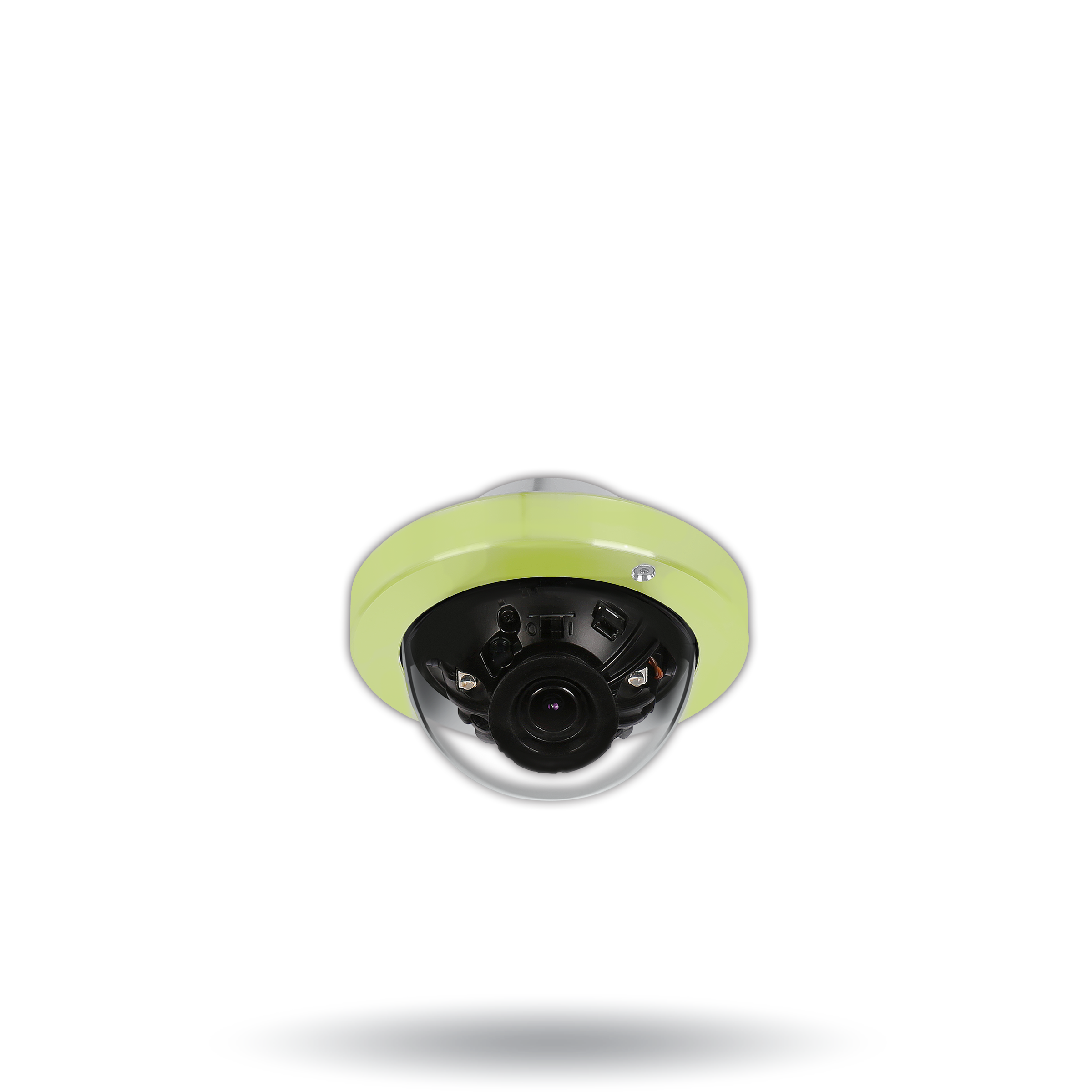

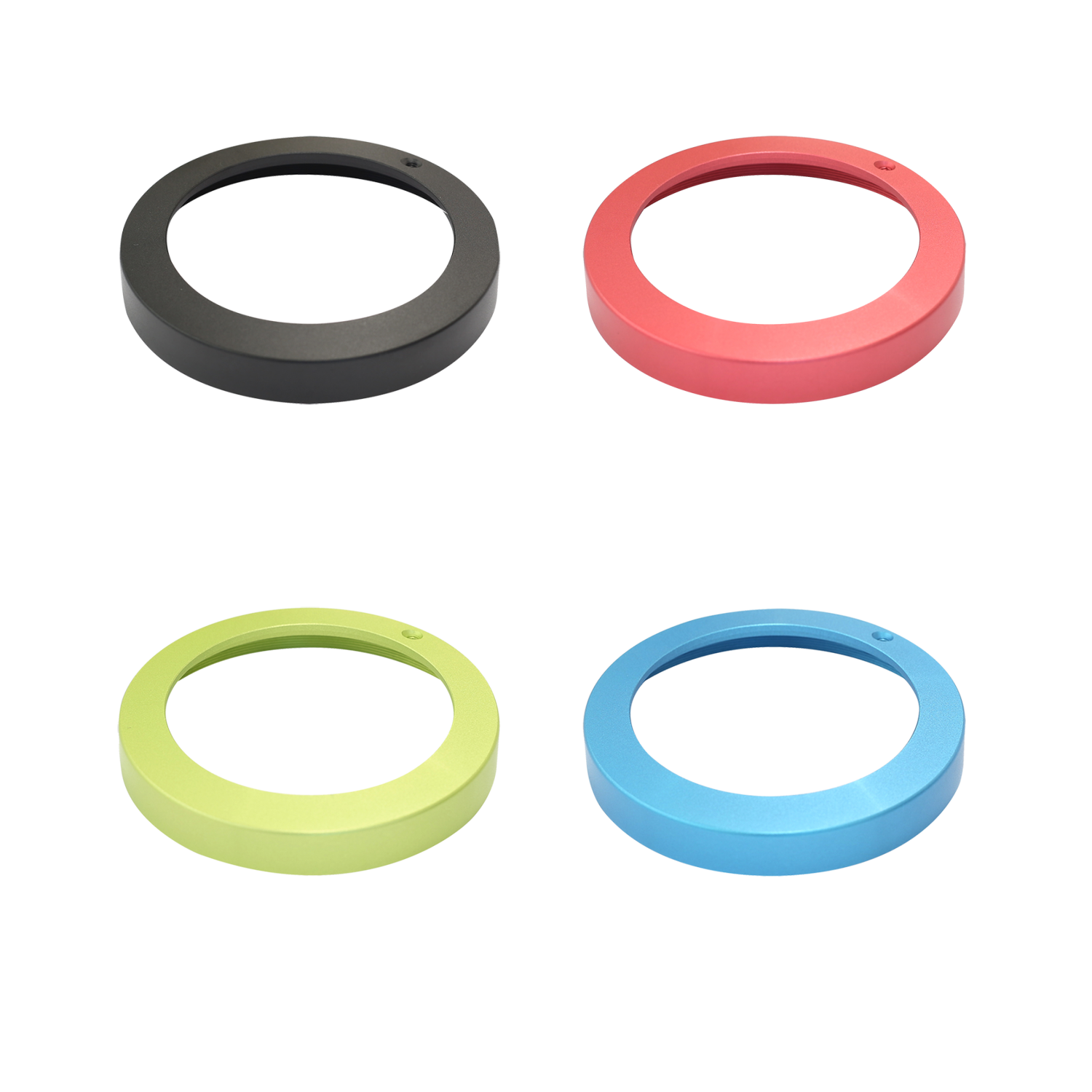

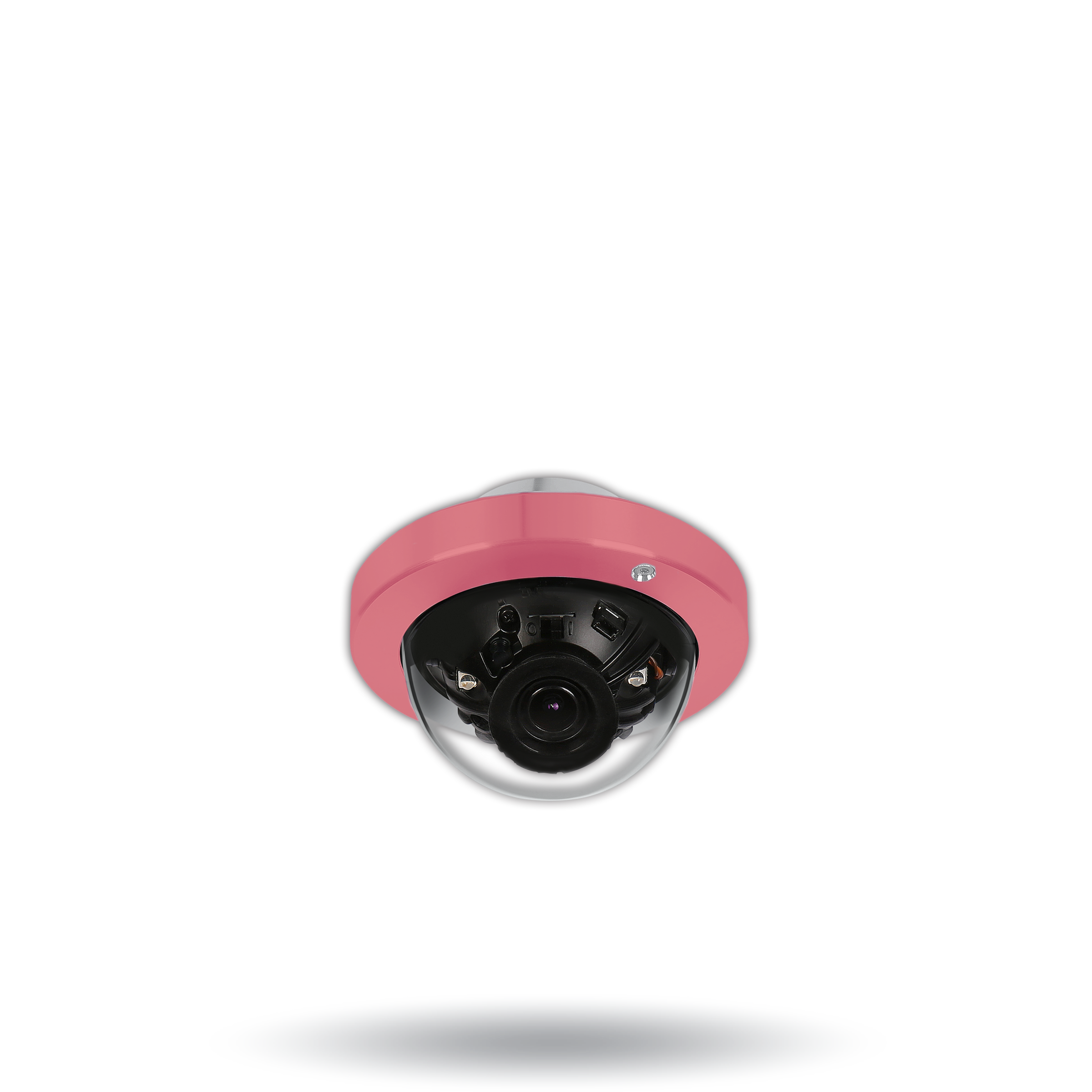

- Color trim rings available: Solid black and solid white included and decorator colors red, green or blue are sold separately
- 5 year warranty
IMAGE | |
| Image sensor | 5MP 1/2.8" CMOS |
| Active pixels | 2608 (H) x 1960 (V) |
| Scanning system | Progressive scan |
| Frequency | 60Hz / 50Hz |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support |
| Synchronization | Internal |
| Resolution | 2592 x 1944 (5MP) |
| Minimum scene illumination | 0.16 lux (color) |
| 0 lux (B&W) | |
| S/N ratio | 55dB |
| Video output | HD-Analog and HD-TVI: 5MP/1944p @ 20fps and 12.5fps HD-Analog, HD-TVI and HD-CVI: 4MP/1440p @ 30fps |
LENS | |
| Focal length | 4.0mm |
| Lens type | Fixed lens |
| Field of view (FoV) | 82° |
| IR distance | 50ft range |
OPERATIONAL | |
| Shutter mode | Auto |
| Shutter speed | 1/30-1/30,000 |
| Backlight | Yes |
| Star-Light (sense-up) | Off – x32 |
| Wide dynamic range (WDR) | True WDR, off, on |
| Wide dynamic range (WDR) dB | 120dB |
| Smart DNR™ 3D digital noise reduction | 3D/2D DNR |
| White balance | Yes |
| Day / night | Auto, day (color), night (B/W) |
| Mirror / flip | Yes |
| Auto gain control | Max 72dB |
| Motion detection | Yes |
| Privacy zones | Yes |
| Sharpness | Yes |
| Gamma | 0.45 |
| De-fog | Yes |
| RS485 / UTP built-in | UTC |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| IP rating | IP66 environmental-rated dust-tight and water-resistant |
| IK rating | IK 9-rated impact-resistant |
| Other certifications | FCC, CE, ROHS |
ELECTRICAL | |
| Power requirement | DC12V only |
| Power consumption | DC12V (LED OFF): 1.98W DC12V (LED ON): 2.62W |
MECHANICAL | |
| Material | Aluminum vandal housing, polycarbonate micro dome |
| Dimensions | 3.14" x 2.34" (80 x 59.5mm) |
| Weight | 0.56 lbs (0.25kg) |
