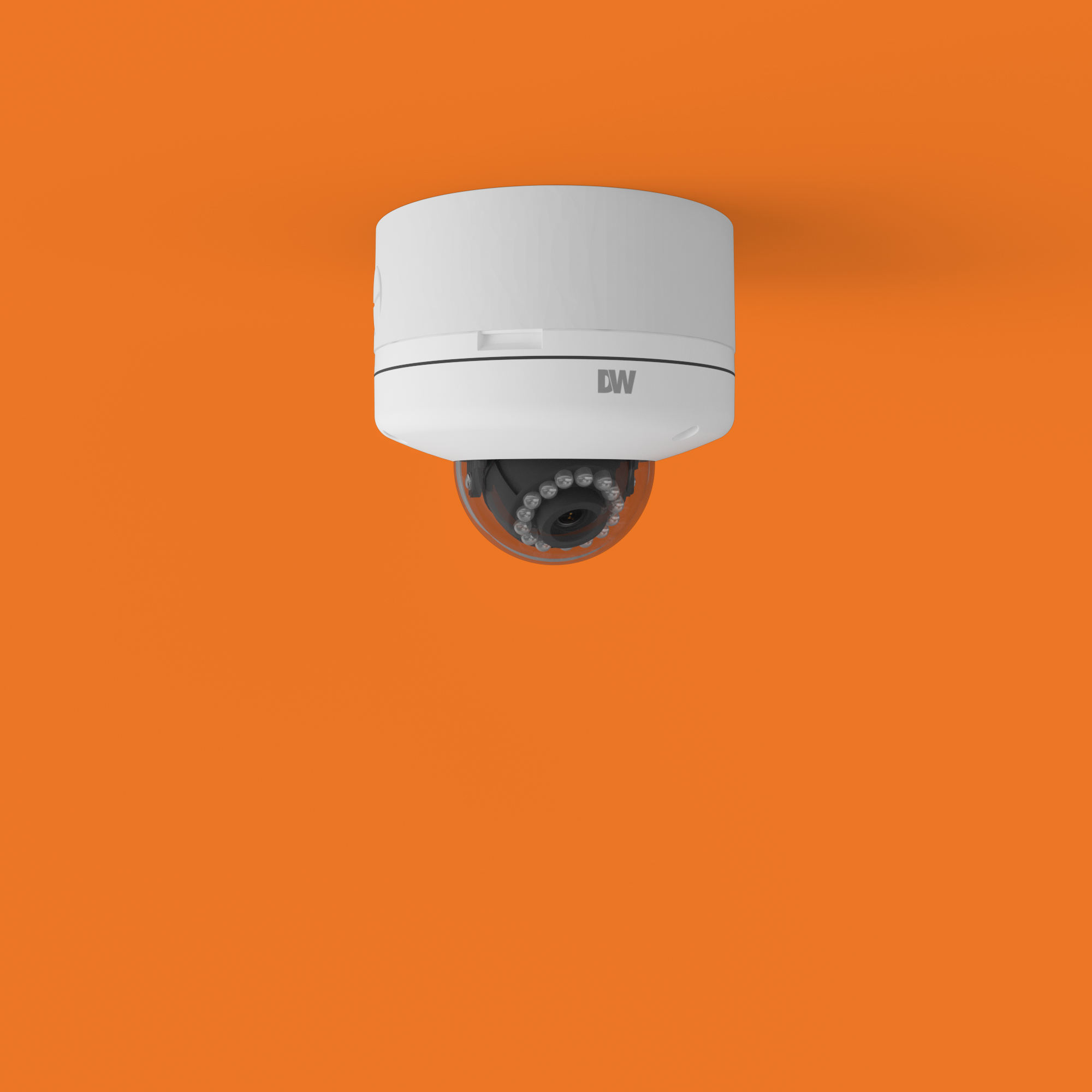

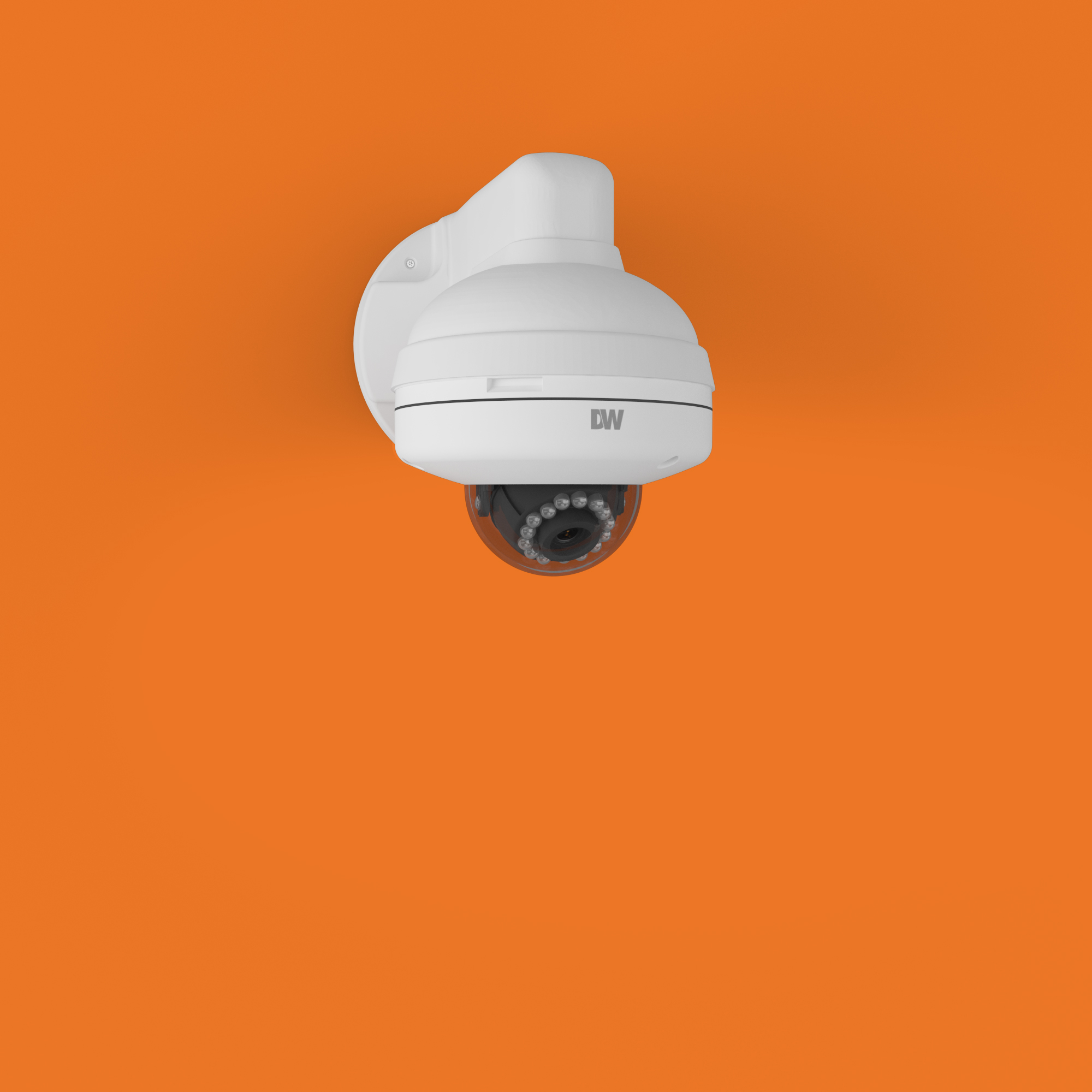

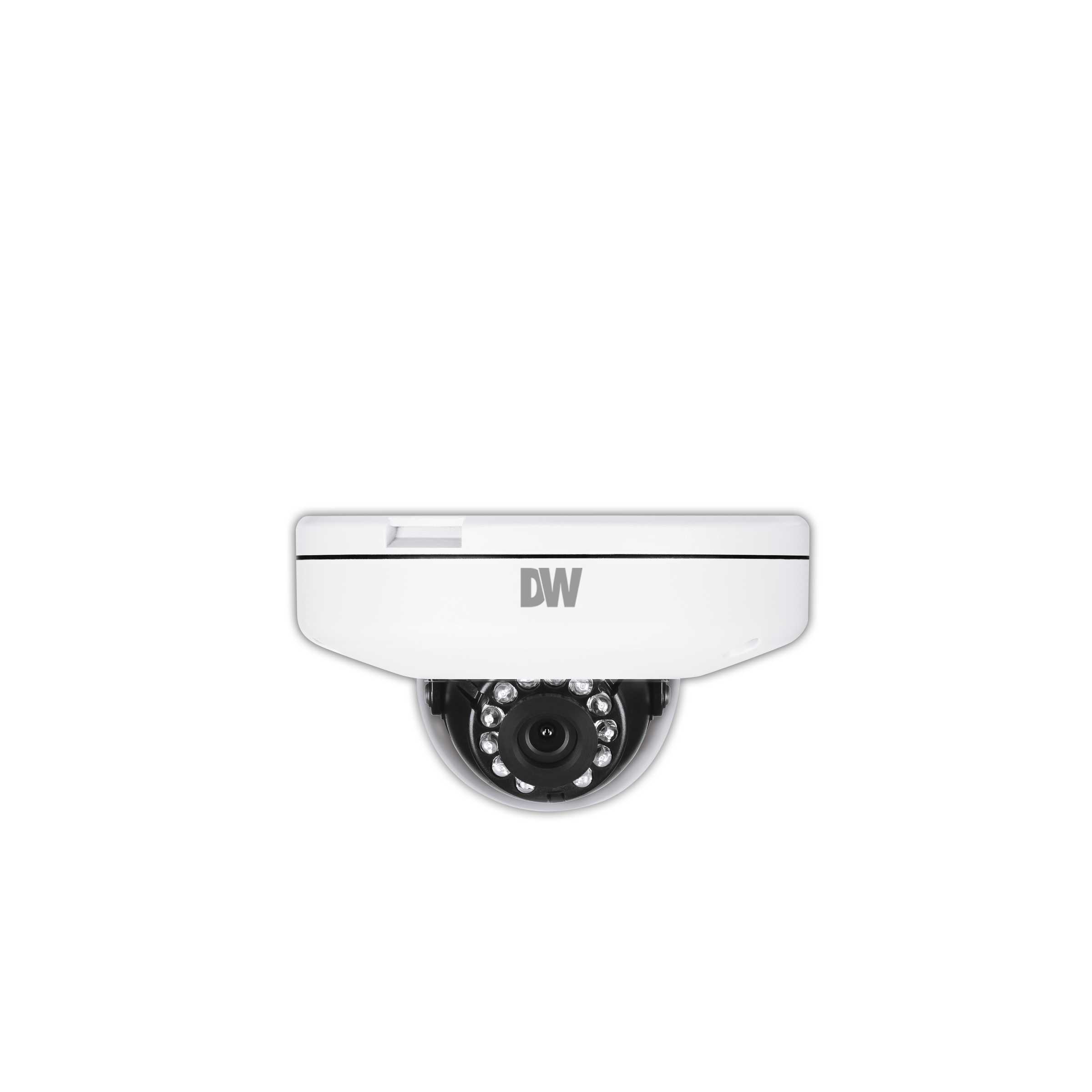

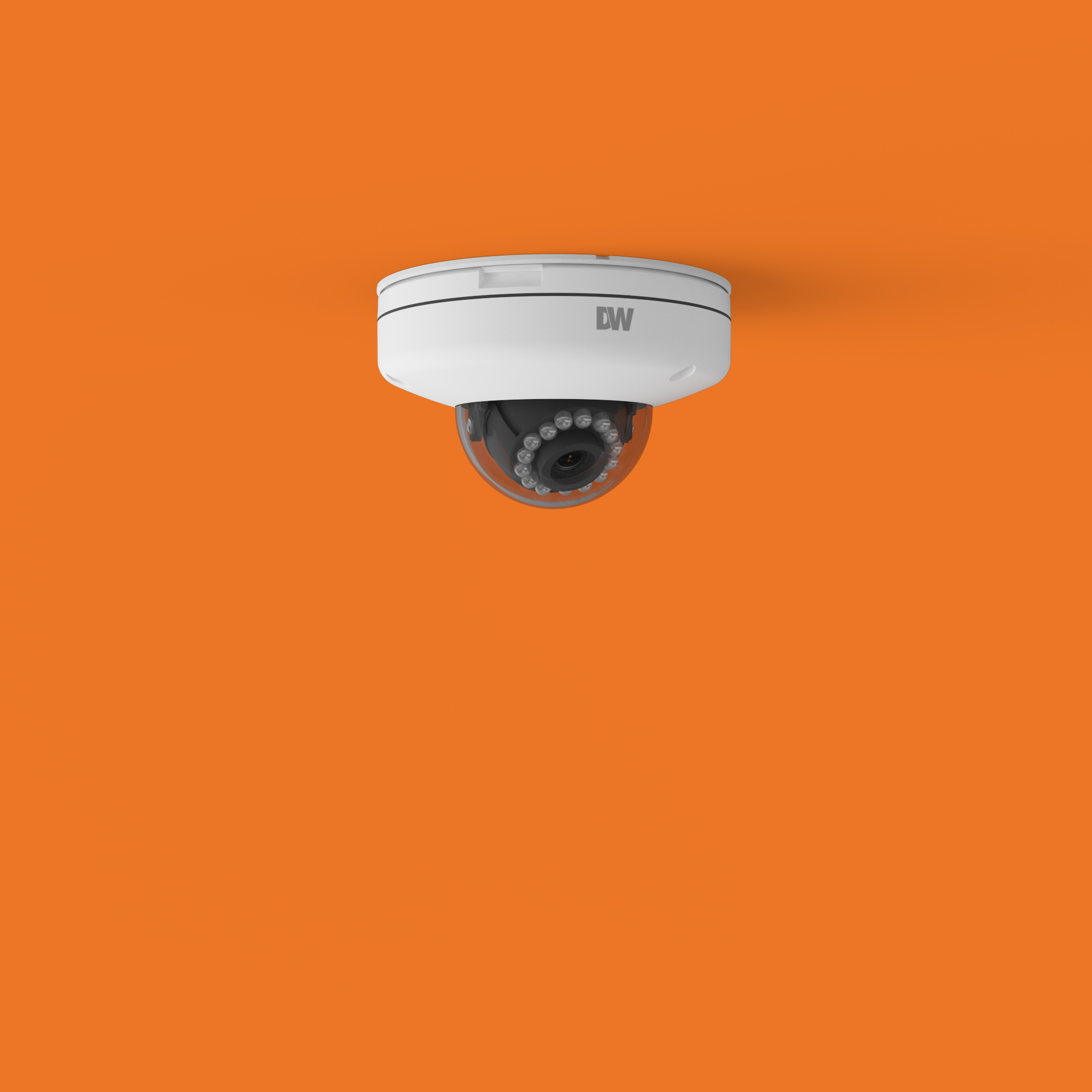

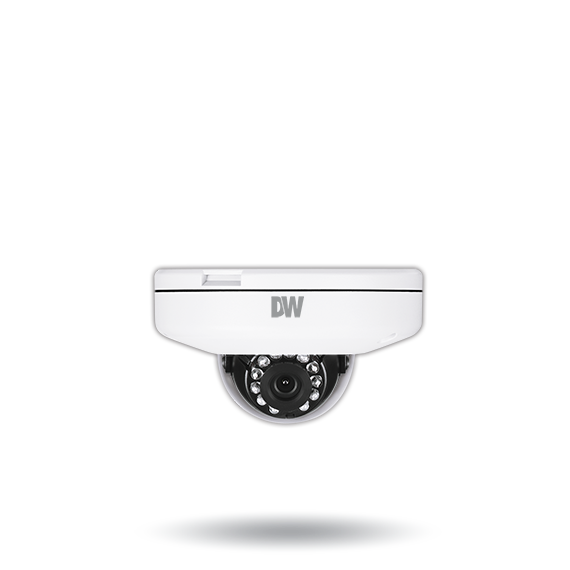

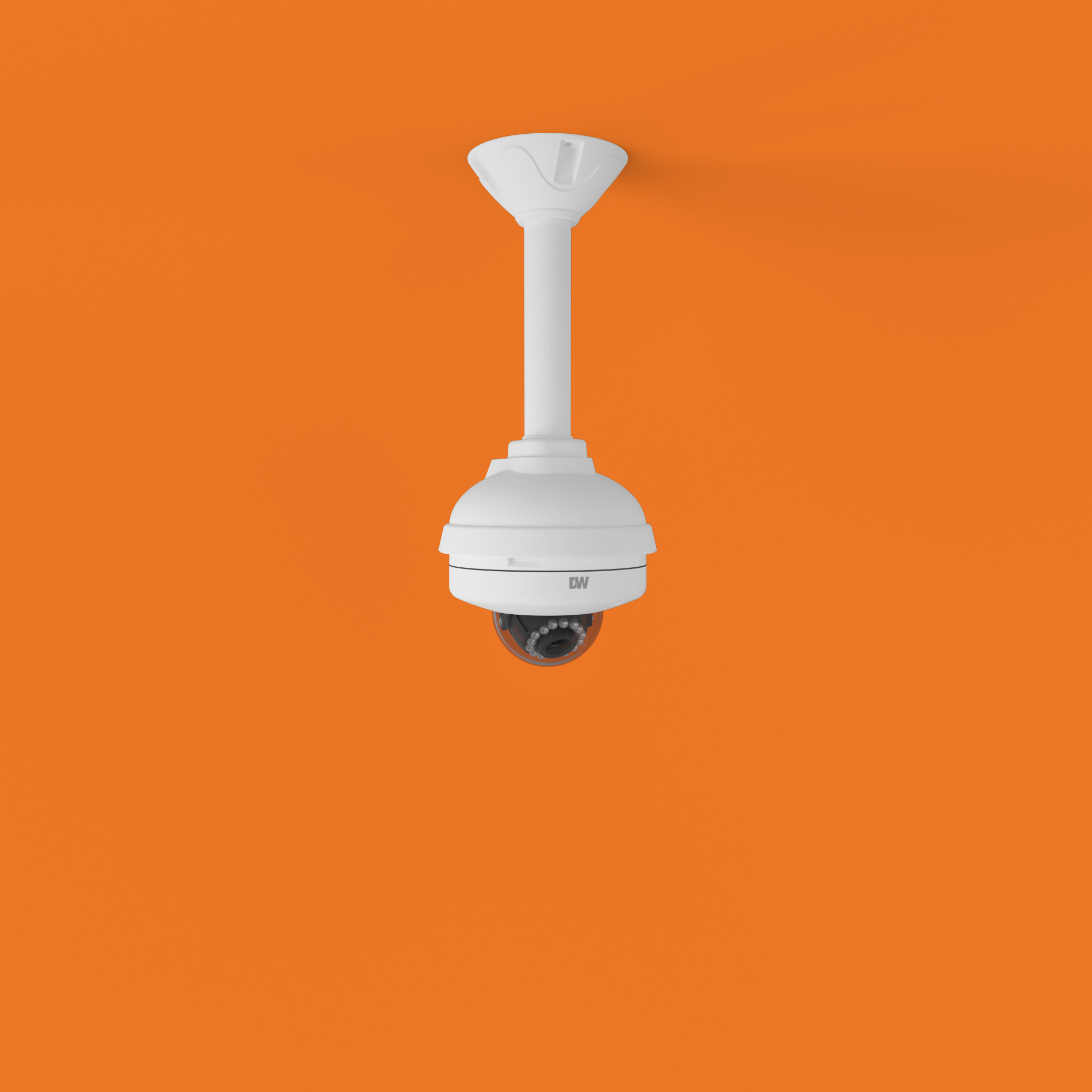

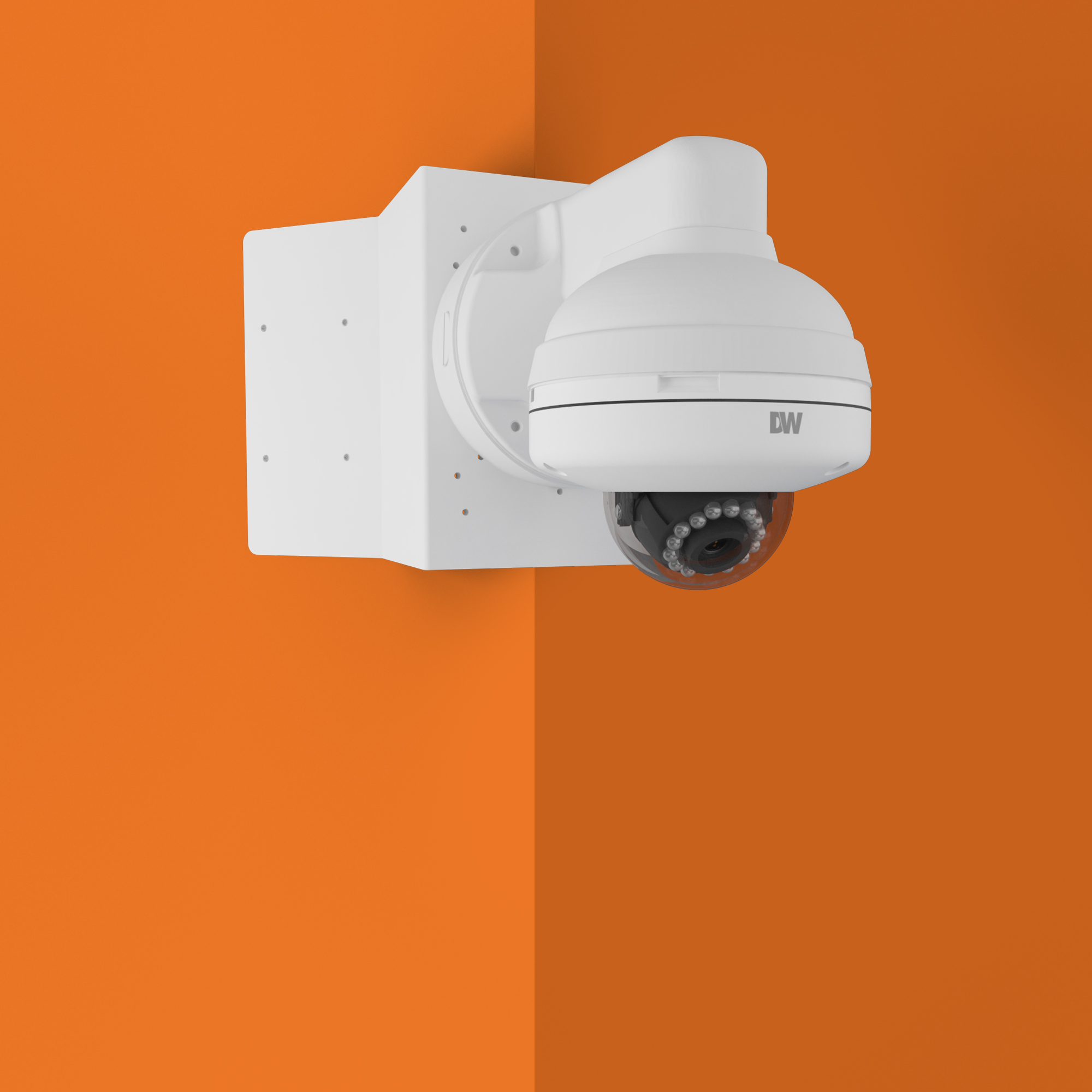

Digital Watchdog - DWC-MF2Wi28TW - MEGApix 2.1MP/1080p Ultra Low-profile Vandal Dome IP Camera with Fixed lens Option and IR
Part number:
DWC-MF2Wi28TW
Price:
This MEGApix IP camera provides 2.1MP/1080p resolution at real-time 30fps. It includes 2.8mm and 4.0mm fixed lens options, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus color in near-total darkness technology for quality video in any lighting condition, all in an IP66-rated, IK-10 impact-resistant ultra low-profile vandal dome housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Features:
- 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- 4.0mm fixed lens
- DMP integration
- 50' Smart IR with intelligent camera sync
- Ultra low-profile vandal dome camera housing
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- PoE class 2 and DC12V
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
IMAGE | |
| Image sensor | 2.1MP/1080p 1/2.8” CMOS |
| Total pixels | 1945 (H) × 1109 (V) |
| Minimum scene illumination | 0.09 lux (color) |
| 0.0 lux (B/W) | |
LENS | |
| Focal length | 4.0mm, F2.6 |
| Lens type | Fixed lens |
| Field of view (FoV) | 86° |
| IR distance | 50ft range |
OPERATIONAL | |
| Shutter mode | Auto |
| Shutter speed | 1/15 ~ 1/32,000 |
| Slow shutter | 1/2 |
| Auto gain control | Auto |
| Day / night | Auto |
| Smart DNR™ 3D digital noise reduction | 3D DNR |
| Flip | Yes |
NETWORK | |
| LAN | RJ45 (10/100Base-T) |
| Video compression type | H.264 |
| Resolution | 2.1MP/1080p, 720p, D1 |
| Frame rate | 10fps |
| Video bitrate | 1Mbps |
| Bitrate control | Smart bitrate control – CVBR |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP, RTSP, NTP, SSL, DNS, DHCP |
| ONVIF conformance | Yes |
| Video management software | DMP® |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| IP rating | IP66-rated |
| IK rating | IK10 impact resistant |
| Other certifications | CE, FCC, RoHS |
ELECTRICAL | |
| Power requirement | DC12V, POE IEEE 802.3af class 2 (adaptor not Included) |
| Power consumption | DC12V: max 4.0W PoE: max 5.5W |
MECHANICAL | |
| Material | Aluminum vandal housing, polycarbonate dome |
| Dimensions | 4.9" x 2.9" (125 x 74.3 mm) |
| Weight | 0.92 lbs (0.42kg) |
| Warranty | 5 year warranty |
