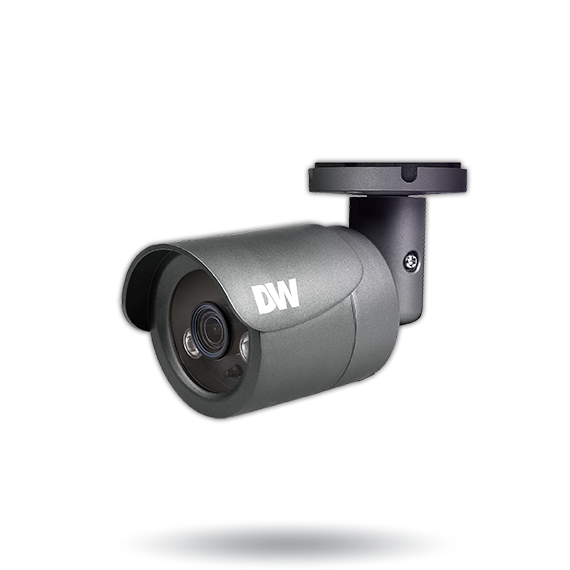

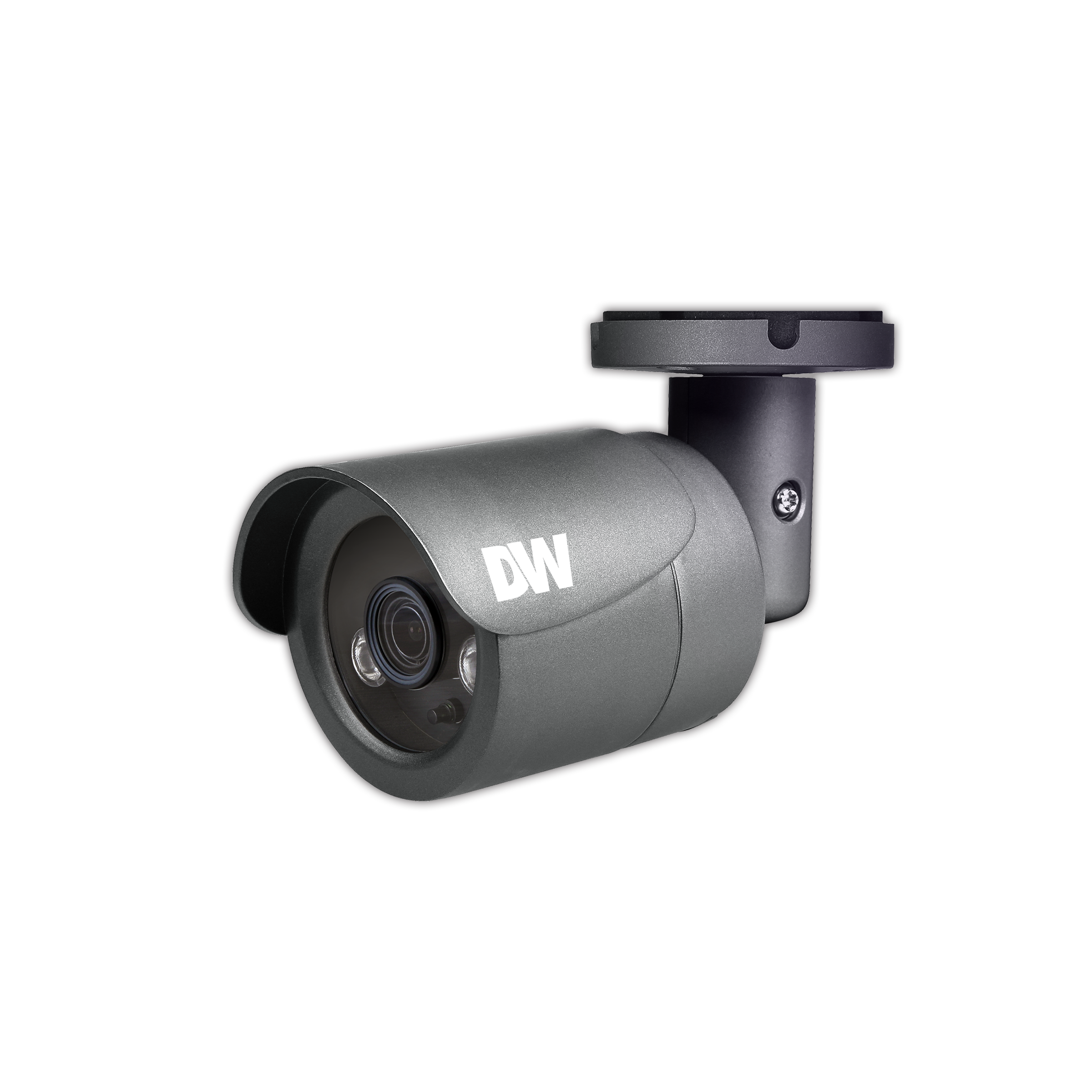

This MEGApix® IVA+™ IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 5MP resolution at real-time 30fps.The MEGApix IVA+ cameras have a powerful engine to detect and classify people, vehicles and objects in real-time with support for logical rules. This camera includes a 4.0mm fixed lens, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition, all in an IP67 dust-tight and waterproof bullet housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Features:
- 5MP 1/2.8" image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 4.0mm fixed lens
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 100' Smart IR™ with intelligent camera sync
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 3 and DC12V
- UL listed
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- 5 year warranty
IMAGE |
||
|
Image sensor |
5MP 1/2.8” CMOS |
|
|
Total pixels |
2592(H) X 1944(V) |
|
|
Minimum scene illumination |
0.16 lux (color) |
|
|
0.0 lux (B/W) |
||
LENS |
||
|
Focal length |
4.0mm, F2.0 |
|
|
Lens type |
Fixed lens |
|
|
HFoV / VFoV |
82.3° / 58.8° |
|
|
IR distance |
100ft range |
|
OPERATIONAL |
||
|
Intelligent Video Analytics |
IVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper |
|
|
IVA+ license: object removed, tailgating, direction, stopped, appear, disappear, object left |
||
|
Shutter mode |
Auto, manual, anti-flicker, slow shutter |
|
|
Shutter speed |
1/15 ~ 1/32,000 |
|
| Slow shutter | 1/2,1/3,1/5,1/6,1/7.5, 1/10 | |
|
Auto gain control |
Auto |
|
|
Day / night |
Auto, day (color), night (B/W) |
|
|
Smart DNR™ 3D digital noise reduction |
3D DNR |
|
|
Wide dynamic range (WDR) |
True WDR (T-WDR) |
|
| Wide dynamic range (WDR) dB | 120dB | |
| Privacy zones | 16 programmable privacy masks | |
| Mirror and flip | Yes | |
|
Alarm notifications |
Notifications via e-mail, FTP, alarm output and SD card recording |
|
|
Memory slot |
Micro SD / SDHC / SDXC (card not included) |
|
NETWORK |
||
|
LAN |
RJ45 (10/100Base-T) |
|
|
Video compression type |
H.265, H.264, MJPEG |
|
|
Resolution |
H.265: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF H.264: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF MJPEG: 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF |
|
|
Frame rate |
Up to 30fps at all resolutions |
|
|
Video bitrate |
100Kbps ~ 10Mbps, multi-rate for preview and recording |
|
|
Bitrate control |
Multistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
|
|
Streaming capability |
Dual-stream at different rates and resolutions |
|
|
IP |
IPv4, IPv6 |
|
|
Protocol |
TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF |
|
|
Security |
HTTPS(TLS), IP filtering, 802.1x, digest authentication (ID/PW) |
|
|
ONVIF conformance |
Yes |
|
|
Web viewer |
OS: Windows®, Mac® OS, Linux® |
|
|
Video management software |
DW Spectrum® IPVMS |
|
ENVIRONMENTAL |
||
|
Operating temperature |
-4°F ~ 122°F (-20°C ~ 50°C) |
|
|
Operating humidity |
10–90% RH (non–condensing) |
|
|
IP rating |
IP67-rated |
|
|
Other certifications |
CE, FCC, RoHS |
|
ELECTRICAL |
||
|
Power requirement |
DC12V, POE IEEE 802.3af class 3 (adaptor not Included) |
|
|
Power consumption |
DC12V: max 6.5W PoE: max 8.3W |
|
MECHANICAL |
||
|
Material |
Aluminum bullet housing |
|
|
Dimensions |
6.41" x 2.65" (163 x 67.5 mm) |
|
|
Weight |
1.1 lbs (0.5 kg) |
|
| Warranty | 5 year warranty | |
