Discrete installation with no location restrictions

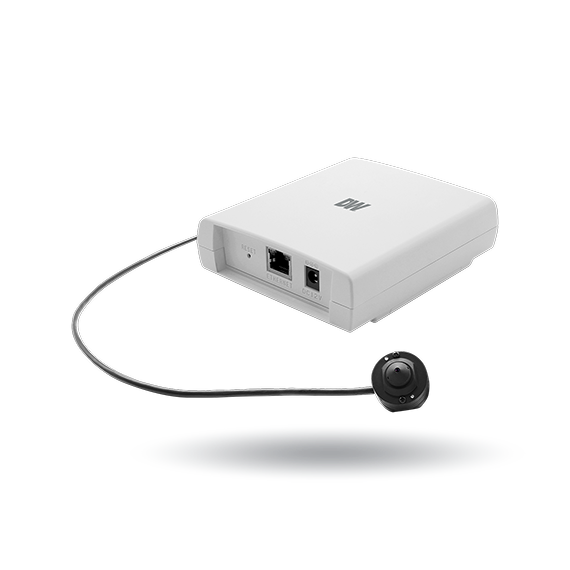

The pinhole camera is ideal for any application where discrete surveillance is needed. The camera has little to no impact on the interiors and its small size makes it easy to install even in constrained spaces such as ATMs, ticket and vending machines and health monitoring systems.

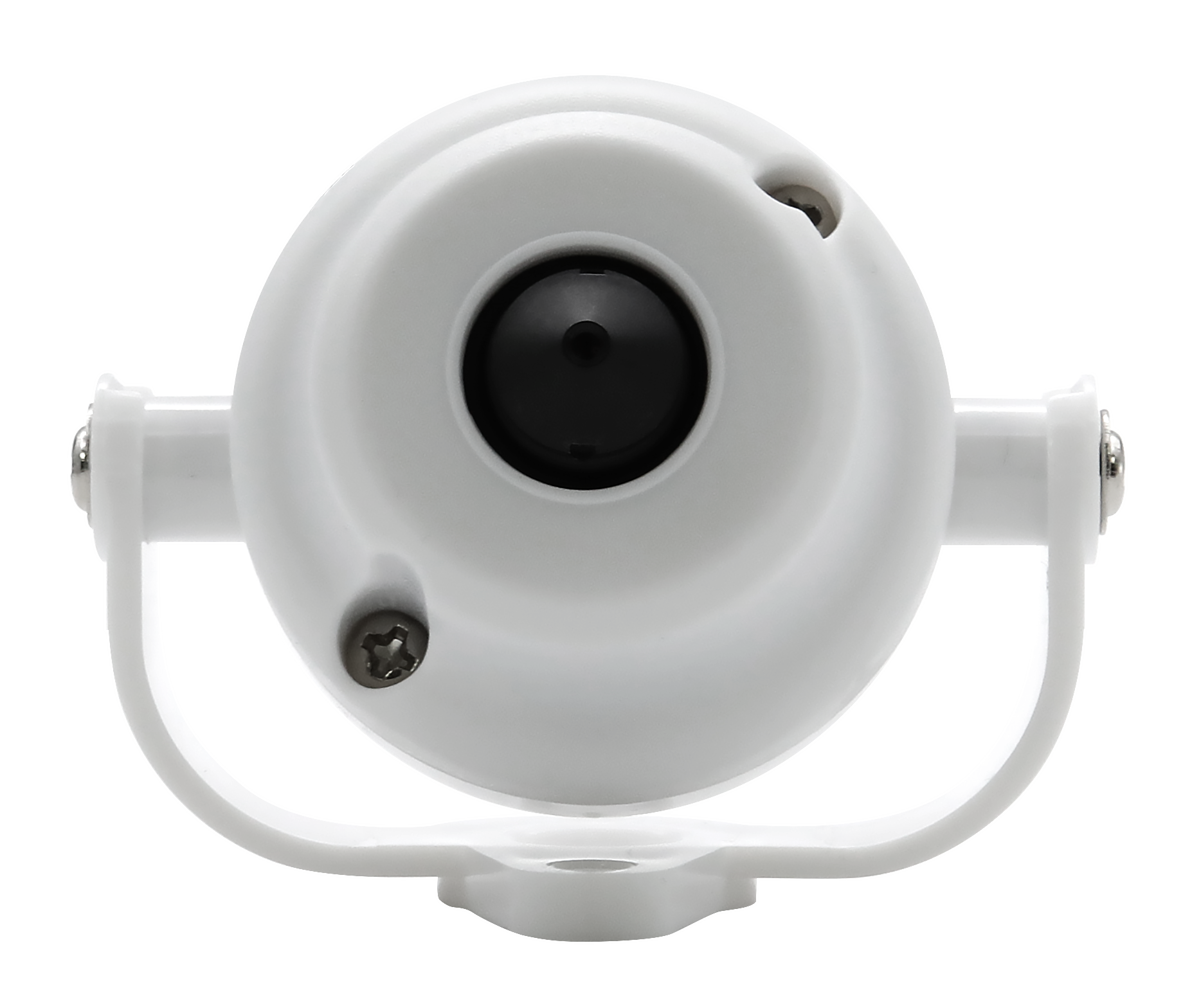

Visible and concealed brackets

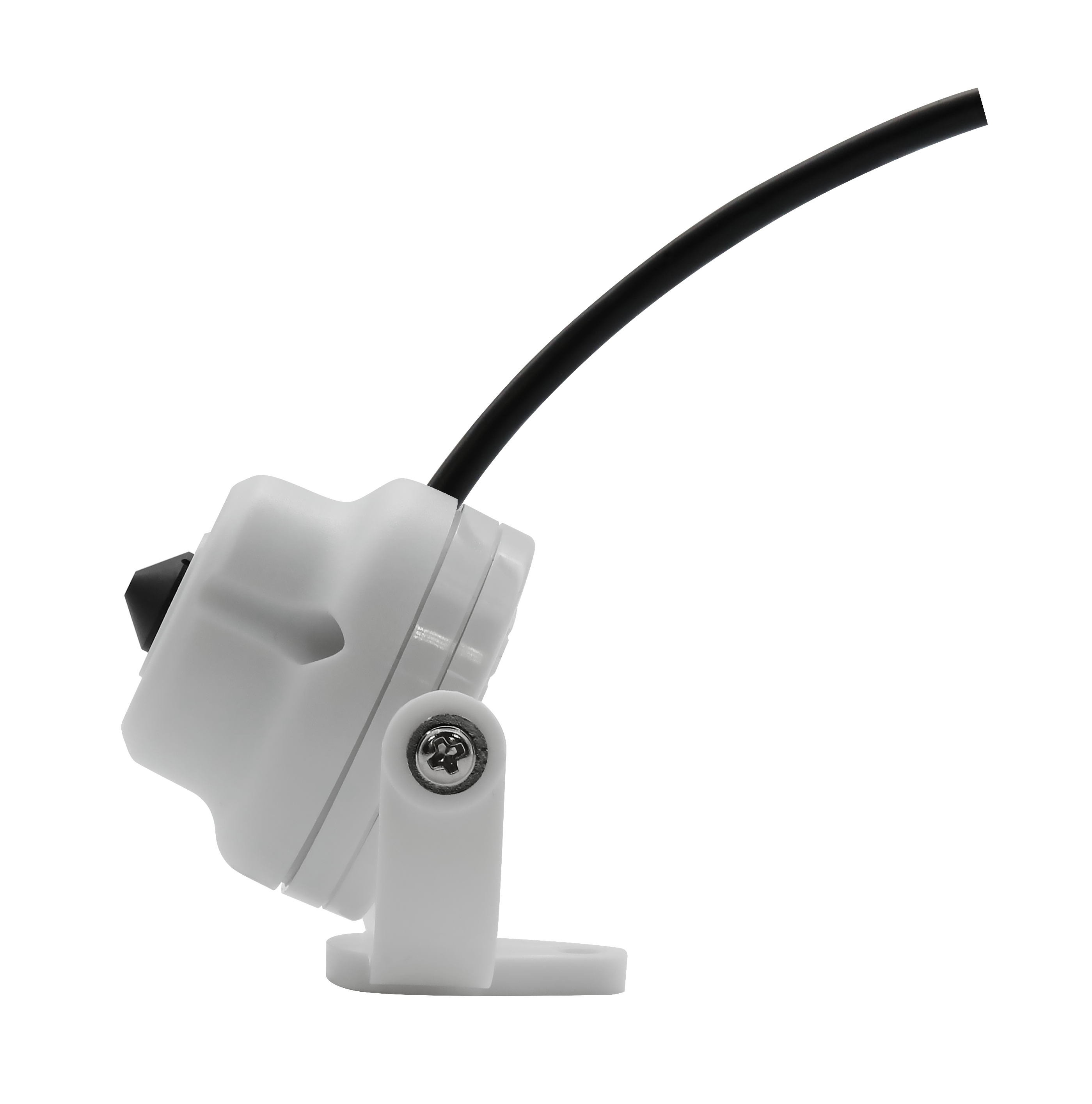

The camera comes with a mounting bracket that can be mounted hidden behind a wall or ceiling for concealed surveillance or tilted and placed on top of the mounting surface for a visible installation.
Wide-angle lens for large areas surveillance

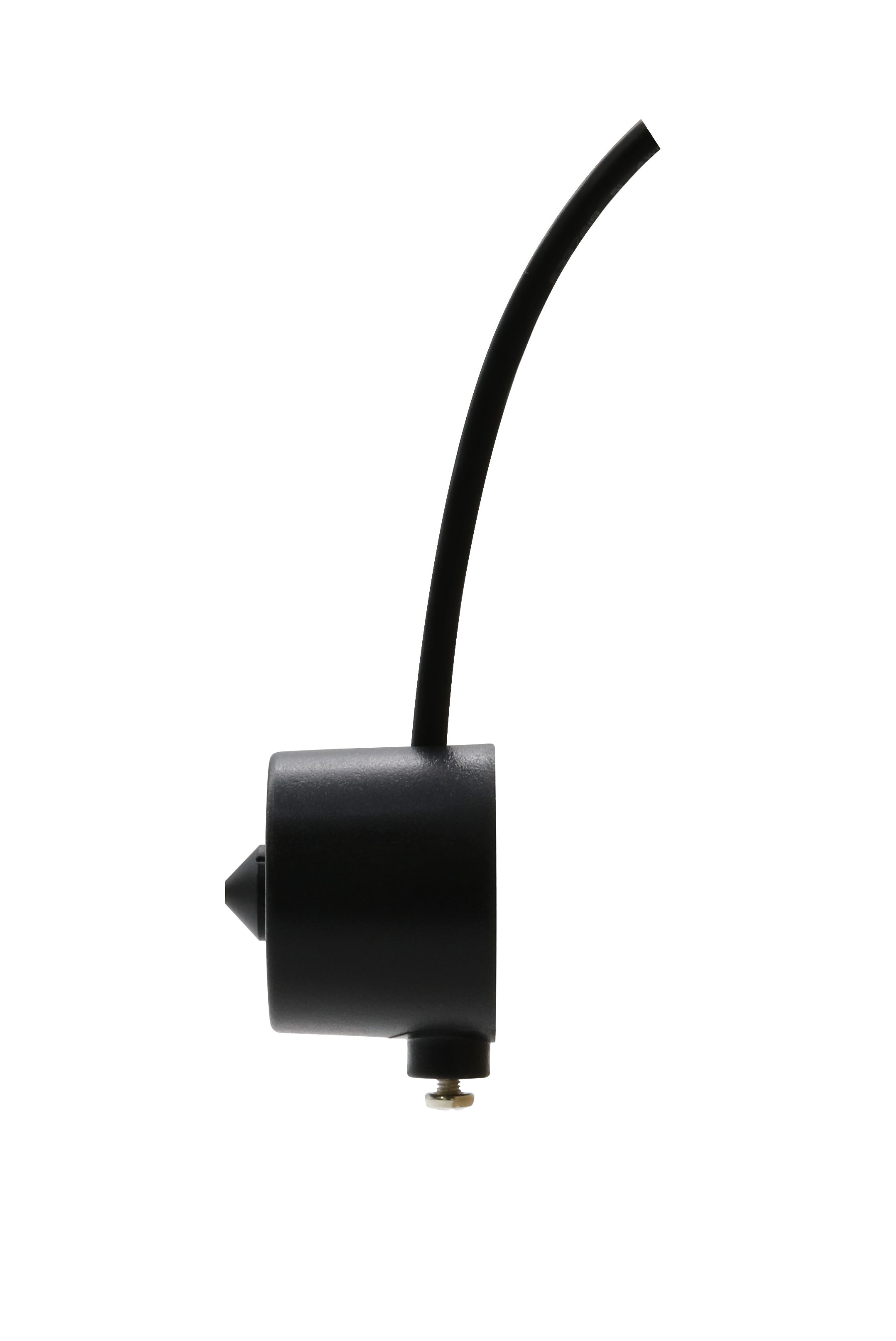

The ultra-small sensor unit is equipped with an invisible pinhole lens, enabling thorough concealed monitoring. The lens showcases a horizontal angle up to 106.6°, allowing users to monitor large areas at a glance.
IVA Analytics
MEGApix IVA cameras include a base package of Intelligent Video Analytics detection capabilities already activated on the camera and ready for deployment.
IVA+ Analytics
The MEGApix IVA+ package offers advanced rules to the IVA Video Content Analysis detection capabilities.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
H.265 codec support
High-Efficiency video codec standards deliver 25% to 50% better data compression while maintaining video quality.
Features
- 2.1MP/1080P sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
- Seamless integration and control of IVA rules with DW Spectrum IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 2.8mm fixed lens
- ATM pinhole camera for concealed installation
- True Wide Dynamic Range (WDR) for clear images in challenging light
- Simultaneous streaming and multiple codec options for smart bandwidth management
- Smart DNR 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
- Privacy zones cover sensitive areas in the camera's field of view.
- Local SD card slot for local recording in case of network loss
- Alarm sensor input and relay output for access control integration
- Web server built-in for easy camera management from any browser
- PoE and DC12V for single cable simplified installation
- NDAA compliant for federal and government projects
- IP67-rated camera housing built to last
- 5 year warranty
| Image | |
|---|---|
| Image sensor | 2.1MP/1080p 1/2.8" CMOS sensor |
| Minimum Scene Illumination in color | 0.065 lux (color) |
| Total Pixels | 1945 (H) X 1109 (V) |
| Lens | |
| Advanced Lens Features | Auto focus, Motorized zoom |
| Focal Length | 2.8mm |
| Horizontal Field of View (HFOV) | 106.6° |
| IR Distance | NA |
| Lens Type | Fixed Lens |
| Vertical Field of View (VFOV) | 55.7° |
| I/O | |
| I/O Alarm in/out | 1 input, 1 output |
| Intelligent Video Analytics | |
| IVA license | Intrusion, line crossing, counting line, loitering, enter, exit, tamper |
| IVA+ license | Logical rules, object removed, tailgating, direction, stopped, appear, disappear, object left |
| Operational | |
| 3D digital noise reduction | Smart DNR 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Backlight compensation (BLC) | Yes |
| Day and night | Day (color) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included), Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Alarm output activation, Email, FTP server, SD card recording |
| Privacy Zones | 16 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Anti-Flicker, Auto, Manual, Slow Shutter |
| Shutter Speed | 1/15 ~ 1/32000 |
| Slow Shutter Speed | Off, x10, x2, x3, x5, x6, x7.5 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4 |

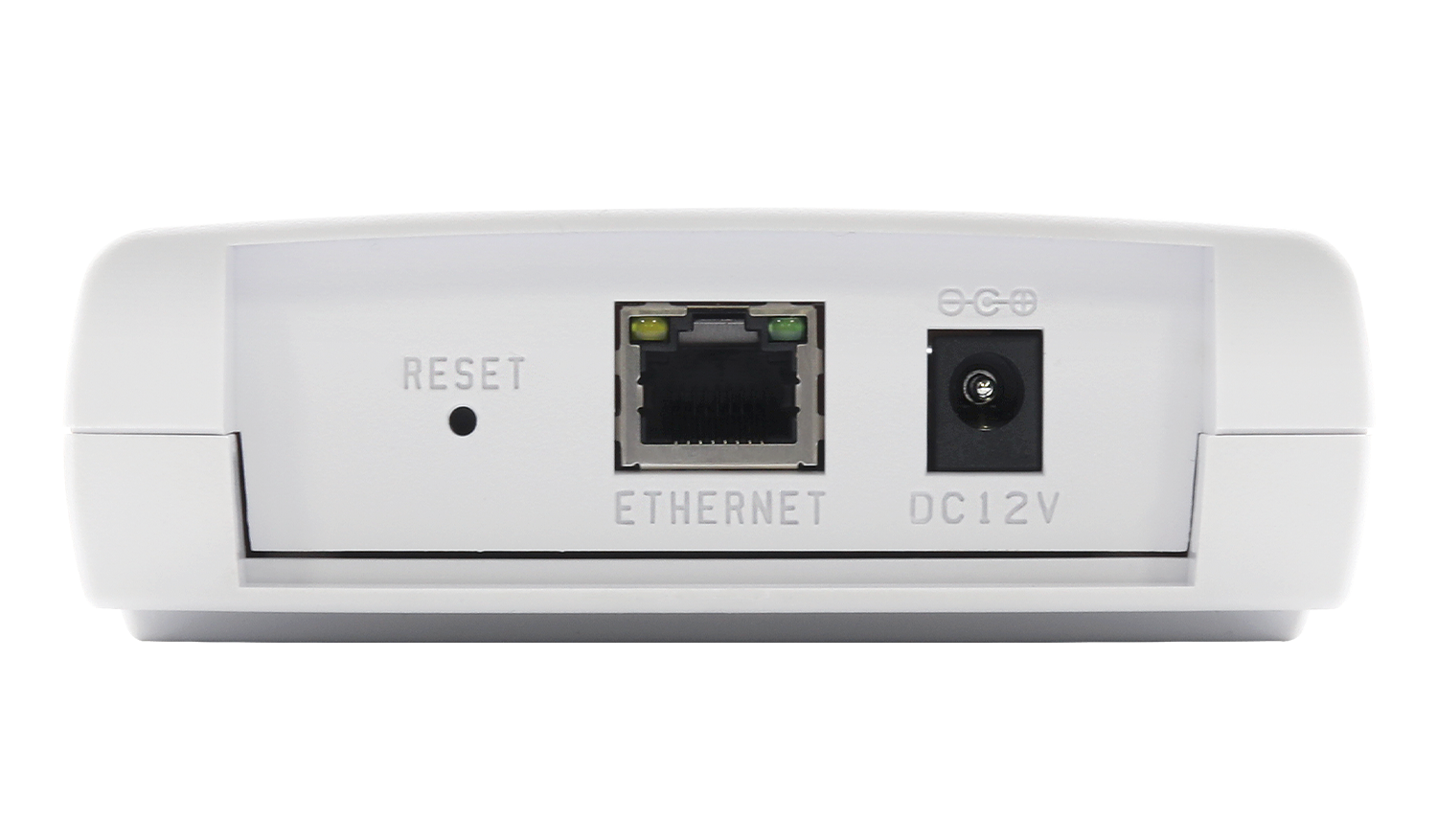

| LAN | RJ45 (10/100Base-T) |
| Network resolution | H.264: 2.1MP/1080p, 720p, 640x360, CIF, SIF, MJPEG: 2.1MP/1080p, 720p, 800x600, 768x432, 704x576, 480p, VGA, 640x360, CIF, SIF |
| Network Web Viewer | Google Chrome browser, Linux OS, Mac OS, Microsoft Edge browser, Mozilla Firefox browser, Safari browser, Windows OS |
| Protocol | DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) |
| Security | 802.1x, Digest authemtication (ID/PW), HTTPS (TLS), IP filtering |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 100Kbps~10Mbps, multi-rate for preview and recording |
| Video Compression Type | H.264, H.265, MJPEG |
| Video Management Software | Any ONVIF conformant CMS, DW Spectrum IPVMS, Milestone Systems |
| Environmental | |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | Cable length: 21.32ft (6.5m), Camera sensor: 1.1" x 1.08" (28.1 x 27.5mm), Main unit: 4.21" x 4.88" x 1.41" (107 x 124 x 36mm) |
| Camera Weight | 0.92 lbs (0.42kg) |
| Housing | Pinhole |
| Housing Color | White |
| Materials | Main unit: Plastic, Sensor Camera: Aluminum die-casting |
| Electrical | |
| American wire gauge (AWG) | Cable type #18 |
| Power Consumption | DC12V: 3.6W, 300mA, PoE: max 4.0W, 333ma |
| Power Requirements | Adapter not included, PoE |
| General | |
| Warranty | 5 Year Warranty |
