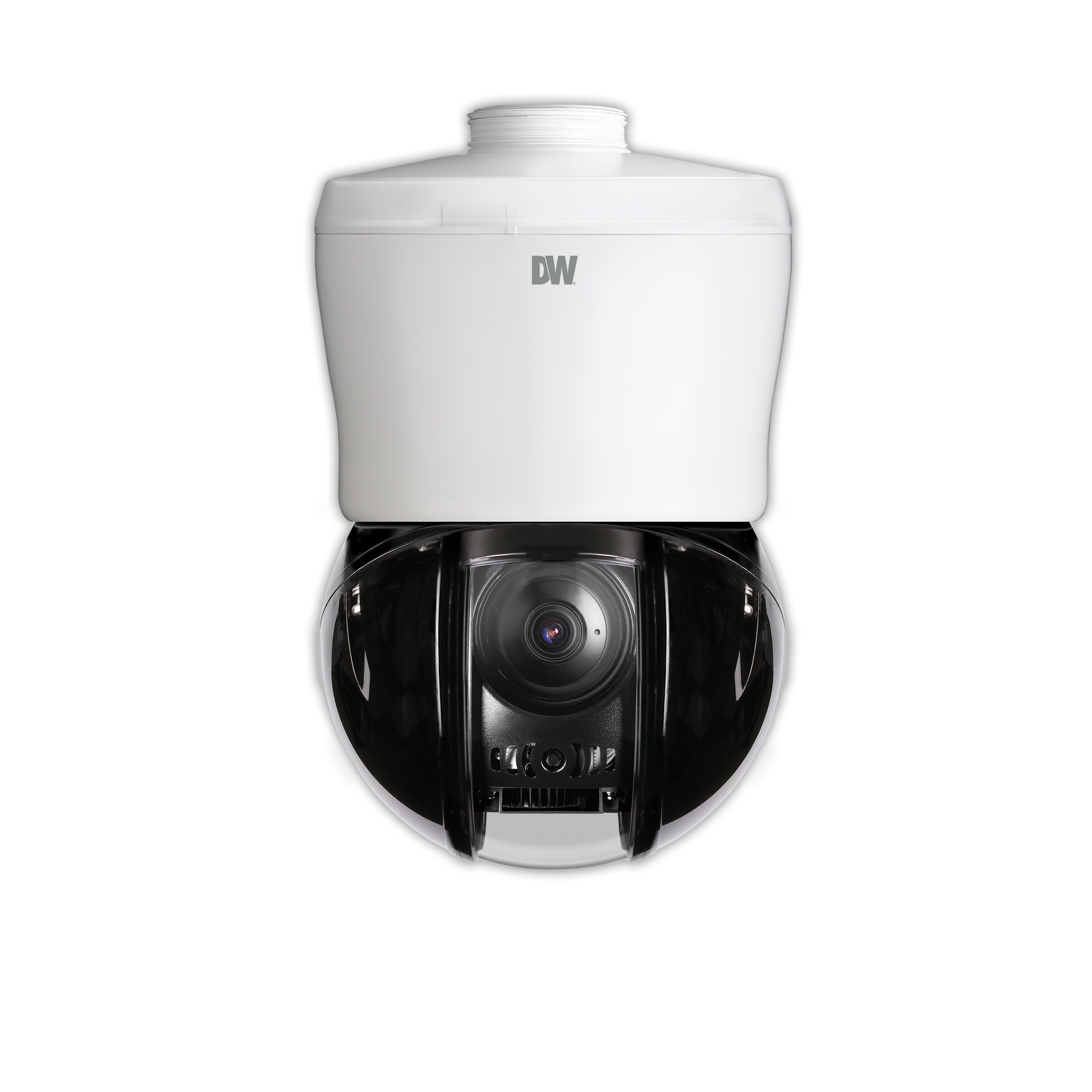

Digital Watchdog - DWC-MPTZ230XTW - MEGApix 2.1MP/1080p PTZ IP camera with a vari-focal lens, 30x optical zoom and IR
Part number:
DWC-MPTZ230XTW
Price:
30x Optical zoom
The optical zoom lens uses internal glass elements to bring an image up to 30x closer, allowing the magnified image to be recorded at full resolution.

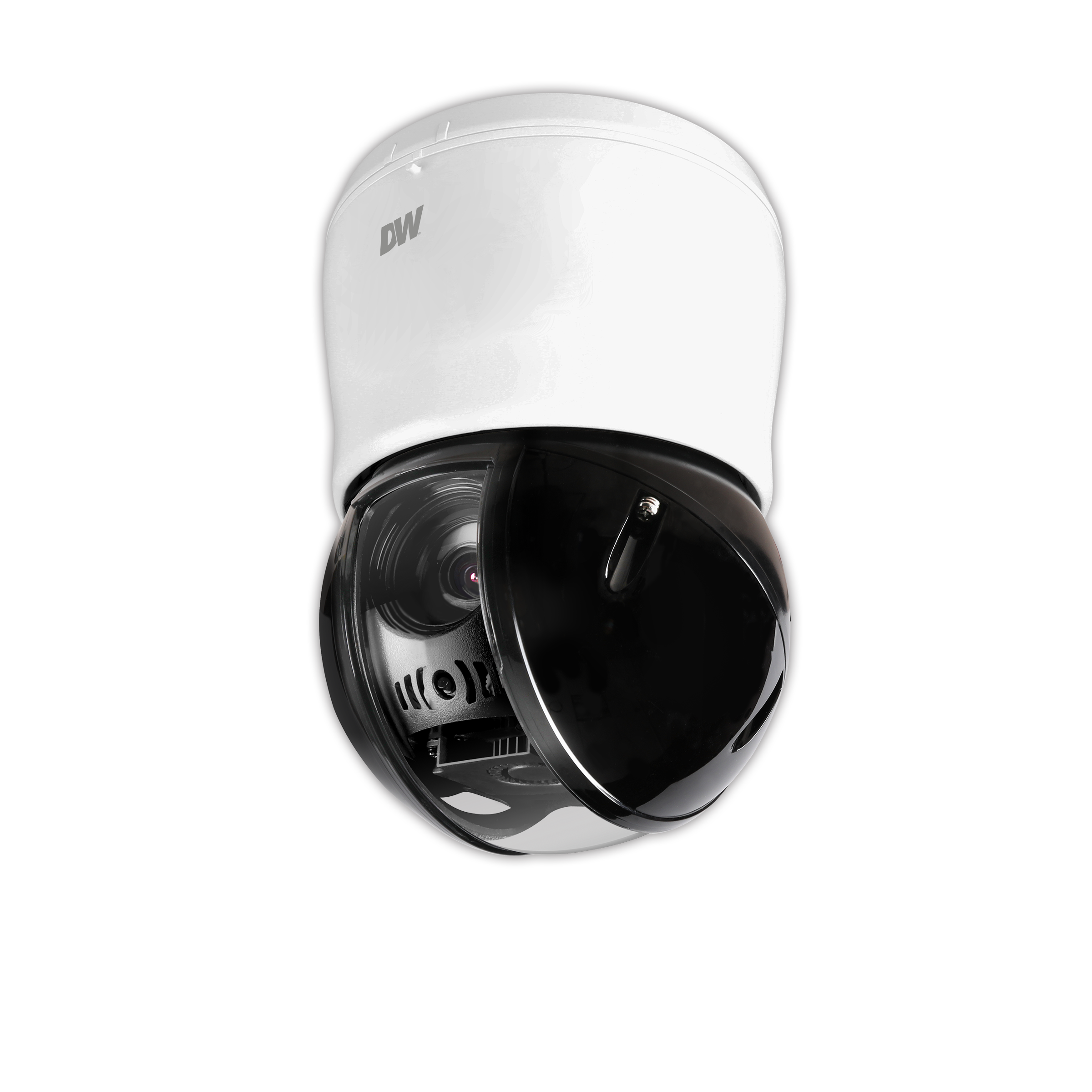

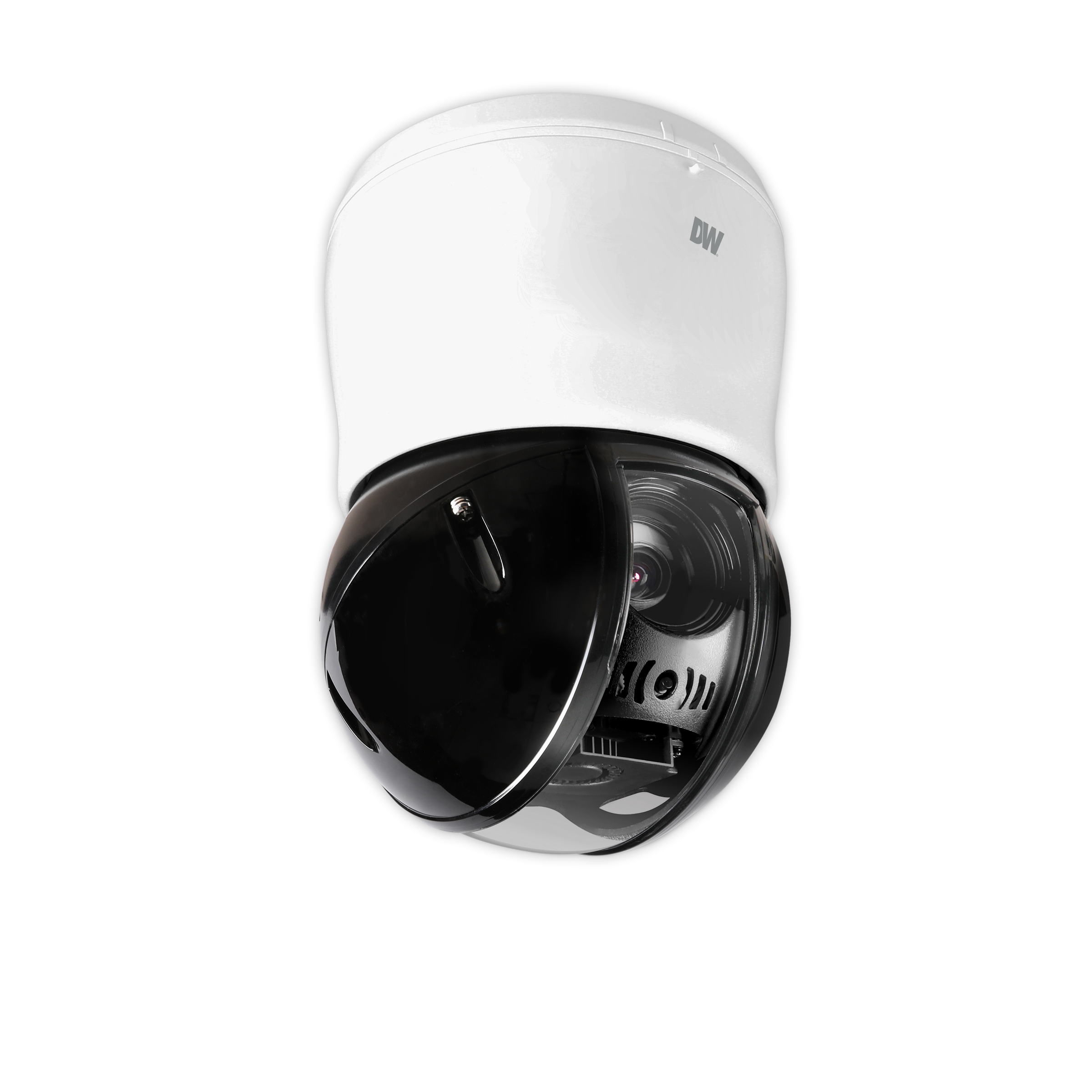

3-part insert bubble
DW’s unique 3-part insert bubble has a special lens and IR bubble block and a special black IR bubble, which act together to dramatically reduce IR reflections from entering the lens.
Up to 100° Tilting Angle
The camera’s tilting capabilities allow it to cover up to 10° below the horizon line. The result is up to 100° tilting angle, covering any blind spots in the far background, with no image distortion.
Compact size
With a re-imagined board at the base of the camera, you can capture the power of a pan, tilt and zoom camera in a small and light housing that can be installed both indoors and outside.
Smart IR
Smart IR adjusts the image for IR cameras to prevent excessive illumination on objects that are in the front of the scene and offers a clear image in B/W without any loss of detail.
Features
- 2.1MP/1080p 1/3” image sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- 4.3~129mm motorized zoom PTZ lens
- 30x optical zoom
- True wide dynamic range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Digital Image Stabilizer (DIS)
- Programmable privacy zones
- Backlight Compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Pan 0~360° endless, 360° per second pan speed
- Vector drive technology – pan/tilt motion in the shortest path
- 255 preset positions
- 10 tours
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE injector included
- PoE class5, DC24V and AC24V
- ONVIF conformant, profile S
- UL-listed
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant

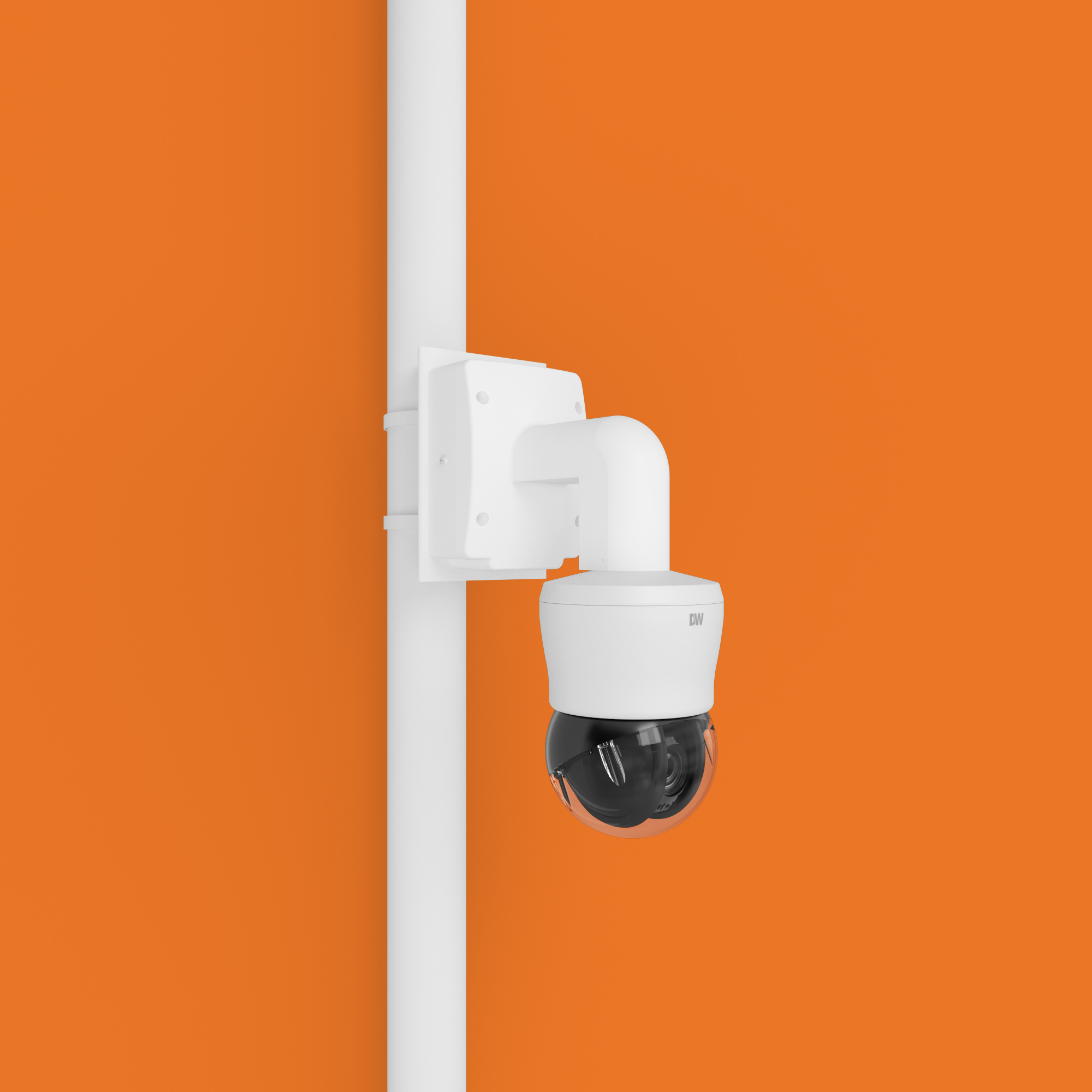

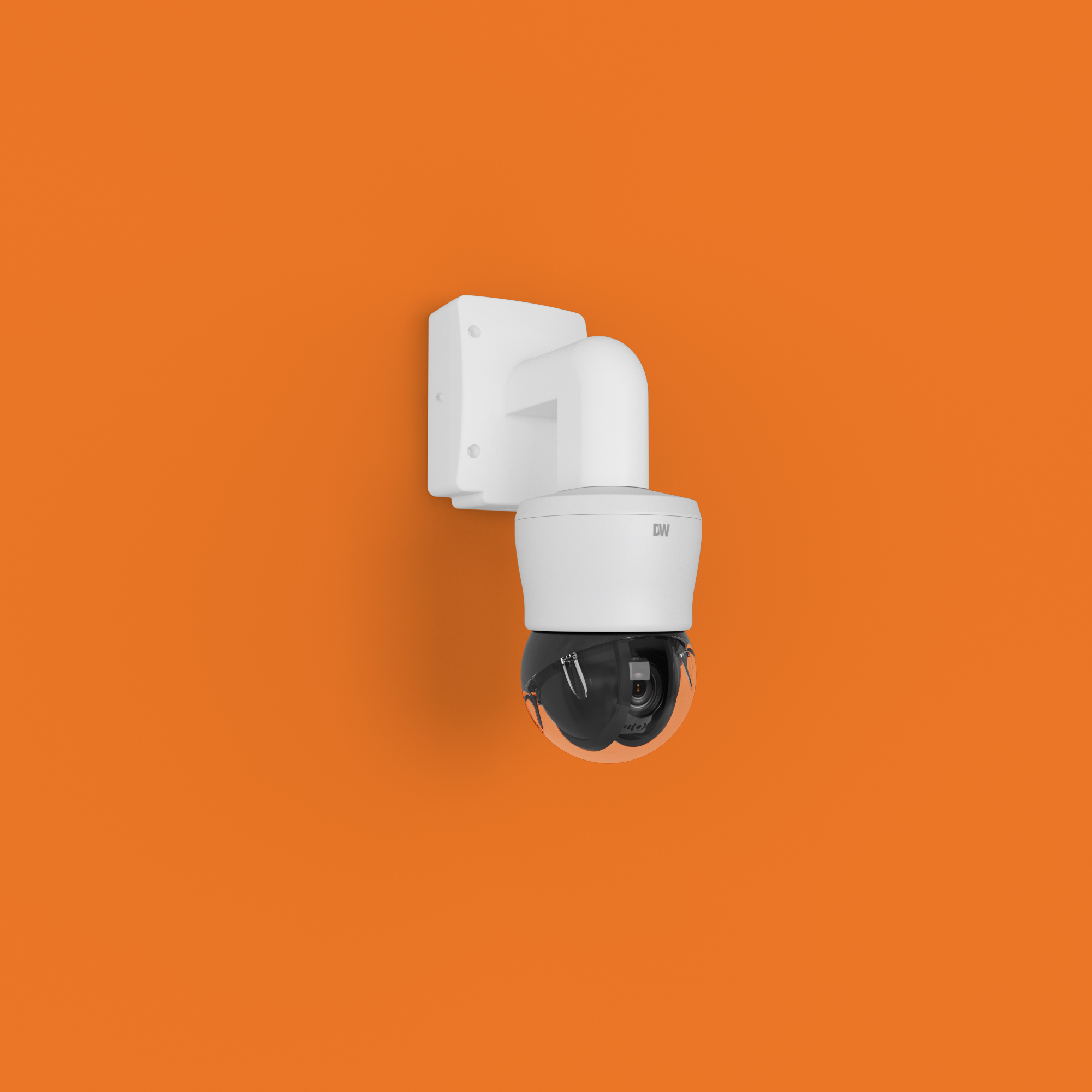

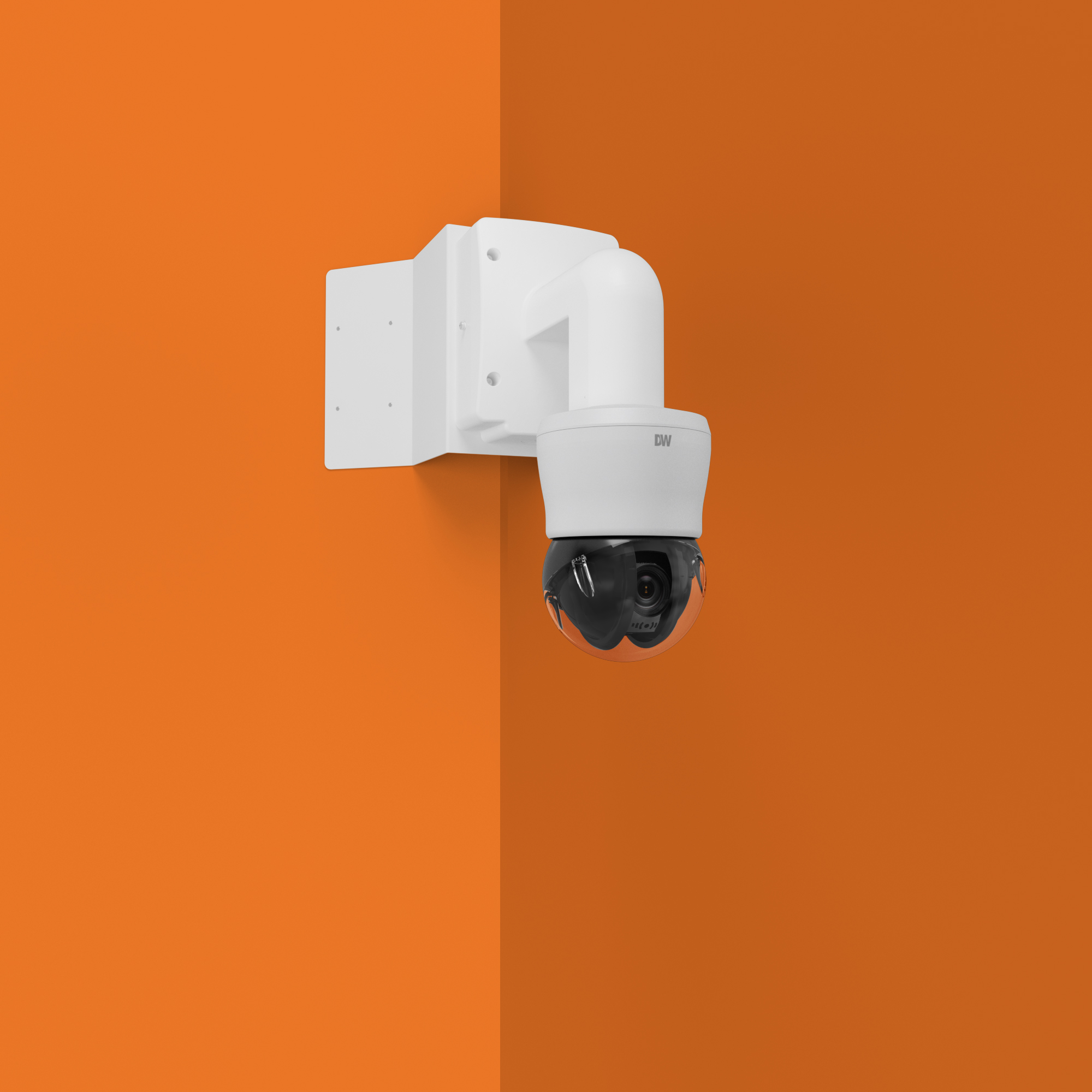

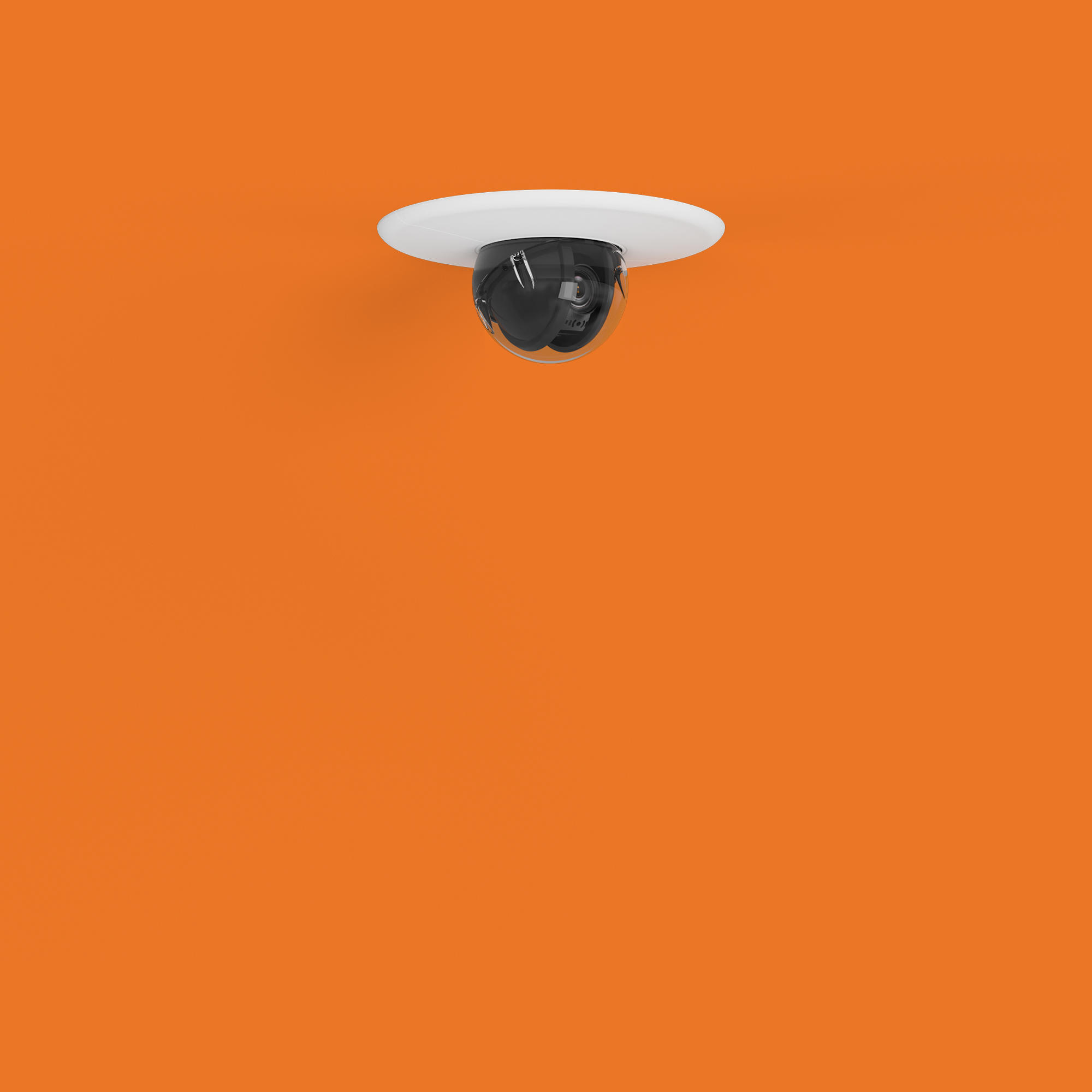

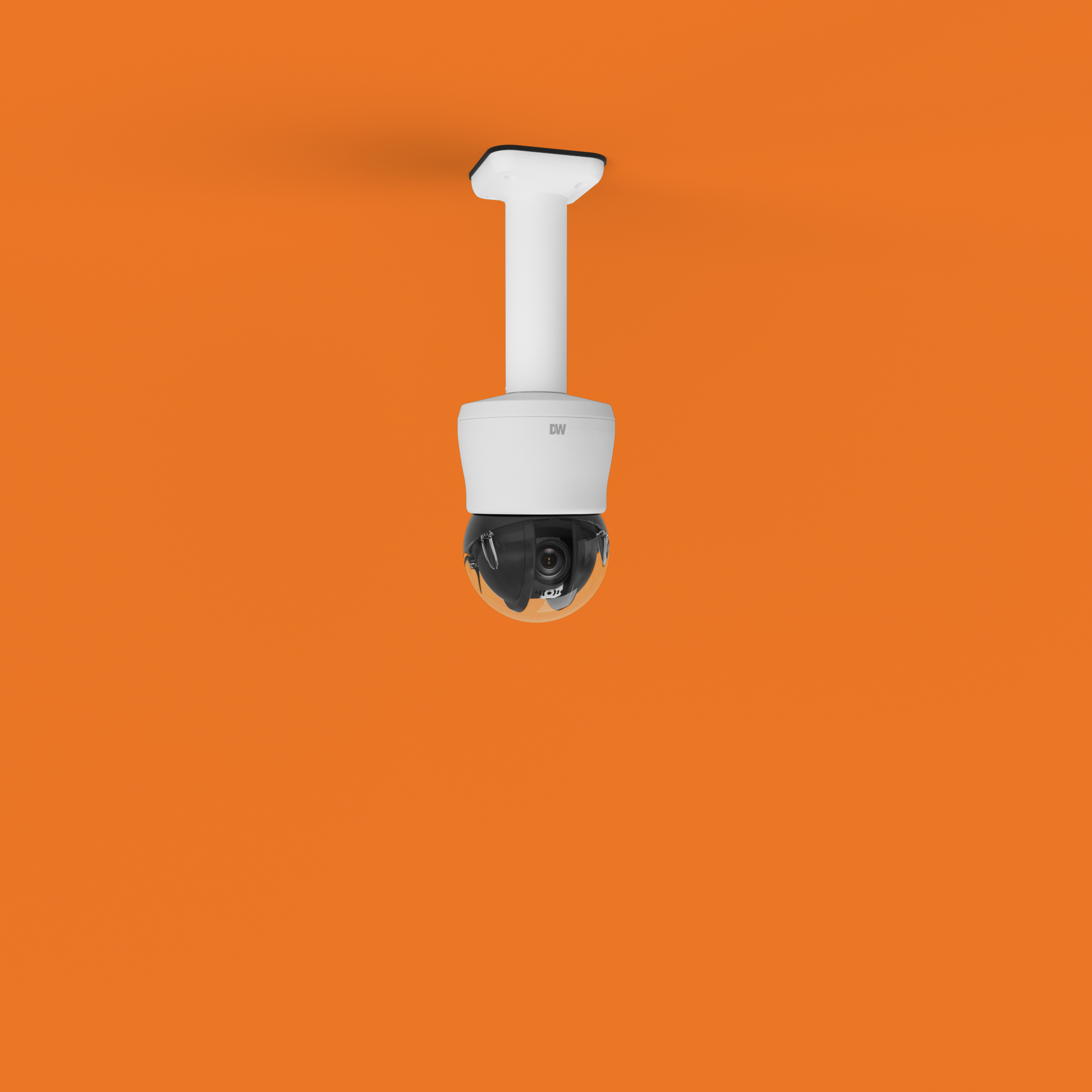

- This camera requires a wall mount, ceiling mount or flush mount, sold separately, to complete the camera’s installation
| Image | |
|---|---|
| Active Pixels | 3840 (H) x 2160 (V) |
| Image sensor | 2.1MP/1080p 1/3" CMOS sensor |
| Minimum Scene Illumination in color | 0.0 lux (B/W), 0.05 lux (color) |
| Test Video Output | Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio |
| Total Pixels | 1981 (H) X 1288 (V) |
| PTZ Function | |
| Home function | (parking action), Yes |
| Pan range | 360˚ endless |
| Pan speed | Max 360°/1sec |
| Preset | 255 |
| Tilt range | 5~90˚ |
| Tilt speed | Max 360°/1sec |
| Tour | 10 |
| Lens | |
| Advanced Lens Features | Auto focus, Motorized zoom, P-iris |
| Focal Length | 4.3mm ~ 129mm |
| Horizontal Field of View (HFOV) | 65.1°~2.34 |
| IR Distance | 200' range Smart IR |
| Lens Type | Vari-focal Lens |
| Vertical Field of View (VFOV) | 38.4° ~ 1.36° |
| I/O | |
| Audio compression | G.711 |
| Event buffering - SD card | Post: 240sec |
| Event triggers | Motion Alarm, Network disconnection, Temperature anomaly |
| I/O Alarm in/out | 1 input, 1 output |
| I/O Audio in/out | *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended., 1 input, 1 output |
| Operational | |
| 3D digital noise reduction | Smart DNR 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| De-fog | Yes |
| Digital Image Stabilizer (DIS) | Yes |
| Event buffering - FTP | Post: 5sec, Pre: 1sec |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included), Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | 4 programmable motion zones, Yes |
| Operational Notifications | Alarm output activation, Email, FTP server, SD card recording |
| Privacy Zones | 4 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Auto, Manual, Slow Shutter |
| Shutter Speed | 8 ~ 1/30000 |
| Slow Shutter Speed | Off, x2, x4 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4, IPv6 |
| LAN | RJ45 (10/100Base-T) |
| Network resolution | H.264: 2.1MP/1080p, 720p, VGA, D1, CIF, H.265: 2.1MP/1080p, 720p, VGA, D1, CIF, MJPEG: 1280x720, 800x600, VGA, 768x432, D1, CIF |
| Network Web Viewer | Google Chrome browser, Linux OS, Mac OS, Microsoft Edge browser, Mozilla Firefox browser, Safari browser, Windows OS |
| Protocol | DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP) |
| Security | 802.1x, Digest authemtication (ID/PW), HTTPS (TLS), IP filtering |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 100Kbps~10Mbps, multi-rate for preview and recording |
| Video Compression Type | H.264, H.265, MJPEG |
| Video Management Software | Any ONVIF conformant CMS, DW Spectrum IPVMS, ExacqVision Technologies, Milestone Systems |
| Environmental | |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Required. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | 12.2” x 3.81” (310 x 97mm), 5.9" x 9.13" (150 x 232mm) |
| Camera Weight | 6.17 lbs (2.8 Kg) |
| Housing | PTZ |
| Housing Color | White |
| IK rating | IK10 Rated |
| IP rating | Weather Resistant (IP66) |
| Materials | Aluminum die-casting |
| Electrical | |
| American wire gauge (AWG) | Cable type #18 |
| Power Consumption | AC24V: 35W, 1485mA, DC24V: 40W, 1666mA, PoE: 42W, 1750mA |
| Power Requirements | 24 V AC, High power PoE injector included, PoE |
| General | |
| Warranty | 2 Year Warranty |
