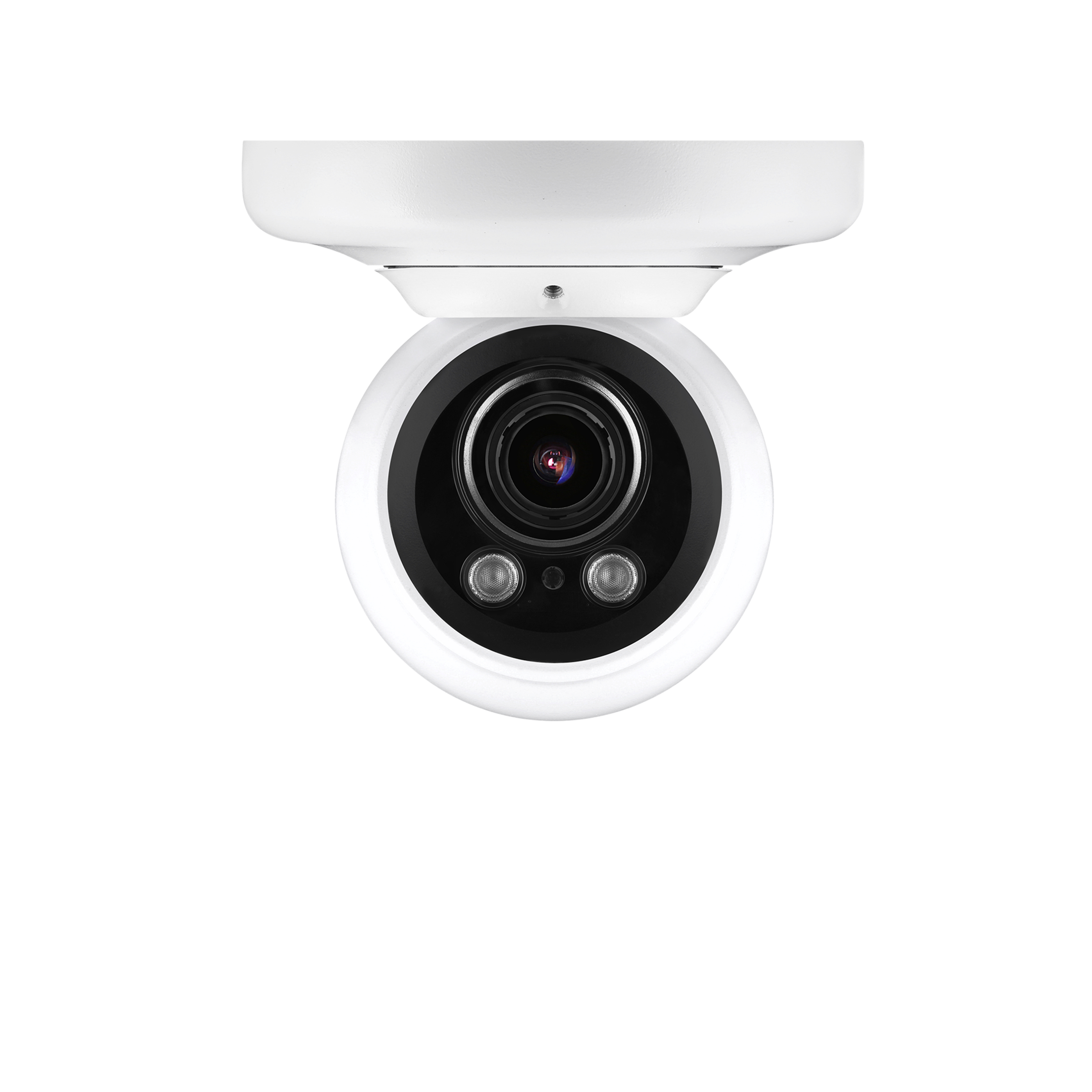

Digital Watchdog - DWC-MPVA2WiAT - MEGApix 2.1MP/1080p vandal ball turret IP camera with a vari-focal lens and IR with IVA+ license
Part number:
DWC-MPVA2WiAT
Price:

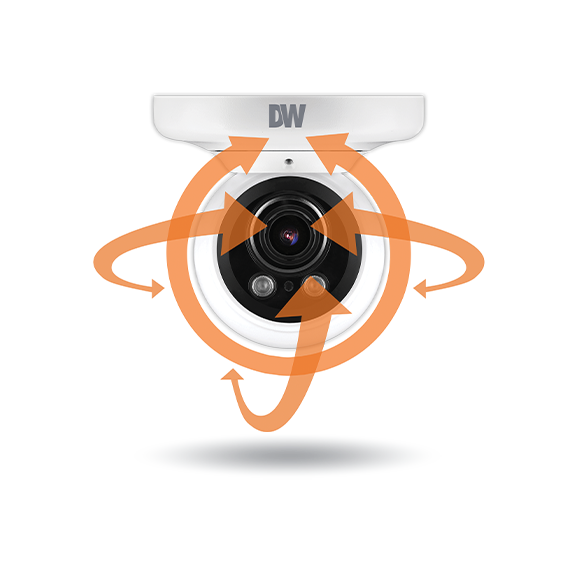

Vandal turret housing
The vandal turret cameras have a unique dome-free design that allows for a true 90° tilting angle with endless 360° panning and rotation.
Star-Light Plus color in darkness technology
Star-Light Plus color in near-total darkness technology provides crisp, clear images in the absence of ambient light.
IVA Analytics
MEGApix IVA cameras include a base package of Intelligent Video Analytics detection capabilities already activated on the camera and ready for deployment.
IVA+ Analytics
The MEGApix IVA+ package offers advanced rules to the IVA Video Content Analysis detection capabilities.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
Features
- 2.1MP/1080P sensor at real-time 30fps
- Star-Light Plus color in near-total darkness technology
- Intelligent Video Analytics (IVA) with extended features (IVA+)
- Seamless integration and control of IVA rules with DW Spectrum IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- Vari-focal p-iris lens with motorized zoom and autofocus for complete remote lens control and focused image any time
- True Wide Dynamic Range (WDR) for clear images in challenging light
- Simultaneous streaming and multiple codec options for smart bandwidth management
- 100' Smart IR with intelligent camera sync for clear B/W images with no need for external light
- Smart DNR 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
- Privacy zones cover sensitive areas in the camera's field of view.
- Web server built-in for easy camera management from any browser
- PoE and DC12V for single cable simplified installation
- NDAA compliant for federal and government projects
- IP67- and IK10-rated camera housing built to last
- 5 year warranty
| Image | |
|---|---|
| Image sensor | 2.1MP/1080p 1/2.8" CMOS sensor |
| Maximum resolution | 2.1MP/1080p |
| Minimum Scene Illumination in color | 0.0 lux (B/W), 0.043 lux (color) |
| Test Video Output | Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio |
| Total Pixels | 1945 (H) X 1109 (V) |
| Lens | |
| Advanced Lens Features | Auto focus, Motorized zoom, P-iris |
| Horizontal Field of View (HFOV) | 93.6° ~ 34.1° |
| IR Distance | 100' range Smart IR |
| Lens Type | Vari-focal Lens |
| Vertical Field of View (VFOV) | 19.2° ~ 51.8° |
| Intelligent Video Analytics | |
| IVA license | Intrusion, line crossing, counting line, loitering, enter, exit, tamper |
| IVA+ license | Logical rules, object removed, tailgating, direction, stopped, appear, disappear, object left |
| Operational | |
| 3D digital noise reduction | Smart DNR 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Backlight compensation (BLC) | Yes |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included), Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Alarm output activation, Email, SD card recording |
| Privacy Zones | 16 programmable privacy masks |
| Shutter Mode | Auto, Manual, Slow Shutter |
| Shutter Speed | 8 ~ 1/50000 |
| Slow Shutter Speed | Off, x15, x2, x3, x4, x5, x6, x7.5 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| Network | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) |
| IP | IPv4 |
| Network resolution | H.264: QFHD, 2.1MP/1080p, 720p, VGA, D1, CIF, H.265: QFHD, 2.1MP/1080p, 720p, VGA, D1, CIF, MJPEG: 1280x1024, 800x600, 480x360, 320x240, MJPEG: CIF |
| Network Web Viewer | Google Chrome browser, Linux OS, Mac OS, Microsoft Edge browser, Mozilla Firefox browser, Safari browser, Windows OS |
| Protocol | Bonjour, DDNS, DHCP, DNS, Genetec Protocol, HTTP, HTTPs, IGMP, NTP, RTP, RTP (UDP/TCP), RTSP, SNMP, SNMPv1/v2/v3 (MIB-2), TCP, Telnet, UPnP, Zeroconf (AutoIP) |
| Security | 802.1x, HTTPS (TLS), MAC filtering, Multi-user authority |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 32Kbps~20Mbps |
| Video Compression Type | H.264, H.265, MJPEG |
| Video Management Software | DW Spectrum IPVMS, ExacqVision Technologies, Milestone Systems |
| Environmental | |
| Environmental Operating Humidity | 10-90% (non-condensing) |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | 4.92" x 4.4" (125 x 112mm) |
| Camera Weight | 1.83 lbs (0.83kg) |
| Housing | Vandal ball turret, Turret |
| Housing Color | White |
| IK rating | IK10 Rated |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting |
| Electrical | |
| American wire gauge (AWG) | Cable type #18 |
| Power Consumption | DC12V: max 6.4W, 533.3mA, PoE: max 7.6W |
| Power Requirements | Adapter not included, PoE |
| General | |
| Warranty | 5 Year Warranty |
