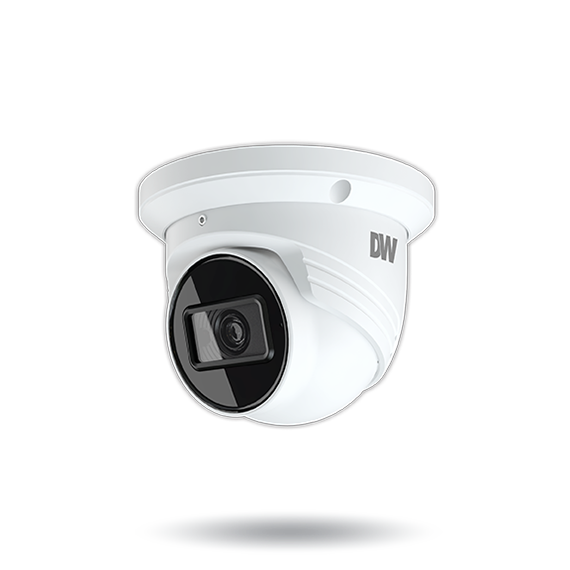

Digital Watchdog - DWC-MT95Wi28TW - MEGApix 5MP Turret IP Camera with Fixed Lens Options and IR
Part number:
DWC-MT95Wi28TW
Price:
MEGApix Weatherproof Turret, 5 Megapixel, 2.8mm Fixed Lens, True D&N, T-WDR, 100ft Smart IR, Multiple Codecs (H.265, H.264, MJPEG ) with simultaneous Dual Stream, Video Analytics (Line Crossing, Perimeter Intrusion, Video Tampering), Smart DNR, Audio Input, Programmable Privacy Zones, Web Server Built in, PoE and DC12V, IP67, OnVIF Compliant, 5 Year Warranty
Features:
- 5MP 1/2.7” image sensor at real-time 30fps
- 2.8mm fixed lens (DWC-MT95Wi28TW)
- 3.6mm fixed lens (DWC-MT95Wi36TW)
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 100ft range Smart IR
- Object classification video analytics
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene change detection video analytics
- Video tampering with video blur detection video analytics
- Video tampering with abnormal color detection video analytics
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- De-Fog extreme weather image compensation
- Auto white balance (AWB)
- Motion detection
- Audio input through built-in microphone
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
| IMAGE | |
|---|---|
| Image sensor | 5MP 1/2.7 CMOS sensor |
| Maximum resolution | 5MP |
| Minimum Scene Illumination in color | 0.0 lux (B/W), 0.02 lux (color) |
| Total Pixels | 2592 (H) × 1944 (V) |
| LENS | |
| Focal Length | 2.8mm, 3.6mm |
| Horizontal Field of View (HFOV) | 81.4°, 98.5° |
| IR Distance | 100' range Smart IR™ |
| Lens Type | Fixed Lens |
| I/O | |
| Audio compression | G.711A / U |
| I/O Audio in/out | *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended., 1 input, 1 microphone built-in |
| OPERATIONAL | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Camera Analytics | Object Classification (Differentiate Humans from Objects), Line Crossing, Perimeter Intrusion, video Tampering Detection (Scene Change, Video Blur, Abnormal Color Detection) |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included), Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Email, FTP server |
| Privacy Zones | 4 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Auto, Manual |
| Shutter Speed | 1/30 ~ 1/100000 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| NETWORK | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4, IPv6 |
| LAN | 802.3 compliance 10/100 LAN |
| Network resolution | 5MP, 4MP, 2K, 3MP, 2.1MP/1080P, 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps), HFR mode: 1080P / 720P (60Hz: 1 ~ 60fps; 50Hz: 1~50fps) |
| Network Web Viewer | Microsoft Edge® browser, Windows® OS |
| Protocol | 802.1x, DDNS, DHCP, FTP, HTTP, HTTPs, ICMP, IGMP, NTP, ONVIF, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Security | Digest authemtication (ID/PW), IP filtering, MAC filtering |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 64Kbps~8Mbps |
| Video Compression Type | H.264, H.265, MJPEG |
| Video Management Software | Any ONVIF conformant CMS, DW Spectrum® IPVMS, ExacqVision Technologies, Milestone Systems |
| Environmental Operating Humidity | 0-95% RH (non–condensing) |
| Environmental Operating Temperature | -22°F ~ 140°F (-30°C ~ 60°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| MECHANICAL | |
| Camera Dimensions (H X W X D) | 4.66" x 3.58" (118.6 x 91 mm) |
| Camera Weight | 1.01 lbs (0.46 kg) |
| Housing | Turret |
| Housing Color | White |
| IK rating | IK10 Rated |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting |
| ELECTRICAL | |
| Power Consumption | DC12V: max 7.0W, 583.3mA, PoE: max 7.0W |
| Power Requirements | Adapter not included, PoE |
| GENERAL | |
| Warranty | 5 Year Warranty |
Name
Description
Size
Downloads
File
Datasheet
0.7mb
File
Quick Start Guide
1.6mb
File
A&E Specifications
0.1mb
