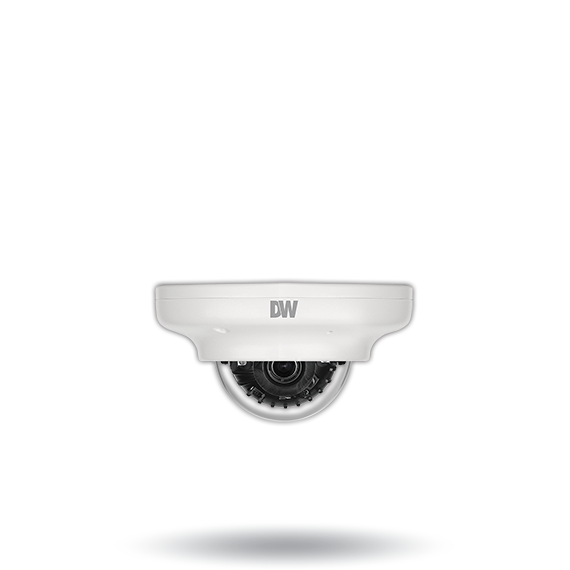

Digital Watchdog - DWC-MV72Di28T - MEGApix 2.1MP/1080p ultra Low-profile Vandal dome IP Camera with Fixed Lens and IR
Part number:
DWC-MV72Di28T
Price:
This MEGApix IP camera provides 2.1MP/1080p resolution at real-time 30fps. It includes a 2.8mm fixed lens and simultaneous H.265/H.264/MJPEG codec support. The IP67-rated, IK-10 impact resistant ultra low-profile vandal dome camera brings the capabilities of a robust camera in a small and discrete housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Features:
- 2.1MP/1080p 1/2.9" image sensor at real-time 30fps
- 2.8mm fixed lens
- Digital Wide Dynamic Range (D-WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 80' Smart IR with intelligent camera sync
- Ultra low-profile vandal dome camera housing
- Smart DNR 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Web server built-in
- PoE class 2 and DC12V
- Waterproof cabling
- ONVIF conformant, profile S
- NDAA/TAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
IMAGE | ||
| Image sensor | 2.1MP/1080p 1/2.9” CMOS | |
| Total pixels | 2001 (H) × 1121 (V) | |
| Minimum scene illumination | 0.16 lux (color) | |
| 0.0 lux (B/W) | ||
LENS | ||
| Focal length | 2.8mm, F1.6 | |
| Lens type | Fixed lens | |
| Field of view (FoV) | 103° | |
| IR distance | 80ft range | |
OPERATIONAL | ||
| Shutter mode | Auto, manual, anti-flicker, slow shutter | |
| Shutter speed | 1/30 ~ 1/32,000 | |
| Slow shutter | 2x, 3x, 5x, 6x, 7.5x, 10x | |
| Auto gain control | Auto | |
| Day / night | Auto, day (color), night (B/W) | |
| Smart DNR™ 3D digital noise reduction | 3D DNR | |
| Wide dynamic range (WDR) | D-WDR On, Off | |
| Backlight compensation (BLC) | Yes | |
| Privacy zones | 16 programmable privacy masks | |
| Mirror and flip | Yes | |
| Alarm notifications | Notifications via e-mail and FTP server recording | |
NETWORK | ||
| LAN | RJ45 (10/100Base-T) | |
| Video compression type | H.265, H.264, MJPEG | |
| Resolution | H.265: 2.1MP/1080p, 720p(main), CIF(sub) H.264: 2.1MP/1080p, 720p(main), CIF(sub) MJPEG: CIF | |
| Frame rate | Up to 30fps at all resolutions | |
| Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording | |
| Bitrate control | Multistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) | |
| Streaming capability | Dual-stream at different rates and resolutions | |
| IP | IPv4, IPv6 | |
| Protocol | TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF | |
| Security | HTTPS(TLS), IP filtering, 802.1x, digest authentication (ID/PW) | |
| ONVIF conformance | Yes | |
| Web viewer | OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® | |
| Video management software | DW Spectrum® IPVMS | |
ENVIRONMENTAL | ||
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) | |
| Operating humidity | 10–90% RH (non–condensing) | |
| IP rating | IP67-rated | |
| IK rating | IK10 impact-resistant | |
| Other certifications | CE, FCC, RoHS | |
ELECTRICAL | ||
| Power requirement | DC12V, POE IEEE 802.3af class 2 (adaptor not Included) | |
| Power consumption | DC12V: max 3.7W PoE: max 5.4W | |
MECHANICAL | ||
| Material | Aluminum vandal housing, polycarbonate dome | |
| Dimensions | 4.13" x 2.4" (105 x 61mm) | |
| Weight | 0.88 lbs (0.4kg) | |
| Warranty | 5 year warranty | |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
File
Quick Start Guide
1.8mb
File
A&E Specifications
0.1mb
