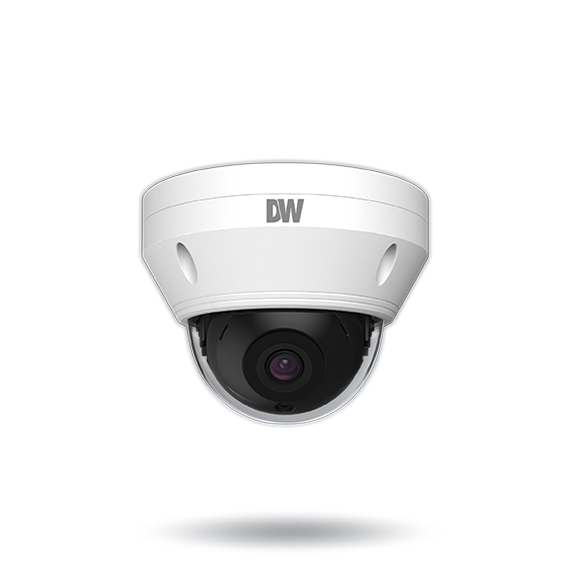

Digital Watchdog - DWC-MV95Wi28TW - MEGApix 5MP Vandal Dome IP Camera with Fixed Lens Options and IR
Part number:
DWC-MV95Wi28TW
Price:
MEGApix Indoor/Outdoor Vandal Dome Camera, 5 Megapixel , 2.8mm Fixed Lens, True D&N, T-WDR, 100ft Smart IR, Multiple Codecs (H.265, H.264, MJPEG ) with simultaneous Dual Stream, Video Analytics (Line Crossing, Perimeter Intrusion, Video Tampering), Smart DNR, Audio Input, Programmable Privacy Zones, Web Server Built in, PoE and DC12V, IP67, IK10, OnVIF Compliant, 5 Year Warranty
Features:
- 5MP 1/2.7” image sensor at real-time 30fps
- 2.8mm fixed lens (DWC-MV95Wi28TW)
- 3.6mm fixed lens (DWC-MV95Wi36TW)
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 100ft range Smart IR
- Object classification video analytics
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene change detection video analytics
- Video tampering with video blur detection video analytics
- Video tampering with abnormal color detection video analytics
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- De-Fog extreme weather image compensation
- Auto white balance (AWB)
- Motion detection
- Audio input through built-in microphone
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
| ENVIRONMENTAL | |
|---|---|
| Compliance | NDAA Compliance CF FCC RoHS ONVIF |
| Operating Humidity | 0-95% RH (non–condensing) |
| Operating Temperature | -22°F ~ 140°F (-30°C ~ 60°C) |
| I/O | |
| Audio compression | G.711A / U |
| I/O Alarm in/out | 1 input 1 output |
| I/O Audio in/out | 1 input 1 microphone built-in *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended. |
| IMAGE | |
| Image Resolution | 5MP 5MP 1/2.7" CMOS sensor |
| Signal technology | HD-TVI |
| Total Pixels | 2592 (H) × 1944 (V) |
| LENS | |
| Focal Length | 2.8mm 3.6mm |
| Horizontal Field of View (HFOV) | 81.4° 98.5° |
| IR Distance | 100" range Smart IR™ |
| Lens Type | Fixed Lens |
| Minimum Scene Illumination in color | 0.02 lux (color) 0.0 lux (B/W) |
| MECHANICAL | |
| Housing | Vandal Dome |
| IK rating | IK10 Rated |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting |
| Mechanical Dimensions | 4.59" x 3.54" (116.6x 90 mm) 4.66" x 3.58" (118.6 x 91 mm) |
| Weight | 1.43 lbs (0.65 kg) Polycarbonate Dome |
| OPERATIONAL | |
| 3D digital noise reduction | 3D DNR |
| Auto gain control | Auto |
| Camera Analytics | Line Crossing Perimeter Intrusion video Tampering Detection (Scene Change, Video Blur, Abnormal Color Detection) "Object Classification (Differentiate Humans from Objects)" |
| Day and night | Auto day/nighy Day (color) Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included) |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Notifications | Email FTP server |
| Operational features | True D/N |
| Privacy Zones | 4 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Auto Manual |
| Shutter Speed | 1/30 ~ 1/100000 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| GENERAL | |
| General Warranty | 5 Year Warranty |
| Power Consumption | DC12V: max 6.0W, 500mA PoE: max 6.0W |
| Power Requirements | 12 V DC PoE IEEE 802.3af Class 3 (Adapter not included) |
| NETWORK | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4 IPv6 |
| LAN | 802.3 compliance 10/100 LAN |
| Network resolution | 5MP, 4MP, 2K, 3MP, 2.1MP/1080P, 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps) HFR mode: 1080P / 720P (60Hz: 1 ~ 60fps; 50Hz: 1~50fps) |
| Protocol | 802.1x DDNS DHCP DNS FTP HTTP HTTPs ICMP IGMP NTP ONVIF PPPoE QoS RTCP RTP RTSP SMTP SNMP UDP UPnP |
| Security | IP filtering MAC filtering Digest authemtication (ID/PW) |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 64Kbps~8Mbps |
| Video Compression Type | H.264 H.265 MJPEG |
| Video Management Software | DW Spectrum® IPVMS Any ONVIF conformant CMS |
| Web Viewer | Windows® OS Internet Explorer® browser |
