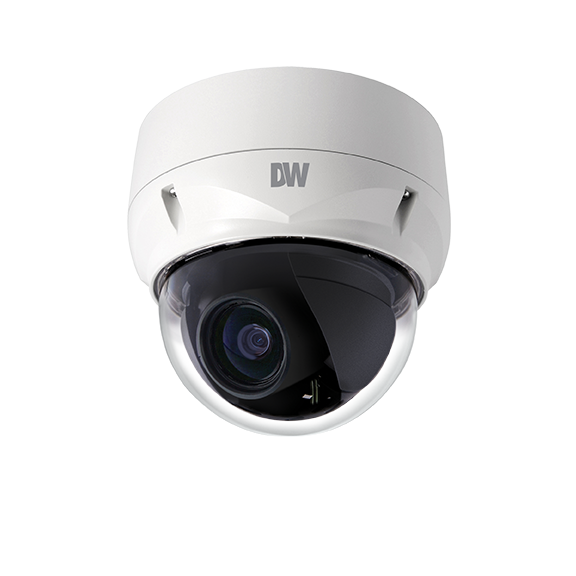

Digital Watchdog - DWC-PTZ220XW - Star-Light Plus 2.1MP/1080p UHDoC PTZ Camera with a Vari-focal Lens and 20x Optical Zoom
Star-Light Plus color in near-total darkness 2.1MP/1080p HD over Coax 20x Pan-Tilt-Zoom (PTZ) cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI and all analog signals to 960H. The camera features 20x optical zoom and 16x digital zoom, 0~360° endless pan in an IP66 weather-resistant dome housing. A wall mount and ceiling mount are available, sold separately and necessary to complete the camera's installation. Star-Light Plus Universal HD over Coax cameras are engineered to work with our VMAX A1 Plus Universal HD over Coax DVRs using your existing Coax infrastructure for a cost-effective, high resolution surveillance solution.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
Features
- Universal HD over Coax technology with HD-Analog, HD-TVI and all legacy analog signal support
- Star-Light Plus color in near-total darkness technology
- 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
- Analog legacy analog output (720x480)
- 4.7~94mm motorized zoom auto-focus lens
- True Wide Dynamic Range (WDR)
- OSD control via coaxial (UTC)
- 20x optical zoom, 16x digital zoom, total 320x zoom
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Pan 0~360° endless, 180° per second pan speed
- Vector drive technology – pan/tilt motion in shortest path
- 240 preset positions
- 8 patterns
- 8 tours
- RS-485 built-in
- Alarm sensor input
- Relay output
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
| Image | |
| Active Pixels | 1945 (H) x 1097 (V) |
| Image sensor | 2.1MP/1080p 1/2.8" CMOS sensor |
| Maximum resolution | 2.1MP/1080p, CVBS: 720 x 480 at 30fps, HD-Analog: 2.1MP/1080p at 30fps, HD-TVI: 2.1MP/1080p at 30fps, 720p at 30/60fps |
| Minimum Scene Illumination in color | 0.013 lux (B/W), 0.35 lux (color) |
| Scanning System | Progressive scan |
| Signal technology | CVBS up to 960H, HD-Analog, HD-TVI, Universal HD over Coax technology |
| PTZ Function | |
| Auto calibration | 0.1 ~ 6˚ |
| Auto scan | 1 auto pan, 16 auto scans |
| Control | UTC, RS-485, Baud Rate: 2400 ~ 38400 bps (Default: 9600 bps) |
| Home function | Yes |
| ID (camera address) | 1 ~ 3999 |
| Pan range | 360˚ endless |
| Pan speed | Max. 380˚ /sec. (preset) |
| Pattern | 8 |
| Preset | 240 |
| Tilt range | -10~190˚ |
| Tilt speed | Max. 380˚ /sec. (preset) |
| Tour | 8 |
| Lens | |
| Advanced Lens Features | Auto focus, Motorized zoom |
| Focal Length | 4.7mm ~ 94mm |
| Horizontal Field of View (HFOV) | 55.5° ~ 3° |
| Lens Type | Vari-focal Lens |
| I/O | |
| I/O Alarm in/out | 1 output, 4 inputs |
| Operational | |
| 3D digital noise reduction | Smart DNR 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Backlight compensation (BLC) | Yes |
| Camera Control | RS485, UTC |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| Digital Image Stabilizer (DIS) | Yes |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Shutter Mode | Auto, Iris Priority, Manual, Shutter Priority |
| Shutter Speed | 8 ~ 1/30000, 8 ~ 1/50000 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 100dB |
| Environmental | |
| Environmental Operating Humidity | 0-90% RH (non–condensing) |
| Environmental Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| Mechanical | |
| Camera Dimensions (H X W X D) | 6.06" x 5.9" (154 x 150 mm) |
| Camera Weight | 3.50 lbs (1.6kg) |
| Housing | PTZ |
| Housing Color | White |
| IK rating | IK10 Rated |
| IP rating | Weather Resistant (IP66) |
| Materials | Aluminum die-casting |
| Electrical | |
| American wire gauge (AWG) | Cable type #18 |
| Power Consumption | AC24V: 12.0W, 500mA, DC12V: 12.0W, 1A |
| Power Requirements | 24 V AC |
| General | |
| Warranty | 5 Year Warranty |
