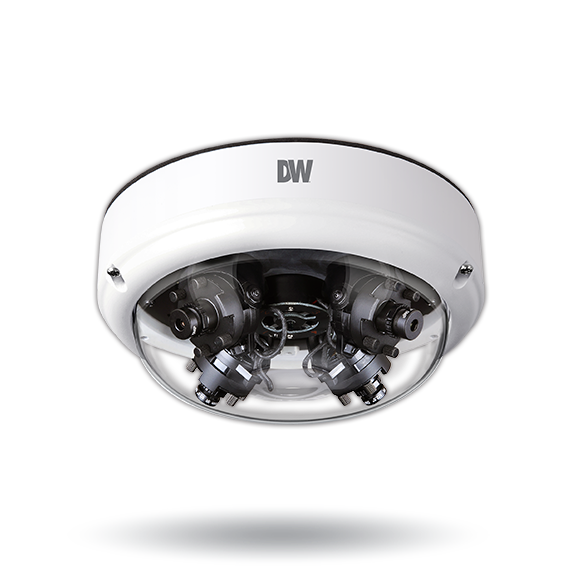

MEGApix 16 Megapixel Flexible Panoramic Indoor/Outdoor Vandal Dome (4 cameras in 1), 360 and 180 Panoramic View, 1/3" Image Sensors, 4x4mm fixed lenses, Flexible sensor positioning with magnets, Dual Codecs (H.264, MJPEG) with simultaneous Dual Streams, True Day/Night with Mechanical IR Cut Filter, True WDR (120dB), Two Way Audio, Smart DNR 3D Digital Noise Reduction, Auto Gain Control (AGC), Auto White Balance (AWB), Motion Detection, Micro SD/SDHC Class 10 Card Slot (card not included), Web Server Bullet In, OnVIF Profile S. IP66, PoE Class 4 and DC12V PoE Injector Included, 5 Year Warranty.
Features:
- 16MP 1/3" image sensors at real-time 30fps

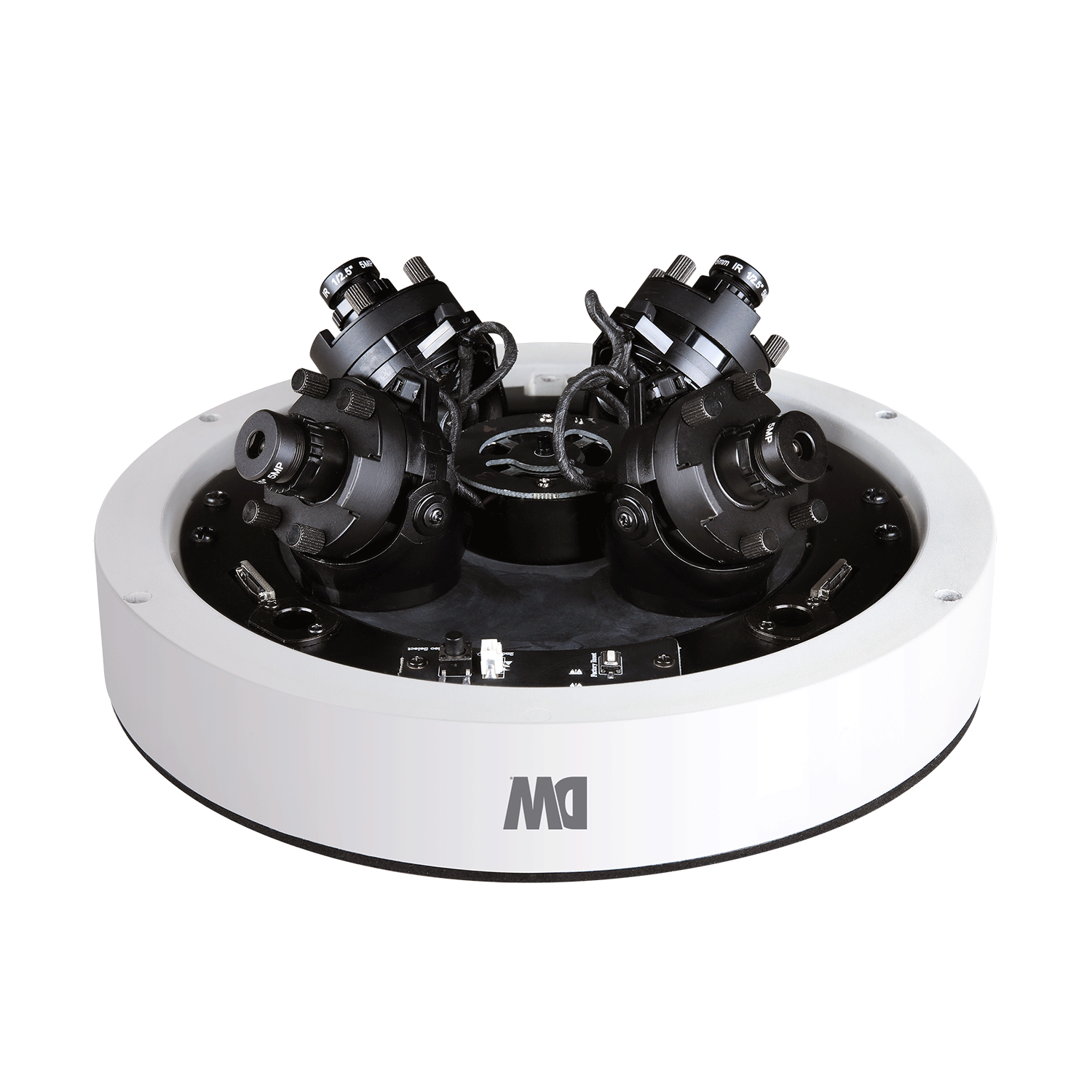

- 360° and 180° flexible panoramic view IP camera
- Available as a complete system with 4x 4.0mm or 4 x 2.8mm lens modules or camera and other lens options sold separately.

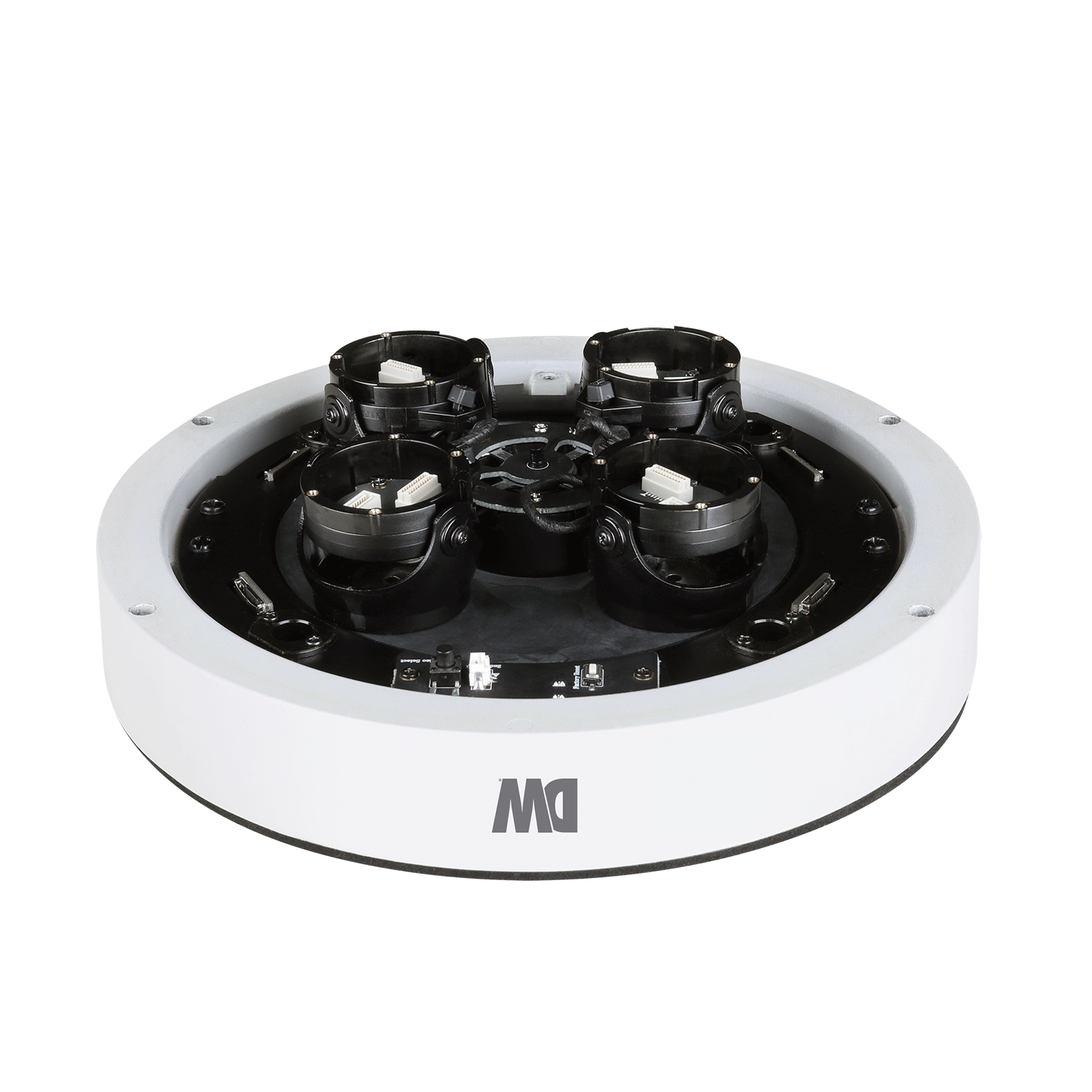

- Four cameras in one installation

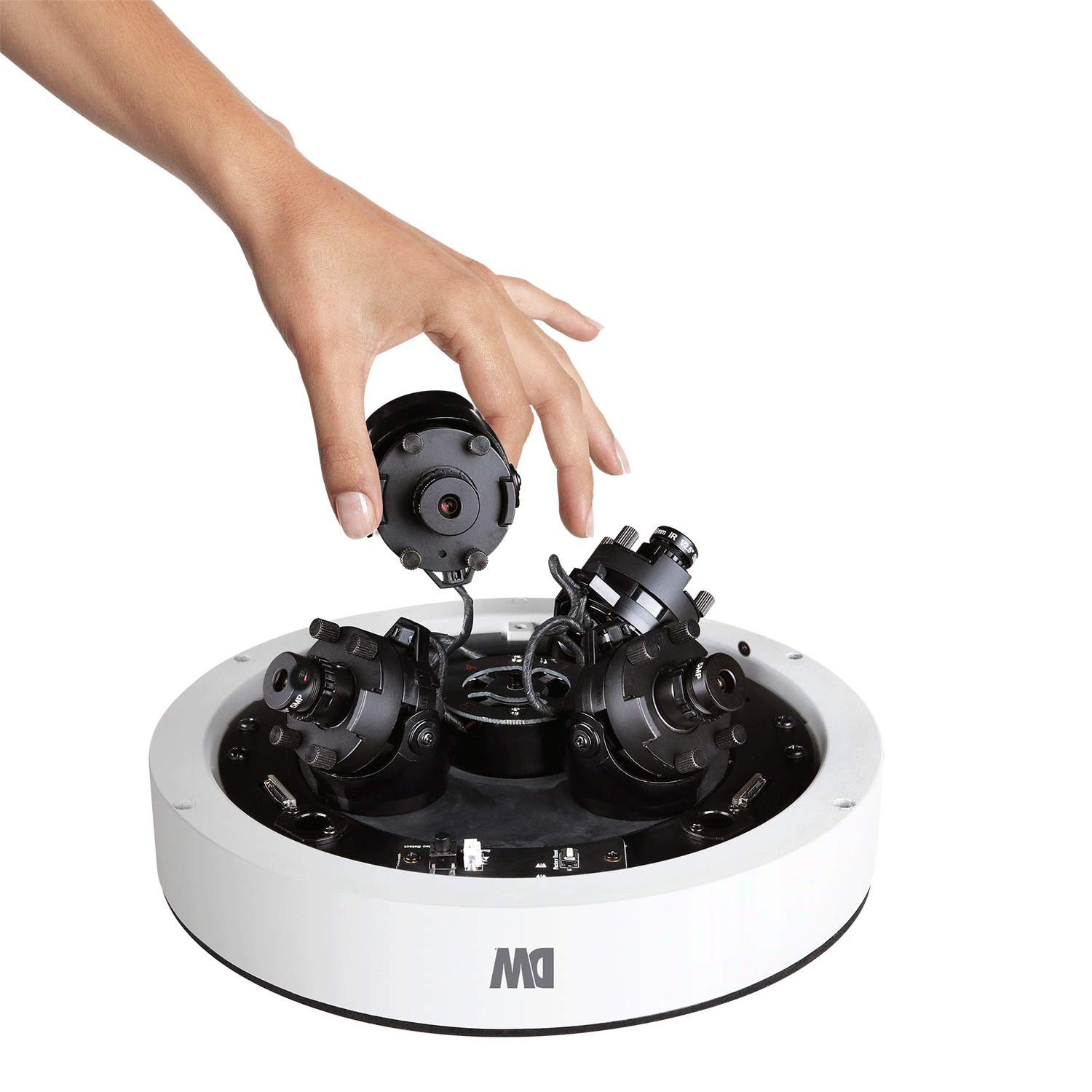

- Flexible sensor positioning with magnets
- True wide dynamic range (WDR)
- PoE injector included
- Dual codecs (H.264, MJPEG) with simultaneous dual-stream
- Two-way audio
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- 4x Micro SD/SDHC/SDXC class 10 card (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- ONVIF conformant, profile S
- PoE class 3 and DC12V
- NDAA/TAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- 5 year warranty
IMAGE |
||
|
Image sensor |
4x 1/3“ CMOS |
|
|
Total pixels |
4x 2688(H) X 1520(V) |
|
|
Minimum scene illumination |
0.41 lux (color) |
|
|
Test video output |
Local video output CVBS 1.0V p-p (75 ?), 4:3 aspect ratio |
|
|
Maximum resolution |
4x 4MP |
|

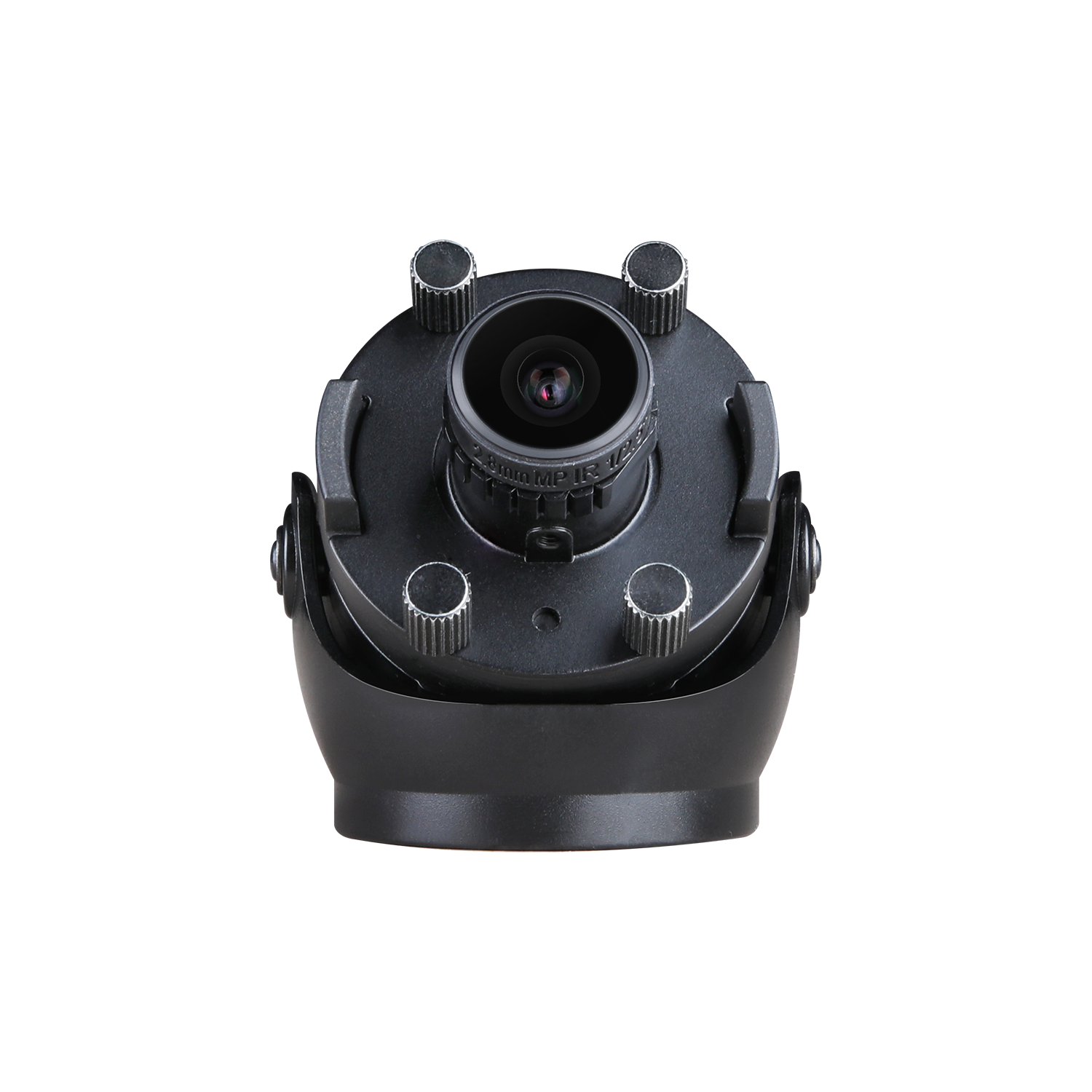

LENS |
||
|
Focal length |
4x 2.8mm, 4.0mm, 6.0mm, 8.0mm F2.0 (configurable at the time of order) |
|
|
Lens type |
Fixed lens |
|
|
Field of view (FoV) |
H: 90° (2.8mm) H: 81° (4mm) H: 51° (6mm) H: 39° (8mm) |
|
I/O |
||
|
Audio in / out |
1/1 |
|
|
Alarm In/Out |
1/1 |
|
|
Audio compression |
G.711 |
|
OPERATIONAL |
||
|
Shutter mode |
Auto, manual, anti-flicker, slow shutter |
|
|
Shutter speed |
1/15 ~ 1/32000 |
|
|
Slow Shutter |
1 ~ 1/5,1/7.5, 1/10 |
|
|
Auto gain control |
Yes |
|
|
Day / night |
Auto, day (color), night (B/W) |
|
|
Smart DNR™ 3D digital noise reduction |
Yes |
|
|
Wide dynamic range (WDR) |
True WDR on, off |
|
|
Wide dynamic range (WDR) dB |
120dB |
|
|
White balance |
Auto |
|
|
Mirror and flip |
Yes |
|
|
Privacy zones |
16 programmable privacy masks |
|
|
Alarm notifications |
Notifications via e-mail, FTP, alarm output, SD card recording |
|
|
Memory Slot |
Four (4x) micro SD/SDHC/SDXC class 10 card (card not included) |
|
NETWORK |
||
|
LAN |
1000base-T(1Gbps) |
|
|
Video compression type |
H.264, MJPEG |
|
|
Resolution |
H.264: 1440p/1080p/720p/VGA/D1/CIF MJPEG: 800x600/VGA/768 x 432/D1/CIF. (DW-PVX16W uses 4 channels in the VMAX IP Plus recorder, one per sensor). |
|
|
Frame rate |
Up to 30fps at all resolutions |
|
|
Video bitrate |
100Kbps ~ 10Mbps, multi-rate for preview and recording |
|
|
Bitrate control |
Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) |
|
|
Streaming capability |
Triple-stream at different rates and resolutions |
|
|
IP |
IPv4 |
|
|
Protocol |
ONVIF, TCP/IP, UDP, autoIP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3 (MIB-2) |
|
|
Security |
HTTPS(TLS), IP filtering, 802.1x, Digest Authentication (ID/PW) |
|
|
ONVIF conformance |
Yes |
|
|
Web viewer |
OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® |
|
|
Video management software |
DW Spectrum® IPVMS |
|
ENVIRONMENTAL |
||
|
Operating temperature |
-4°F ~ 122°F (-20°C ~ 50°C) |
|
|
Operating humidity |
10–90% RH (non–condensing) |
|
|
IP rating |
IP66-rated |
|
|
Other certifications |
FCC, CE, ROHS |
|
ELECTRICAL |
||
|
Power requirement |
DC12V, PoE+ IEEE 802.3at class 4 (High power PoE injector included) |
|
|
Power consumption |
18W |
|
MECHANICAL |
||
|
Material |
Aluminum vandal housing, polycarbonate dome |
|
|
Dimensions |
7.48" x 3.54" Inch (190 x 90 mm) |
|
|
Weight |
4.4 lbs (2.0 kg) |
|
