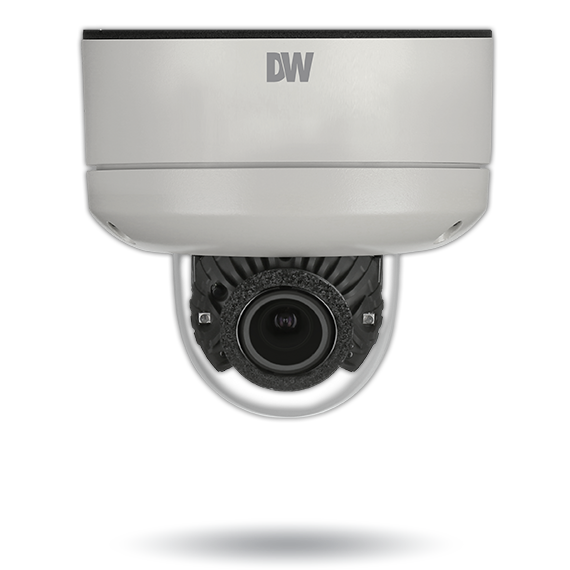

Digital Watchdog - DWC-V4283WTIR - Star-Light 2.1MP/1080p UHDoC Vandal Dome Camera with a 2.8-12mm Vari-focal Lens and IR
Part number:
DWC-V4283WTIR
Price:

STAR-LIGHT 2.1MP Universal HD over COAX cameras deliver crystal clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI and all analog signals to 960H. Our unique Snapit housing is IP68 rated and makes installation a snap!. STAR-LIGHT Universal HD over COAX cameras are engineered to work with our VMAX A1 Universal HD over COAX DVRs using your existing coax infrastructure for a costeffective, high resolution surveillance solution.



Universal HD over Coax Technology

Universal HD over Coax Complete Solutions are the best way to upgrade an existing analog system to high-definition. Universal HD over Coax cameras and recorders can transmit HD-Analog, HD-TVI, HD-CVI signals up to 4K, and analog signals to 960H.



Star-Light Super Low-Light Technology

Star-Light Technology provides crisp clear images in both color and B/W video in extremely low light conditions. It is an ideal solution for cameras that are installed in a low-light environment, and cannot rely on external lighting for image clarity. Coupled with a powerful IR built-in, Star-Light cameras can provide unparalleled details in total darkness.



Snapit Outdoor Vandal Dome Housing

Our Snapit housing offers a simple to install, three-step process. All Snapit outdoor dome models are IP68 and IK10 rated, include DW’s CleanView hydrophobic dome coating to repel water, dust and grease and will Cold Start at -40°F./-40°C.



CleanView Hydrophobic Dome Coating

The CleanView coating improves visibility by reducing water spots, dust and grease build-up on the camera dome housing’s glass. The CleanView coating treatment will allow the liquid to roll off of the dome’s glass surfaces when tilted vertically up to 10° or less. The CleanView coating leaves the camera dome’s glass clean, repels dust and grease, preventing IR reflections due to dust and smudges.



Cold Start -40°F (-40°C)

The installed heater helps the camera power up in extreme cold weather conditions where temperatures may go as low as -40°F. This makes the cameras ideal for any harsh environment installation.



Features:

  • Universal HD over Coax Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
  • STAR-LIGHT Super Low Light Technology
  • 2.1MP 1/3" Image Sensor at Real-time 30fps
  • 2.8~12mm Motorized Zoom Auto-Focus P-Iris Lens
  • True Wide Dynamic Range (WDR)
  • OSD Control Via Coaxial (UTC)
  • Snapit Easy Installation Housing
  • CleanView Hydrophobic Dome Coating Repels Water, Dust and Grease
  • Cold Start -40°F (-40°C)
  • 100' Smart IR with Intelligent Camera Sync.
  • Smart DNR 3D Digital Noise Reduction
  • True Day/Night Mechanical IR Cut Filter
  • De-Fog Extreme Weather Image Compensation
  • Highlight Masking Exposure (HME)
  • Auto Sensing 24VAC/12VDC with Line Lock
  • Easy Icon Driven OSD Menu with Built-in Joystick
  • Programmable Privacy Zones
  • Auto Gain Control (AGC)
  • Backlight Compensation (BLC)
  • Dynamic Range Compressor (DRC) Reveals Low Light Detail
  • Auto White Balance (AWB)
  • UTP Built-In
  • Junction Box Built-in
  • RS-485 Built-in
  • NDAA/TAA compliant
  • IP68 Certified Water and Tamper Resistant
  • IK-10 Impact Rated
  • 5 Year Warranty


Image sensor2.1MP/1080p 1/3" CMOS
Active pixels1944 (H) x 1092 (V)
Scanning systemProgressive scan
Frequency60Hz / 50Hz
Signal technologyUniversal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
SynchronizationInternal
Resolution1920 x 1080 (1080p)
Minimum scene illumination0.3 lux (color)
0 lux (B&W)
S/N ratio55dB
Video outputHD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H

I/O

Alarm output1 alarm output

LENS

Focal length2.8 ~ 12mm
Lens typeMotorized zoom auto-focus p-iris lens
Field of view (FoV)91 - 28°
IR distance100ft range

OPERATIONAL

Shutter modeAuto, manual, FLC
Shutter speed1/30-1/30,000
BacklightOn, off
Star-Light (sense-up)Off, x2 – x32
Wide dynamic range (WDR)True WDR, off, on
Wide dynamic range (WDR) dB100dB
Dynamic range compressor (DRC)Off, low, middle, high
Smart DNR™ 3D digital noise reductionOff, low, middle, high
White balanceAuto / auto-ex / preset / manual
Day / nightAuto, day (color), night (B/W)
Mirror / flipYes
Auto gain control0~10
Motion detectionYes
Privacy zones16 programmable privacy zones
Sharpness0 ~ 10
Gamma0.45 ~ 0.75
De-fogOn, off
RS485 / UTP built-inPelco D / Pelco C

ENVIRONMENTAL

Operating temperature-40°F ~ 122°F (-40°C ~ 50°C)
Operating humidity10–90% RH (non–condensing)
IP ratingIP68 Certified Water and Tamper Resistant
IK ratingIK10-rated impact resistant
Other certificationsFCC, CE, ROHS

ELECTRICAL

Power requirementDC12V/AC24V dual voltage
Power consumptionDC12V (LED OFF): 3.0W DC12V (LED ON): 5.2W
AC24V (LED OFF): 2.3W AC24V (LED ON): 4.6W

MECHANICAL

MaterialSnapit™ aluminum vandal housing, polycarbonate dome
Dimensions5.47" x 4.79" (139 x 121.8 mm)
Weight2.05lbs (0.93kg)
