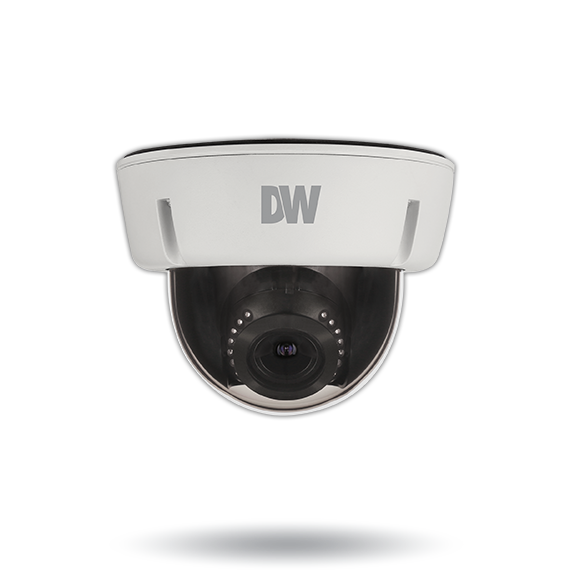

Digital Watchdog - DWC-V6263TIR - Star-Light 2.1MP/1080p UHDoC Vandal Dome Camera with a Vari-focal Lens and IR
Part number:
DWC-V6263TIR
Price:
Star-Light Universal HD Series, Vandal Dome, 2.1MP CMOS Sensor, P-Iris, 1920x1080 resolution, AHD,CVI,TVI,960H, 2.8-12mm Varifocal Auto Iris Lens, Digital Wide Dynamic Range (D-WDR), True Day/Night with IR Cut Filter, 100ft Smart IR, Smart 3D-DNR, OSD Control via UTC, 12vdc, IP66. 5 Year Warranty. CleanView Hydrophobic Dome Coating Repels Water, Dust and Grease.
Features:
- Universal HD over Coax Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
- STAR-LIGHT Super Low Light Technology
- 2.1MP 1/2.7" Image Sensor at Real-time 30fps
- 2.8~12mm Varifocal P-Iris Lens
- Digital Wide Dynamic Range (D-WDR)
- OSD Control Via Coaxial (UTC)
- CleanView Hydrophobic Dome Coating Repels Water, Dust and Grease
- 100' Smart IR with Intelligent Camera Sync.
- Smart DNR 3D Digital Noise Reduction
- True Day/Night Mechanical IR Cut Filter
- De-Fog Extreme Weather Image Compensation
- Highlight Masking Exposure (HME)
- Programmable Privacy Zones
- Auto Gain Control (AGC)
- Backlight Compensation (BLC)
- Auto White Balance (AWB)
- NDAA/TAA compliant
- IP66 Certified Weather and Tamper Resistant
- IK-10 Impact Rated
- 5 Year Warranty
IMAGE | |
| Image sensor | 2.1MP/1080p 1/2.7” CMOS |
| Active pixels | 1944 (H) x 1092 (V) |
| Scanning system | Progressive scan |
| Frequency | 60Hz / 50Hz |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support |
| Synchronization | Internal |
| Resolution | 1920 x 1080 (1080p) |
| Minimum scene illumination | 0.2 lux (color) |
| 0 lux (B&W) | |
| S/N ratio | 55dB |
| Video output | HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H |
LENS | |
| Focal length | 2.8 ~ 12mm |
| Lens type | Varifocal p-iris lens |
| Field of view (FoV) | 95.5 - 30.8° |
| IR distance | 100ft range |
OPERATIONAL | |
| Shutter mode | Auto, manual |
| Shutter speed | 1/30-1/30,000 |
| Backlight | On, off |
| Star-Light (sense-up) | Off, x2 – x30 |
| Dynamic range compressor (DRC) | Off, on, auto |
| Smart DNR™ 3D digital noise reduction | Off, low, middle, high |
| White balance | Auto / push / ATW / manual |
| Day / night | Auto, day (color), night (B/W) |
| Mirror / flip | Yes |
| Auto gain control | 0~15 |
| Motion detection | Yes |
| Privacy zones | 4 programmable privacy zones |
| Sharpness | On, off |
| Gamma | 0.45 ~ 0.75 |
| De-fog | On, off |
ENVIRONMENTAL | |
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Operating humidity | 10–90% RH (non–condensing) |
| IP rating | IP66 certified weather and tamper resistant |
| IK rating | IK10-rated impact resistant |
| Other certifications | FCC, CE, ROHS |
ELECTRICAL | |
| Power requirement | DC12V |
| Power consumption | DC12V (LED OFF): 1.86W |
| DC12V (LED ON): 3.6W | |
MECHANICAL | |
| Material | Aluminum vandal housing, polycarbonate dome |
| Dimensions | 5.7" x 4.26" (145 x 108.3 mm) |
| Weight | 1.65lbs (0.75kg) |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
Quick Start Guide
1.6mb
File
A&E Specifications
0.1mb
