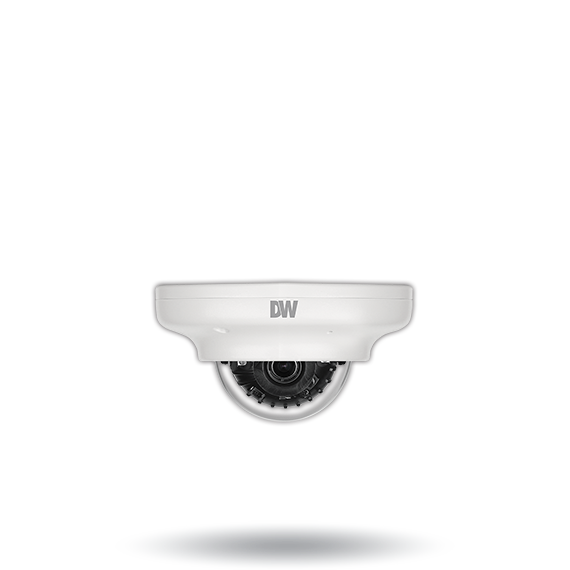

Star-Light Universal HD Series, Mini Flat Dome, 1/3" 2.1MP CMOS Sensor, P-Iris, 1920x1080 resolution, 3.6mm Fixed Lens, Digital Wide Dynamic Range ( D-WDR ), True Day/Night with IR Cut Filter, 50ft Smart IR, Smart 3D-DNR, 12VDC, IP66. 5 Year Warranty.
Star-Light Universal HD over COAX cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI at 2.1MP and CVBS at 960H. The vandal dome cameras are IP66 rated and discrete in style. Star-Light Universal HD over Coax cameras are engineered to work with our VMAX A1 Universal HD over Coax DVRs using your existing Coax infrastructure for a cost-effective, high-resolution surveillance solution.
DWC-V7DECO Accessory: Set of five (5) white decorative rings for our MEGApix and Star-Light Plus cameras in ultra-low-profile V7 housings (DWC-xV7xxxx) make it easy to customize the look of the cameras for specific applications. Simply paint the rings to match your décor.
Features:
- Universal HD over Coax Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
- STAR-LIGHT Super Low Light Technology
- 2.1MP 1/2.7" Image Sensor at Real-time 30fps
- 3.6mm Fixed Lens
- Digital Wide Dynamic Range (D-WDR)
- OSD Control Via Coaxial (UTC)
- 50' Smart IR with Intelligent Camera Sync.
- Smart DNR 3D Digital Noise Reduction
- True Day/Night Mechanical IR Cut Filter
- De-Fog Extreme Weather Image Compensation
- Highlight Masking Exposure (HME)
- Programmable Privacy Zones
- Auto Gain Control (AGC)
- Backlight Compensation (BLC)
- Auto White Balance (AWB)
- NDAA/TAA compliant
- IP66 Certified Weather and Tamper Resistant
- IK-10 Impact Rated
- 5 Year Warranty
IMAGE | ||
| Image sensor | 2.1MP/1080p 1/2.7” CMOS | |
| Active pixels | 1944 (H) x 1092 (V) | |
| Scanning system | Progressive scan | |
| Frequency | 60Hz / 50Hz | |
| Signal technology | Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support | |
| Synchronization | Internal | |
| Resolution | 1920 x 1080 (1080p) | |
| Minimum scene illumination | 0. 2 lux (color) | |
| 0 lux (B&W) | ||
| S/N ratio | 55dB | |
| Video output | HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H | |
LENS | ||
| Focal length | 3.6mm | |
| Lens type | Fixed lens | |
| IR distance | 50ft range | |
OPERATIONAL | ||
| Shutter mode | Auto, manual | |
| Shutter speed | 1/30-1/30,000 | |
| Backlight | On, off | |
| Star-Light (sense-up) | Off, x2 – x30 | |
| Dynamic range compressor (DRC) | Off, on, auto | |
| Smart DNR™ 3D digital noise reduction | Off, low, middle, high | |
| White balance | Auto / push / ATW / manual | |
| Day / night | Auto, day (color), night (B/W) | |
| Mirror / flip | Yes | |
| Auto gain control | 0~15 | |
| Motion detection | Yes | |
| Privacy zones | 4 programmable privacy zones | |
| Sharpness | On, off | |
| Gamma | 0.45 ~ 0.75 | |
| De-fog | On, off | |
ENVIRONMENTAL | ||
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) | |
| Operating humidity | 10–90% RH (non–condensing) | |
| IP rating | IP66 certified weather and tamper resistant | |
| IK rating | IK10-rated impact resistant | |
| Other certifications | FCC, CE, ROHS | |
ELECTRICAL | ||
| Power requirement | DC 12V | |
| Power consumption | DC12V (LED OFF): 1.92W | |
| DC12V (LED ON): 3.12W | ||
MECHANICAL | ||
| Material | Aluminum vandal housing, polycarbonate dome | |
| Dimensions | 4.13" x 2.39" (105 x 60.7 mm) | |
| Weight | 0.95 lbs (0.43kg) | |
