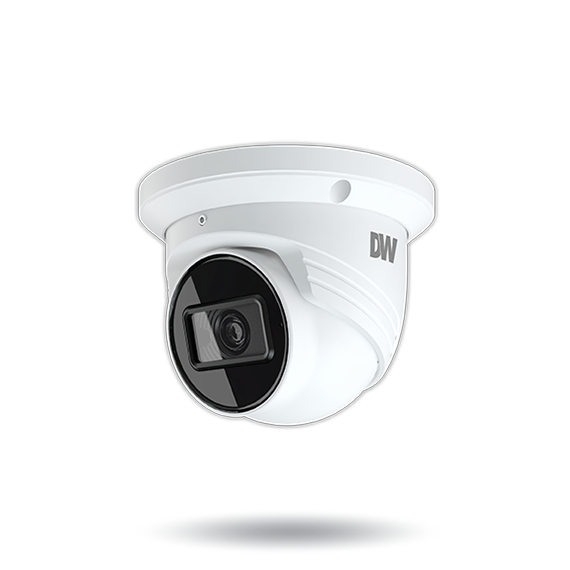

Digital Watchdog - DWC-VSTB04Bi - MEGApix 4MP turret IP camera with fixed lens and IR (Not eligible for DW Double Down )
Part number:
DWC-VSTB04Bi
Price:
These MEGApix IP cameras are NDAA compliant and deliver crystal-clear images at 4MP resolution and real-time 30fps. The IP67- rated turret camera features a 2.8mm fixed lens and a 360° camera gimbal for absolute view adjustment. Added intelligence includes line crossing, perimeter intrusion and video tampering detection. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Features:
- 4MP 1/3" image sensor at real-time 30fps
- 2.8mm fixed lens
- True Wide Dynamic Range (WDR) for clear images in challenging light
- Simultaneous streaming and multiple codec options for smart bandwidth management
- 100' Smart IR with intelligent camera sync for clear B/W images with no need for external light
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene-change detection video analytics
- Video tampering with video-blur detection video analytics
- Video tampering with abnormal color detection video analytics
- White and black housing options available
- Smart DNR 3D digital noise reduction reduces noise and ghosting for motion in low-light environments.
- Privacy zones cover sensitive areas in the camera's field of view.
- Backlight compensation (BLC)
- Two-way audio with a built-in microphone for direct communication between the monitoring station and the camera's location
- Local SD card slot for local recording in case of network loss
- Web server built-in for easy camera management from any browser
| IMAGE | |
|---|---|
| Image sensor | 4MP 1/3" CMOS sensor (x4) |
| Maximum resolution | 4MP |
| Minimum Scene Illumination in color | 0.0 lux (B/W), 0.005 lux (color) |
| Total Pixels | 2560 (H) x 1440 (V) |
| LENS | |
| Focal Length | 2.8mm |
| Horizontal Field of View (HFOV) | 94° |
| IR Distance | 100' range Smart IR™ |
| Lens Type | Fixed Lens |
| I/O | |
| Audio compression | G.711A / U |
| I/O Audio in/out | *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended., 1 input, 1 microphone built-in |
| OPERATIONAL | |
| 3D digital noise reduction | Smart DNR™ 3D Digital Noise Reduction |
| Auto gain control | Auto |
| Camera Analytics | Line Crossing, Perimeter Intrusion, video Tampering Detection (Scene Change, Video Blur, Abnormal Color Detection) |
| Day and night | Auto day/night, Day (color), Night (B/W) |
| De-fog | Yes |
| Memory slot | Micro SD/SDHC/SDXC class 10 card (card not included), Up to 1TB micro SD / FAT32 |
| Mirror/flip | Yes |
| Motion Detection | Yes |
| Operational Notifications | Email, FTP server |
| Privacy Zones | 8 programmable privacy masks |
| Sharpness | Yes |
| Shutter Mode | Auto, Manual |
| Shutter Speed | 1/30 ~ 1/100000 |
| White Balance | Yes |
| Wide Dynamic Range (WDR) | True WDR 120dB |
| NETWORK | |
| Bitrate Control | Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4, IPv6 |
| LAN | 802.3 compliance 10/100 LAN |
| Network resolution | 4MP, 3MP,2.1MP/1080P, 720P, D1, 480×240, CIF (60Hz: 1 ~ 30fps; 50Hz: 1~25fps) |
| Network Web Viewer | Microsoft Edge® browser, Windows® OS |
| Protocol | 802.1x, DDNS, DHCP, FTP, HTTP, HTTPs, ICMP, IGMP, NTP, ONVIF, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, UDP, UPnP |
| Security | Digest authemtication (ID/PW), IP filtering, MAC filtering |
| Stream Speed | Up to 30fps at all resolutions |
| Streaming Capability | Dual-stream at different rates and resolutions |
| Video Bitrate | 64Kbps~8Mbps |
| Video Compression Type | H.264, H.265, MJPEG |
| Video Management Software | Any ONVIF conformant CMS, DW Spectrum® IPVMS |
| Environmental Operating Humidity | 0-95% RH (non–condensing) |
| Environmental Operating Temperature | -22°F ~ 140°F (-30°C ~ 60°C) |
| Mounting Accessories (Required/Optional) | Optional. Sold separately |
| MECHANICAL | |
| Camera Dimensions (H X W X D) | 4.25" x 3.77" (108 x 96 mm) |
| Camera Weight | 1.01 lbs (0.46 kg) |
| Housing | Turret |
| IK rating | IK10 Rated |
| IP rating | Weather Resistant (IP67) |
| Materials | Aluminum die-casting |
| ELECTRICAL | |
| Power Consumption | DC12V: max 5W, 416.6mA, PoE: max 5W |
| Power Requirements | Adapter not included, PoE |
| GENERAL | |
| Warranty | 5 Year Warranty |
