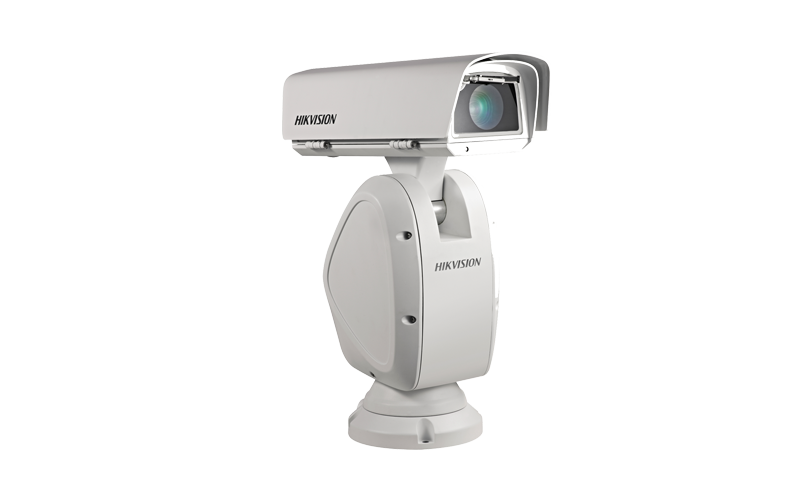

HikVision - DS-2DY9188-A - 2 MP 36x Ultra-Low Illumination Positioning System
The Hikvision Darkfighter Series DS-2DY9188-A 2 MP 36x Low Illumination Positioning System is able to capture high quality images in dim light environments. The embedded 1/1.9" progressive scan CMOS chip makes true WDR and 2 MP real-time resolution possible.
-
1920 × 1080 Full HD Output
-
Color: 0.002 lux @ ƒ/1.5, AGC on; B/W: 0.0002 lux @ ƒ/1.5, AGC on
-
H.264/MJPEG
-
24 VAC, maximum 60 W
-
Pan: 360° endless, tilt: 40° to -90°
Part number:
DS-2DY9188-A
Price:
- Camera Module
- Image Sensor: 1/1.9" progressive scan CMOS
- Maximum Image: Resolution 1920 × 1080
- Minimum Illumination: Color: 0.002 lux @ ƒ/1.5, AGC on; B/W: 0.0002 lux @ ƒ/1.5, AGC on
- Day and Night: ICR
- Focus Mode: Auto/ Semiautomatic/ Manual
- Shutter Speed: 50 Hz: 1 / 1 to 1 / 30,000 s; 60 Hz: 1 / 1 to 1 / 30,000 s
- S/N Ratio: >52 dB
- Digital Zoom: 16x
- White Balance Auto/manual /ATW/indoor/outdoor/daylight lamp/sodium lamp
- AGC: Auto / manual
- Lens
- Focal Length: 5.7 mm to 205.2 mm, 36x
- Angle of View: 58.7° to 2.0° (wide-tele)
- Minimum Working Distance: 10 mm to 1500 mm (wide-tele)
- Aperture Range: ƒ/1.5 to ƒ/3.4
- Image
- Main Stream: 50 Hz: 25 fps (1920 × 1080), 25 fps (1280 × 960), 25 fps (1280 × 720) 60 Hz: 30 fps (1920 × 1080), 30 fps (1280 × 960), 30 fps (1280 × 720)
- Sub Stream: 50 Hz: 25 fps (704 × 576), 25 fps (352 × 288), 25 fps (176 × 144) 60 Hz: 30 fps (704 × 480), 30 fps (352 × 240), 30 fps (176 × 120)
- Third Stream: 50 Hz: 25 fps (1920 × 1080), 25 fps (1280 × 960), 25 fps (1280 × 720), 25 fps (704 × 576), 25 fps (352 × 288), 25 fps (176 × 144) 60 Hz: 30 fps (1920 × 1080), 30 fps (1280 × 960), 30 fps (1280 × 720), 30 fps (704 × 480), 30 fps (352 × 240), 30 fps (176 × 120)
- Image Compression: H.264(baseline, main, high profile)/MJPEG/MPEG4
- Audio Compression:1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- SVC: Supported
- Protocols: Pv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE
- Others: Defog, Privacy Mask, 3D DNR, BLC, HLC, true WDR
Name
Description
Size
Downloads
File
Data Sheet
0.3mb
File
Manual
4.9mb
File
Quick Guide
1.5mb
