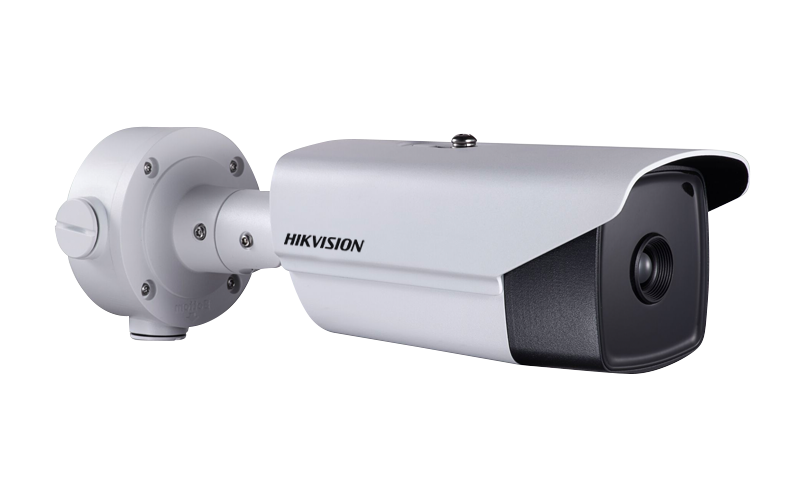

HikVision - DS-2TD2117-6/V1 - Thermal DeepinView Network Bullet Camera
The Hikvision DS-2TD2117-x/V1 Thermal-Optical DeepinView Network Bullet Cameras are equipped with highly sensitive thermal sensors and a graphical processing unit to run the video content analysis (VCA) algorithms developed by Hikvision’s deep learning technology.
-
160 x 120 Resolution (Upscaled to 320 x 240)
-
3.1 mm, or 6.2 mm Thermal Lens Options
-
H.265/H.264/MJPEG, H.265+/H.264+ encoding with baseline/main/high profile
-
Smart Features: - Line Crossing, Intrusion, Region Entrance/Exit with Human and Vehicle Filtering - Temperature Exception - Early Warning Fire Prevention - Advanced Fire Detection - Cigarette Smoking Detection
-
Temperature Range: -4° to 302° F (-20° to 150° C)
-
PoE (802.3af), 12 VDC, Maximum 8 W
Part number:
DS-2TD2117-6/V1
Price:
- Camera Module
- Image Sensor: Vanadium oxide uncooled focal plane arrays
- Maximum Resolution: 160 x 120 (output image resolution is 320 x 240)
- Detector Pitch: 17 μm
- Response Waveband: 8 μm to 14 μm
- NETD: <40 mK (@ 25° C, F#=1.1)
- Lens (Focal Length): 6.2 mm
- IFOV: 2.74 mRad
- Field of View: 25° x 18.7°
- Minimum Focusing Distance: 0.6 m
- Aperture: ƒ/1.1
- Smart Function
- VCA: Supports 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), 8 VCA rules
- Temperature Measurement: Supports 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line)
- Temperature Range: -4° to 302° F (-20° to 150° C)
- Temperature Accuracy: ±8° C (14.4° F)
- Fire Detection: Dynamic fire point detection, up to 10 fire points detectable
