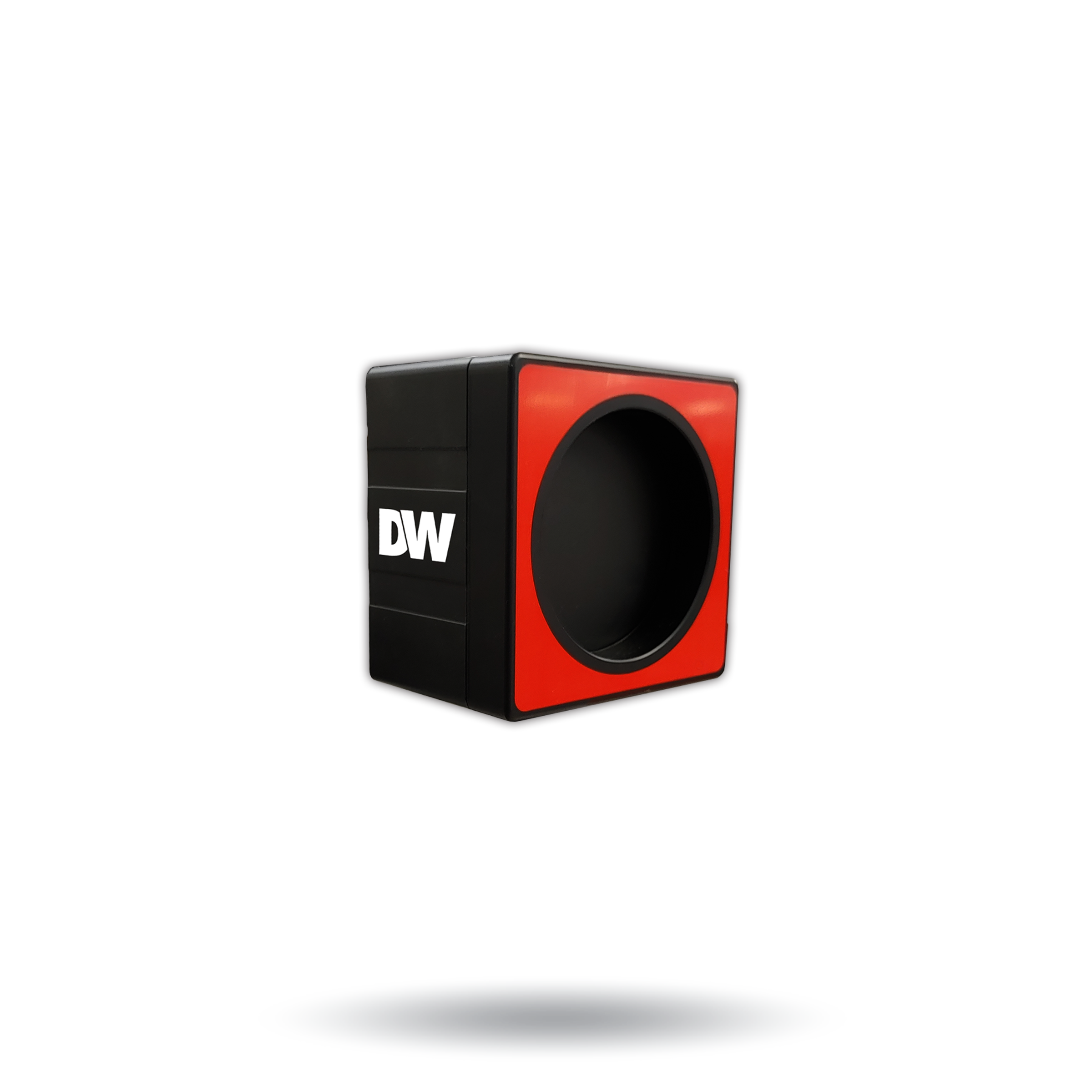

Smart auto-calibration with Blackbody sensor

The DW E.S.T. software automatically finds where the Blackbody is in the camera’s Field of View (FoV), self-calibrating in real-time based on the Blackbody’s set temperature. If the Blackbody moves, the software finds it automatically in the camera’s FoV.

A flexible, single product, integrated solution

The DW E.S.T. System complements any analog or IP video surveillance application. It is ideal for controlled entrances where skin temperature screening is needed.

High accuracy

The system provides a high accuracy thermal reading (+/-0.4°F, +/-0.2°C) thanks to its auto-detect blackbody technology.

Interactive

Automatically trigger visual and audible alarms when a person’s temperature registers beyond a set threshold. These alarms can be quick alerts to let operators know additional screening is required.

Various distances, same quality readings

With a ±0.36°F/0.2°C accuracy variance (set to a single person reading mode at an effective distance of 10 to 16.4 feet from people and 10 to 14.7 feet from the Blackbody), the DW E.S.T. system provides an ideal standalone solution to meet the requirements of any application.

Software side data processing

The DW E.S.T. System transmits the original raw thermal data from 110,592 pixels to the dedicated E.S.T monitoring software. There, the PC performs the calculations on the data separately, delivering higher accuracy and quicker results.

Easy to setup

The DW E.S.T. System can be setup in minutes, visible or concealed from view. It can also be integrated into an existing access control solution using the alarm outputs at the back of the camera.

Larger sensor, 4x more data delivers greater accuracy

DW’s E.S.T system uses a 384x288 sensor, providing 4x more data processing power and higher accuracy than conventional IP thermal cameras.

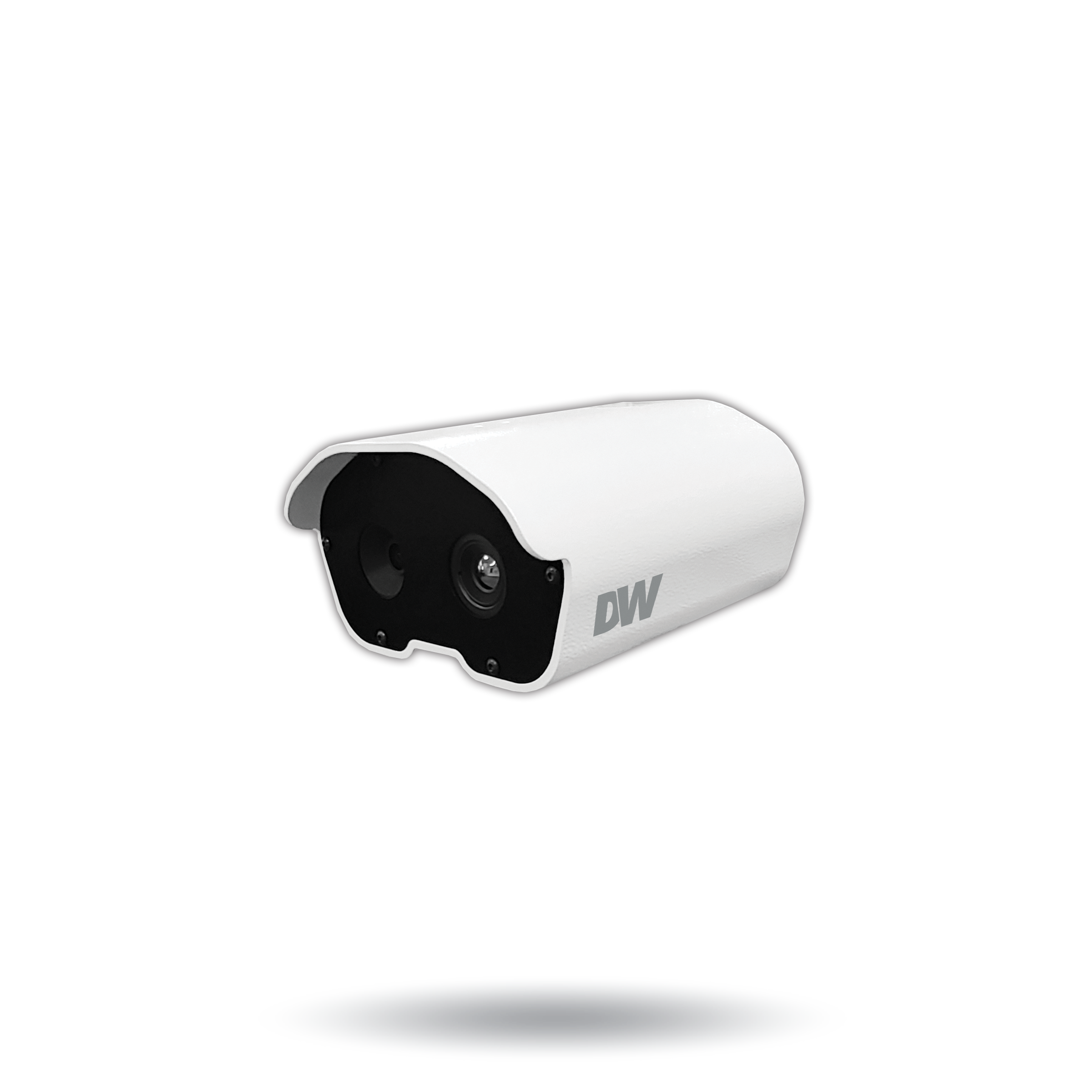

Elevated Skin Temperature System, NDAA compliant 2.1MP Dual Image Sensor with thermal detector, 1920x1080p@30fps,  8.13mm Temperature Camera  Lens/4MM Visible Camera Lens, USB3.0, Blackbody Temperature Sensor for high accuracy calibration, Temperature Readings of +/-0.4F (+/-0.2C), Capture Multiple People, 6.5-16.4ft Various Distance Coverage, Auto Calibration, Interactive Software, Alarm Outputs, Privacy Mode, Split View, Picture in Picture, Single View, Two Tripods, 12VDC, 2 Year Warranty.

Features:

• A flexible, single product, integrated solution
• Enables high-throughput prescreening of people to detect indications of elevated skin temperature
• Detailed scanner images showing a temperature for each person
• NDAA/TSA compliant
• At an effective distance of 6.5 ~16.4ft (10ft recommended), provides a high degree of flexibility to meet the individual situational awareness requirements of a wide variety of installations.
• Dual image sensor with thermal detect
• Data processing on the software side
• High accuracy smart auto-calibration with Blackbody sensor
• Smart auto-calibration between the software and Blackbody
• Includes prescreening management software with easy user interface.
• Easy to setup
• Large sensor (384x288), 4x more data
• Alarm outputs for access control integration
• Privacy masks mode
• Multiple view options, including split view, PIP and single view modes
• Temperature view color scheme adjustment
• FDA compliant
• Tripods included for an out-of-the-box solution (DW-ESTS
