Elevated Skin Temperature NDAA compliant camera 2.1MP Dual Image Sensor with thermal detector, 1920x1080p@30fps, 8.13mm Temperature Camera Lens/4MM Visible Camera Lens, USB3.0, Temperature Readings of +/-0.4F (+/-0.2C), Capture Multiple People, 6.5-16.4ft Various Distance Coverage, Auto Calibration, Interactive Software, Alarm Outputs, Privacy Mode, Split View, Picture in Picture, Single View, Two Tripods, 12VDC, 2 Year Warranty.
In accordance with the U.S. FDA’s COVID-19 Enforcement Policy criteria released in April 2020, the DW E.S.T.™ is an NDAA/TSA and FDA compliant security-grade thermal camera that provides a low-impact, contactless alternative to traditional screening methods. At a distance of 6.5~16.4ft (10ft is recommended), with ±0.2°C (±0.36°F) accuracy tolerance, the E.S.T. scanning solution provides a high degree of flexibility to meet the individual requirements of a wide variety of installations.
Instead of manually taking the temperature of every person entering a building, E.S.T. identifies people with elevated skin temperature so you can easily separate them for additional screening.

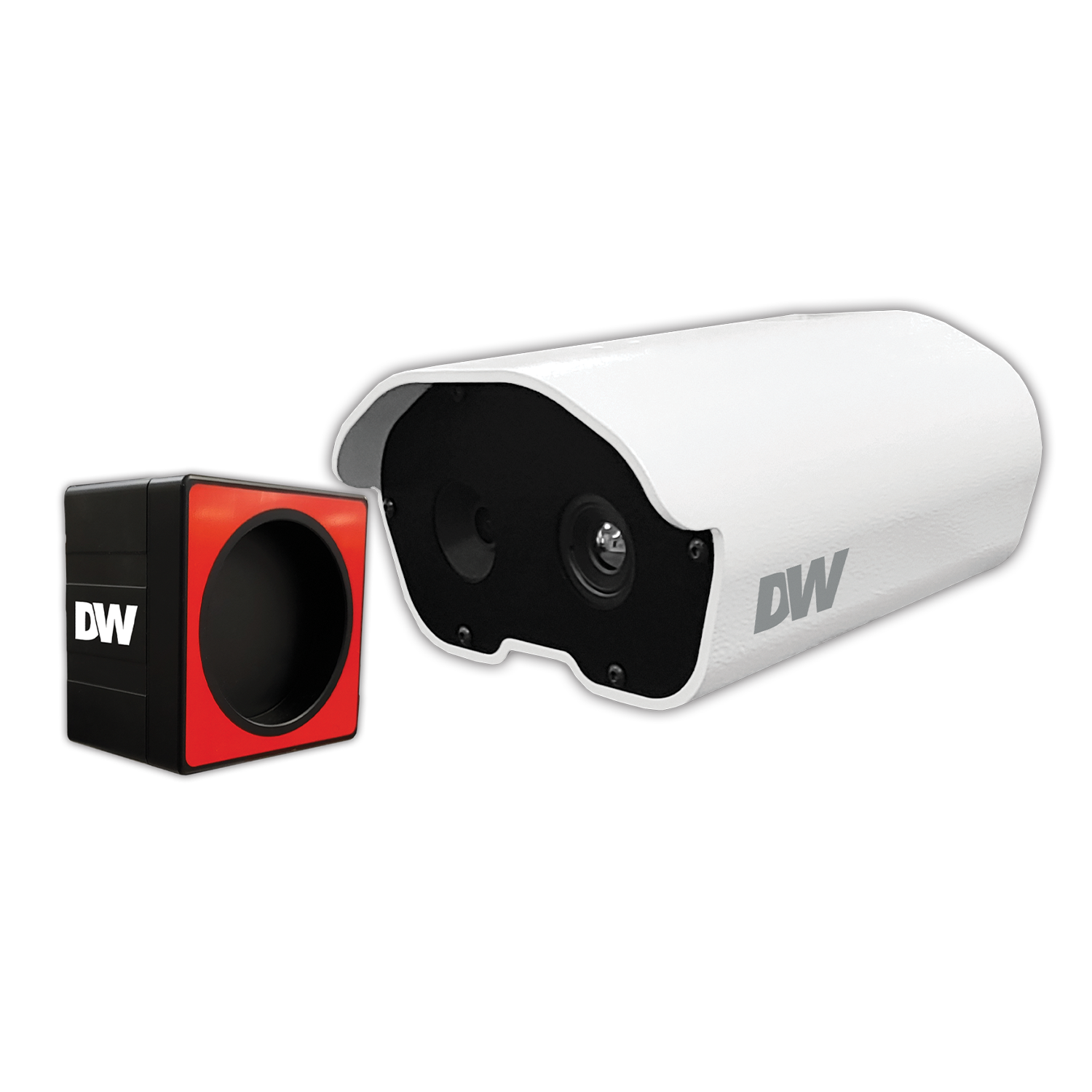

The system includes an E.S.T. Blackbody temperature sensor, skin temperature scanner camera and a 2.1MP/1080p HD temperature camera, making it easy for users to quickly detect and identify any person that may require additional screening.
Features:
- A flexible, single product, integrated solution
- Enables high-throughput prescreening of people to detect indications of elevated skin temperature
- Detailed scanner images showing a temperature for each person
- NDAA/TSA compliant
- At an effective distance of 6.5 ~16.4ft (10ft recommended), provides a high degree of flexibility to meet the individual situational awareness requirements of a wide variety of installations.
- Dual image sensor with thermal detect
- Data processing on the software side
- High accuracy smart auto-calibration with Blackbody sensor
- Smart auto-calibration between the software and Blackbody
- Includes prescreening management software with easy user interface.
- Easy to setup
- Large sensor (384x288), 4x more data
- Alarm outputs for access control integration
- Privacy masks mode
- Multiple view options, including split view, PIP and single view modes
- Temperature view color scheme adjustment
- FDA compliant
- Tripods included for an out-of-the-box solution (DW-ESTS)

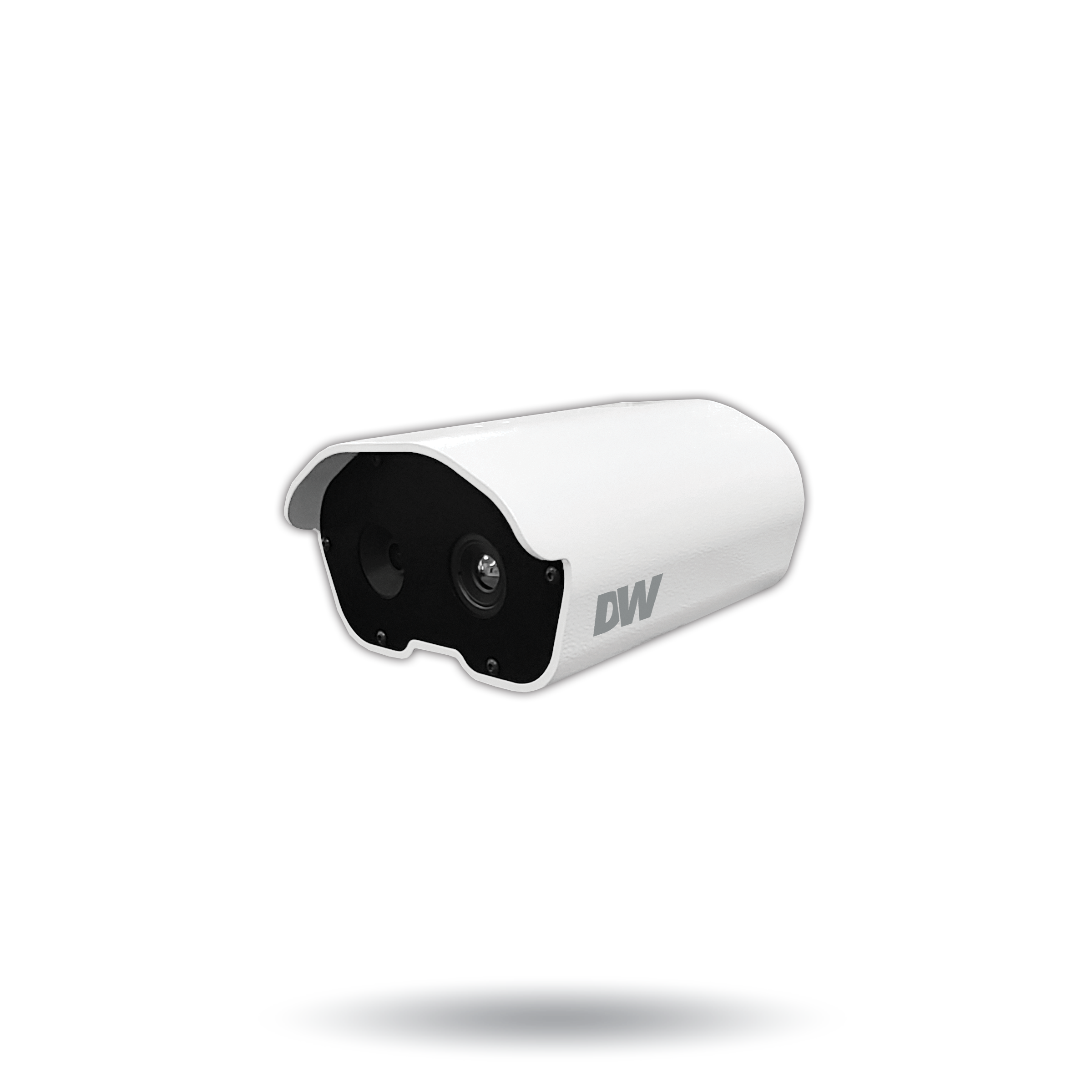

TEMPERATURE CAMERA | ||
| Image sensor | Micro-bolometer | Uncooled focal plane array |
| Resolution | 384 x 288 | |
| Pixel pitch | 17μ | |
| Response wavelength | 8μm to 14μm | |
| Temperature sensitivity | 50mK@f1.0, 30Hz, 300K | |
| Lens | Lens type | Thermalized lens |
| Focal length | 8.13mm, F1.16 | |
| HFoV / VFoV | 47.4°/35.1° | |
| Recommended distance range for best reliable measurement | 6.5 to 16.4ft (2m to 5m) 10ft recommended | |
| Minimum focus distance | 1.64ft (0.5m) | |
| Data output | Interface | Gigabit Ethernet (10/100) |
| Data | Temperature raw data of each pixel of the temperature sensor | |
| Framerate | 30Hz | |
VISIBLE CAMERA | ||
| Sensor | Image sensor | 1/3" progressive CMOS sensor (Approximately 2.1MP/1080p) |
| Scanning sytem | 16:9 progressive | |
| Effective pixels | 1920 (H) x 1080 (V) | |
| Minimum scene illumination | 0.2 lux (color), 0.1 lux (B/W) | |
| Horizontal resolution | 1000 TVL | |
| Lens | Optic | 4.0mm 70° HFOV |
| Video output | Interface | USB3.0 super-speed |
| Format | USB3.0 UVC compliant YUV 422 16bits, uncompressed video | |
| Resolution and framerate | 1920x1080p @ 30fps | |
GENERAL - CAMERA | ||
| Operation | Weight | 2.2 lbs (1000gr) including a USB cable from the visible camera. |
| Dimensions (H x W x D) | 3.18" x 5.31" x 5.92" (81 x 135 x 150.5mm) | |
| Power Supply | 12V DC | |
| Operating Temperature | 14°F ~ 104°F (-10°C ~ 40°C) | |

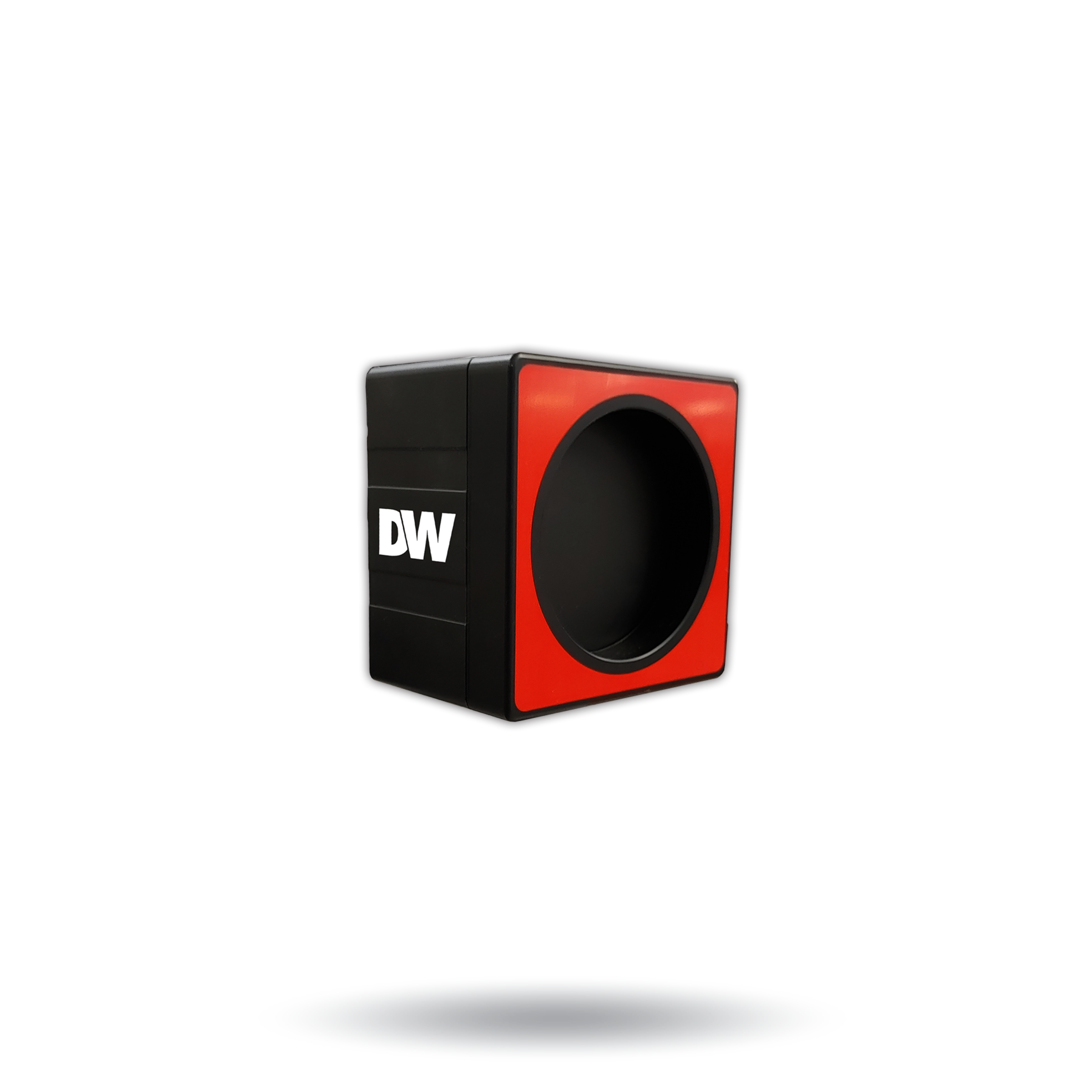

GENERAL - BLACKBODY | ||
| Operation | Fixed temperature set at the factory | 104°F (40°C) |
| Effective radiant surface | Φ55 | |
| Temperature resolution | 0.01 | |
| Temperature stability | ±0.18°F (±0.1°C) | |
| Temperature accuracy | ±0.36°F (±0.2°C) | |
| Emissivity | 0.95 | |
| Temperature sensor | NTC 0.1% | |
| Weight | 0.72 lbs (330gr) | |
| Dimensions (H x W x D) | 2.83" x 2.83" x 1.92" (72 x 72 x 49mm) | |
| Power supply | 12V DC | |
| Recommended distance from the camera | Between 6.5 to 14.7ft (2m to 4m) 10ftrecommended. Install blackbody at 6.5 to 13.12ft (2m to 4m) apart from the camera on a tripod, the wall, or the ceiling. The closer people walk by the blackbody, the more accurate the temperature reading will be). | |
| Operating temperature and humidity | 14°F ~ 104°F (-10°C ~ 40°C), under 80% humidity | |
| Warranty | 2 year warranty | |
SOFTWARE - MINIMUM HARDWARE REQUIREMENTS | ||
| CPU | Intel Core i5® or higher (7th generation Intel Core or higher) | |
| RAM | 8GB or higher | |
| HDD | Recommended for physical separation of HDD for program installation and HDD for data storage. | |
| Video output | NVIDIA GTX 750 or higher (maintain the latest driver). | |
