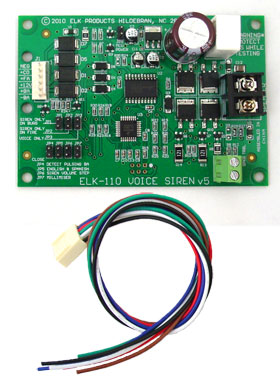

ELK - 110 - Voice/Siren Driver w/Temporal Coded Bell
Part number:
110
Price:

The ELK-110 is ideal for residential and commercial alarm applications. It combines the advantages of high quality voice messages with conventional siren and temporal code tone sounds. It features 3 input channels, bilingual voice messages, and many unique options.



Features

  • 3 Input Channels: Burglar, Fire, and CO
  • Siren only, Voice only, or combination
  • Bilingual Voice: English and/or Spanish
  • 3 Volume Settings: - Millimiser 90dB @ 1 meter, 800mA - Full 122 db @ 1 meter, 1.25 A - VolumeStep, low to full volume in 30 seconds
  • Speaker Trouble Supervision
Specifications

Temporal Coded Tones - ANSI standard Audible Emergency Evacuation Signaling

Freq. Temporal 3=800Hz, Temporal 4=1000Hz

Nom. Operating Voltage: 10-14 Volts DC

Min. Low Current Trigger: 10.5 VDC

Maximum Speaker Loading: 4 Ohms

Size: 2.75” X 4.0”

RoHS Compliant

Lifetime Limited Warranty

Name
Description
Size
Downloads
File
Datasheet
0.9mb
File
Instructions
1.3mb
