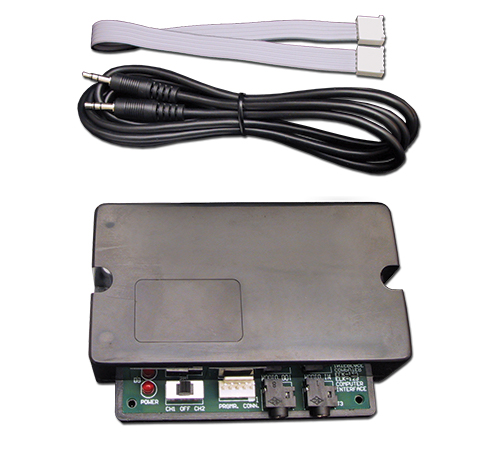

ELK - 129 - Computer Interface for Recordables
Part number:
129
Price:

The ELK-129 Computer Sound Card Interface allows a computer's speaker output to be used as one of the tools for programming sounds into the ELK Recordable Modules, such as the ELK-120 or ELK-124. Includes software to download your compute's audio files (WAVs) to the Recordable Modules.

.

Features:

  • Powers ELK-120 or ELK-124 Modules during Programming.
  • Power Switch.
  • Audio Jacks for Computer and Speakers.
  • Plug-In Cable for Quick Connections to Recordable Modules.
  • Includes 6 foot Shielded Cable for Speakers.
  • Compact Plastic Case.
  • Programs Recordable Modules in Seconds!



What's Included:

  • ELK-129 Sound Card Interface
  • 5 pin Ribbon Cable
  • 6ft. Audio Cable
Specifications
  • Size: 4.4" x 3" x 1.15" (111.8mm x 76.3mm x 29.2mm).
  • Supplies 12Volts D.C. @ 1 Amp for ELK-120 / 124 Modules.
  • Requires MS Windows 98 or higher, Stereo Speaker Output Jack or Sound Card and computer speakers.
  • Requires (1) 12V, 20VA AC Transformer (not included) to program the ELK-120 or ELK-124.
  • Lifetime Limited Warranty
Name
Description
Size
Downloads
File
Instructions
1.5mb
