ELK - 319DG - Wireless All Weather Door & Gate - 319 Series

The ELK-319DG is a Supervised, Wireless Sensor uniquely designed for outdoor use on swing gates or doors. The sensor and magnet can be mounted using screws (included), pipe strap style clamps, or plastic wire ties.

This sensor is compatible with Elk’s 319MHz Receivers/Panels as well as many other panels that operate on the 319.5MHz Frequency and adhere to the ITI/Interlogix protocol.

Features:

  • All weather design
  • Ideal for pool areas and other outdoor gated spaces
  • Long range and battery life
  • Transmits open/close, tamper, low battery, and supervisory signals
  • Uses easy to find CR2032 batteries

What's Included:

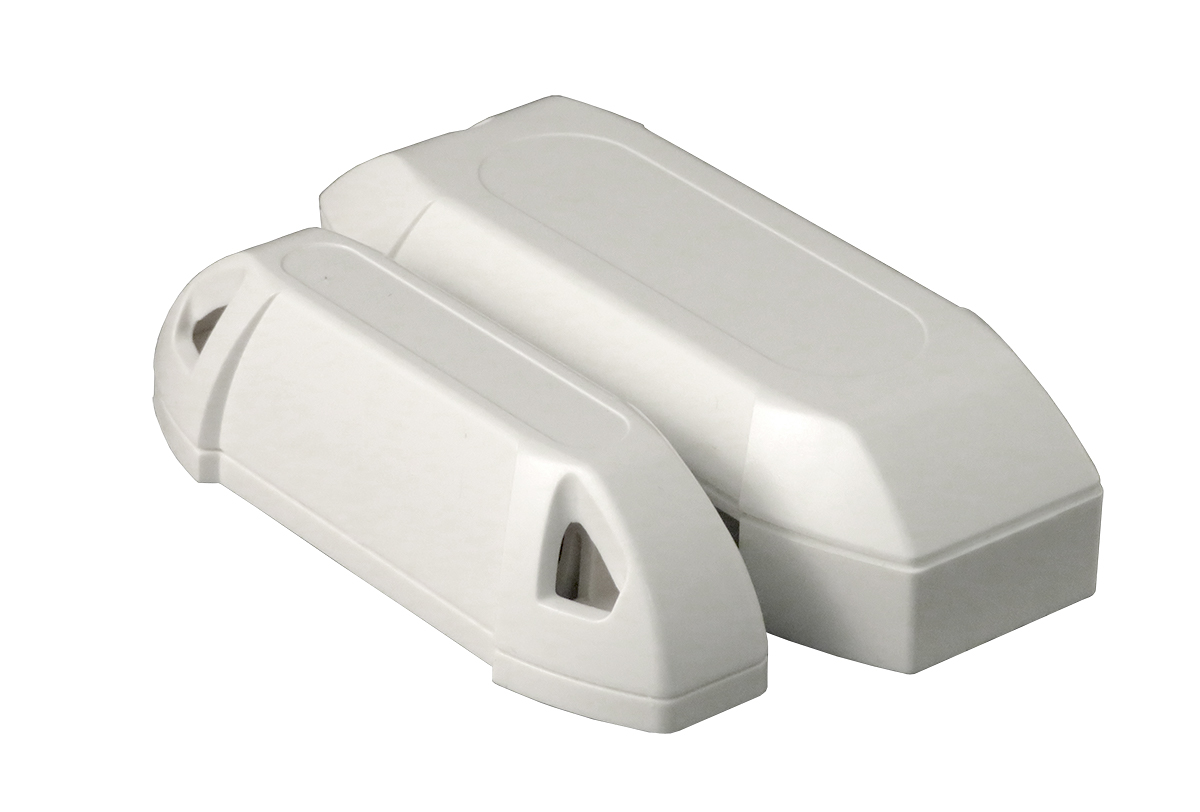

  • Door/Gate Sensor & Magnet
  • (2) CR2032 Batteries
  • Mounting Anchors & Screws
  • Instructions
Part number:
319DG
Price:
  • RF frequency: 319.5 MHz
  • Compatibility: ELK-319 Receivers/Panels & other panels that operate on the 319.5MHz Freq. and adhere to the ITI/Interlogix protocol
  • Battery type: Two (2) CR2032 3VDC lithium coin-cell
  • Operating Temp Range: -40 to 140°F (-40 to 60°C)
  • Dimensions: Sensor 3.39” L x 1.34” W x 0.79” D, Magnet 2.36” L x 0.83” W x 0.8” D
Name
Description
Size
Downloads
File
Instruction
0.3mb
File
flyer
0.3mb
