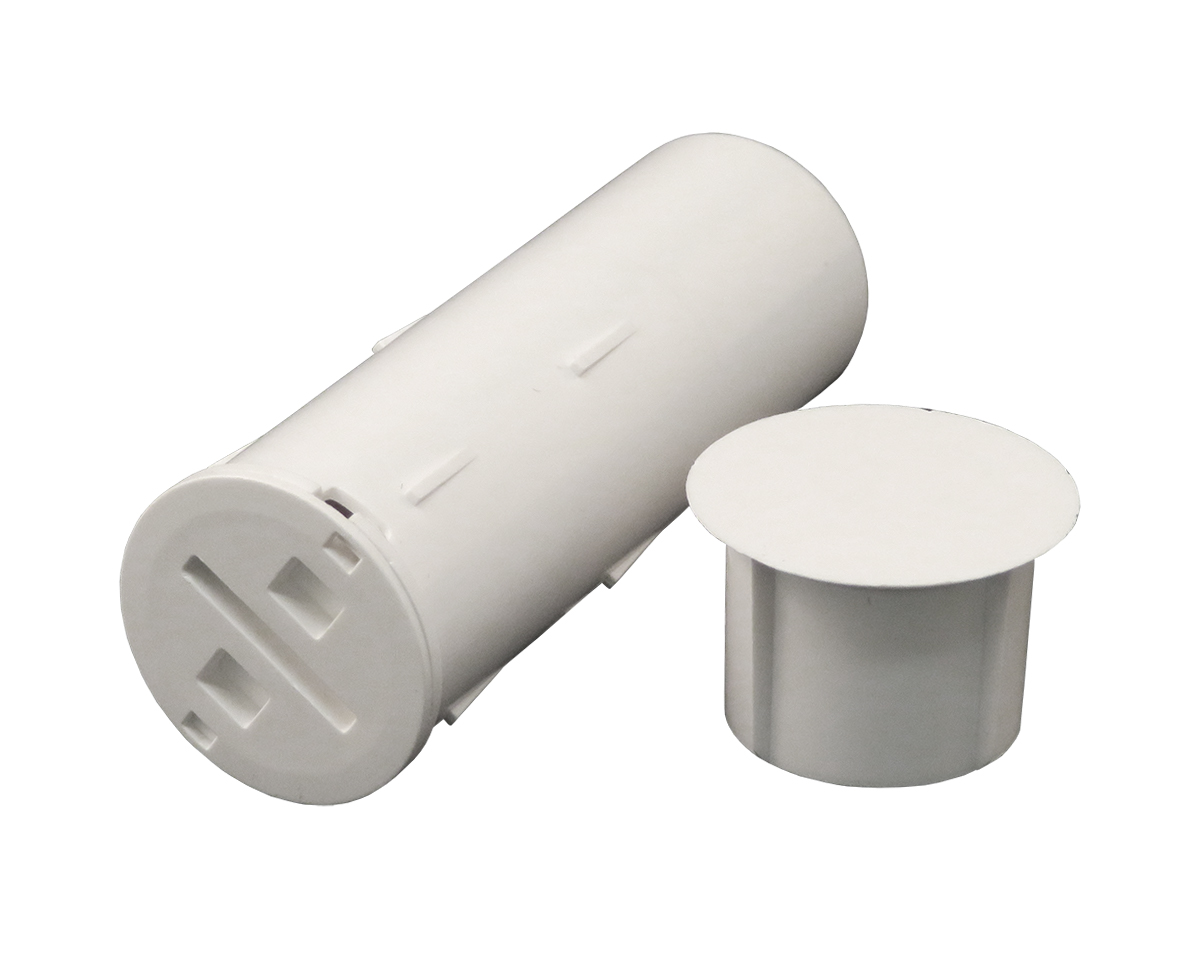

ELK - 319DR - Wireless Recessed Door Sensor - 319 Series

The ELK-319DR is a Supervised, Wireless Door Sensor uniquely designed for recess mounting on the inside edge of a door and its frame. The sensor is virtually invisible when the door is closed.

This sensor is compatible with Elk’s 319MHz Receivers/Panels as well as many other panels that operate on the 319.5MHz Frequency and adhere to the ITI/Interlogix protocol.

Features:

  • Our most discrete door sensor!
  • Long range and battery life
  • Transmits open/close, tamper, low battery, and supervisory signals
  • Uses single easy to find CR2 battery

What's Included:

  • Recessed Door Sensor & Magnet
  • (1) CR2 Battery
  • Instructions
Part number:
319DR
Price:
  • RF frequency: 319.5 MHz
  • Compatibility: ELK-319 Receivers/Panels & other panels that operate on the 319.5MHz Freq. and adhere to the ITI/Interlogix protocol
  • Battery type: 3VDC “CR2” lithium
  • Operating Temp Range: -40 to 140°F (-40 to 60°C)
  • Dimensions 2.25” L x .75” D
