ELK - 6023BR - Wireless Recessed Door Sensor - Two-Way for M1XRFTW - Brown

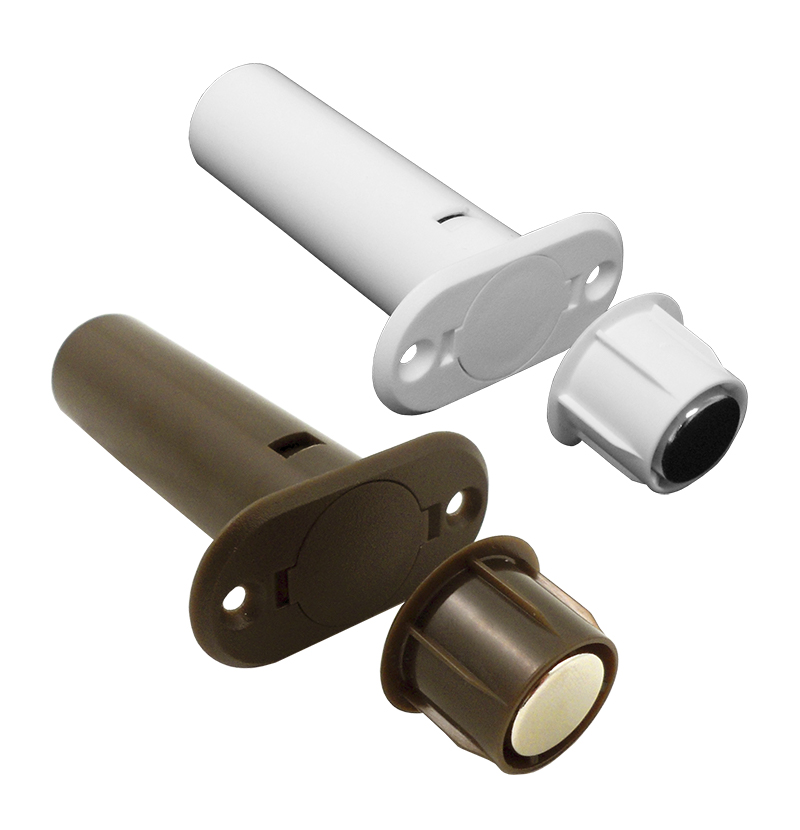

The ELK-6023 Wireless Recessed Door Sensor is the ultimate wireless security device for discriminating customers. It mounts into a 3/4” drilled hole in a wooden door jamb and becomes nearly invisible once the door is closed. It features Elk's Industry Leading Two-Way Technology with positive signal acknowledgment, extended range, and long battery life. Available in white and brown.

Features:

  • Compatible with ELK-M1XRFTW(M) two-way wireless transceiversr
  • Designed for wood and vinyl doors only
  • Built-in tamper switch
  • Available in white (ELK-6023) and brown (ELK-6023BR)

What's Included:

  • Wireless Recessed Door Sensor
  • Magnet
  • Replaceable 3.6V Lithium battery
  • 2 #4 x ½” Flat Head Sheet Metal Screws
  • Instructions
Part number:
6023BR
Price:
  • Frequency: 902 Mhz - 928 Mhz frequency hopping
  • Dimensions: .75”D x 2.5”L Mag: .75”D x .625”L
  • Maximum Operating Gap: 3/4”
  • Battery: 3.6V Lithium 1/2 AA size
  • Tamper Switch: Circuit Board Cover
Name
Description
Size
Downloads
File
Instructions
0.2mb
File
Specifications
1.1mb
