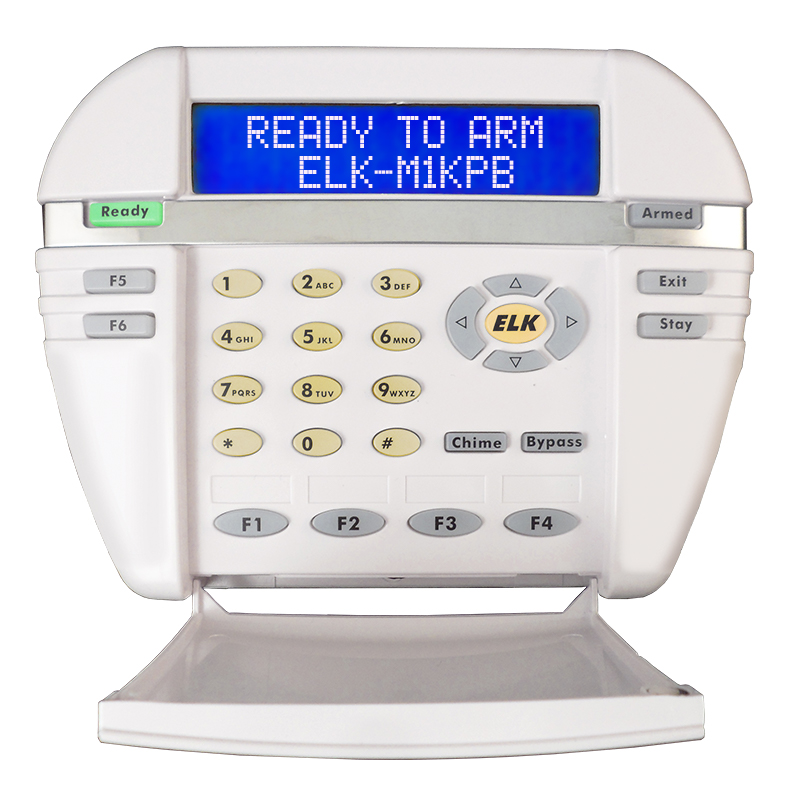

The ELK-M1KP is an addressable LCD Keypad for M1 Controls. It features a 32 character, backlit display with adjustable intensity and extra large character fonts, improving readability. Six (6) function (“F”) keys can be programmed to contact emergency services or perform tasks; such as, controlling lights, watering the lawn, closing or opening the garage door, etc. The ELK navigation keys easily guide you through the full list of automation tasks, programming, systems diagnostics, and more. An optional plug-in proximity reader is available allowing prox card or fob arming, disarming, door strike control, etc. The fold down door features magnetic closure and can be completely removed, if desired.

Features:

• Backlit, Large Character LCD Display, 16 x 2 lines
• Blue LCD Display
• Six (6) programmable function keys
• Unique Menu Navigation/Direction keys
• Adjustable volume for tones/chime
• Accepts Plug-in Proximity Reader (ELK-M1PR) or “External” 26 bit Wiegand Prox Reader
• Built-in Temperature Sensor
• Input for 1 Supervised Zone
• One Programmable “Switched Positive” Voltage Output
• Exit, Stay, Chime, and Bypass Keys
• Programmable display of time, date, & temperature
• Displays system diagnostics and settings

What's Included

• LCD Keypad with Blue Display
• 1 each Multicolor & Quick Reference Labels
• 4 #6 Flat Head Phillips Sheet Metal Screw
• 1 2200 Ohm Resistor
• 5 Gel Filled B-Connector
• 1 Mini Jumper
• 6-wire Flying Lead Cable Assembly
• Instructions
