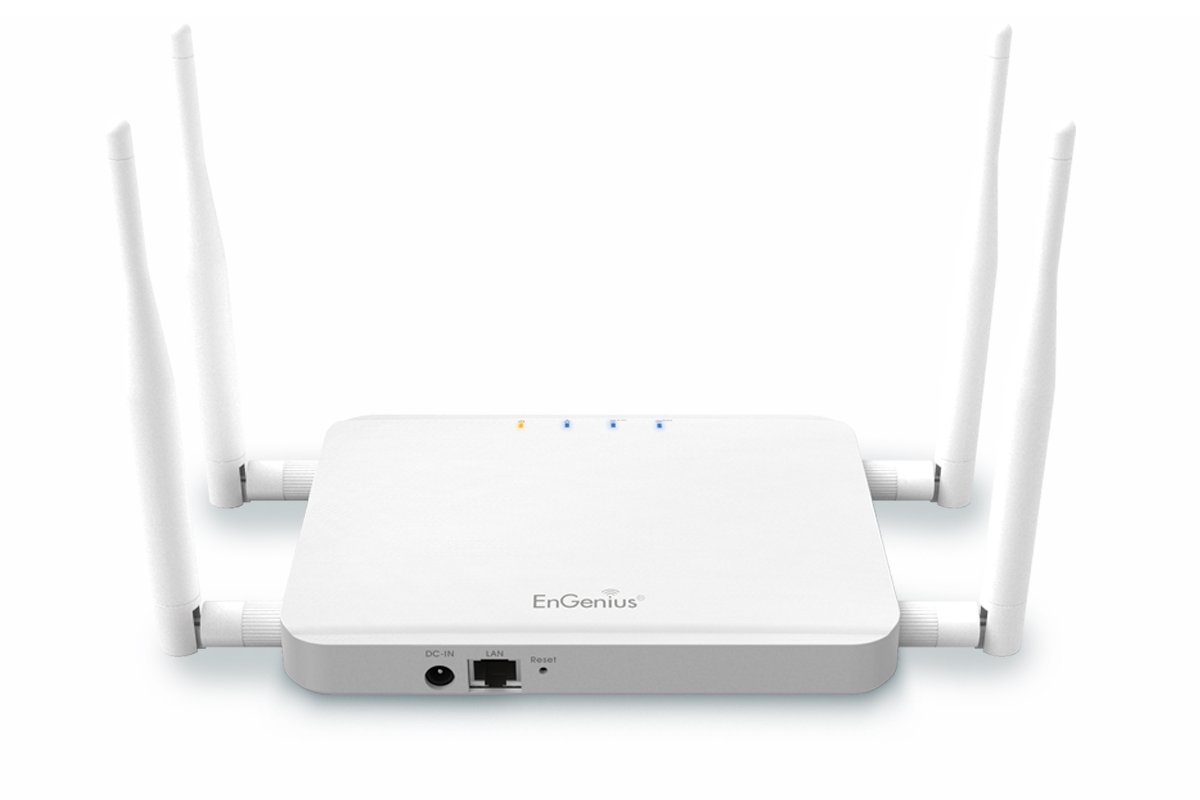

The ECB600 high-powered AP/Bridge features enhanced receive sensitivity and four (4) 5 dBi detachable MIMO antennas. Band Steering detects and shifts dual-band-capable clients to the less-congested 5 GHz band, optimizing bandwidth.
Features:
- Up to 29dBm transmit power enabling long range connectivity
- Supports 11a/b/g/n wireless standards with up to 300 Mbps data rate
- Four detachable 5 dBi omni-directional MIMO antennas
- Can be monitored after deployment with EnGenius EZ ControllerTM software for Windows
- PoE
- Dual Band/Two Stream
- Leader in Price/Performance Band Steering
|
Standard |
Environment & Mechanical |
|
|
IEEE 802.11a/b/g/n |
Temperature Range |
|
|
Operating: 32 to 122°F / 0 to 50°C Storage: -4to140°F/-20to60°C |
||
|
Antenna |
||
|
External/detachable 5 dBi Omni-directional Antennas |
Humidity (non-condensing) |
|
|
Operating: 90% or less Storage: 90% or less |
||
|
Physical Interface |
||
|
1 x 10/100/1000 Gigabit Ethernet Port 1 x Reset Button |
Weights & Measures |
|
|
1 x Power Connector |
Width: 5.5” Length: 7.3” Height: 1.14” |
|
|
1 x Power Switch |
Packaging |
|
|
LED Indicator |
Width: 2.8” Length: 12.2” Height: 9.2” |
|
|
Power |
||
|
WPS |
Package Contents |
|
|
ECB600 Access Point |
||
|
WLAN (Wireless Connection) LAN |
Power Adapter |
|
|
Power Requirements |
RJ-45 Ethernet Cable |
|
|
External Power Adapter DC IN, 12V / 2A |
CD with User Manual and EZ Controller Quick Installation Guide |
|
|
Wall Mount Screw kit |
||
|
Wireless Functional List |
2.4 GHz Detachable Antenna x2 |
|
|
Operation Modes |
5 GHz Detachable Antenna x2 |
|
|
Access Point / Client Bridge / WDS / Repeater |
||
|
WDS Detail |
||
|
WDS AP WDS bridge WDS station |
||
|
Security |
||
|
WEP (64/128bit) |
LED Indicators |
|
|
WPA/WPA2 (TKIP/AES) |
||
|
Hidden ESSID |
||
|
MAC address filtering, up to 50 field |
||
|
L2 Isolation |
||
|
802.1x Authenticator (MD5/TLS/TTLS/PEAP) |
||
|
QoS (Quality of Service) |
||
|
WMM (Wireless Multimedia) |
Po |
werConnector Reset Button LAN Port |
