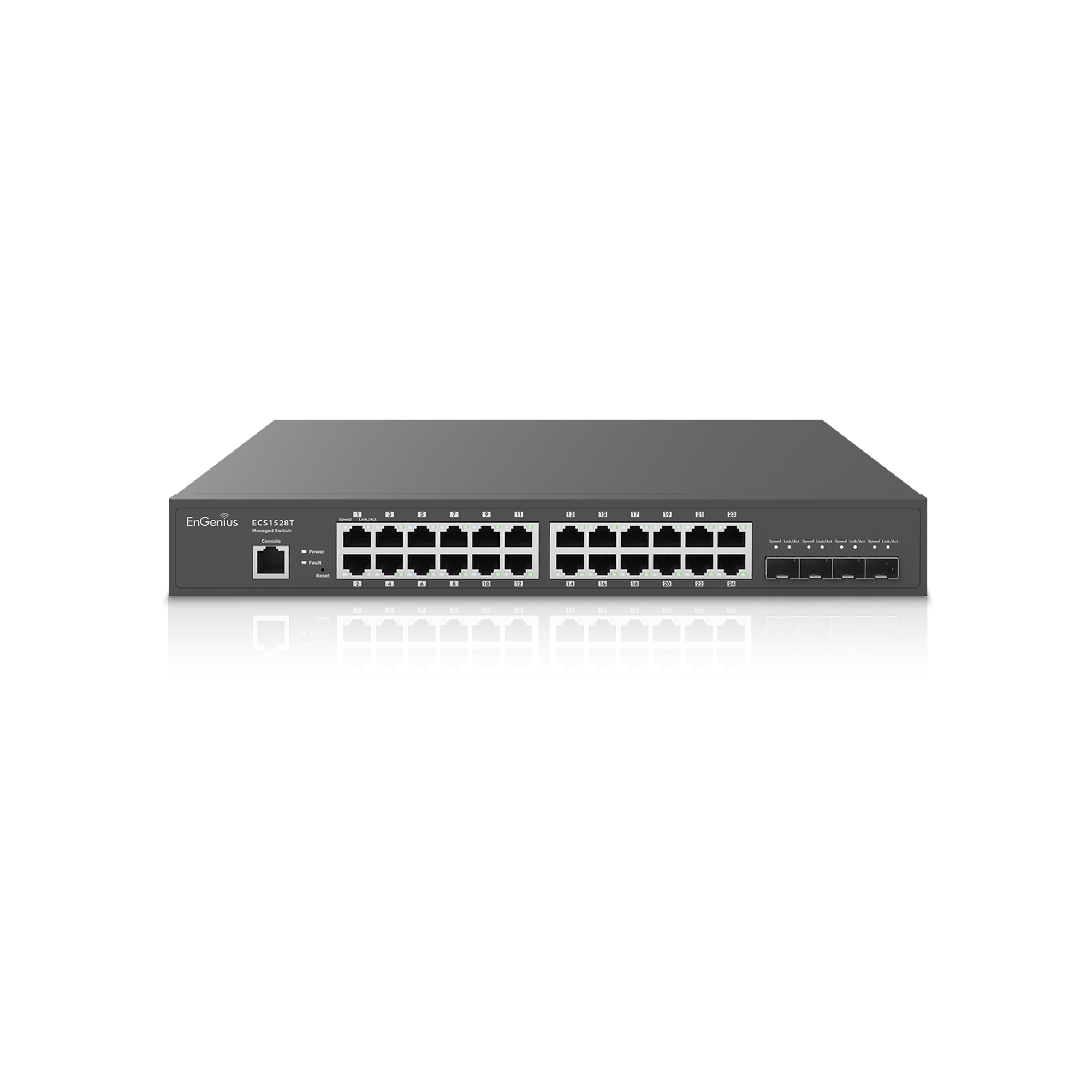

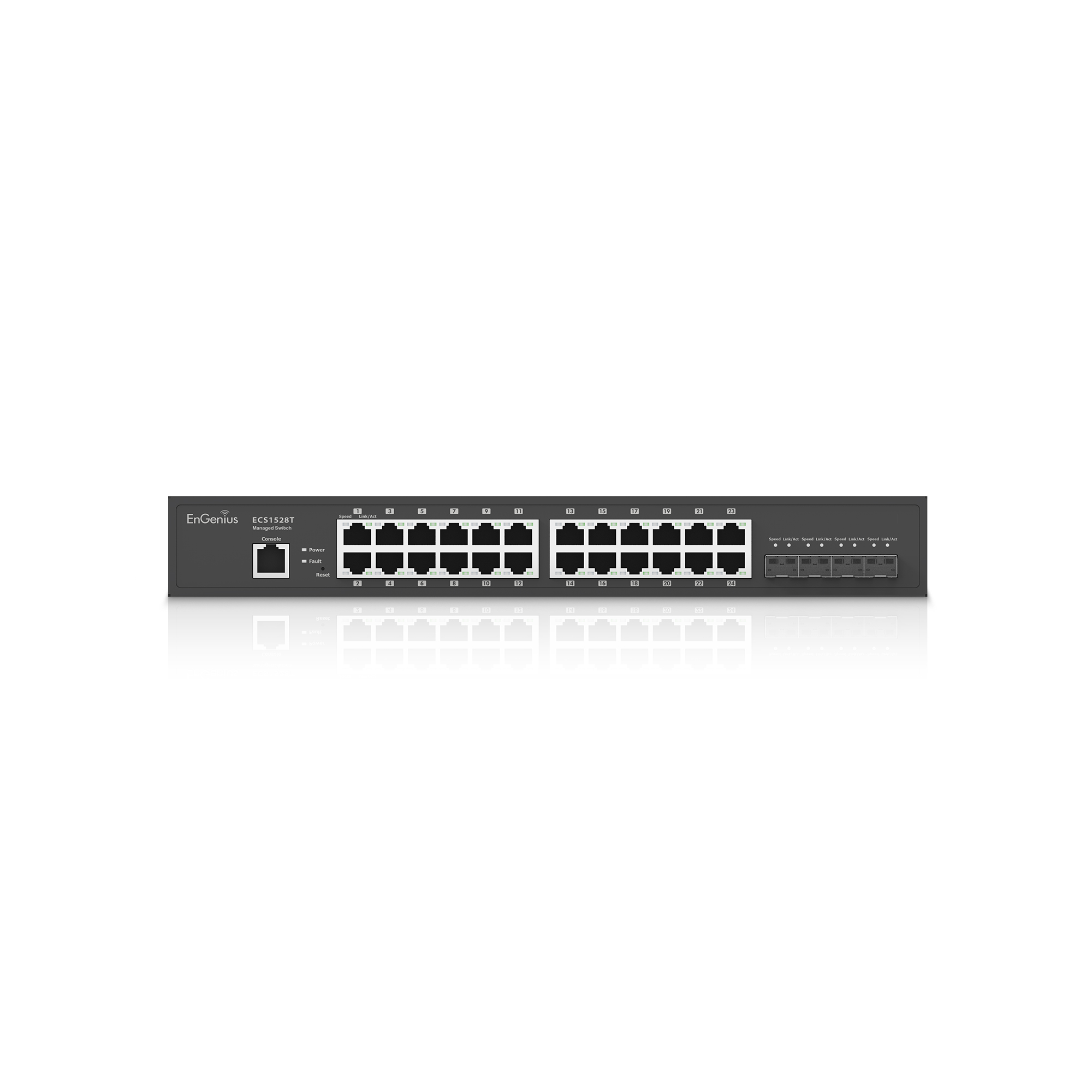

EnGenius - ECS1528T - 24-Port Cloud Managed 13” Compact Gigabit Switch w/ 4 SFP+
Part number:
ECS1528T
Price:
The EnGenius cloud-managed ECS1528T 24-port 13” 1U rackmount compact gigabit layer 2+ switch with 4 SFP+ uplink ports and multiple management options for large businesses to easily configure, monitor, and manage. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget.
Features:
- 24 10/100/1000 Base-T GbE Ports
- Full-Featured Layer 2+ Switching
- 13” 1U rackmount compact design
- 128 Gbps Switching capacity
- 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
- Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations
- Quick-Scan Device Register, Remote Monitoring and Troubleshooting
- Advanced View Displays Network Topology with Devices and Relationships
- Hybrid Switch Supports Multiple Management Options
- Security - Access Control List/Port Security; 802.1X & RADIUS Authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency
- 802.3ad Link Aggregation (LACP) Supports Traffic Load Balancing
- Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)
- Voice VLAN for fast, reliable deployment of VoIP services
| Technical Specifications |
| Port Standards |
| 802.3 10Base-T Ethernet |
| 802.3u 100Base-TX Ethernet |
| 802.3ab 1000Base-T Ethernet |
| 802.3bz 2.5G Base-T Ethernet |
| 802.3x Full-Duplex Flow Control |
| Network Ports |
| 24 10/100/1000 Mbps Ports |
| 4 SFP+ Ports |
| Switching Capacity |
| 128Gbps |
| SDRAM |
| 512MB |
| Flash Memory |
| 128MB |

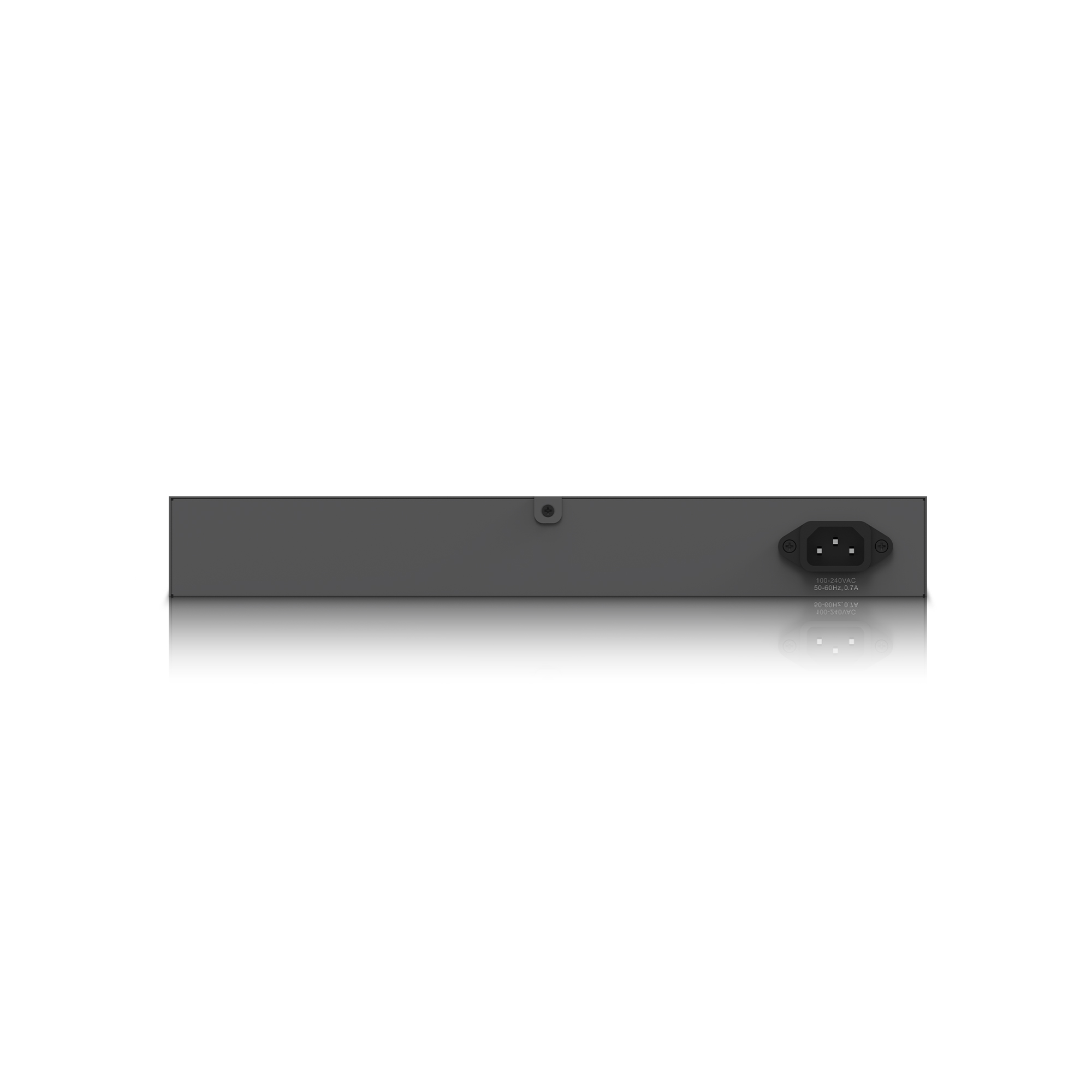

| Power Source |
| 100 ~ 240VAC, 50-60Hz |
| Physical Interface |
| LED Indicators |
| Power LED |
| Fault LED |
| Ports |
| Link/Activity/Speed (per Ethernet port) |
| Link/Activity/Speed (per SFP slot) |
| Software Features (L3 Features) |
| Multiple IP Interface |
| 20 IPv6 address |
| ARP Table |
| Max. 192 ARP entries |
| Static ARP |
| Static 192 ARP entries |
| IPv4 Static Route |
| Max. 63 entries |
| IPv6 Static Route |
| Max. 21 entries |
| Software Features (L2 Features) |
| Network Management |
| EnGenius Cloud |
| Local Web GUI |
| MAC Address Table |
| 16K |
| Jumbo Frame |
| 9K |
| Multicast Group |
| Max 256 groups |
| MLD Snooping |
| MLD Snooping: v1 |
| QoS-Number of Priority Queues Supported |
| Queue 8 |
| Trust Mode |
| Cos/802.1p |
| DSCP |
| CoS/802.1p-DSCP |
| Scheduling Mechanism |
| Strict / WRR/ Strict + WRR |
| Bandwidth Control |
| Port-based bandwidth control (Ingress/Egress) |
| Port Security |
| Max. 256 Entries |
| Access Control List (ACL) |
| MAC Based ACL |
| IPv4/IPv6 Based ACL |
| ACL Binding |
| Time base ACL |
| Web Graphical User Interface (GUI) |
| HTTP IPv4 / IPv6 |
| HTTPS IPv4 / IPv6 |
| SSL Certificate |
| Certificate/Key Import |
| SNMP |
| SNMP v1/v2c/v3 Support |
| RMON |
| RMON 1,2,3,9 |
| System Time |
| Time Setting/Daylight saving |
| Common L2 Features |
| 802.1d Spanning tree |
| Loopback Detection |
| Multicast Filtering |
| IGMP Multicast Forwarding |
| IGMP Snooping |
| MLD Multicast Forwarding |
| 802.1Q VLAN tagging |
| 802.3x flow control |
| 802.3ad Link Aggregation |
| IPv4 DHCP Relay |
| IPv4 DHCP Snooping |
| IPv4 DHCP Snooping Source MAC Address Check-up |
| ARP Inspection |
| ARP Packet Validation (additional validation checks) |
| Voice VLAN |
| Port-based VLAN |
| Protocol-Based VLAN |
| CoS Mapping |
| 802. 1X Radius Authentication Protocol |
| IPv4 Settings |
| IPv6 Settings |
| IEEE 802. 3az Energy Efficient Ethernet (EEE) |
| Command Line Interface (CLI) |
| SSH Server |
| Telnet Server |
| TFTP Client |
| Configuration Upgrade/Backup |
| Simple Network Time Protocol (SNTP) |
| SYSLOG |
| 802.1d Spanning tree |
| Environmental & Physical |
| Temperature Range |
| Operating: 32°F to 122°F (0°C to 50°C) |
| Humidity (Non-Condensing) |
| Operating: 5% - 95% |
| Package Contents |
| 1 x Cloud Managed Gigabit Switch |
| 1 x Quick Installation Guide |
| 1 x Power Cord |
| 1 x RJ45 Console Cable |
| 1 x Rack Mount Kit |
| Dimensions & Weights |
| ECS1528T Device: |
| Weight: 5.07 lbs. (2.3 kg) |
| Width: 9.06” (230 mm) |
| Length: 12.99” (330 mm) |
| Height 1.73” (44 mm) |
| Packaging |
| Weight: 6.68 lbs. (3.03 kg) |
| Width: 12.05” (306 mm) |
| Length: 15.39” (391 mm) |
| Height: 3.98” (101 mm) |
| Warranty |
| 2 years |
| Certifications |
| CE |
| FCC |
| IC |
