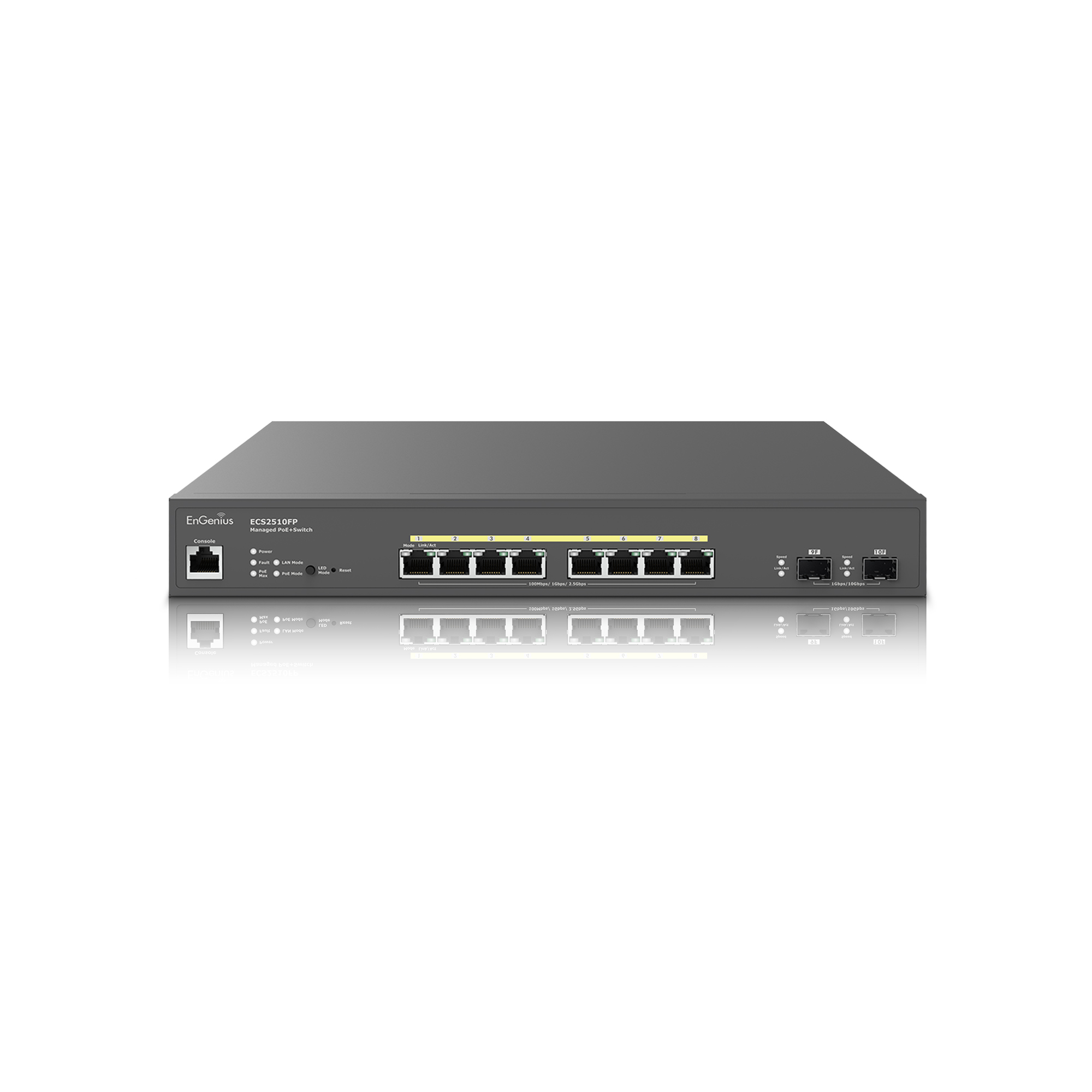

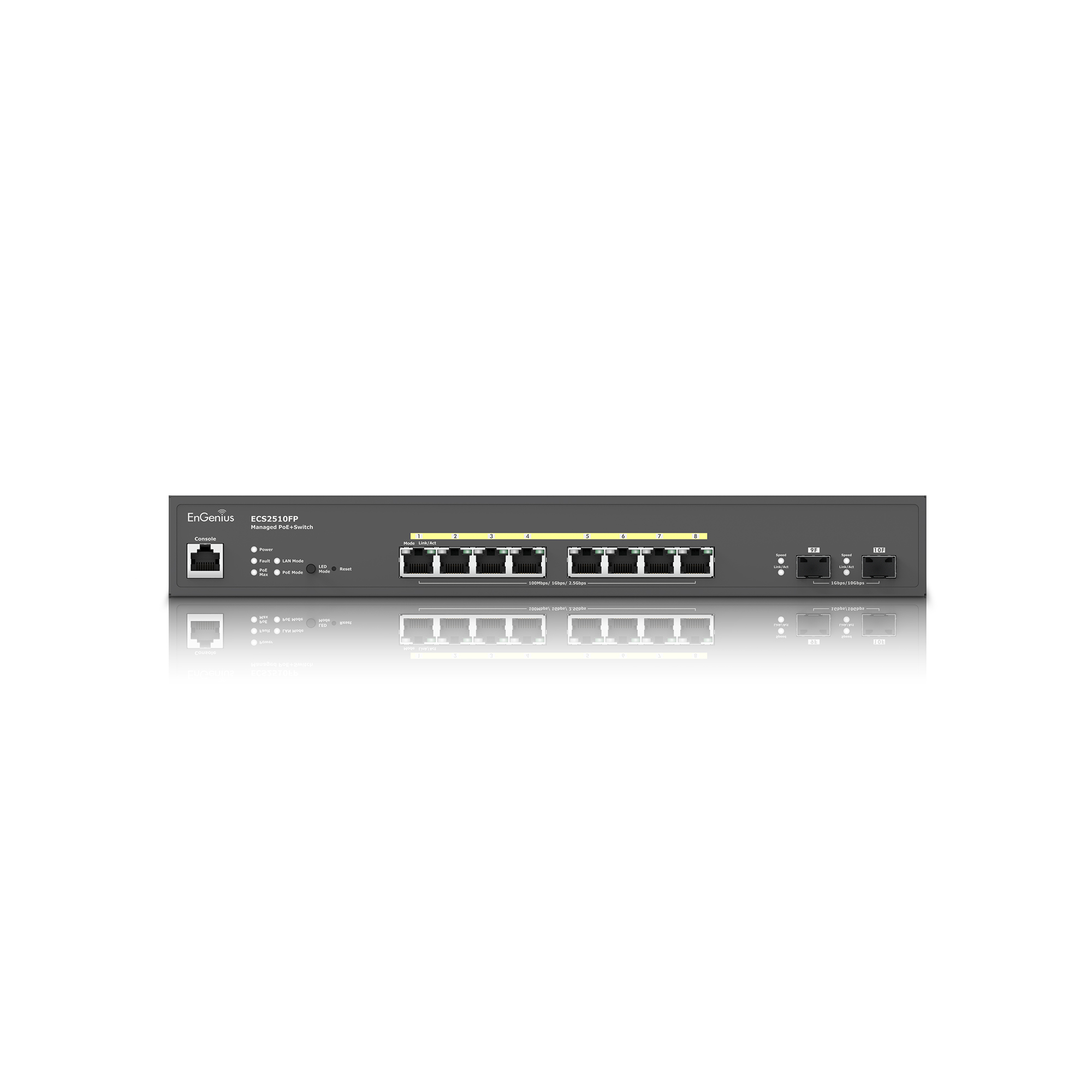

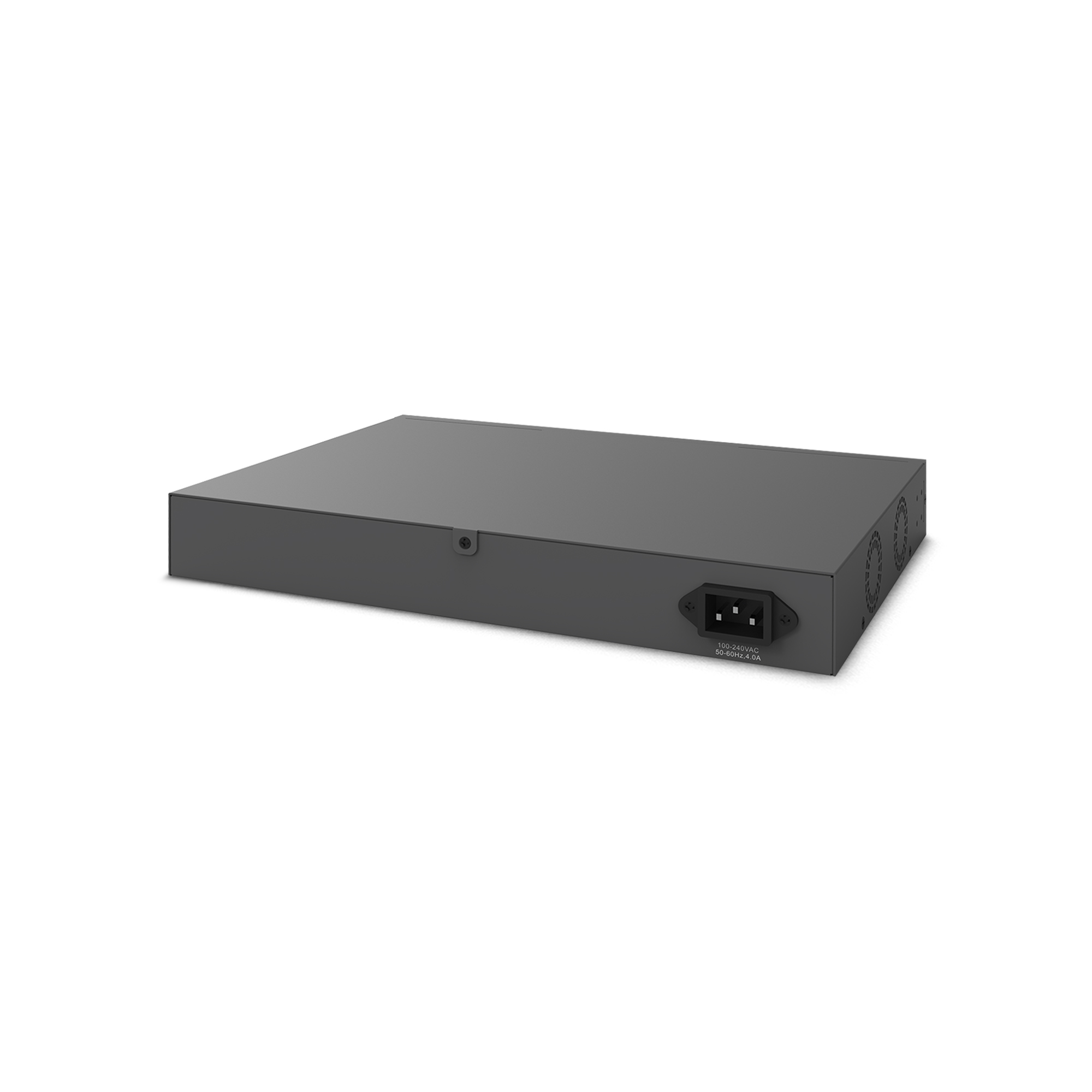

EnGenius - ECS2510FP - 8-Port Cloud Managed Multi-Gigabit L2+ PoE+ Switch with 240W & 2 SFP+ Uplink Ports
Part number:
ECS2510FP
Price:
The EnGenius cloud-managed ECS2510FP 8-port multi-gigabit (2.5G) layer 2+ PoE+ (802.3at/af) switch with 240W budget and 2 SFP+ (10G) uplink ports offering multiple management options and can easily be configured, monitored, and managed. The ECS2510FP is ideal for powering IP cameras, VoIP phones, and access points in large businesses.
Features:
- 8 10/100/1000/2500 Base-T GbE ports
- Full-featured Layer 2+ switching
- 802.3af/at PoE+ capable on all ports with a 240W PoE budget
- 120 Gbps switching capacity
- 2 10-gigabit dual-speed SFP+ (fiber) uplink ports
- Real-Time system metrics, deep-dive analytics, and remote configurations
- Quick-scan device register, remote monitoring, and troubleshooting
- Advanced view displays network topology with devices and relationships
- Hybrid switch supports multiple management options
- Security - Access control list/port security; 802.1X & RADIUS authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency
- 802.3ad link aggregation (LACP) supports traffic load balancing
- Spanning tree (STP), rapid spanning tree (RSTP) & multiple spanning tree (MSTP)
- Voice VLAN for fast, reliable deployment of VoIP services
| Technical Specifications |
| Port Standards |
| 802.3 10Base-T Ethernet |
| 802.3u 100Base-TX Ethernet |
| 802.3ab 1000Base-T Ethernet |
| 802.3bz 2.5G Base-T Ethernet |
| 802.3x Full-Duplex Flow Control |
| Network Ports |
| 8 10/100/1000/2500 Mbps Ports |
| 2 SFP+ Ports |
| Switching Capacity |
| 120Gbps |
| SDRAM |
| 512MB |
| Flash Memory |
| 128MB |
| PoE+ Capable Ports |
| 1-8 (802.3 af/at) |
| Total PoE Budget |
| 240W |
| Power Source |
| 100 ~ 240VAC, 50-60Hz |
| Physical Interface |
| LED Indicators |
| Power LED |
| Fault LED |
| PoE Max LED |
| LAN Mode LED |
| PoE Mode LED |
| Ports |
| Link/Activity/Speed (per Ethernet port) |
| Link/Activity/Speed (per SFP slot) |
| Software Features (L3 Features) |
| Multiple IP Interfaces |
| 20 IPv6 address |
| ARP Table |
| Max. 192 ARP entries |
| Static ARP |
| Static 192 ARP entries |
| IPv4 Static Route |
| Max. 63 entries |
| IPv6 Static Route |
| Max. 21 entries |
| Software Features (L2 Features) |
| Network Management |
| EnGenius Cloud |
| Local Web GUI |
| MAC Address Table |
| 16K |
| Jumbo Frame |
| 9K |
| Multicast Group |
| Max 256 groups |
| MLD Snooping |
| MLD Snooping: v1 |
| QoS-Number of Priority Queues Supported |
| Queue 8 |
| Trust Mode |
| Cos/802.1p |
| DSCP |
| CoS/802.1p-DSCP |
| Scheduling Mechanism |
| Strict / WRR/ Strict + WRR |
| Bandwidth Control |
| Port-based bandwidth control (Ingress/Egress) |
| Port Security |
| Max. 256 Entries |
| Access Control List (ACL) |
| MAC Based ACL |
| IPv4/IPv6 Based ACL |
| ACL Binding |
| Time base ACL |
| Web Graphical User Interface (GUI) |
| HTTP IPv4 / IPv6 |
| HTTPS IPv4 / IPv6 |
| SSL Certificate |
| Certificate/Key Import |
| SNMP |
| SNMP v1/v2c/v3 Support |
| RMON |
| RMON 1,2,3,9 |
| System Time |
| Time Setting/Daylight saving |
| Common L2 Features |
| 802.1d Spanning tree |
| Loopback Detection |
| Multicast Filtering |
| IGMP Multicast Forwarding |
| IGMP Snooping |
| MLD Multicast Forwarding |
| 802.1Q VLAN tagging |
| 802.3x flow control |
| 802.3ad Link Aggregation |
| IPv4 DHCP Relay |
| IPv4 DHCP Snooping |
| IPv4 DHCP Snooping Source MAC Address Check-up |
| ARP Inspection |
| ARP Packet Validation (additional validation checks) |
| Voice VLAN |
| Port-based VLAN |
| Protocol-Based VLAN |
| CoS Mapping |
| 802. 1X Radius Authentication Protocol |
| IPv4 Settings |
| IPv6 Settings |
| IEEE 802. 3az Energy Efficient Ethernet (EEE) |
| Command Line Interface (CLI) |
| SSH Server |
| Telnet Server |
| TFTP Client |
| Configuration Upgrade/Backup |
| Simple Network Time Protocol (SNTP) |
| SYSLOG |
| 802.1d Spanning tree |
| Environmental & Physical |
| Temperature Range |
| Operating: 32°F to 122°F (0°C to 50°C) |
| Humidity (Non-Condensing) |
| Operating: 5% - 95% |
| Package Contents |
| 1x Cloud Managed Gigabit Switch |
| 1x Quick Installation Guide |
| 1x Power Cord |
| 1x RJ45 Console Cable |
| 1x Rack Mount Kit |
| Dimensions & Weights |
| ECS2510FP Device: |
| Weight: 5.7 lbs. (2.6 kg) |
| Width: 12.99” (330 mm) |
| Length: 9.05” (230 mm) |
| Height: 1.73” (44 mm) |
| Packaging |
| Weight: 7.4 lbs. (3.37 kg) |
| Width: 15.6” (394 mm) |
| Length: 12.2” (309 mm) |
| Height: 4” (104 mm) |
| Warranty |
| 2 years |
| Certifications |
| CE |
| FCC |
| IC |
