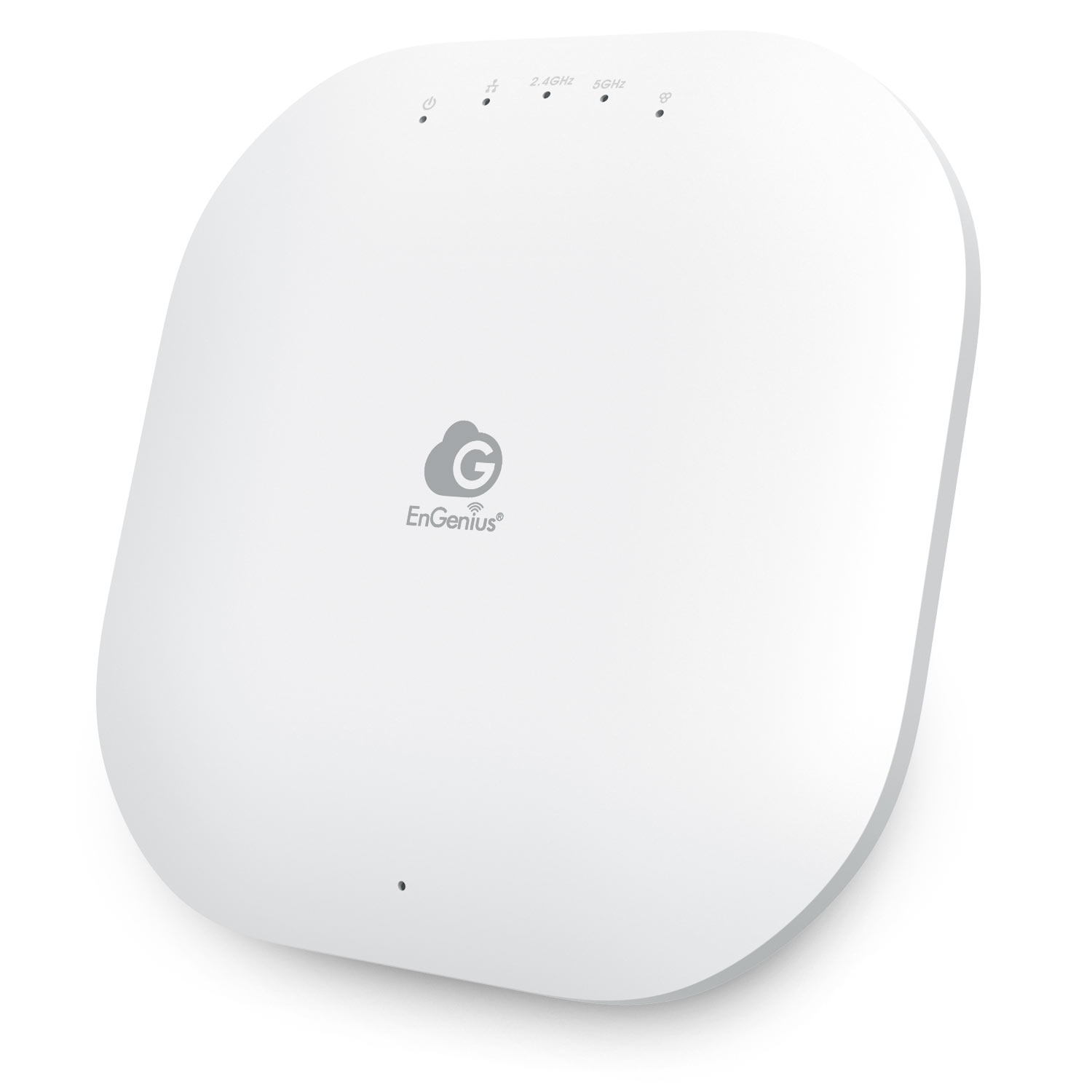

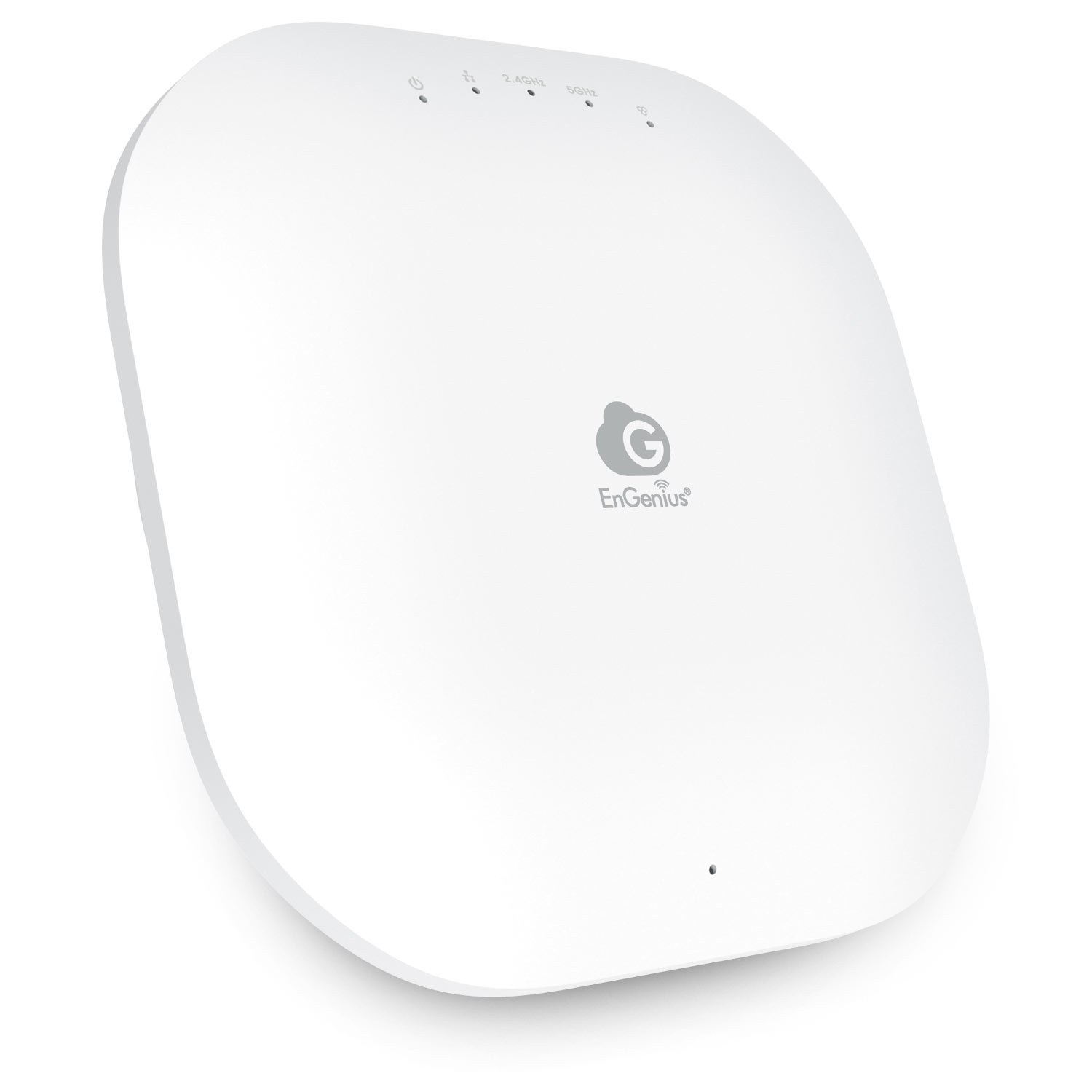

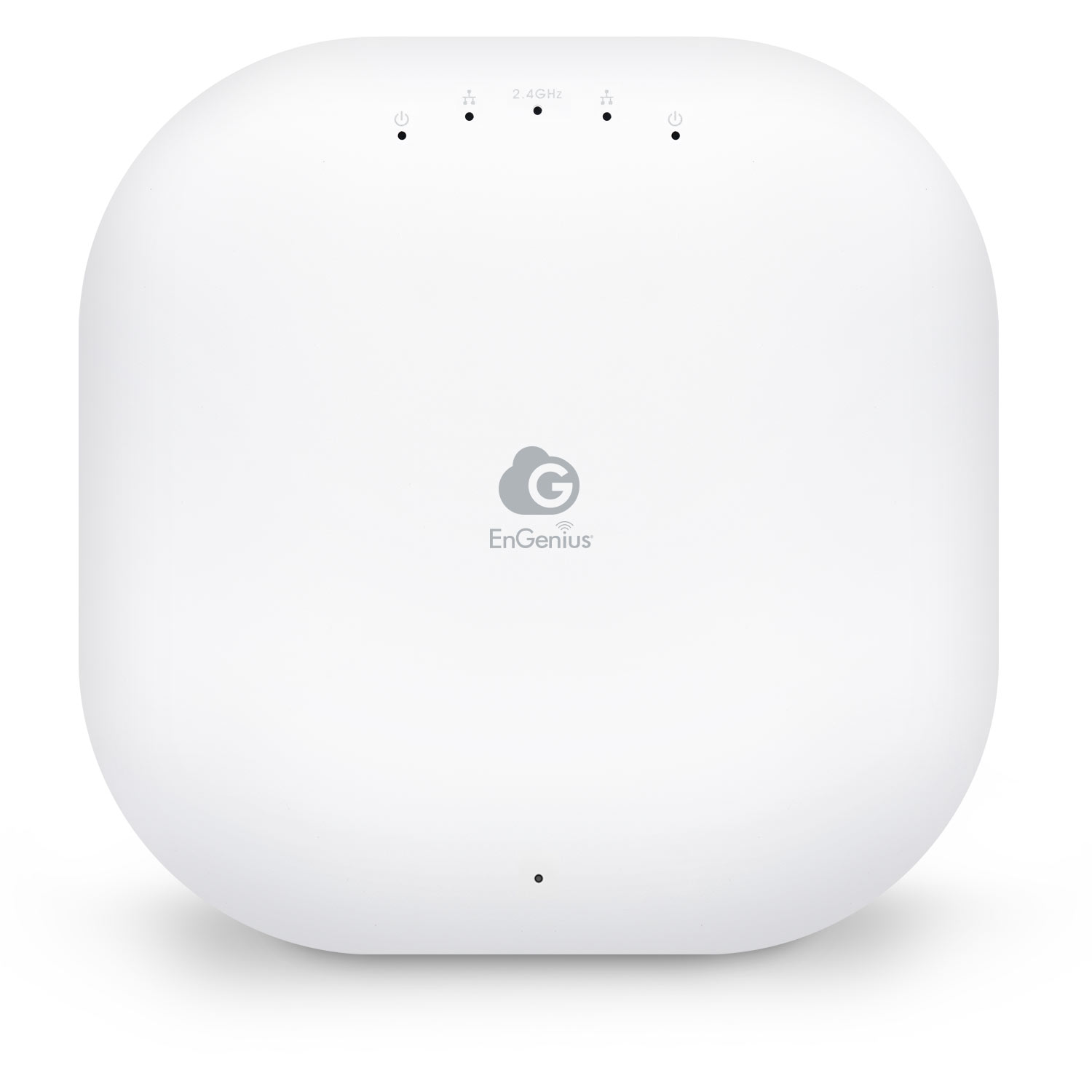

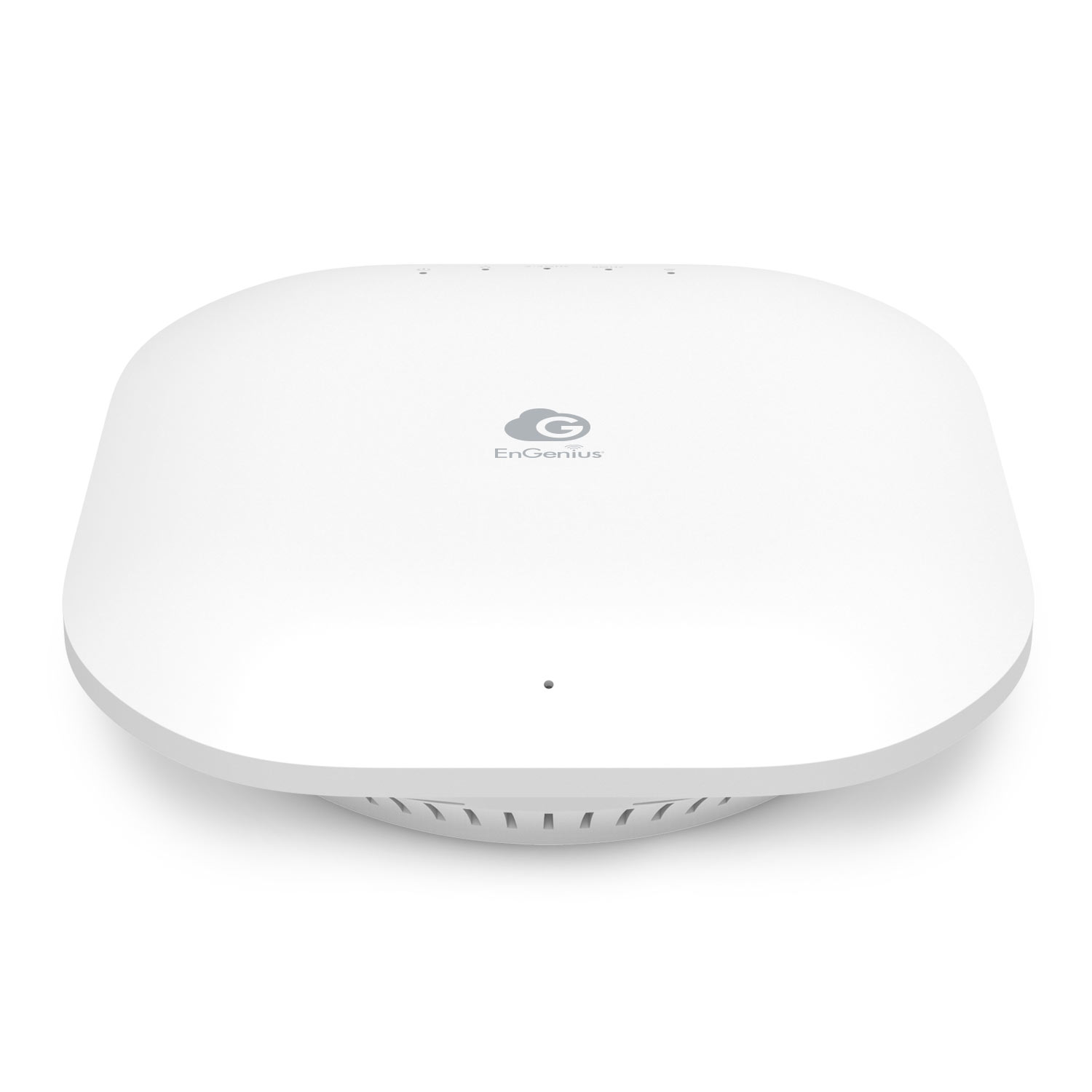

EnGenius - ECW120 - Wi-Fi 5 (802.11ac Wave 2), 2x2:2, Cloud Managed Ceiling-mount AP
Part number:
ECW120
Price:
EnGenius Cloud Managed ECW120 Wave 2 WiFi 5 Indoor Access Point delivers 1.3 Gbps speeds and higher user capacity. It supercharges performance up to 30% faster than legacy 11ac Wave 1 APs. This dual-band AP with MU-MIMO and Beamforming features meshing, supports PoE, and improves connection reliability for business-class Wi-Fi.
Features:
- Dual-radio 2x2 802.11ac/a/b/g/n with MU-MIMO & Beamforming technology
- Supports up-to 867 Mbps in 5-GHz band & 400 Mbps in 2.4-GHz band
- Compliance with 802.3af & 48V PoE input for flexible installation up-to 328 feet
- Quick-Scan Device Register & Configuration and Remote Monitoring & Troubleshooting
- Cloud Manage unlimited number of AP’s from Anywhere with the EnGenius Cloud App
| Technical Specifications |
| Standards |
| IEEE 802.11b/g/n on 2.4 GHz |
| IEEE 802.11a/n/ac Wave 2 on 5 GHz |
| Processor |
| Qualcomm® 717 MHz Quad-Core CPU |
| ARM Cortex A7 |
| Antenna |
| 2 x 2.4 GHz: 5 dBi |
| 2 x 5 GHz: 5 dBi |
| Integrated Omni-Directional Antenna |

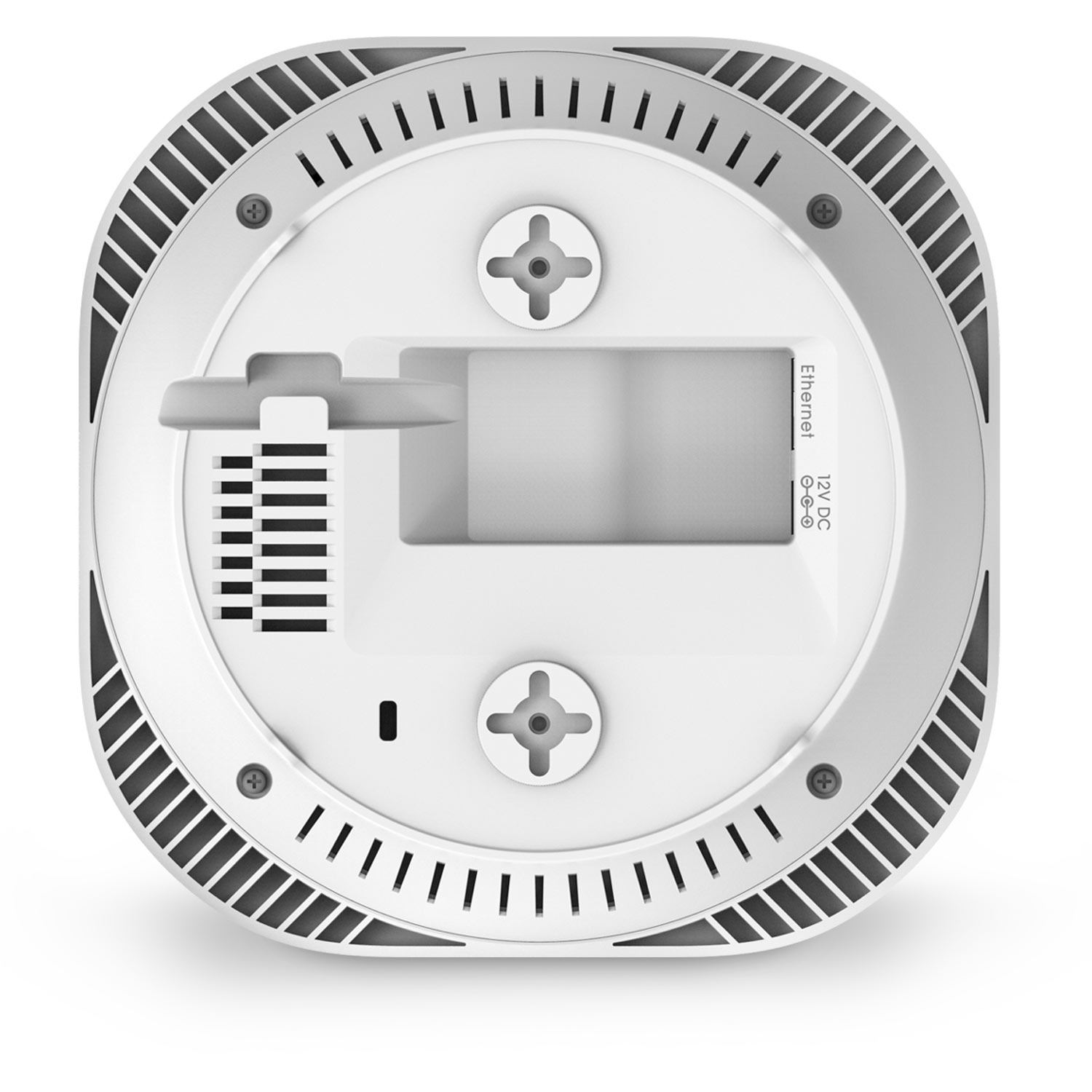

| Physical Interface |
| 1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port |
| 1x DC Jack |
| 1 x Reset Button |
| LED Indicators |
| 1 x Power |
| 1 x LAN |
| 1 x 2.4 GHz |
| 1 x 5 GHz |
| 1 x MESH |
| Power Source |
| Power-over-Ethernet: 802.3af Input |
| IEEE 802.11e Compliant Source |
| 12VDC /1A |
| Maximum Power Consumption |
| 12W |
| Surge Protection |
| 0.5KV |
| Wireless & Radio Specifications |
| Operating Frequency |
| Dual-Radio Concurrent 2.4 GHz & 5 GHz |
| Operation Modes |
| AP, Mesh |
| Frequency Radio |
| 2.4 GHz: 2400 MHz ~ 2482 MHz |
| 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz |
| Transmit Power |
| Up to 23 dBm on 2.4 GHz |
| Up to 23 dBm on 5 GHz |
| Tx Beamforming (TxBF) |
| Radio Chains/Spatial Stream |
| 2x2:2 |
| SU-MIMO |
| Two (2) spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate with VHT40 bandwidth to a 2x2 wireless device under the 2.4GHz radio. |
| Two (2) spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate with VHT80 to a 2x2 wireless device under the 5GHz radio. |
| MU-MIMO |
| Two (2) Spatial Stream MU-MIMO up to 867 Mbps to two (2) 1x1 wireless devices simultaneously |
| Supported Data Rates (Mbps): |
| 2.4 GHz: Max 400 |
| 5 GHz: Max 867 |
| 802.11b: 1, 2, 5.5, 11 |
| 802.11a/g: 6, 9, 12, 18, 36, 48, 54 |
| 802.11n: 6.5 to 400 Mbps (MCS0 to MCS15) (Additional 25% bandwidth when enabling 256-QAM under HT40) |
| 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2) |
| Supported Radio Technologies |
| 802.11b: Direct-Sequence Spread Spectrum (DSSS) |
| 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) |
| 802.11n/ac: 2x2 MIMO with 2 Streams |
| Channelization |
| 802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz |
| 802.11n Supports High Throughput (HT)—HT 20/40 MHz |
| 802.11n Supports Very High Throughput (VHT) Under the 2.4 GHz Radio—VHT 40 MHz (256-QAM) |
| 802.11n/ac Packet Aggregation: AMPDU, ASPDU |
| Supported Modulation |
| 802.11b: BPSK, QPSK, CCK |
| 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM |
| 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| Management |
| Multiple BSSID |
| 8 SSIDs for both 2.4GHz and 5GHz radios |
| VLAN Tagging |
| Supports 802.1q SSID-to-VLAN Tagging |
| Cross-Band VLAN Pass-Through |
| Management VLAN |
| Spanning Tree |
| Supports 802.1d Spanning Tree Protocol |
| QoS (Quality of Service) |
| Compliant With IEEE 802.11e Standard |
| WMM |
| SNMP |
| v1, v2c, v3 |
| MIB |
| I/II, Private MIB |
| Wireless Security |
| WEP Encryption 64/128/152 bit |
| WPA/WPA2 Enterprise (WPA-EAP Using TKIP or AES) |
| Hide SSID in Beacons |
| MAC Address Filtering, Up to 32 MACs per SSID |
| Wireless STA (Client) Connected List |
| SSH Tunnel |
| Client Isolation |
| Environmental & Physical |
| Temperature Range |
| Operating: 32ºF~104ºF (0 ºC~40 ºC) |
| Storage: -40 ºF~176 ºF (-40 ºC~80 ºC) |
| Humidity (non-condensing) |
| Operating: 90% or less |
| Storage: 90% or less |
| Device Dimensions & Weights |
| ECW120 Device |
| Weight: 0.80 lbs. (362.8 g) |
| Diameter: 6.36" (161.5 mm) |
| Height: 1.64" (41.5 mm) |
| Packaging |
| Weight: 1.42 lbs. (644.1g) |
| Length: 12" (304.8 mm) |
| Width: 9" (228.6 mm) |
| Height: 3" (76.2 mm) |
| Warranty |
| 2 Year |
| Certifications |
| CE |
| FCC |
| IC |
