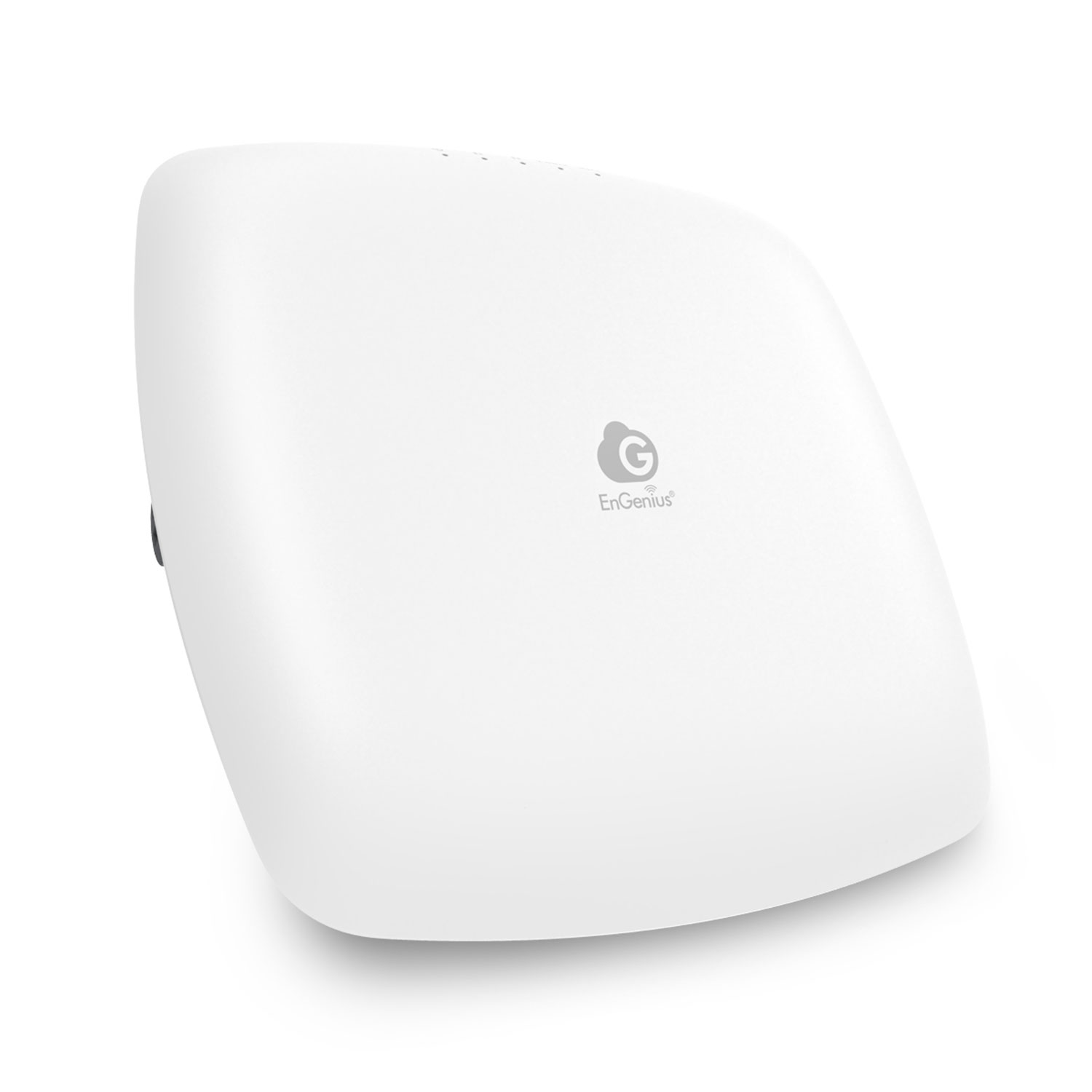

EnGenius - ECW130 - Wi-Fi 5 (802.11ac Wave 2), 4x4:4, Cloud Managed Ceiling-mount AP
Part number:
ECW130
Price:
EnGenius Cloud Managed ECW130 indoor WiFi 5, 4x4, MU-MIMO access point reaches speeds up-to 1,733 Mbps on 5GHz and 800 Mbps on 2.4GHz band providing business-class Wi-Fi. IT teams can use a single pane of glass to remotely manage, monitor, and troubleshoot this business-class AP to increase uptime, improve client performance, and minimize daily maintenance task.
Features:
- Fast and reliable AP utilizing 4 spatial streams and MU-MIMO for any professional office
- Supports up to 1,733 Mbps in 5-GHz band & 800 Mbps in 2.4-GHz band
- 802.11ac wave 2 compatible with ax/ac/a/b/g/n client devices
- Four (4) 6 dBi 5 GHz and four (4) 4 dBi 2.4 GHz, for 360 degree Wi-Fi coverage
- 1 GigE PoE+ compatible port for easy AP placement
- 1 GigE port for link aggregation to maximize wired speed
- High-powered radios to increase meshing distances on either 2.4 GHz or 5 GHz
- Cloud-manage unlimited number of APs from anywhere with the EnGenius Cloud app
- Real-time AP diagnostics, deep-dive analytics, and remote configurations
- No access point licensing or subscription fees needed
| Technical Specifications |
| Standards |
| IEEE 802.11b/g/n on 2.4GHz |
| IEEE802.11a/n/ac on 5GHz |
| Processor |
| Qualcomm® Quad-Core CPU ARM Cortex A53s @ 2.2GHz |
| Antenna |
| Four (4) Internal 6 dBi 5 GHz Omni-Directional Antennas |
| Four (4) Internal 4 dBi 2.4 GHz Omni-Directional Antennas |

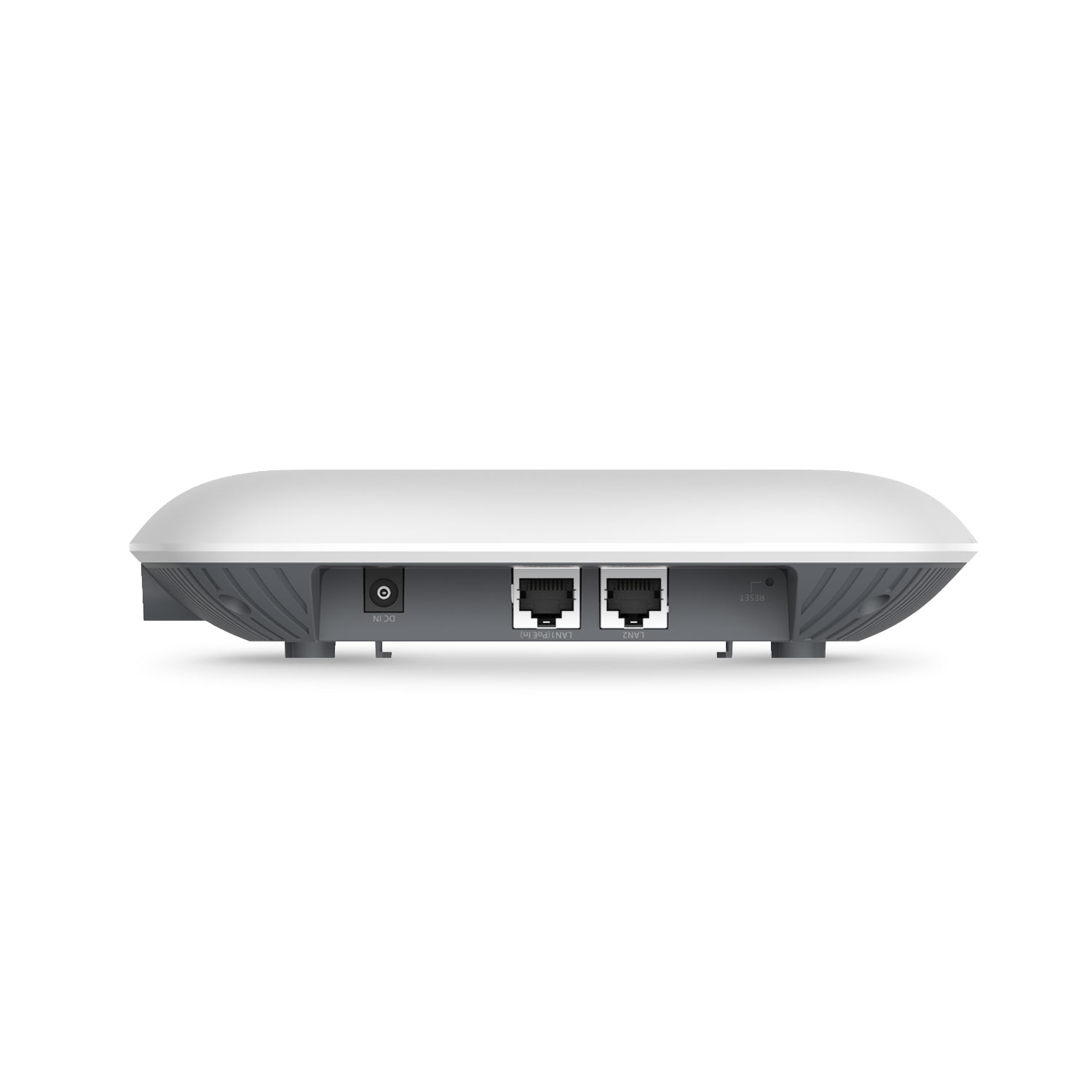

| Physical Interface |
| 1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port (PoE+) |
| 1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port |
| (Link Aggregation achieves 2Gbps Throughput) |
| - LAN1: Supports 802.3at PoE Input |
| - LAN2: Data Pass-Through |
| 1 x Reset Button |
| 1 x Power Connector |

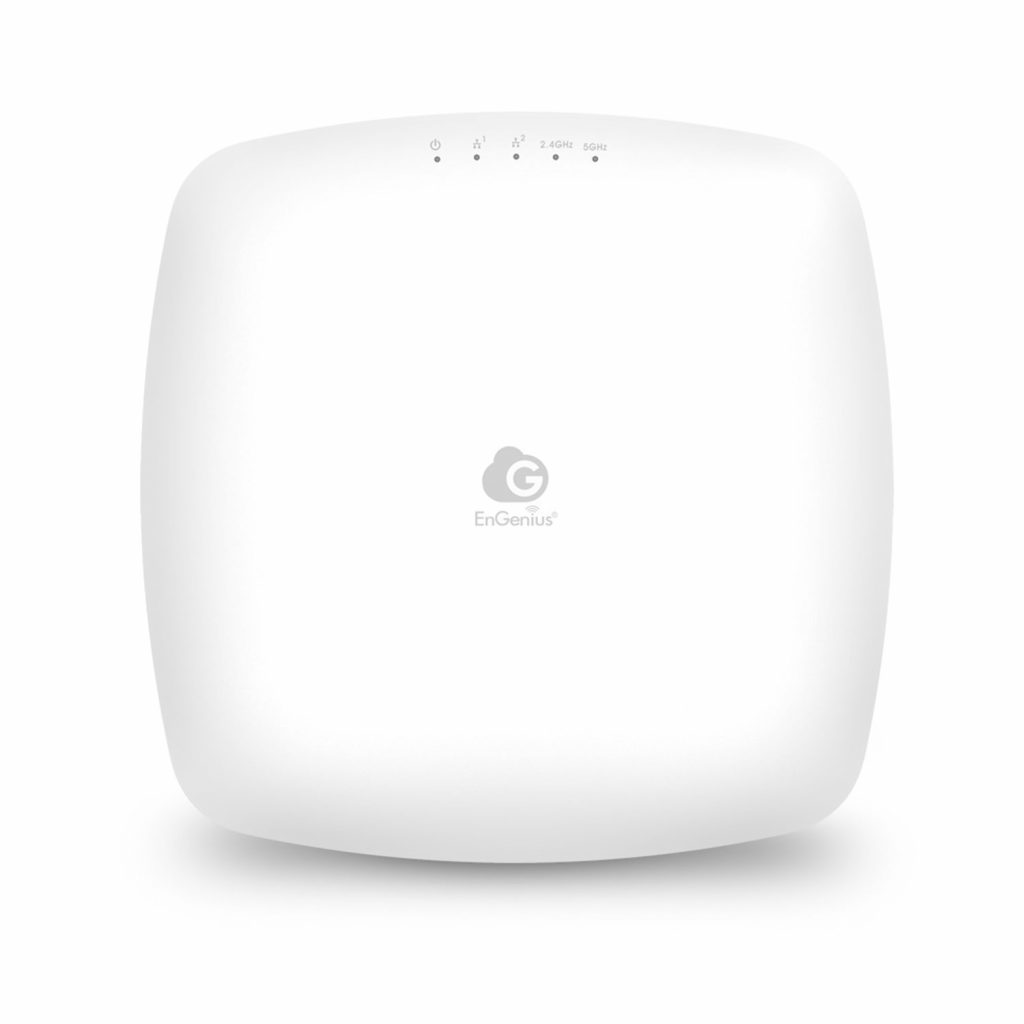

| LED Indicators |
| 1 x Power |
| 1 x LAN |
| 1 x LAN 2 |
| 1 x 2.4 GHz |
| 1 x 5 GHz |
| Power Source |
| Power-over-Ethernet: 802.3at |
| IEEE 802.11e Compliant Source |
| 12VDC /2A Power Adapter (Not Included) |
| Maximum Power Consumption |
| 19.1W |
| Wireless & Radio Specifications |
| Operating Frequency |
| Dual-Radio Concurrent 2.4GHz & 5 GHz |
| Operation Modes |
| AP, Mesh, AP Mesh |
| Frequency Radio |
| 2.4GHz: 2400 MHz ~ 2482 MHz |
| 5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz |
| Transmit Power |
| 2.4GHz: 25 dBm |
| 5GHz: 24 dBm |
| Maximum power is limited by regulatory domain |
| Tx Beamforming (TxBF) |
| Increasing signal reliability and transmitting distance. |
| Radio Chains/Spatial Stream |
| 4x4:4 |
| SU-MIMO |
| Four (4) spatial stream Single User (SU) MIMO for up to 800 Mbps wireless data rate with VHT40 bandwidth to a 4×4 wireless device under the 2.4GHz radio. |
| Four (4) spatial stream Single User (SU) MIMO for up to 1733 Mbps wireless data rate with VHT80 to a 4×4 wireless device under the 5GHz radio. |
| MU-MIMO |
| Four (4) spatial stream MU-MIMO for up to 1733 Mbps wireless data rate with VHT80 to a 4×4 wireless device under the 5GHz radio simultaneously. |
| Supported Data Rates (Mbps): |
| 802.11b: 1, 2, 5.5, 11 |
| 802.11a/g: 6, 9, 12, 18, 36, 48, 54 |
| 802.11n: 6.5 to 800 Mbps (MCS0 to MCS15) (Additional 25% bandwidth when enabling 256-QAM under HT40) |
| 802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 2) |
| Supported Radio Technologies |
| 802.11b: Direct-sequence spread-spectrum (DSSS) |
| 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM) |
| Channelization |
| 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz |
| 802.11n supports high throughput (HT) —HT 20/40 MHz |
| 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) |
| Supported Modulation |
| 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM |
| 802.11b: BPSK, QPSK, CCK |
| Management |
| Multiple BSSID |
| 8 SSIDs for both 2.4GHz and 5GHz radios |
| VLAN Tagging |
| Supports 802.1q SSID-to-VLAN Tagging |
| Cross-band VLAN Pass Through |
| Management VLAN |
| Spanning Tree |
| Supports 802.1d Spanning Tree Protocol |
| QoS (Quality of Service) |
| Complaint With IEEE 802.11e Standard WMM |
| SNMP |
| v1, v2c, v3 |
| MIB |
| I/II, Private MIB |
| Wireless Security |
| WPA3-PSK (SAE) |
| WPA3 Enterprise |
| WPA2 Enterprise (AES) |
| WPA2 AES-PSK |
| OWE |
| Hide SSID in Beacons |
| MAC Address Filtering, up to 32 MACs per SSID |
| Wireless STA (Client) Connected List |
| SSH Tunnel |
| Client Isolation |
| Environmental & Physical |
| Temperature Range |
| Temperature Range |
| Operating: 32°F to 122°F (0°C to 50°C) |
| Storage: -22Fº~176ºF (-30ºC~80ºC) |
| Humidity (non-condensing) |
| Operating: 90% or less |
| Storage: 90% or less |
| Device Dimensions & Weights |
| ECW130 Device |
| Weight: 1.39 lbs. (630g) |
| Width: 8.46” (21.5cm) |
| Length: 8.46” (21.5cm) |
| Height: 2.20” (5.6cm) |
| ECW130 Packaging |
| Weight: 2.25 lbs. (1.02kg) |
| Width: 9.96” (253mm) |
| Length: 9.80” (249mm) |
| Height: 4.21” (107mm) |
| Package Contents |
| 1 – ECW130 Cloud Managed Outdoor Access Point |
| 1 - Ceiling-Mount Brackets |
| 1 - Wall-Mount Screw Set |
| 1 - Quick Installation Guide |
| Certifications |
| FCC |
| CE |
| IC |
| Warranty |
| 2 Year |
Name
Description
Size
Downloads
File
Datasheet
0.6mb
